01.1205 - IP Instrument Panel Cluster Hood

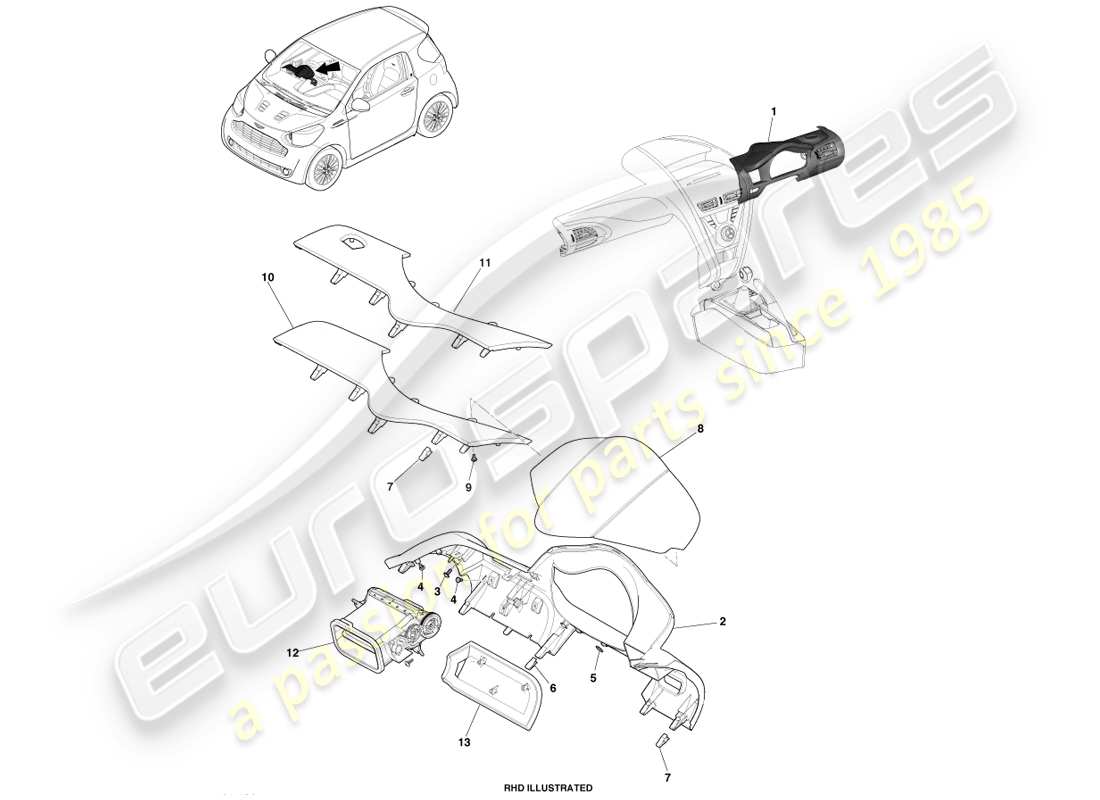

Aston Martin Cygnet (2012) IP Instrument Panel Cluster Hood Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: AY2Y-C044K00-ACW
                            IP ASSY, (DRIVERS) RHD
                            DRIVER IP ASSEMBLY RHD Genuine Aston Martin - New (to order)
                            # 1
                            MPN: AY2Y-C044K00-BCW
                            IP ASSY, (DRIVERS) LHD
                            from £507.63
                            from £507.63
                            DRIVER IP ASSEMBLY LHD Genuine Aston Martin - New (to order)
                            # 2
                            MPN: AY2Y-C04562-AC
                            IP MAIN CARRIER, (DRIVERS) RHD
                            from £3,272.97
                            from £3,272.97
                            DRIVER IP CARRIER RHD Genuine Aston Martin - New (to order)
                            # 2
                            MPN: AY2Y-C04562-BD
                            IP MAIN CARRIER, (DRIVERS) LHD
                            from £3,809.96
                            from £3,809.96
                            DRIVER IP CARRIER-LHD Genuine Aston Martin - New (to order)
                            # 3
                            MPN: 4G43-80899-AA
                            SCREW
                            from £0.47
                            from £0.47
                            SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
                            # 4
                            MPN: 703170
                            SCREW, M4 X 8
                            from £1.27
                            from £1.27
                            SCREW 4X8 PAN T/H Genuine Aston Martin - New (to order)
                            # 6
                            MPN: 90468-05135
                            CLIP, WHITE
                            CLIP, WHITE Genuine Aston Martin - New (to order)
                            # 7
                            MPN: 90467-10203
                            CLIP, YELLOW
                            from £1.21
                            from £1.21
                            PLASTIC CLIP FIXING Genuine Aston Martin - New (to order)
                            # 8
                            MPN: AY2Y-10862-ACW
                            BINNACLE HOOD ASSY, (DRIVERS) RHD
                            from £734.09
                            from £734.09
                            BINNACLE HOOD ASSEMBLY Genuine Aston Martin - New (to order)
                            # 8
                            MPN: AY2Y-10862-BCW
                            BINNACLE HOOD ASSY, (DRIVERS) LHD
                            from £618.25
                            from £618.25
                            BINNACLE HOOD ASSEMBLY Genuine Aston Martin - New (to order)
                            # 9
                            MPN: 701447
                            SCREW, M4 X 8
                            from £0.47
                            from £0.47
                            SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                            # 10
                            MPN: AY2Y-C043C55-CAW
                            IP Upper Substrate Assy, (Drivers) RHD
                            IP UPPER SUBSTRATE ASSEMBLY (DRIVERS) RHD Genuine Aston Martin - New (to order)
                            # 10
                            MPN: AY2Y-C043C55-DAW
                            IP Upper Substrate Assy, (Drivers) LHD
                            IP UPPER SUBSTRATE ASSEMBLY (DRIVERS) LHD Genuine Aston Martin - New (to order)
                            # 11
                            MPN: AY2Y-C043C55-AAW
                            IP UPPER SUBSTRATE ASSY, (DRIVERS) RHD NAV
                            from £398.88
                            from £398.88
                            IP UPPER SUB ASSEMBLY RHD Genuine Aston Martin - New (to order)
                            # 11
                            MPN: AY2Y-C043C55-BAW
                            IP UPPER SUBSTRATE ASSY, (DRIVERS) LHD NAV
                            from £387.28
                            from £387.28
                            IP UPPER SUB ASSEMBLY LHD Genuine Aston Martin - New (to order)
                            # 12
                            MPN: AY2Y-046B30-AA
                            REGISTER ASSY, (DRIVERS) RHD
                            AIR REGISTER ASSEMBLY Genuine Aston Martin - New (to order)
                            # 12
                            MPN: AY2Y-046B30-BA
                            REGISTER ASSY, (DRIVERS) LHD
                            REGISTER ASSEMBLY (DRIVERS) LHD Genuine Aston Martin - New (to order)
                            # 13
                            MPN: AY2Y-C04325-AAW
                            IP SUBSTRATE ASSY, LOWER, (DRIVERS) RHD
                            IP SUBSTRATE ASSEMBLY LOWER, (DRIVERS) RHD Genuine Aston Martin - New (to order)
                            # 13
                            MPN: AY2Y-C04325-BAW
                            IP SUBSTRATE ASSY, LOWER, (DRIVERS) LHD
                            IP SUBSTRATE ASSEMBLY LOWER, (DRIVERS) LHD Genuine Aston Martin - New (to order)
