03.0008 - Crankshaft Component Parts

Aston Martin Cygnet (2012) Crankshaft Component Parts Parts Diagram

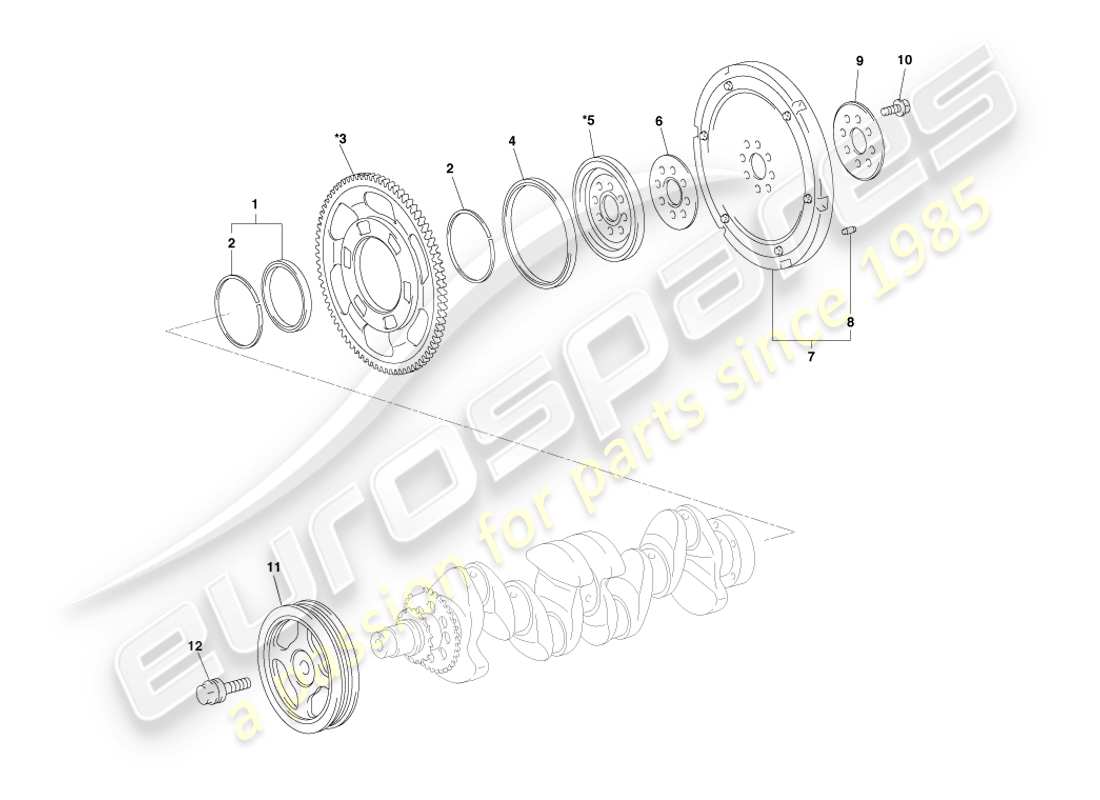

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 90369-78001
                    BEARING, CRANKSHAFT, MAN
                    BEARING(FOR CRANKSHA Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 90520-95001
                    RING, SNAP, RING GEAR, MAN
                    RING Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 13042-47010
                    Gear Sub-Assy, ERS Ring, MAN
                    *09/2010 to 10/2010
                    GEAR SUB-ASSY Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 13042-47011
                    Gear Sub-Assy, ERS Ring, MAN
                    *From 10/2010
                    GEAR SUB-ASSY Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 90311-99011
                    SEAL, TYPE T OIL, MAN
                    from £94.11
                    from £94.11
                    SEAL Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 13420-47010
                    CLUTCH ASSY, ERS 1 WAY, MAN
                    *09/2010 to 12/2010
                    CLUCH ASSEMBLY Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 13420-47011
                    CLUTCH ASSY, ERS 1 WAY, MAN
                    *From 12/2010
                    CLUCH ASSEMBLY Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 32116-74010
                    SPACER FLYWHEEL PLATE, NO.1, MAN
                    SPACER Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 13450-47010
                    FLYWHEEL SUB-ASSY, MAN
                    from £733.78
                    from £733.78
                    FLYWHEEL SUB-ASSY Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 90250-08120
                    PIN, STRAIGHT, FLYWHEEL, MAN
                    from £0.81
                    from £0.81
                    PIN Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 32117-12040
                    SPACER, FLYWHEEL PLATE, NO.2, MAN
                    SPACER Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 90913-01029
                    BOLT, FLYWHEEL SET, MAN
                    Pack of 8
                    from £1.49
                    from £1.49
                    BOLT Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 13470-47060
                    PULLEY, CRANKSHAFT
                    PULLEY Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 90119-12345
                    Bolt, Crankshaft Pulley Set
                    BOLT(FOR CRANKSHAFT Genuine Aston Martin - New (to order)
