aston martin cygnet (2012) cooling pack module page1 parts diagram

03.2201.01 - Cooling Pack Module Page1

Aston Martin Cygnet (2012) Cooling Pack Module Page1 Parts Diagram

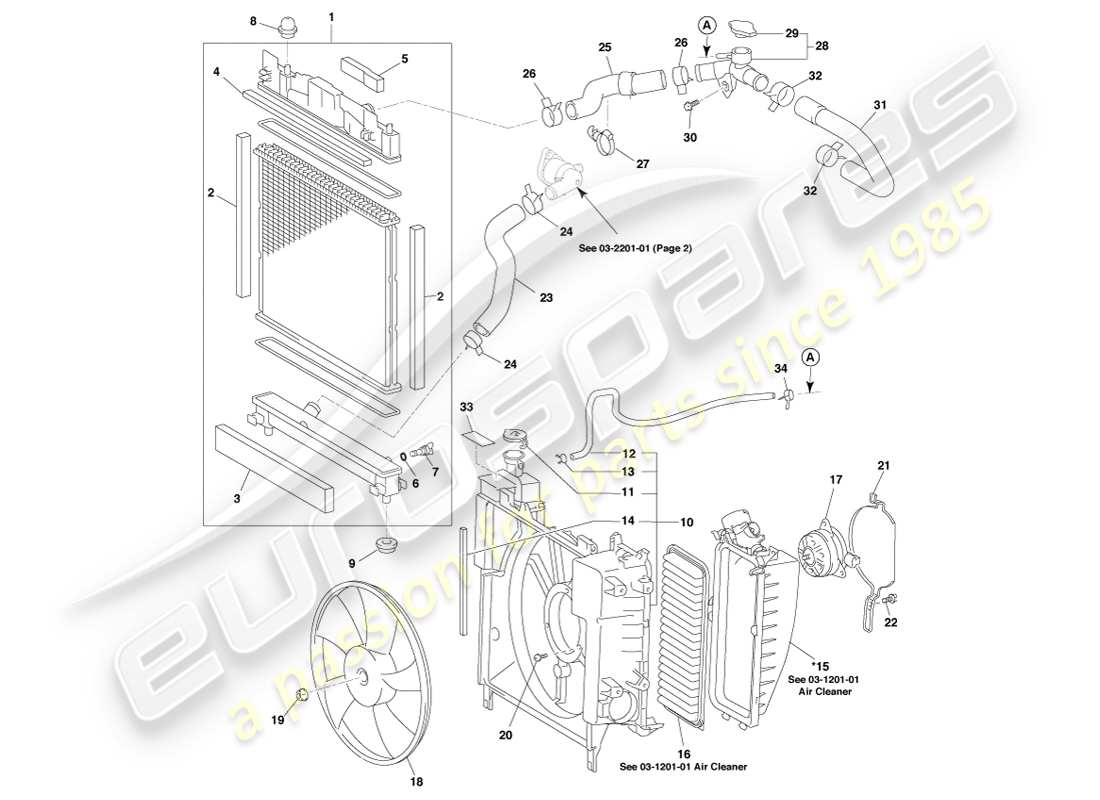

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 1
                                                                    MPN: 16400-40220
                                                                    RADIATOR ASSY
                                                                    from £262.42
                                                                    from £262.42
                                                                    Radiator assembly Genuine Aston Martin - New (to order)
                                                                    # 2
                                                                    MPN: 16561-40020
                                                                    Seal, radiator to Support, NO1
                                                                    SEAL Genuine Aston Martin - New (to order)
                                                                    # 3
                                                                    MPN: 16561-40040
                                                                    Seal, radiator to Support, NO1
                                                                    SEAL Genuine Aston Martin - New (to order)
                                                                    # 4
                                                                    MPN: 16561-40030
                                                                    Seal, radiator to Support, NO1
                                                                    SEAL Genuine Aston Martin - New (to order)
                                                                    # 5
                                                                    MPN: 16561-40050
                                                                    Seal, radiator to Support, NO1
                                                                    SEAL Genuine Aston Martin - New (to order)
                                                                    # 6
                                                                    MPN: 16492-21050
                                                                    Packing, Drain Cock, Radiator
                                                                    PACKING(FOR RADIATOR Genuine Aston Martin - New (to order)
                                                                    # 7
                                                                    MPN: 16417-21280
                                                                    Plug, Radiator Drain Cock
                                                                    PLUG Genuine Aston Martin - New (to order)
                                                                    # 8
                                                                    MPN: 16523-0Q020
                                                                    Cushion, Radiator Support
                                                                    from £2.93
                                                                    from £2.93
                                                                    CUSHION Genuine Aston Martin - New (to order)
                                                                    # 9
                                                                    MPN: 90480-W0005
                                                                    GROMMET
                                                                    from £3.04
                                                                    from £3.04
                                                                    GROMMET Genuine Aston Martin - New (to order)
                                                                    # 10
                                                                    MPN: 16711-40040
                                                                    Shroud, Fan
                                                                    from £87.10
                                                                    from £87.10
                                                                    SHROUD Genuine Aston Martin - New (to order)
                                                                    # 11
                                                                    MPN: 16471-23030
                                                                    CAP SUB-ASSY, RESERVE TANK
                                                                    CAP SUB-ASSY Genuine Aston Martin - New (to order)
                                                                    # 12
                                                                    MPN: 16472-40020
                                                                    HOSE, BREATHER
                                                                    HOSE Genuine Aston Martin - New (to order)
                                                                    # 13
                                                                    MPN: 90467-11085
                                                                    CLAMP OR CLIP, RESERVE TANK HOSE
                                                                    CLAMP OR CLIP(FOR RA Genuine Aston Martin - New (to order)
                                                                    # 14
                                                                    MPN: 16832-40010
                                                                    Seal, Fan Shroud
                                                                    SEAL Genuine Aston Martin - New (to order)
                                                                    # 15
                                                                    MPN: 17705-47110
                                                                    CAP SUB-ASSY, AIR TANK
                                                                    *05/2010 to 03/2011
                                                                    from £123.27
                                                                    from £123.27
                                                                    CAP SUB-ASSY Genuine Aston Martin - New (to order)
                                                                    # 15
                                                                    MPN: 17705-47111
                                                                    CAP SUB-ASSY, AIR TANK
                                                                    *From 04/2011
                                                                    from £290.65
                                                                    from £290.65
                                                                    CAP SUB-ASSY Genuine Aston Martin - New (to order)
                                                                    # 16
                                                                    MPN: 17801-40040
                                                                    ELEMENT SUB-ASSY, AIR CLEANER FILTER
                                                                    from £16.15
                                                                    from £16.15
                                                                    ELEMENT SUB-ASSY Genuine Aston Martin - New (to order)
                                                                    # 17
                                                                    MPN: 16363-40010
                                                                    Motor, Cooling Fan
                                                                    from £319.54
                                                                    from £319.54
                                                                    MOTOR Genuine Aston Martin - New (to order)
                                                                    # 18
                                                                    MPN: 16361-40080
                                                                    FAN
                                                                    from £51.91
                                                                    from £51.91
                                                                    FAN Genuine Aston Martin - New (to order)
                                                                    # 19
                                                                    MPN: 90099-05164
                                                                    NUT
                                                                    from £1.26
                                                                    from £1.26
                                                                    NUT Genuine Aston Martin - New (to order)
                                                                    # 20
                                                                    MPN: 90099-04119
                                                                    BOLT
                                                                    from £0.55
                                                                    from £0.55
                                                                    BOLT Genuine Aston Martin - New (to order)
                                                                    # 21
                                                                    MPN: 16374-47010
                                                                    Insulator, Cooling Fan Motor
                                                                    from £19.17
                                                                    from £19.17
                                                                    INSULATOR Genuine Aston Martin - New (to order)
                                                                    # 22
                                                                    MPN: 90119-06817
                                                                    BOLT, INSULATOR
                                                                    from £1.00
                                                                    from £1.00
                                                                    BOLT Genuine Aston Martin - New (to order)
                                                                    # 23
                                                                    MPN: 16572-47050
                                                                    Hose, Radiator, No.2
                                                                    from £7.88
                                                                    from £7.88
                                                                    HOSE Genuine Aston Martin - New (to order)
                                                                    # 24
                                                                    MPN: 96136-43901
                                                                    CLAMP OR CLIP, HOSE, RADIATOR OUTLET
                                                                    from £4.79
                                                                    from £4.79
                                                                    CLAMP OR CLIP Genuine Aston Martin - New (to order)
                                                                    # 25
                                                                    MPN: 16573-47030
                                                                    Hose, Radiator, No.3
                                                                    from £8.76
                                                                    from £8.76
                                                                    HOSE Genuine Aston Martin - New (to order)
                                                                    # 26
                                                                    MPN: 96136-43901
                                                                    CLAMP OR CLIP, RADIATOR HOSE, NO.3
                                                                    from £4.79
                                                                    from £4.79
                                                                    CLAMP OR CLIP Genuine Aston Martin - New (to order)
                                                                    # 27
                                                                    MPN: 16581-40050
                                                                    CLAMP, HOSE
                                                                    from £4.77
                                                                    from £4.77
                                                                    CLAMP Genuine Aston Martin - New (to order)
                                                                    # 28
                                                                    MPN: 16520-40010
                                                                    FILLER ASSY, WATER
                                                                    from £14.47
                                                                    from £14.47
                                                                    FILLER ASSEMBLY Genuine Aston Martin - New (to order)
                                                                    # 29
                                                                    MPN: 16401-31480
                                                                    CAP SUB-ASSY, WATER FILLER
                                                                    CAP SUB-ASSY Genuine Aston Martin - New (to order)
                                                                    # 30
                                                                    MPN: 91673-80616
                                                                    BOLT, FLANGE W/WASHER
                                                                    from £0.74
                                                                    from £0.74
                                                                    BOLT Genuine Aston Martin - New (to order)
                                                                    # 31
                                                                    MPN: 16571-47060
                                                                    Hose, Radiator no.1
                                                                    from £9.42
                                                                    from £9.42
                                                                    HOSE Genuine Aston Martin - New (to order)
                                                                    # 32
                                                                    MPN: 96136-43901
                                                                    CLAMP OR CLIP, HOSE, RADIATOR INLET
                                                                    from £4.79
                                                                    from £4.79
                                                                    CLAMP OR CLIP Genuine Aston Martin - New (to order)
                                                                    # 33
                                                                    MPN: 88723-20081
                                                                    LABLE, CAUTION
                                                                    LABEL Genuine Aston Martin - New (to order)
                                                                    # 34
                                                                    MPN: 90466-11003
                                                                    CLIP, HOSE VM02
                                                                    from £2.60
                                                                    from £2.60
                                                                    CLIP Genuine Aston Martin - New (to order)
