04.0202.01 - Rear Suspension Spring and Damper

Aston Martin Cygnet (2012) Rear Suspension Spring and Damper Parts Diagram

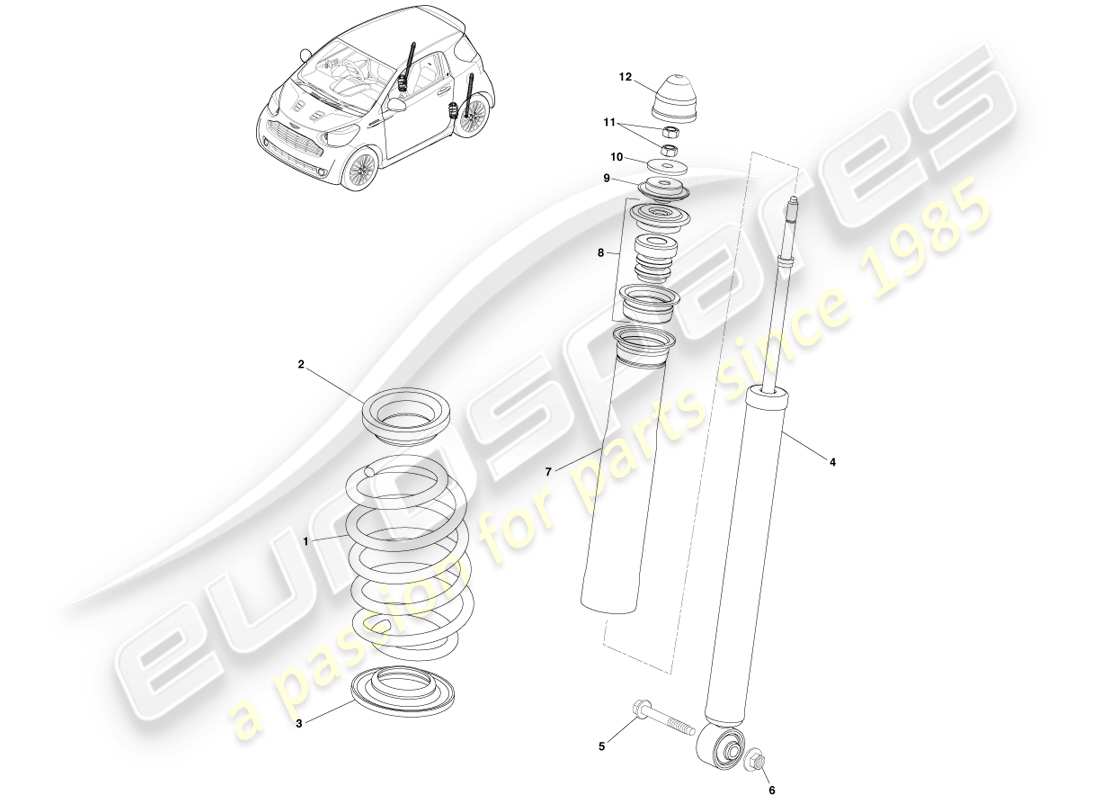

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 48231-74020
                  Spring, Coil, Rear LH
                  from £55.68
                  from £55.68
                  SPRING Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 48231-74020
                  Spring, Coil, Rear RH
                  from £55.68
                  from £55.68
                  SPRING Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 48257-0D010
                  Insulator, Rear Coil Spring, Upper LH
                  from £8.24
                  from £8.24
                  INSULATOR Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 48257-0D010
                  Insulator, Rear Coil Spring, Upper RH
                  from £8.24
                  from £8.24
                  INSULATOR Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 48258-0D050
                  Insulator, Rear Coil Spring, Lower LH
                  from £8.59
                  from £8.59
                  INSULATOR Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 48258-0D050
                  Insulator, Rear Coil Spring, Lower RH
                  from £8.59
                  from £8.59
                  INSULATOR Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 48530-74040
                  ABSORBER ASSY, SHOCK, REAR LH
                  from £38.65
                  from £38.65
                  ABSORBER ASSEMBLY Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 48530-74040
                  ABSORBER ASSY, SHOCK, REAR RH
                  from £38.65
                  from £38.65
                  ABSORBER ASSEMBLY Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 90119-W0124
                  BOLT, FLANGE
                  One per side
                  from £2.05
                  from £2.05
                  BOLT Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 90178-10022
                  NUT, FLANGE
                  One per side
                  from £1.26
                  from £1.26
                  NUT Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 48750-0D050
                  SUPPORT ASSY, REAR SUSPENSION LH
                  from £32.67
                  from £32.67
                  SUPPORT ASSEMBLY Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 48750-0D050
                  SUPPORT ASSY, REAR SUSPENSION RH
                  from £32.67
                  from £32.67
                  SUPPORT ASSEMBLY Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 48752-0D010
                  STOPPER, REAR SUSPENSION SUPPORT
                  One per side
                  from £9.17
                  from £9.17
                  STOPPER Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 48755-0D070
                  SUPPORT, REAR SUSPENSION
                  from £13.62
                  from £13.62
                  SUPPORT Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 90201-10320
                  WASHER, PLATE
                  from £4.83
                  from £4.83
                  WASHER PLATE Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 94130-61000
                  NUT
                  Two Per Side
                  from £1.09
                  from £1.09
                  NUT Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 48553-52010
                  CAP, REAR SHOCK ABSORBER LH
                  from £4.34
                  from £4.34
                  CAP Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 48553-52010
                  CAP, REAR SHOCK ABSORBER RH
                  from £4.34
                  from £4.34
                  CAP Genuine Aston Martin - New (to order)
