aston martin cygnet (2012) rear brake disc assy parts diagram

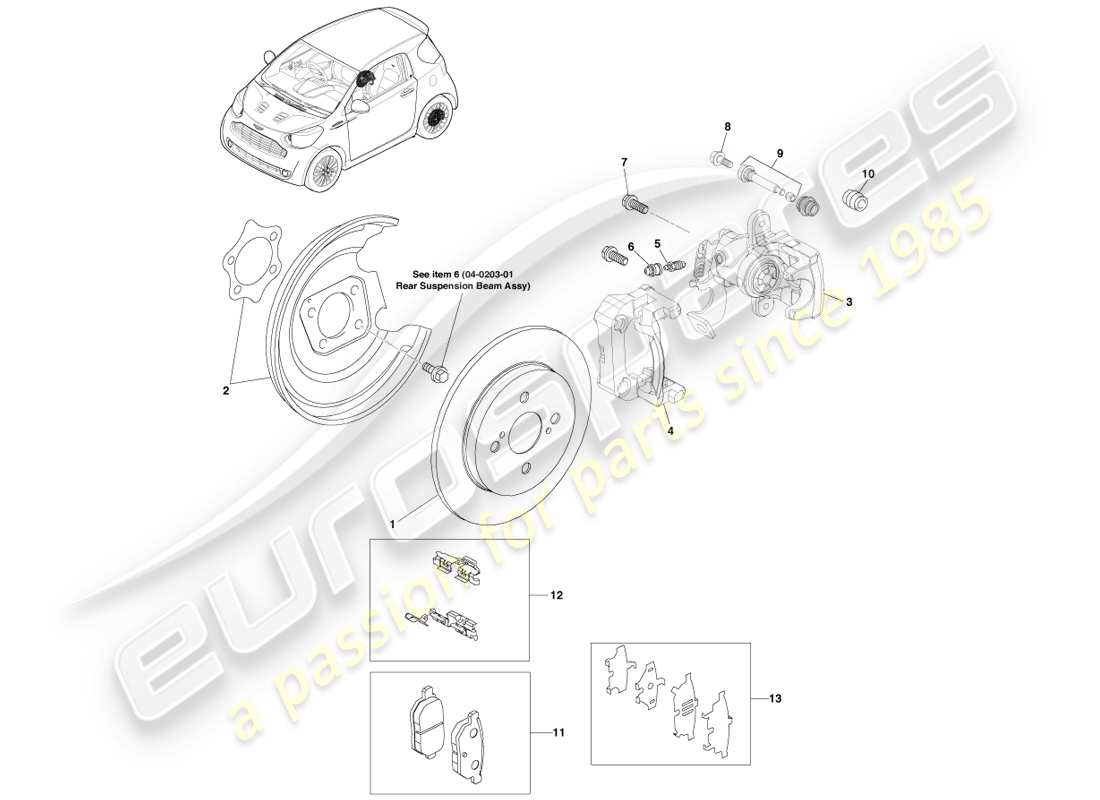

06.0401.01 - Rear Brake Disc Assy

Aston Martin Cygnet (2012) Rear Brake Disc Assy Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 42431-52080
              DISC, REAR
              1 per side
              from £44.63
              from £44.63
              DISC Genuine Aston Martin - New (to order)
              # 2
              MPN: 47804-74010
              COVER SUB ASSY, DISC BRAKE DUST, REAR LHS
              COVER SUB-ASSY Genuine Aston Martin - New (to order)
              # 2
              MPN: 47803-74010
              COVER SUB ASSY, DISC BRAKE DUST, REAR RHS
              COVER SUB-ASSY Genuine Aston Martin - New (to order)
              # 3
              MPN: 47850-52161
              CALIPER ASSY, DISC BRAKE, REAR LHS
              CYLINDER ASSEMBLY Genuine Aston Martin - New (to order)
              # 3
              MPN: 47830-52161
              CALIPER ASSY, DISC BRAKE, REAR RHS
              from £332.47
              from £332.47
              CYLINDER ASSEMBLY Genuine Aston Martin - New (to order)
              # 4
              MPN: 47821-12151
              MOUNT, CALIPER ASSY, DISC BRAKE REAR LHD
              MOUNTING Genuine Aston Martin - New (to order)
              # 4
              MPN: 47821-12151
              MOUNT, CALIPER ASSY, DISC BRAKE REAR RHD
              MOUNTING Genuine Aston Martin - New (to order)
              # 5
              MPN: 47847-52050
              PLUG, BLEEDER, REAR DISC BRAKE
              1 per side
              PLUG Genuine Aston Martin - New (to order)
              # 6
              MPN: 31478-52010
              CAP, BLEEDER PLUG
              1 per side
              CAP Genuine Aston Martin - New (to order)
              # 7
              MPN: 90105-10404
              BOLT, REAR CALIPER MOUNT TO BEAM
              2 per side
              BOLT(FOR REAR DISC B Genuine Aston Martin - New (to order)
              # 8
              MPN: 90015-AA102
              BOLT, REAR CALIPER TO MOUNT
              2 per side
              from £0.61
              from £0.61
              BOLT Genuine Aston Martin - New (to order)
              # 9
              MPN: 47835-12150
              PIN, REAR DISC BRAKE PAD GUIDE
              2 per side
              PIN Genuine Aston Martin - New (to order)
              # 10
              MPN: 47875-12150
              BOOT, BUSH DUST, REAR DISC BRAKE
              2 per side
              BOOT Genuine Aston Martin - New (to order)
              # 11
              MPN: 04466-52140
              KIT, PADS, REAR DISC BRAKE
              from £29.13
              from £29.13
              PAD KIT-REAR Genuine Aston Martin - New (to order)
              # 12
              MPN: 04948-52040
              KIT FITTING, REAR DISC BRAKE
              from £22.17
              from £22.17
              FITTING KIT Genuine Aston Martin - New (to order)
              # 13
              MPN: 04946-52080
              KIT, SHIM, ANTI SQUEAL
              from £12.00
              from £12.00
              SHIM KIT Genuine Aston Martin - New (to order)
