aston martin cygnet (2012) fuel distribution parts diagram

10.0102.01 - Fuel Distribution

Aston Martin Cygnet (2012) Fuel Distribution Parts Diagram

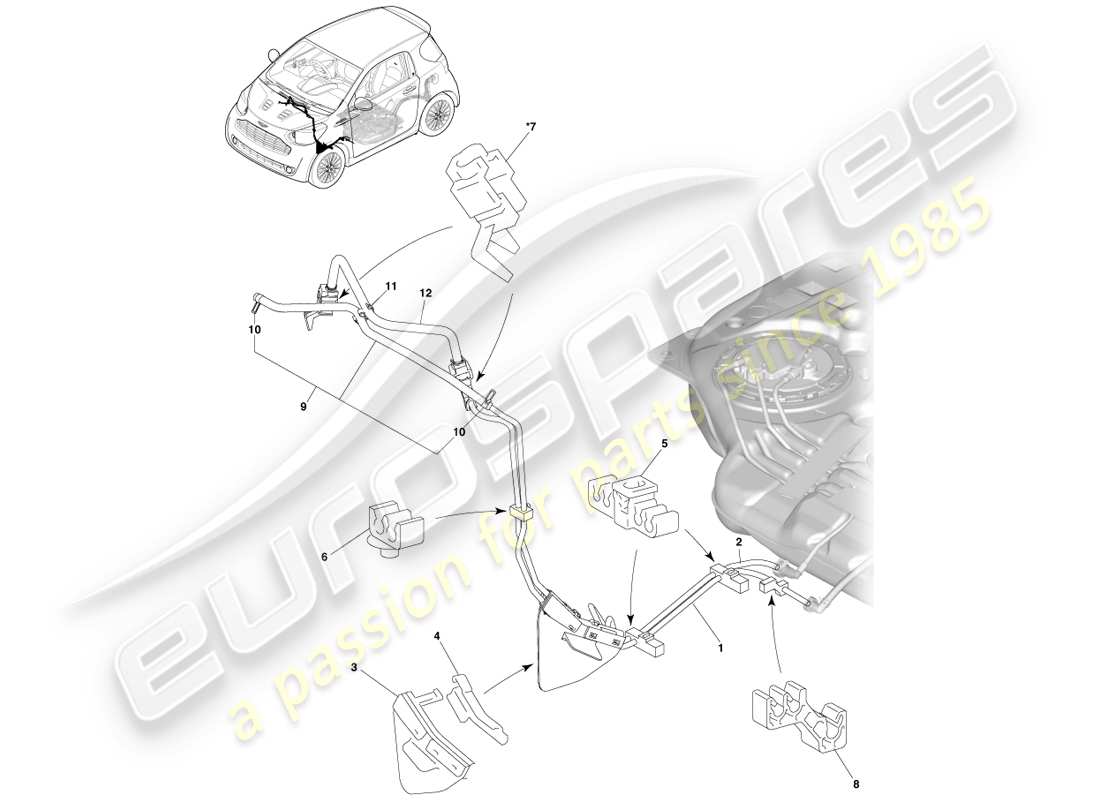

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 77261-74010
                        TUBE, FUEL TANK TO CANISTER
                        TUBE Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 77251-74010
                        TUBE, FUEL MAIN
                        TUBE Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 77266-74010
                        PROTECTOR, FUEL TUBE, NO.1
                        PROTECTOR Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 77267-74010
                        PROTECTOR, FUEL TUBE, NO.2
                        PROTECTOR Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 77298-74010
                        CLAMP, FUEL TUBE, NO.4
                        CLAMP Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 77286-74010
                        CLAMP, FUEL TUBE, NO.2
                        CLAMP Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 23841-21050
                        CLAMP, FUEL TUBE, NO.1, (FOR EFI)
                        *05/2009 to 09/2010
                        CLAMP Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 23841-36010
                        CLAMP, FUEL TUBE, NO.1, (FOR EFI)
                        *From 10/2010
                        CLAMP Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 77285-74010
                        CLAMP, FUEL TUBE, NO.1
                        CLAMP Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 23826-47040
                        HOSE, FUEL VAPOR FEED, NO.1
                        HOSE Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 90466-11003
                        CLIP, HOSE, VM02
                        from £2.60
                        from £2.60
                        CLIP Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 77281-50040
                        CLAMP, FUEL HOSE
                        from £2.77
                        from £2.77
                        CLAMP Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 23271-47010
                        HOSE, FUEL
                        HOSE Genuine Aston Martin - New (to order)
