aston martin db9 (2014) hvac unit parts diagram

12-0305-02 - HVAC UNIT

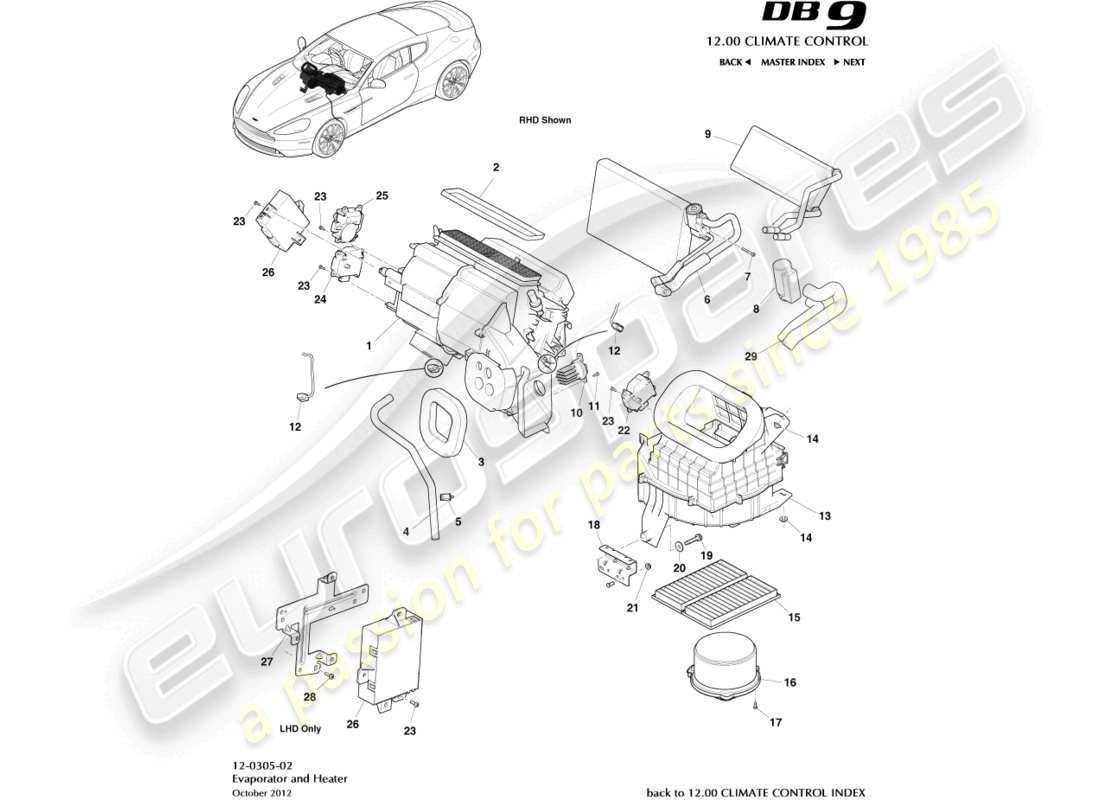

Aston Martin DB9 (2014) HVAC Unit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: 4G43-18N407-BC
                                                  AUTO HEATER UNIT, INCLUDING ECU, RHD
                                                  from £780.62
                                                  from £780.62
                                                  HEATER UNIT, INCLUDING ECU, RHD Genuine Aston Martin - New (to order)
                                                  HEATER UNIT, INCLUDING ECU, RHD Genuine Aston Martin - Used In stock
                                                  # 1
                                                  MPN: 4G43-18N407-AD
                                                  AUTO HEATER UNIT, INCLUDING ECU, LHD
                                                  from £1,419.30
                                                  from £1,419.30
                                                  HEATER UNIT, INCLUDING ECU, LHD Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  SCREW & WASHER, M6 X 16, HEX HEAD
                                                  # 2
                                                  MPN: 4G43-19N574-AA
                                                  SEAL, VENT AIR DUCT
                                                  from £0.96
                                                  from £0.96
                                                  SEAL, VENT AIR DUCT Genuine Aston Martin - New (to order)
                                                  # 3
                                                  MPN: 4G43-19D692-A
                                                  SEAL, A/C EVAPORATOR TUB OUTER
                                                  SEAL, A/C EVAPORATOR TUB OUTER Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: 4G43-19A699-BB
                                                  DRAIN TUBE, CONDENSATION
                                                  RHD
                                                  from £14.81
                                                  from £14.81
                                                  DRAIN TUBE, CONDENSATION, RHD Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: 4G43-19A699-AB
                                                  DRAIN TUBE, CONDENSATION
                                                  LHD
                                                  from £16.96
                                                  from £16.96
                                                  DRAIN TUBE, CONDENSATION, LHD Genuine Aston Martin - New (to order)
                                                  # 5
                                                  MPN: 701172
                                                  CLIP
                                                  from £0.47
                                                  from £0.47
                                                  CLIP 16X2.8-3.3 Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: 4G43-19850-AA
                                                  EVAPORATOR ASSY A/C
                                                  RHD
                                                  from £574.62
                                                  from £574.62
                                                  EVP ASSEMBLY A/C Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: 4G43-19A889-AA
                                                  EVAPORATOR ASSY A/C
                                                  LHD
                                                  from £752.54
                                                  from £752.54
                                                  EVP ASSEMBLY A/C LH Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  TUBE ASSY, EVAPORATOR
                                                  RHD
                                                  # -
                                                  -
                                                  TUBE ASSY, EVAPORATOR
                                                  LHD
                                                  # 6
                                                  MPN: 4G43-19849-AA
                                                  VALVE ASSY, A/C EVAPORATOR EXP
                                                  from £52.81
                                                  from £52.81
                                                  VLV ASSEMBLY A/C EVP EXP Genuine Aston Martin - New (to order)
                                                  # 7
                                                  MPN: 4G43-ALR8679-AA
                                                  SCREW, M5 X 40, HEX SOCKET
                                                  from £0.82
                                                  from £0.82
                                                  SCREW HEX SOCKET M5X40 Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: 4G43-18693-AA
                                                  SEALING, HEATER CORE TUBE TO HEATER CASE
                                                  RHD
                                                  from £8.39
                                                  from £8.39
                                                  SE HTR COR TUB TO HT Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: 4G43-18D673-AA
                                                  SEALING, HEATER CORE TUBE TO HEATER CASE
                                                  LHD
                                                  from £8.33
                                                  from £8.33
                                                  SE HTR COR TUB TO HT Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: 4G43-18A271-BA
                                                  CORE & TUBE ASSY, HEATER RHD
                                                  from £283.36
                                                  from £283.36
                                                  COR & TUB ASSEMBLY HTR Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: 4G43-18D671-AA
                                                  CORE & TUBE ASSY, HEATER LHD
                                                  from £104.55
                                                  from £104.55
                                                  COR & TUB ASSEMBLY HTR LH Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: 4G43-19F615-AA
                                                  TRANSISTER, A/C
                                                  from £236.89
                                                  from £236.89
                                                  T/STR A/C Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: 4G43-104084-AA
                                                  SCREW, M4 X 16
                                                  SCREW Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: 4G43-19F598-AA
                                                  SENSOR A/C EVAPORATOR TEMPERATURE
                                                  from £12.36
                                                  from £12.36
                                                  SNS A/C EVP TEMP Genuine Aston Martin - New (to order)
                                                  # 13
                                                  MPN: 4G43-19924-BB
                                                  BLOWER ASSY, RHD
                                                  from £229.32
                                                  from £229.32
                                                  BLOWER ASSEMBLY, RHD Genuine Aston Martin - New (to order)
                                                  BLOWER ASSEMBLY, RHD Genuine Aston Martin - Used In stock
                                                  # 13
                                                  MPN: 4G43-19925-AB
                                                  BLOWER ASSY, LHD
                                                  from £416.94
                                                  from £416.94
                                                  BLOWER ASSEMBLY, LHD Genuine Aston Martin - New (to order)
                                                  # 14
                                                  MPN: 703612
                                                  NUT & WASHER, M6
                                                  from £0.47
                                                  from £0.47
                                                  NUT & WASHER-M6 HEX Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: 4G43-13ZE1-AA-PK
                                                  Filter, Pollen (Box of 2)
                                                  from £49.28
                                                  from £49.28
                                                  This part replaces part number 4G43-13ZE1-AA
                                                  POLLEN FILTER (pack of 2) Genuine Aston Martin - New In stock
                                                  Genuine Aston Martin (no longer available to order)
                                                  # 16
                                                  MPN: 4G43-19F612-AA
                                                  MOTOR & FAN ASSY A/C RHD
                                                  from £452.49
                                                  from £452.49
                                                  MTR & FAN ASSEMBLY A/C Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: 4G43-19F613-AA
                                                  MOTOR & FAN ASSY A/C LHD
                                                  from £135.59
                                                  from £135.59
                                                  MTR & FAN ASSEMBLY A/C LH Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 4G43-N104301-AA
                                                  SCREW, M5 X 16
                                                  from £0.47
                                                  from £0.47
                                                  SCREW M5 X16 HEX SPCL Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: 4G43-18535-BF
                                                  BRACKET, HEATER BLOWER MOUNTING, RHD
                                                  from £22.09
                                                  from £22.09
                                                  BRACKET, HEATER BLOWER MOUNTING, RHD Genuine Aston Martin - New (to order)
                                                  BRACKET, HEATER BLOWER MOUNTING, RHD Genuine Aston Martin - Used In stock
                                                  # 18
                                                  MPN: 4G43-18535-AE
                                                  BRACKET, HEATER BLOWER MOUNTING, LHD
                                                  from £40.17
                                                  from £40.17
                                                  BRACKET, HEATER BLOWER MOUNTING, LHD Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: 703745
                                                  BOLT, M8 X 35
                                                  from £0.47
                                                  from £0.47
                                                  SCREW, M8 X 35 Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: 697452
                                                  WASHER, M8, BLACK
                                                  from £4.39
                                                  from £4.39
                                                  WASHER M8 LARGE OD Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: 702944
                                                  NUT, M6, FLANGE
                                                  from £0.58
                                                  from £0.58
                                                  NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                                                  LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                                                  # 22
                                                  MPN: 4G43-18A250-AA
                                                  SERVO ASSY, A/C HEATER FRESH/RECIRCULATE AIR RHD
                                                  from £208.08
                                                  from £208.08
                                                  SRVO ASSEMBLY A/C HTR FRS Genuine Aston Martin - New (to order)
                                                  # 22
                                                  MPN: 4G43-18A251-AA
                                                  SERVO ASSY, A/C HEATER FRESH/RECIRCULATE AIR LHD
                                                  from £208.08
                                                  from £208.08
                                                  SRVO ASSEMBLY A/C HTR FRS Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 4G43-104084-AA
                                                  SCREW, M4X16, PAN HEAD
                                                  SCREW Genuine Aston Martin - New (to order)
                                                  # 24
                                                  MPN: 4G43-18D674-AA
                                                  SERVO ASSY, A/C HEATER AIR MIX, RHD
                                                  from £208.08
                                                  from £208.08
                                                  SRVO ASSEMBLY A/C HTR AIR Genuine Aston Martin - New (to order)
                                                  # 24
                                                  MPN: 4G43-18D675-AA
                                                  SERVO ASSY, A/C HEATER AIR MIX, LHD
                                                  from £208.08
                                                  from £208.08
                                                  SRVO ASSEMBLY A/C HTR AIR Genuine Aston Martin - New (to order)
                                                  # 25
                                                  MPN: 4G43-18E246-AA
                                                  SERVO ASSY, A/C HEATER MODE, RHD
                                                  from £208.08
                                                  from £208.08
                                                  SRVO ASSEMBLY A/C HTR MOD Genuine Aston Martin - New (to order)
                                                  # 25
                                                  MPN: 4G43-18E247-AA
                                                  SERVO ASSY, A/C HEATER MODE, LHD
                                                  from £208.08
                                                  from £208.08
                                                  SRVO ASSEMBLY A/C HTR MOD Genuine Aston Martin - New (to order)
                                                  # 27
                                                  MPN: 4G43-19C715-AA
                                                  BRACKET, A/C CONTROL MOUNTING
                                                  LHD
                                                  BRACKET A/C CONTR MTNG Genuine Aston Martin - New (to order)
                                                  # 28
                                                  MPN: 4G43-N014120-AA
                                                  SCREW, M4X12, PAN HEAD
                                                  SCREW M4X12 PAN HEAD Genuine Aston Martin - New (to order)
                                                  # 29
                                                  MPN: 4G43-18C676-AA
                                                  SEALING, HEATER CORE, RHD
                                                  SE HTR COR Genuine Aston Martin - New (to order)
                                                  # 29
                                                  MPN: 4G43-18D669-AA
                                                  SEALING, HEATER CORE, LHD
                                                  from £12.41
                                                  from £12.41
                                                  SE HTR COR LH Genuine Aston Martin - New (to order)
