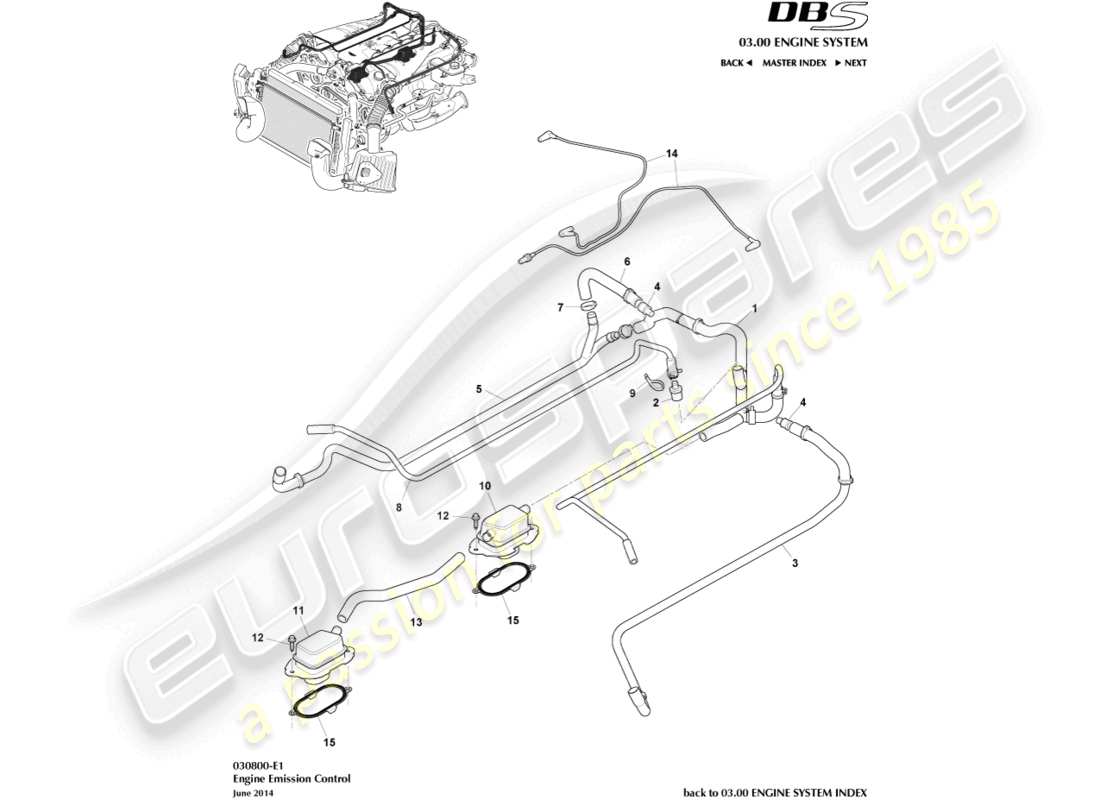

030800-E1 - EMISSION CONTROL

Aston Martin DBS (2007) Emission Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 4G43-37-10288
                              CONNECTOR ASSY, ENGINE VACUUM SYSTEM
                              from £176.27
                              from £176.27
                              VACUUM HARNESS-ENG Genuine Aston Martin - New (to order)
                              # 2
                              MPN: 34-85327
                              VALVE ASSY, CRANKCASE VENT
                              from £309.12
                              from £309.12
                              VALVE ASSEMBLY, CRANKCASE VENT Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 4G43-37-10289
                              CONNECTOR ASSY, ENGINE VACUUM SYSTEM, LH
                              from £149.89
                              from £149.89
                              CONNECTOR ASSEMBLY, LH, ENG VAC SYSTEM Genuine Aston Martin - New (to order)
                              # 5
                              MPN: 4G43-37-10290
                              CONNECTOR ASSY, ENGINE VACUUM SYSTEM, RH
                              Supersession
                              Supersession
                              Genuine Aston Martin (no longer available to order)
                              # 6
                              MPN: 4G43-37-10293
                              CONNECTOR ASSY
                              from £153.57
                              from £153.57
                              VACUUM HARNESS, ENGINE Genuine Aston Martin - New (to order)
                              # 7
                              MPN: 702828
                              CLIP, HOSE CLAMP CRIMP
                              from £0.94
                              from £0.94
                              CLIP, HOSE CLAMP CRIMP Genuine Aston Martin - New (to order)
                              # 8
                              MPN: 4G43-37-10291
                              CONNECTOR ASSY, EMS VAC, ENGINE VAC SYSTEM
                              from £54.73
                              from £54.73
                              VACUUM HARNESS-ENG Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 4G43-N02091-AB
                              TIE WRAP
                              from £0.47
                              from £0.47
                              TIE WRAP Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 4G43-01-10197
                              SEPARATOR ASSY, OIL
                              Supersession
                              Supersession
                              Genuine Aston Martin (no longer available to order)
                              # 11
                              MPN: 4G43-01-10836
                              SEPARATOR ASSY, OIL
                              from £56.38
                              from £56.38
                              OIL SEPARATOR ASSEMBLY Genuine Aston Martin - New (to order)
                              # 12
                              MPN: 702542
                              BOLT, M6 X 20
                              from £0.74
                              from £0.74
                              BOLT M6 X 20 Genuine Aston Martin - New (to order)
                              # 13
                              MPN: 4G43-37-10135
                              CONNECTOR, EMS VAC, ENGINE VAC SYSTEM
                              from £118.22
                              from £118.22
                              VACUUM HARNESS-ENG Genuine Aston Martin - New (to order)
                              # 14
                              MPN: 4G43-37-10133
                              CONNECTOR ASSY, EMS VAC, ENGINE VAC SYSTEM
                              from £82.31
                              from £82.31
                              CONNECTOR ASSEMBLY, EMS VAC , ENGINE VAC SYSTEM Genuine Aston Martin - New (to order)
                              # 14
                              MPN: 4G43-9E498-AA
                              VACUUM HARNESS, ENGINE
                              from £44.23
                              from £44.23
                              VACUUM HARNESS Genuine Aston Martin - New (to order)
                              # 15
                              MPN: 1R12-01-10487
                              GASKET, OIL SEPARATOR TO BLOCK
                              from £9.81
                              from £9.81
                              GASKET, OIL SEPARATOR TO CYLINDER BLOCK Genuine Aston Martin - New (to order)
