aston martin dbs (2010) rear seat, volante parts diagram

011003-B4 - Rear Seat, Volante

Aston Martin DBS (2010) Rear Seat, Volante Parts Diagram

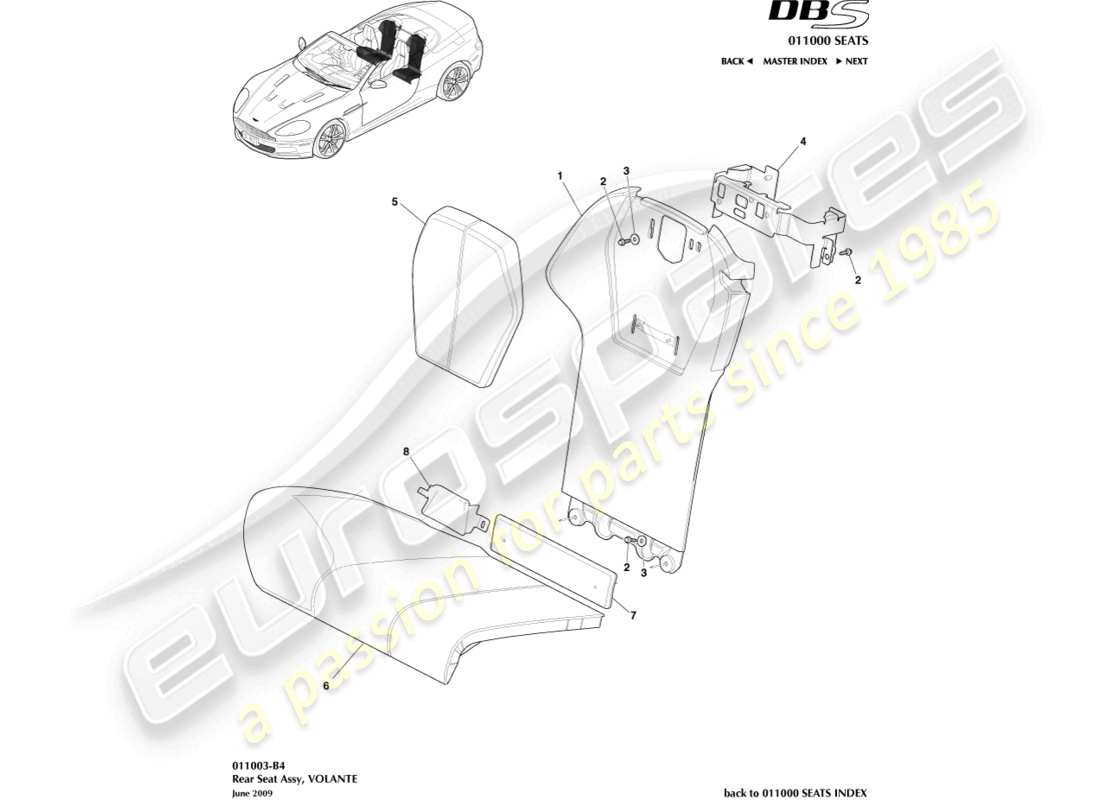

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: AD33-L60032-ACW
                  BACK ASSY, REAR SEAT TRIM, RH
                  from £2,287.87
                  from £2,287.87
                  BACK ASSEMBLY, REAR SEAT TRIM, RH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: AD33-L60033-ACW
                  BACK ASSY, REAR SEAT TRIM, LH
                  from £2,287.87
                  from £2,287.87
                  BACK ASSEMBLY, REAR SEAT TRIM, LH Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 703026
                  SCREW, M5 X 16
                  from £0.47
                  from £0.47
                  SCREW M5X16 HEX FLANGE Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 697517-PK
                  WASHER M6
                  from £13.07
                  from £13.07
                  WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 7G43-L64216-AC
                  BRACKET ASSY, BACK SUPPORT, RH
                  BRACKET ST SQB SUPPORT RH Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 7G43-L64217-AC
                  BRACKET ASSY, BACK SUPPORT, LH
                  BRACKET ST SQB SUPPORT LH Genuine Aston Martin - New (to order)
                  # 5
                  MPN: AD33-465T10-ACW
                  HEAD REST INFILL
                  HEAD REST INFILL Genuine Aston Martin - New (to order)
                  # 6
                  MPN: AD33-60080-ABW
                  CUSHION ASSY, REAR SEAT, RH
                  from £2,287.87
                  from £2,287.87
                  CUSHION ASSEMBLY, REAR SEAT, RH Genuine Aston Martin - New (to order)
                  # 6
                  MPN: AD33-60081-ABW
                  CUSHION ASSY, REAR SEAT, LH
                  from £2,287.87
                  from £2,287.87
                  CUSHION ASSEMBLY, REAR SEAT, LH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: AD33-L63846-ABW
                  PAD ASSY, REAR CUSHION LOWER, RH
                  from £593.93
                  from £593.93
                  PAD ASSEMBLY, REAR CUSHION LOWER, RH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: AD33-L63847-ABW
                  PAD ASSY, REAR CUSHION LOWER, LH
                  from £593.93
                  from £593.93
                  PAD ASSEMBLY, REAR CUSHION LOWER, LH Genuine Aston Martin - New (to order)
                  # 8
                  MPN: AD33-L672A20-AAW
                  PANEL ASSY, REAR SEAT SIDE LOWER, RH
                  PANEL ASSEMBLY, REAR SEAT SIDE LOWER, RH Genuine Aston Martin - New (to order)
                  # 8
                  MPN: AD33-L672A21-AAW
                  PANEL ASSY, REAR SEAT SIDE LOWER, LH
                  PANEL ASSEMBLY, REAR SEAT SIDE LOWER, LH Genuine Aston Martin - New (to order)
