aston martin dbs (2014) coolant hoses & reservoir parts diagram

030304 - Coolant Hoses & Reservoir

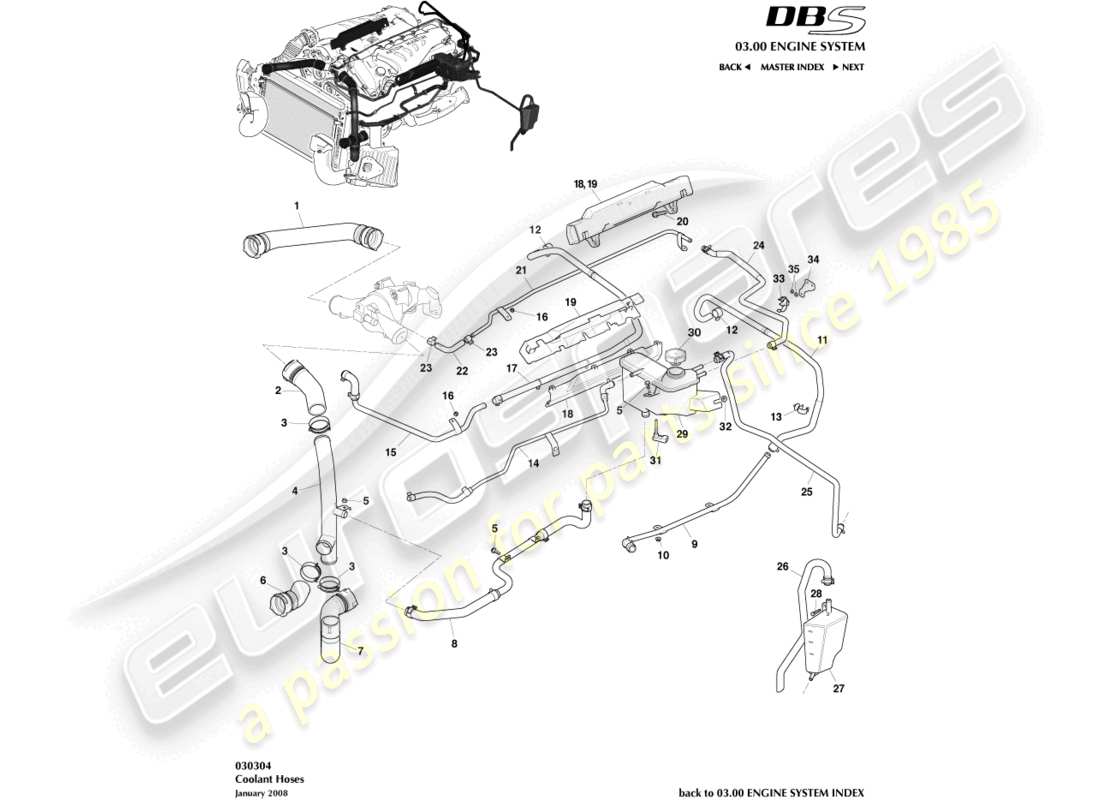

Aston Martin DBS (2014) Coolant Hoses & Reservoir Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Key
                                                                      Price
                                                                      # 1
                                                                      MPN: 8D33-8333-AA
                                                                      HOSE ASSY, RADIATOR
                                                                      from £72.77
                                                                      from £72.77
                                                                      HOSE - RADIATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                                                      # 2
                                                                      MPN: 8D33-8555-EA
                                                                      TUBE, MANIFOLD TO THERMOSTAT
                                                                      from £141.03
                                                                      from £141.03
                                                                      TUBE, MANIFOLD TO THERMOSTAT Genuine Aston Martin - New (to order)
                                                                      # 3
                                                                      MPN: 702903
                                                                      CLAMP, HEAVY DUTY
                                                                      from £2.67
                                                                      from £2.67
                                                                      CLAMP HOSE SPRING Genuine Aston Martin - New (to order)
                                                                      # 4
                                                                      MPN: 8D33-8555-FA
                                                                      TUBE, WATER BYPASS
                                                                      TUBE, WATER BYPASS Genuine Aston Martin - New (to order)
                                                                      # 6
                                                                      MPN: 8D33-8555-DA
                                                                      HOSE, COOLANT RETURN
                                                                      from £128.06
                                                                      from £128.06
                                                                      HOSE, COOLANT RETURN Genuine Aston Martin - New (to order)
                                                                      # 7
                                                                      MPN: 8D33-8555-BA
                                                                      HOSE, RADIATOR TO WATER PUMP
                                                                      from £157.86
                                                                      from £157.86
                                                                      TUBE, WATER BYPASS TUBE TO WATER PUMP Genuine Aston Martin - New (to order)
                                                                      # 8
                                                                      MPN: 4G43-8C350-AD
                                                                      TUBE, EXPANSION TANK TO BYPASS HOSE
                                                                      from £20.51
                                                                      from £20.51
                                                                      HOSE ASSEMBLY, ENGINE COOL RESERVOIR Genuine Aston Martin - New (to order)
                                                                      # -
                                                                      -
                                                                      HOSE, ENGINE COOL RESERVOIR
                                                                      # -
                                                                      -
                                                                      TUBE, RADIATOR FILL
                                                                      # -
                                                                      -
                                                                      HOSE, ENGINE COOL RESERVOIR
                                                                      # 9
                                                                      MPN: 4G43-18674-AD
                                                                      TUBE ASSY, HEATER OUTLET
                                                                      TUBE ASSEMBLY, HEATER OUTLET Genuine Aston Martin - New (to order)
                                                                      # 10
                                                                      MPN: 701345
                                                                      NUT, FLG, M6
                                                                      NUT, M6 Genuine Aston Martin - New (to order)
                                                                      # 11
                                                                      MPN: 4G43-18D359-BC
                                                                      HOSE ASSY, HEATER OUTLET
                                                                      RHD
                                                                      from £14.80
                                                                      from £14.80
                                                                      HOS-HTR OLET ASSEMBLY RHD Genuine Aston Martin - New (to order)
                                                                      HOS-HTR OLET ASSEMBLY RHD Genuine Aston Martin - Used In stock
                                                                      # 11
                                                                      MPN: 4G43-18D359-AC
                                                                      HOSE ASSY, HEATER OUTLET
                                                                      LHD
                                                                      from £123.46
                                                                      from £123.46
                                                                      HOSE-HTR OLET ASSEMBLY Genuine Aston Martin - New (to order)
                                                                      # 12
                                                                      MPN: 701335
                                                                      CLAMP
                                                                      from £0.67
                                                                      from £0.67
                                                                      CLIP-HOSE SPRING Genuine Aston Martin - New (to order)
                                                                      # 13
                                                                      MPN: 701570
                                                                      CLIP
                                                                      from £0.47
                                                                      from £0.47
                                                                      C CLIP 20-24.5 DIAMETER Genuine Aston Martin - New (to order)
                                                                      # 14
                                                                      MPN: 4G43-8C363-CB
                                                                      TUBE, RADIATOR BREATHER
                                                                      from £33.17
                                                                      from £33.17
                                                                      TUBE, RADIATOR BREATHER Genuine Aston Martin - New (to order)
                                                                      # 15
                                                                      MPN: 4G43-8584-DA
                                                                      HOSE ASSY, THERMOSTAT UPPER
                                                                      HOSE ASSEMBLY, THERMOSTAT UPPER Genuine Aston Martin - New (to order)
                                                                      # 16
                                                                      MPN: 702295
                                                                      NUT, FLG, M5
                                                                      from £0.47
                                                                      from £0.47
                                                                      NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                      # 17
                                                                      MPN: 4G43-18D334-BC
                                                                      HOSE, HEATER INLET
                                                                      RHD
                                                                      from £37.75
                                                                      from £37.75
                                                                      HOS-HTR INLET ASSEMBLY RHD Genuine Aston Martin - New (to order)
                                                                      HOS-HTR INLET ASSEMBLY RHD Genuine Aston Martin - Used In stock
                                                                      # 17
                                                                      MPN: 4G43-18D334-AC
                                                                      HOSE, HEATER INLET
                                                                      LHD
                                                                      from £181.93
                                                                      from £181.93
                                                                      HOS-HTR INLET ASSEMBLY LHD Genuine Aston Martin - New (to order)
                                                                      # 18
                                                                      MPN: 4G43-6793-BB
                                                                      COVER, TOP
                                                                      from £8.36
                                                                      from £8.36
                                                                      TOP COVER, ENGINE HARNESS Genuine Aston Martin - New (to order)
                                                                      # 19
                                                                      MPN: 4G43-4867-BC
                                                                      COVER, BOTTOM
                                                                      from £11.35
                                                                      from £11.35
                                                                      ASY-COVER BOTTOM Genuine Aston Martin - New (to order)
                                                                      # 20
                                                                      MPN: 703731
                                                                      BOLT, FLG, M8X35
                                                                      from £0.47
                                                                      from £0.47
                                                                      BOLT-M8X35 HEX FL8.8 Genuine Aston Martin - New (to order)
                                                                      # 21
                                                                      MPN: 4G43-8003-EA
                                                                      TUBE ASSY, RADIATOR SUPPLY TANK VENT
                                                                      PIPE ASSEMBLY, CROSSOVER BLEED Genuine Aston Martin - New (to order)
                                                                      # 22
                                                                      MPN: 4G43-8003-CA
                                                                      HOSE, THERMO HOUSING CROSSOVER BLEED
                                                                      from £40.85
                                                                      from £40.85
                                                                      HOS-THERMO HSG C/OVR Genuine Aston Martin - New (to order)
                                                                      # 23
                                                                      MPN: 702904
                                                                      CLAMP
                                                                      from £1.13
                                                                      from £1.13
                                                                      HOSECLAMP SPRG 17X15 Genuine Aston Martin - New (to order)
                                                                      # 24
                                                                      MPN: 4G43-8063-AE
                                                                      HOSE, ENGINE TO SUPPLY TANK
                                                                      from £52.26
                                                                      from £52.26
                                                                      HOSE - ENG DEGAS Genuine Aston Martin - New (to order)
                                                                      # 25
                                                                      MPN: 4G43-8B081-AG
                                                                      HOSE, EXPANSION TANK TO COOLANT RECOVERY TANK
                                                                      from £17.05
                                                                      from £17.05
                                                                      HOS-RAD SUP TNK O/FL Genuine Aston Martin - New (to order)
                                                                      HOS-RAD SUP TNK O/FL Genuine Aston Martin - Used In stock
                                                                      # 26
                                                                      MPN: 4G43-8N029-AG
                                                                      HOSE, RADIATOR OVERFLOW EXIT
                                                                      from £8.56
                                                                      from £8.56
                                                                      OVERFLOW HOSE ASSEMBLY Genuine Aston Martin - New (to order)
                                                                      OVERFLOW HOSE ASSEMBLY Genuine Aston Martin - Used In stock
                                                                      # 27
                                                                      MPN: 6G33-TBD2-AA
                                                                      OVERFLOW BOTTLE
                                                                      from £17.87
                                                                      from £17.87
                                                                      Genuine Aston Martin (no longer available to order)
                                                                      TANK ASSEMBLY, OVERFLOW Genuine Aston Martin - Used In stock
                                                                      # 28
                                                                      MPN: 701667
                                                                      SCREW AND WASHER, M6X25
                                                                      from £0.47
                                                                      from £0.47
                                                                      SCREW AND WASHER, M6X25 Genuine Aston Martin - New (to order)
                                                                      # 29
                                                                      MPN: 4G43-19B518-BC
                                                                      TANK ASSY, EXPANSION
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Aston Martin (no longer available to order)
                                                                      # 30
                                                                      MPN: 4G43-8101-BA
                                                                      PRESSURE CAP ASSY
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Aston Martin (no longer available to order)
                                                                      # 31
                                                                      MPN: 1R12-37-10166
                                                                      SENSOR, EXPANSION LEVEL
                                                                      from £46.34
                                                                      from £46.34
                                                                      SWITCH-COOLANT LEVEL Genuine Aston Martin - New (to order)
                                                                      # 32
                                                                      MPN: 703612
                                                                      NUT AND WASHER, M6
                                                                      from £0.47
                                                                      from £0.47
                                                                      NUT & WASHER-M6 HEX Genuine Aston Martin - New (to order)
                                                                      # 33
                                                                      MPN: 4G43-58-AA
                                                                      CLIP
                                                                      from £13.24
                                                                      from £13.24
                                                                      CLIP, HOSE PLATE Genuine Aston Martin - New (to order)
                                                                      # 34
                                                                      MPN: 4G43-2A155-AD
                                                                      BRACKET
                                                                      from £19.39
                                                                      from £19.39
                                                                      BRACKET, HOSE CLIP, HEATER OUTLET Genuine Aston Martin - New (to order)
                                                                      # 35
                                                                      MPN: 702295
                                                                      NUT, M5
                                                                      from £0.47
                                                                      from £0.47
                                                                      NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
