aston martin one-77 (2011) front aero floor parts diagram

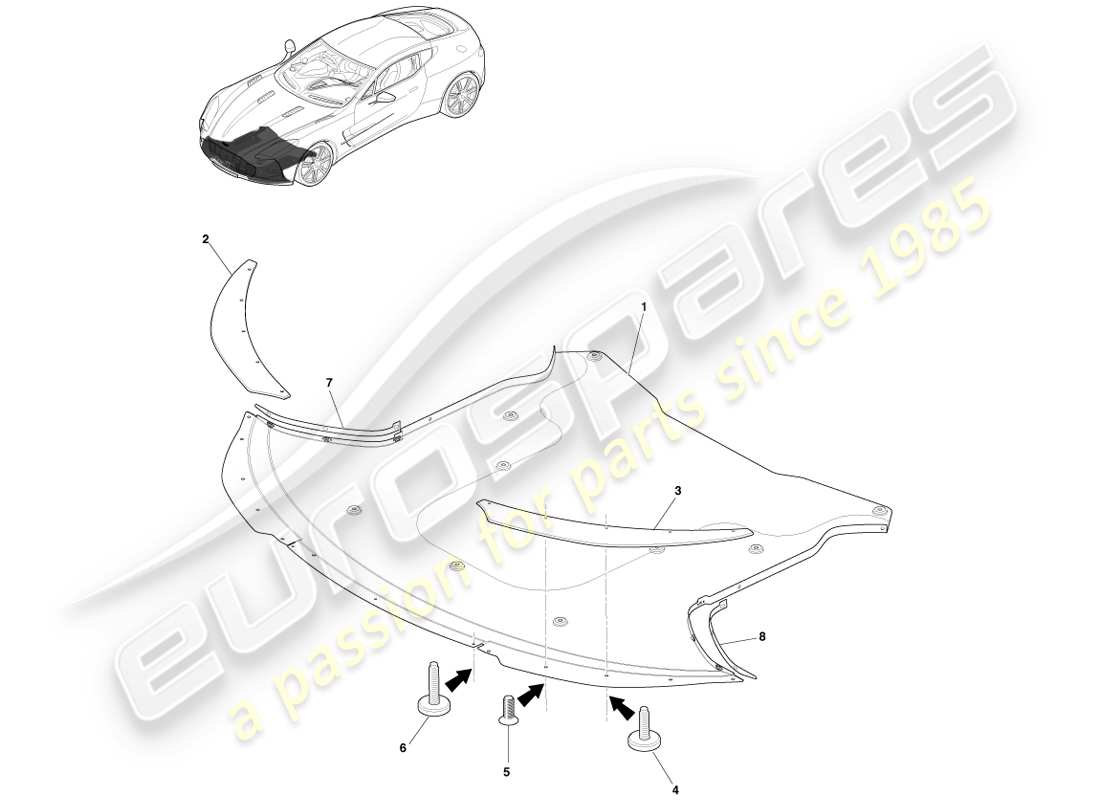

0102.0012 - Front Aero Floor

Aston Martin One-77 (2011) Front Aero Floor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 12023-04-1022-AH
                  FLOOR,FRONT END AERO
                  from £3,515.75
                  from £3,515.75
                  FRONT END AERO FLR ASSEMBLY Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 12023-04-1151-AB
                  SPLITTER, FRONT RH
                  from £2,319.65
                  from £2,319.65
                  FRONT SPLITTER RH Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 12023-04-1150-AB
                  SPLITTER, FRONT LH
                  from £2,319.65
                  from £2,319.65
                  FRONT SPLITTER LH Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 6G33-FA0115-AB
                  SCREW AND WASHER, M6 X 19
                  Supersession
                  Supersession
                  Genuine Aston Martin (no longer available to order)
                  # 5
                  MPN: 703738
                  BOLT, CSK HEX SCKT, M6 X 16
                  from £0.79
                  from £0.79
                  SCREW-M6X20 FLAT HD Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 5R13-FA0036-AA
                  SCREW AND WASHER, M6 X 28
                  from £1.68
                  from £1.68
                  SCREW - M6 X 28 Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 12023-03-7680-AB
                  GASKET, RH
                  from £115.56
                  from £115.56
                  FLR TO EXIT DCT GSKT Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 12023-03-7680-AB
                  GASKET, LH
                  from £115.56
                  from £115.56
                  FLR TO EXIT DCT GSKT Genuine Aston Martin - New (to order)
