aston martin one-77 (2011) sparco sports seat parts diagram

0110.0060 - Sparco Sports Seat

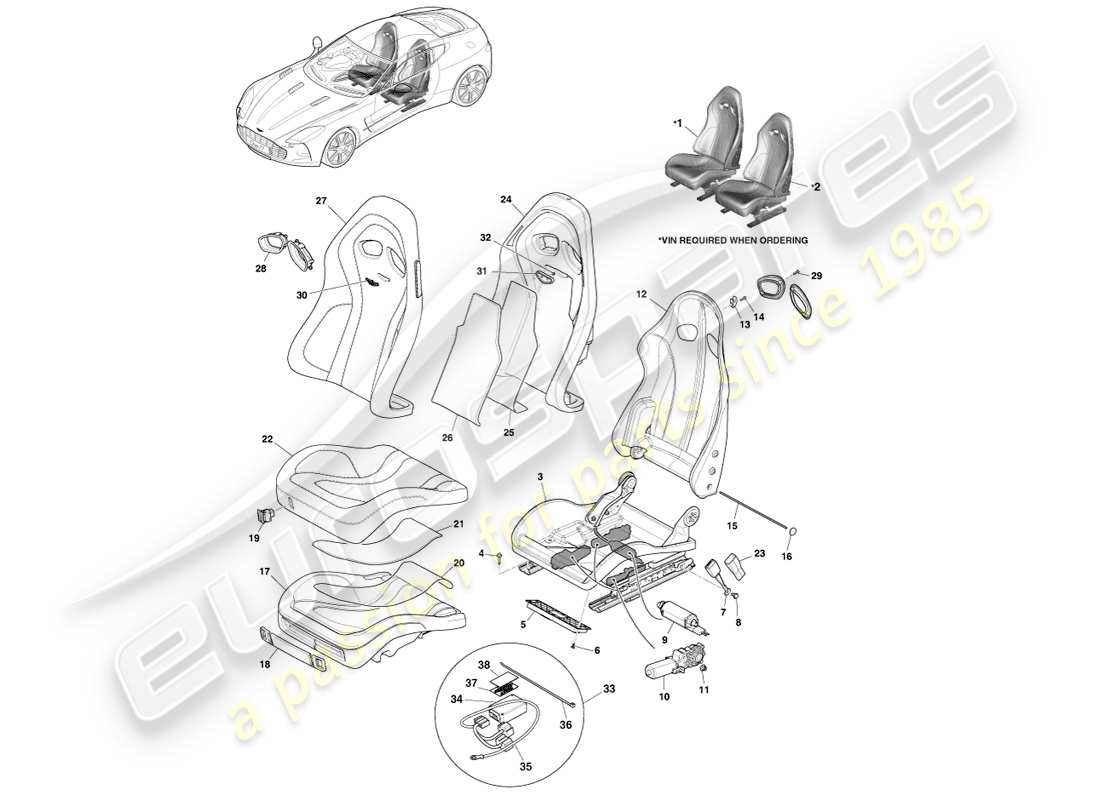

Aston Martin One-77 (2011) Sparco Sports Seat Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: 12023-14-6741-AG
      FRONT SEAT, TRIMMED ASSY
      order by VIN no.
      FRONT SEAT, TRIMMED ASSEMBLY Genuine Aston Martin - New (to order)
      # 2
      MPN: 12023-14-66742-AH
      FRONT SEAT, TRIMMED ASSY
      order by VIN no.
      FRONT SEAT, TRIMMED ASSEMBLY Genuine Aston Martin - New (to order)
      # 3
      MPN: 12023-14-6709-AB
      SEAT BASE ASSY
      1 per seat assy
      from £370.84
      from £370.84
      SEAT BASE ASSEMBLY Genuine Aston Martin - New (to order)
      # 4
      MPN: 702687
      SCREW M8X30 HEX HD
      4 per seat assy
      BOLT M8 X 30 Genuine Aston Martin - New (to order)
      # 5
      MPN: AD43-14C249-AA
      MODULE ECU, SEAT
      1 per seat assy
      Supersession
      Supersession
      Genuine Aston Martin (no longer available to order)
      # 6
      MPN: 701581
      FASTENER, FIR TREE
      4 per seat assy
      FLAT HEAD FIR TREE Genuine Aston Martin - New (to order)
      # 7
      MPN: 4G43-613K22-BD
      BUCKLE ASSY, SEAT BELT
      1 per seat assy
      from £166.87
      from £166.87
      BKLE ASSEMBLY FRONT BEL Genuine Aston Martin - New (to order)
      # 8
      -
      SCREW, 7/16 UNF, SEAT BELT BUCKLE
      1 per seat assy
      # 9
      MPN: 12023-14-6414-AC
      MOTOR ASSY, SEAT INCLINE
      1 per seat base assy
      MOTOR ASSEMBLY SEAT INCLINE Genuine Aston Martin - New (to order)
      # 10
      MPN: 4G43-74-10127
      KIT, SQUAB MOTOR
      3 per seat base assy
      from £88.84
      from £88.84
      MOTOR, RECLINER Genuine Aston Martin - New In stock
      # 11
      -
      NUT, HEX FLG HD
      1 per Squab Motor
      # 12
      MPN: 12023-14-6744-AA
      SHELL, SEAT BACK RH
      SHELL, SEAT BACK RH Genuine Aston Martin - New (to order)
      # 12
      MPN: 12023-14-6703-AA
      SHELL, SEAT BACK LH
      SHELL, SEAT BACK LH Genuine Aston Martin - New (to order)
      # 13
      MPN: 9G43-18564-AA
      HOOK, COAT
      1 per seat assy
      from £3.98
      from £3.98
      COAT HOOK Genuine Aston Martin - New (to order)
      # 14
      MPN: 6G33-SS106209-AB
      SCREW, M6X20
      1 per seat assy
      from £0.47
      from £0.47
      BOLT, M6X20, SOCKET HD Genuine Aston Martin - New (to order)
      # 15
      MPN: 12023-14-6713-AA
      ROD, CONNECTOR
      1 per seat assy
      ROD, CONNECTOR Genuine Aston Martin - New (to order)
      # -
      -
      CIRCLIP
      2 per seat assy
      # 16
      MPN: 12023-14-5045
      COVER, CONNECTOR ROD
      2 per seat assy
      COVER, CONNECTOR ROD Genuine Aston Martin - New (to order)
      # 17
      MPN: 12023-14-6630-AA
      FOAM, SEAT BASE
      1 per seat assy
      FOAM, SEAT BASE Genuine Aston Martin - New (to order)
      # 18
      MPN: 12023-14-6587-AA
      HOUSING, SEAT STRAP
      1 per seat assy
      HOUSING, SEAT STRAP Genuine Aston Martin - New (to order)
      # 19
      MPN: AY93-14D764-AA
      SWITCH, HEATED SEAT
      1 per seat assy
      from £181.10
      from £181.10
      HEATED SEAT SWITCH Genuine Aston Martin - New (to order)
      # 20
      MPN: 7G43-14D698-AC
      ELEMENT, SEAT BASE HEATER
      1 per seat assy
      from £192.19
      from £192.19
      ELM ASSEMBLY ST CSHN HT Genuine Aston Martin - New (to order)
      # 21
      MPN: 12023-14-6712-AA
      FOAM INSERT, SEAT BASE
      1 per seat assy
      FOAM INSERT, SEAT BASE Genuine Aston Martin - New (to order)
      # 22
      MPN: 12023-14-6408-ACW
      COVER ASSY, FRONT SEAT CUSHION
      1 per seat assy
      COVER ASSEMBLY FRONT SEAT CUSHION Genuine Aston Martin - New (to order)
      # 23
      MPN: 12023-14-6564-AAW
      COVER, SEAT BELT BUCKLE
      1 per seat assy
      COVER, SEAT BELT BUCKLE Genuine Aston Martin - New (to order)
      # -
      -
      LOCTITE
      SEAT BELT COVER
      # 24
      MPN: 12023-14-6632-AG
      FOAM, SEAT BACK
      1 per seat assy
      FOAM, SEAT BACK Genuine Aston Martin - New (to order)
      # 25
      MPN: 12023-14-6704-AA
      ELEMENT, SEAT BACK HEATER
      1 per seat assy
      ELEMENT, SEAT BACK HEATER Genuine Aston Martin - New (to order)
      # 26
      MPN: 12023-14-6705-AA
      FOAM INSERT, SEAT BACK
      1 per seat assy
      FOAM INSERT, SEAT BACK Genuine Aston Martin - New (to order)
      # 27
      MPN: 12023-14-5038-ACW
      COVER ASSY, FRONT SEAT SQUAB RHS
      COVER ASSEMBLY FRONT SEAT SQUAB RHS Genuine Aston Martin - New (to order)
      # 27
      MPN: 12023-14-6406-ACW
      COVER ASSY, FRONT SEAT SQUAB LHS
      COVER ASSEMBLY FRONT SEAT SQUAB LHS Genuine Aston Martin - New (to order)
      # 28
      MPN: 12023-14-5044-ACW
      SEAT BELT LOOPS FRT/ REAR AND LEFT/RIGHT
      NB see individual parts listed below
      SEAT BELT LOOPS FRT/ REAR AND LEFT/RIGHT Genuine Aston Martin - New (to order)
      # 29
      MPN: 704509
      SCREW M4X8MM
      4 per seat belt loop kit
      SCREW M4 X 8 Genuine Aston Martin - New (to order)
      # 30
      MPN: 12023-14-6570-AA
      BADGE, SEAT
      1 per seat assy
      from £61.72
      from £61.72
      SEAT BADGE Genuine Aston Martin - New (to order)
      # 31
      MPN: 12023-14-6571-AC
      BACK PLATE, SEAT BADGE
      1 per seat assy
      from £70.26
      from £70.26
      SEAT BADGE BACK Genuine Aston Martin - New (to order)
      # 32
      MPN: 700986-PK
      NUT M4
      2 per seat badge
      Supersession
      Supersession
      Genuine Aston Martin (no longer available to order)
      # 33
      MPN: FG43-632B22-AA
      SERVICE KIT, MODULE, SEAT HEATER
      See QN-01-0026, January 2015
      from £95.59
      from £95.59
      SERVICE KIT, MODULE, SEAT HEATER Genuine Aston Martin - New (to order)
      # 34
      MPN: FG43-18B512-AA
      SUPERVISOR MODULE, SEAT HEATER
      Part of kit #33
      from £100.59
      from £100.59
      SUPERVISOR MODULE, SEAT HEATER Genuine Aston Martin - New (to order)
      # 35
      MPN: FG43-14B510-AA
      HARNESS, SEAT SUPERVISOR MODULE
      Part of kit #33
      from £21.05
      from £21.05
      HARNESS, SEAT SUPERVISOR MODULE Genuine Aston Martin - New (to order)
      # 36
      MPN: 4G43-N02091-AB
      CABLE TIE
      Part of kit #33
      from £0.47
      from £0.47
      TIE WRAP Genuine Aston Martin - New (to order)
      # 37
      MPN: 6102600572
      VELCRO LOOPS, 50X50
      Part of kit #33
      VELCRO LOOPS, 50X50 Genuine Aston Martin - New (to order)
      # 38
      MPN: 6102600505
      VELCRO HOOKS, 50X50
      Part of kit #33
      VELCRO HOOKS, 50X50 Genuine Aston Martin - New (to order)
      # -
      -
      TAPE, DOUBLE SIDED
      # -
      -
      VELCRO LOOP
      # -
      -
      VELCRO HOOK
      # -
      -
      VELCRO LOOP (WHITE)
      # -
      -
      VELCRO LOOP 50X10MM
      # -
      -
      CLIP, SEAT EDGE FIXING
      16 per seat assy
      # -
      -
      Seat belt loop, Left hand front
      GREY
      # -
      -
      Seat belt loop, Left hand front
      Silver
      # -
      -
      Seat belt loop, Left hand front
      Black
      # -
      -
      Seat belt loop, Left hand front
      Blue
      # -
      -
      Seat belt loop, Left hand front
      Grey/ Ruthenium
      # -
      -
      Seat belt loop, Left hand front
      Silver/ Ruthenium
      # -
      -
      Seat belt loop, Left hand front
      Black/ Ruthenium
      # -
      -
      Seat belt loop, Left hand front
      Blue/ Ruthenium
      # -
      -
      Seat belt loop, Left hand front
      Grey/ Gold
      # -
      -
      Seat belt loop, Left hand front
      Silver/ Gold
      # -
      -
      Seat belt loop, Left hand front
      Black/ Gold
      # -
      -
      Seat belt loop, Left hand front
      Blue/ Gold
      # -
      -
      Seat belt loop, Left hand front
      Grey/ Chrome
      # -
      -
      Seat belt loop, Left hand front
      Silver/ Chrome
      # -
      -
      Seat belt loop, Left hand front
      Black/ Chrome
      # -
      -
      Seat belt loop, Left hand front
      Blue/ Chrome
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      GREY
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Silver
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Black
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Blue
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Grey/ Ruthenium
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Silver/ Ruthenium
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Black/ Ruthenium
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Blue/ Ruthenium
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Grey/ Gold
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Silver/ Gold
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Black/ Gold
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Blue/ Gold
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Grey/ Chrome
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Silver/ Chrome
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Black/ Chrome
      # -
      -
      SEAT BELT LOOP, RIGHT HAND FRONT
      Blue/ Chrome
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      GREY
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Silver
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Black
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Blue
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Grey/ Ruthenium
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Silver/ Ruthenium
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Black/ Ruthenium
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Blue/ Ruthenium
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Grey/ Gold
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Silver/ Gold
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Black/ Gold
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Blue/ Gold
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Grey/ Chrome
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Silver/ Chrome
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Black/ Chrome
      # -
      -
      SEAT BELT LOOP, LEFT HAND REAR
      Blue/ Chrome
      # -
      -
      Seat belt loop, Right hand rear
      GREY
      # -
      -
      Seat belt loop, Right hand rear
      Silver
      # -
      -
      Seat belt loop, Right hand rear
      Black
      # -
      -
      Seat belt loop, Right hand rear
      Blue
      # -
      -
      Seat belt loop, Right hand rear
      Grey/ Ruthenium
      # -
      -
      Seat belt loop, Right hand rear
      Silver/ Ruthenium
      # -
      -
      Seat belt loop, Right hand rear
      Black/ Ruthenium
      # -
      -
      Seat belt loop, Right hand rear
      Blue/ Ruthenium
      # -
      -
      Seat belt loop, Right hand rear
      Grey/ Gold
      # -
      -
      Seat belt loop, Right hand rear
      Silver/ Gold
      # -
      -
      Seat belt loop, Right hand rear
      Black/ Gold
      # -
      -
      Seat belt loop, Right hand rear
      Blue/ Gold
      # -
      -
      Seat belt loop, Right hand rear
      Grey/ Chrome
      # -
      -
      Seat belt loop, Right hand rear
      Silver/ Chrome
      # -
      -
      Seat belt loop, Right hand rear
      Black/ Chrome
      # -
      -
      Seat belt loop, Right hand rear
      Blue/ Chrome
