aston martin one-77 (2011) engine sealing parts diagram

03.0011 - Engine Sealing

Aston Martin One-77 (2011) Engine Sealing Parts Diagram

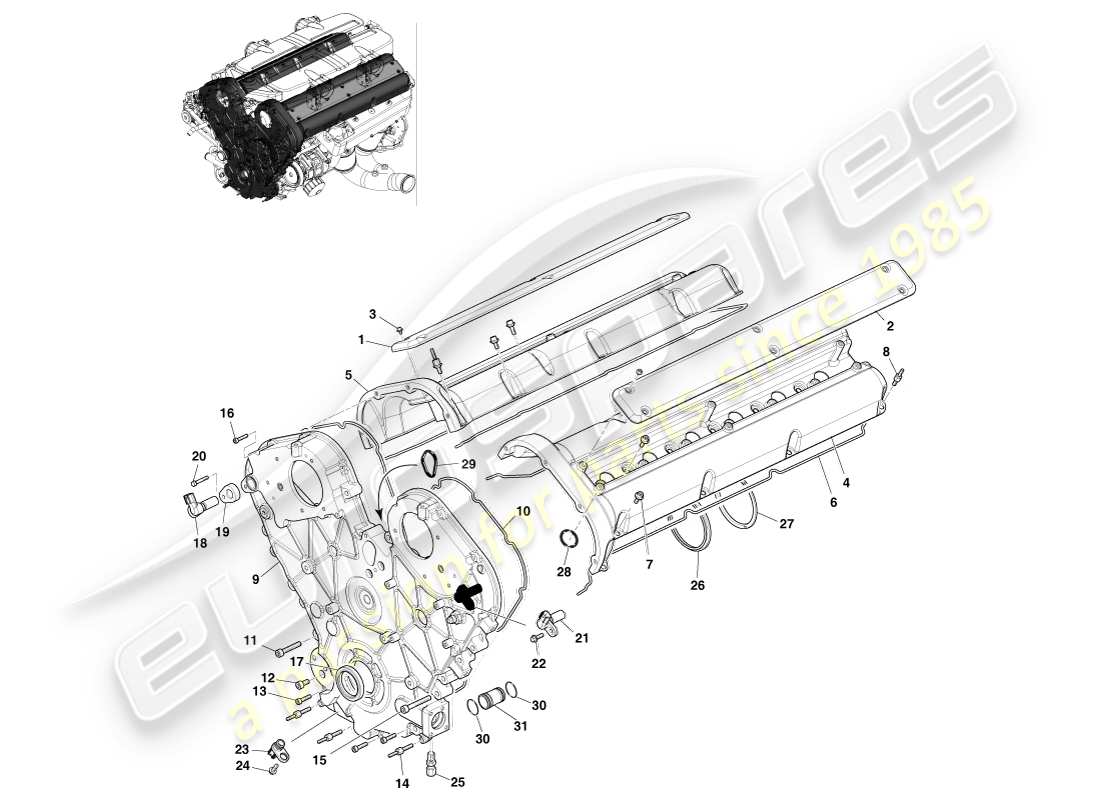

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 1
                                                                  MPN: AY93-07-10055
                                                                  COVER, COIL LH
                                                                  COIL COVER LH Genuine Aston Martin - New (to order)
                                                                  # 2
                                                                  MPN: AY93-07-10054
                                                                  COVER, COIL RH
                                                                  from £1,008.20
                                                                  from £1,008.20
                                                                  COIL COVER-RH Genuine Aston Martin - New (to order)
                                                                  # 3
                                                                  MPN: 705371
                                                                  SCREWS, COIL COVER
                                                                  SCREW Genuine Aston Martin - New (to order)
                                                                  # 4
                                                                  MPN: AY93-07-10065
                                                                  Cover, Cam LH
                                                                  Cover, Cam LH Genuine Aston Martin - New (to order)
                                                                  # 5
                                                                  MPN: AY93-07-10064
                                                                  Cover, Cam RH
                                                                  Cover, Cam RH Genuine Aston Martin - New (to order)
                                                                  # 6
                                                                  MPN: 705372
                                                                  O RING CORD, 1.9MTS, CAM COVERS
                                                                  O RING CORD Genuine Aston Martin - New (to order)
                                                                  # 7
                                                                  MPN: AY93-07-10039
                                                                  SCREWS, M6X16, CAM COVERS
                                                                  from £28.58
                                                                  from £28.58
                                                                  SCREW-M6 X 16 Genuine Aston Martin - New (to order)
                                                                  # 8
                                                                  MPN: AY93-07-10040
                                                                  BOLT, STUD M6X16/ M5
                                                                  from £243.66
                                                                  from £243.66
                                                                  BOLT-STUD Genuine Aston Martin - New (to order)
                                                                  # 9
                                                                  MPN: AY93-03-10063
                                                                  COVER, FRONT
                                                                  FRONT COVER Genuine Aston Martin - New (to order)
                                                                  # 10
                                                                  MPN: 705381
                                                                  O RING CORD, FRONT COVER
                                                                  from £211.57
                                                                  from £211.57
                                                                  O RING CORD-5MTR LG Genuine Aston Martin - New (to order)
                                                                  # 11
                                                                  MPN: 7053739
                                                                  Screw M8X45, Front Cover
                                                                  Screw M8X45, Front Cover Genuine Aston Martin - New (to order)
                                                                  # 12
                                                                  MPN: 705374
                                                                  Screw M8X16, Front Cover
                                                                  from £2.35
                                                                  from £2.35
                                                                  SCREW-M8X16 Genuine Aston Martin - New (to order)
                                                                  # 13
                                                                  MPN: 705375
                                                                  Screw M6X25, Front Cover
                                                                  from £2.11
                                                                  from £2.11
                                                                  SCREW-M6X25 Genuine Aston Martin - New (to order)
                                                                  # 14
                                                                  MPN: 705376
                                                                  BOLT, STUD, FRONT COVER
                                                                  STUDBOLT Genuine Aston Martin - New (to order)
                                                                  # 15
                                                                  MPN: AY93-89-10025
                                                                  Screw M8X40, Front Cover
                                                                  from £2.06
                                                                  from £2.06
                                                                  SCREW-M8 X 40 Genuine Aston Martin - New (to order)
                                                                  # 16
                                                                  MPN: 705377
                                                                  Screw M5X25, Front Cover
                                                                  Screw M5X25, Front Cover Genuine Aston Martin - New (to order)
                                                                  # 17
                                                                  MPN: 03-85067
                                                                  SEAL, FRONT CRANK
                                                                  from £20.03
                                                                  from £20.03
                                                                  OIL SEAL-C/SHAFT-FRT Genuine Aston Martin - New In stock
                                                                  # 18
                                                                  MPN: AY93-07-10058
                                                                  SENSOR, CAM RH
                                                                  from £294.07
                                                                  from £294.07
                                                                  CAMSHAFT SENSOR RH Genuine Aston Martin - New (to order)
                                                                  # -
                                                                  -
                                                                  O RING, CAM SENSOR
                                                                  # 19
                                                                  MPN: AY93-07-10060
                                                                  SPACER, CAM SENSOR
                                                                  SPACER, CAM SENSOR Genuine Aston Martin - New (to order)
                                                                  # 20
                                                                  MPN: 703903
                                                                  SCREW, RH CAM SENSOR, M6X30
                                                                  BOLT-M6X30 HF 8 FLANGE Genuine Aston Martin - New (to order)
                                                                  # 21
                                                                  MPN: AY93-07-10057
                                                                  SENSOR, CAM LH
                                                                  from £294.07
                                                                  from £294.07
                                                                  CAMSHAFT SENSOR LH Genuine Aston Martin - New (to order)
                                                                  # 22
                                                                  MPN: 702542
                                                                  SCREW, LH CAM SENSOR, M6X20
                                                                  from £0.79
                                                                  from £0.79
                                                                  BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                                                  # 23
                                                                  MPN: AY93-39-10059
                                                                  Sensor, Crank
                                                                  from £74.29
                                                                  from £74.29
                                                                  SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
                                                                  # 24
                                                                  MPN: 702542
                                                                  Screw, Crank Sensor, M6X20
                                                                  from £0.79
                                                                  from £0.79
                                                                  BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                                                  # 25
                                                                  MPN: 6G43-39-10080
                                                                  OIL THERMISTOR
                                                                  from £292.50
                                                                  from £292.50
                                                                  SNSR ASY-ENG ELEC CN Genuine Aston Martin - New (to order)
                                                                  # 26
                                                                  MPN: AY93-01-10061
                                                                  Seal, Crankshaft Oil
                                                                  Seal, Crankshaft Oil Genuine Aston Martin - New (to order)
                                                                  # 27
                                                                  MPN: AY93-01-10062
                                                                  Slinger, Oil Seal
                                                                  Slinger, Oil Seal Genuine Aston Martin - New (to order)
                                                                  # 28
                                                                  MPN: AY93-07-10109
                                                                  O RING, SPARK PLUG TUBE
                                                                  from £2.73
                                                                  from £2.73
                                                                  O RING-S/PLUG BOSS Genuine Aston Martin - New (to order)
                                                                  # 29
                                                                  MPN: AY93-05-10029
                                                                  O RING, COOLANT PASSAGE WAY
                                                                  from £4.04
                                                                  from £4.04
                                                                  O RING- Genuine Aston Martin - New (to order)
                                                                  # 30
                                                                  MPN: AY93-8527-KA
                                                                  O RING, OIL FEED TUBE
                                                                  from £7.61
                                                                  from £7.61
                                                                  ORING 30X2 SEC VITON Genuine Aston Martin - New (to order)
                                                                  # 31
                                                                  -
                                                                  TUBE, OIL FEED FROM PUMP
