03.0026 - Air Charging

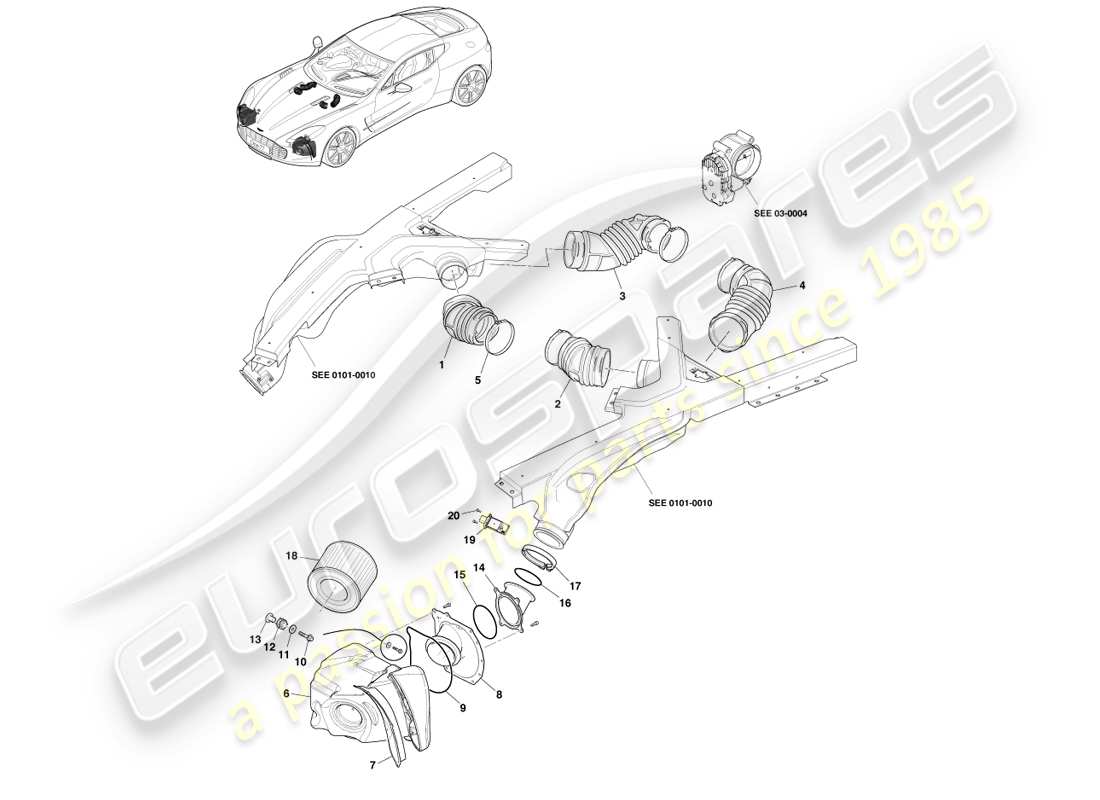

Aston Martin One-77 (2011) Air Charging Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: AY93-9C623-DA
DUCT ASSY, SHORT, AIRFLOW TO THROTTLE BODY (CLEAN) RH
from £574.79
from £574.79
# 2
MPN: AY93-9C623-CA
DUCT ASSY, SHORT, AIRFLOW TO THROTTLE BODY (CLEAN) LH
from £574.79
from £574.79
# 3
MPN: AY93-9C623-AA
DUCT ASSY, LONG, AIRFLOW TO THROTTLE BODY (CLEAN) RH, LONG
from £760.21
from £760.21
# 4
MPN: AY93-9C623-BA
DUCT ASSY, LONG, AIRFLOW TO THROTTLE BODY (CLEAN) LH
from £760.21
from £760.21
# 5
MPN: 4G43-9N832-AA
CLAMP, AIR DUCT ASSY
from £13.80
from £13.80
# 6
MPN: 12023-03-7752-AB
AIRBOX ASSY, ENGINE LH
from £1,922.31
from £1,922.31
# 6
MPN: 12023-03-7753-AB
AIRBOX ASSY, ENGINE RH
from £1,922.31
from £1,922.31
# 7
MPN: AY93-9A675-BA
DUCT, RAM AIR (DIRTY) LH
from £1,739.29
from £1,739.29
# 7
MPN: AY93-9A675-AA
DUCT, RAM AIR (DIRTY) RH
from £1,739.29
from £1,739.29
# 8
MPN: 12023-03-7754-AA
BACKPLATE, ENGINE AIRBOX ASSY LH
from £473.12
from £473.12
# 8
MPN: 12023-03-7755-AA
BACKPLATE, ENGINE AIRBOX ASSY RH
from £473.12
from £473.12
# 9
MPN: AY93-9C664-AA
GASKET, BACKPLATE TO AIRBOX
from £21.92
from £21.92
# 10
MPN: 703199
BOLT M6X30, HEX FLG
from £0.47
from £0.47
# 11
MPN: 697517
WASHER M6
# 12
MPN: 4G43-9697-CA
ISOLATOR, ENGINE AIRBOX
from £7.84
from £7.84
# 13
MPN: 4G43-5144-AA
SPACER, ENGINE AIRBOX ISOLATOR
from £8.47
from £8.47
# 14
MPN: 12023-03-7756-AA
TUBE, MAF EXTENSION, ENGINE AIRBOX LH
from £408.18
from £408.18
# 14
MPN: 12023-03-7757-AA
TUBE, MAF EXTENSION, ENGINE AIRBOX RH
from £408.18
from £408.18
# 15
MPN: AY93-6C704-BA
GASKET, AIR INLET MAF TUBE
from £25.45
from £25.45
# 16
MPN: AY93-6C704-AA
GASKET, AIR INLET MAF TUBE
from £20.09
from £20.09
# 17
MPN: AY93-6N811-AA
CLAMP, MAF TUBE TO ENG BAY BRACE
# 18
MPN: AY93-4600-BA
FILTER, ENGINE AIRBOX ASSY
from £93.65
from £93.65
# 19
MPN: 3L3A-12B579-BA
SENSOR, MAF
# 20
MPN: 6G33-010507-BA
SCREW M4X10 CAP HD
