06.0012 - Power Brake Assembly

Aston Martin One-77 (2011) Power Brake Assembly Parts Diagram

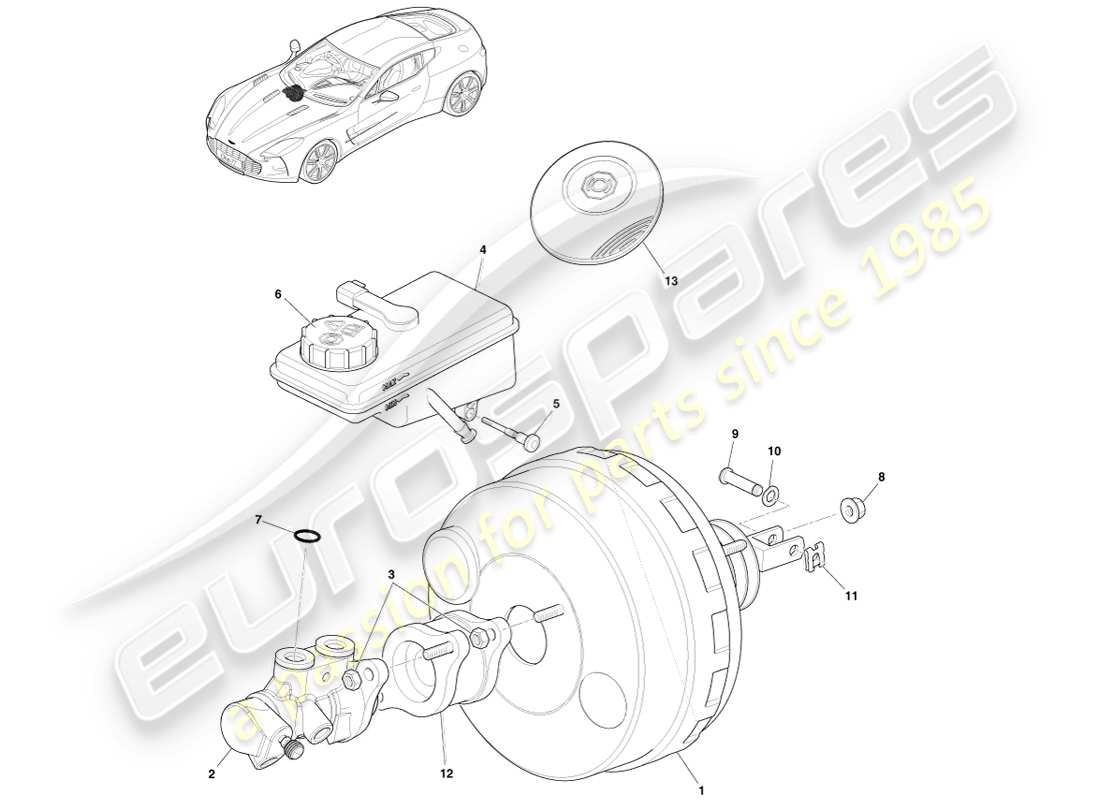

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 0
                                MPN: 12023-11-0014-AF
                                Master Booster Assy
                                MASTER BOOSTER ASSEMBLY Genuine Aston Martin - New (to order)
                                # 1
                                MPN: AY93-2B915-AB
                                KIT, BOOSTER ASSY
                                KIT, BOOSTER ASSEMBLY Genuine Aston Martin - New (to order)
                                # 2
                                MPN: AD43-2140-AA
                                KIT, MASTER CYLINDER, BRAKE
                                from £111.29
                                from £111.29
                                KIT, MASTER CYLINDER, BRAKE Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 703978
                                NUT, LOCK, M8
                                from £1.77
                                from £1.77
                                LOCKNUT Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 4G43-33-10212
                                KIT, RESERVOIR AND PLUG
                                from £88.33
                                from £88.33
                                BR RESERVOIR&PLUG KT Genuine Aston Martin - New (to order)
                                BR RESERVOIR&PLUG KT Genuine Aston Martin - Used In stock
                                # 5
                                MPN: 4G43-33-10216
                                SCREW, RESERVOIR RETAINER
                                from £4.53
                                from £4.53
                                SCREW, RESERVOIR RETAINER Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 4G43-33-10213

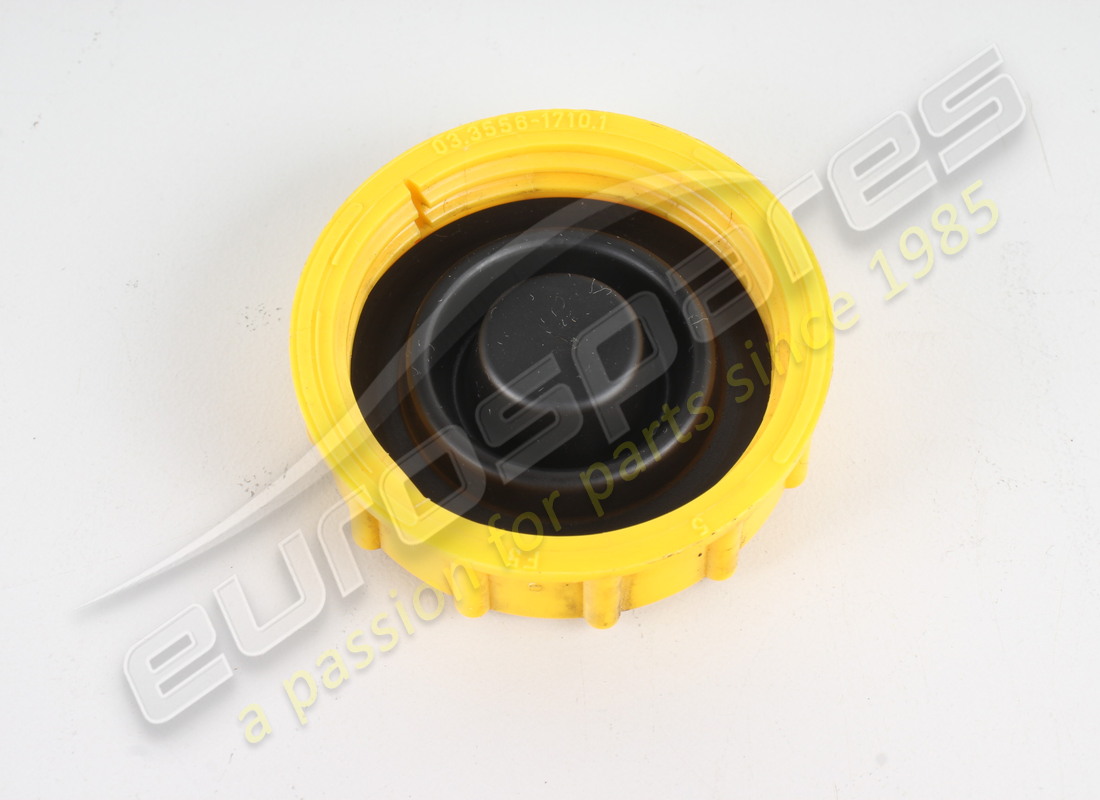

                                CAP, RESERVOIR
                                from £15.15
                                from £15.15
                                CAP, RESERVOIR Genuine Aston Martin - New (to order)
                                CAP, RESERVOIR Genuine Aston Martin - Used In stock
                                # 7
                                MPN: 4G43-33-10215
                                SEAL, RESERVOIR TO MASTER CYLINDER
                                from £6.11
                                from £6.11
                                BR RESERVOIR PLUG Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 703216-PK
                                NUT M8
                                from £11.32
                                from £11.32
                                NUT-M8 HEX P/T (10) Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 29-84879
                                PIN, JOINT
                                from £9.86
                                from £9.86
                                JOINT PIN Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 703273
                                WASHER, WAVE SPRING
                                from £0.47
                                from £0.47
                                WASHER, WAVE SPRING Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 6G33-27328-AA
                                CLIP, SAFETY, NOM SHAFT 5/16
                                from £0.47
                                from £0.47
                                CLIP SFTY NOM.SHAFT Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 12023-11-0013-AA
                                Spacer, master cylinder to booster
                                Spacer, master cylinder to booster Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 12023-03-7026-AA
                                Cover, Brake Fluid Reservoir LHD
                                from £1,183.40
                                from £1,183.40
                                BRK RES COVER Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 12023-03-7027-AA
                                Cover, Brake Fluid Reservoir RHD
                                from £1,183.40
                                from £1,183.40
                                BRAKE RSVR COVER Genuine Aston Martin - New (to order)
                                # -
                                -
                                BRAKE FLUID, SUPER DOT 4
                                # -
                                -
                                LABEL, BRAKE MASTER CYLINDER
