08.0042 - Clutch System

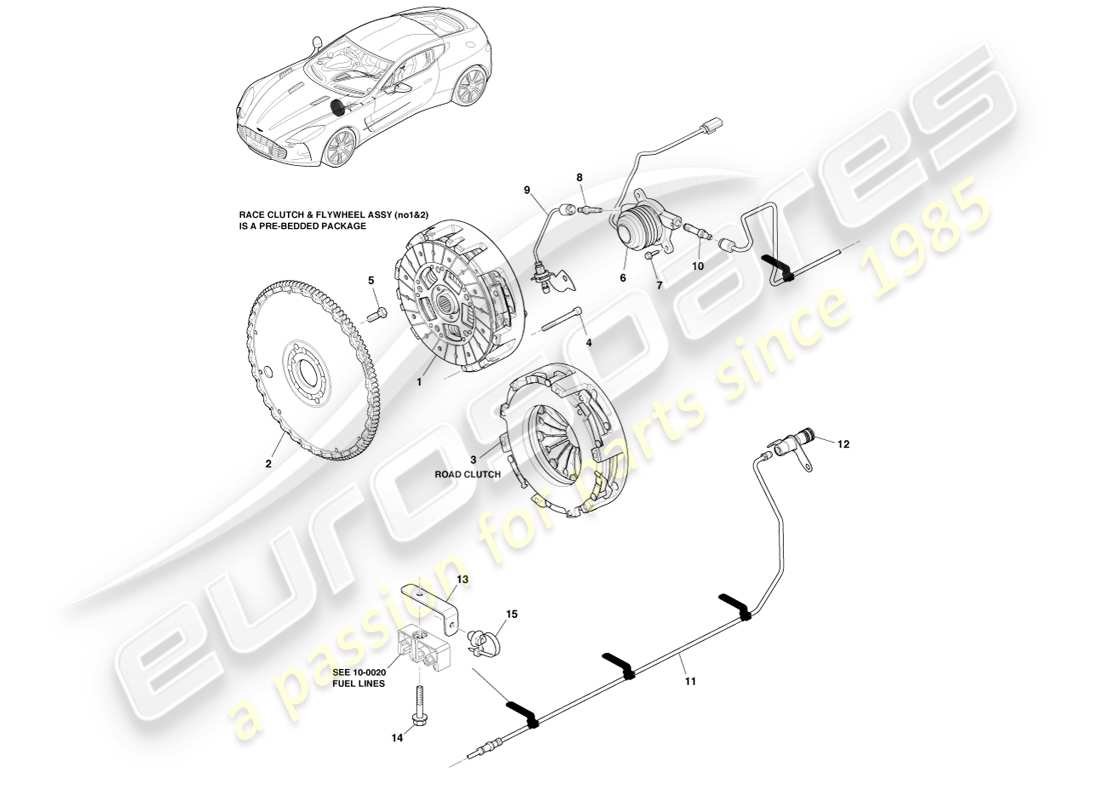

Aston Martin One-77 (2011) Clutch System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: AY93-7C545-AA
                    CLUTCH AND FLYWHEEL ASSY, TWIN PLATE O/D 215MM
                    RACE CLUTCH- Pre-bedded
                    from £7,365.73
                    from £7,365.73
                    CLUTCH & FLYWHL ASSEMBLY Genuine Aston Martin - New (to order)
                    # 2
                    MPN: AY93-6375-BA
                    FLYWHEEL, SINGLE MASS
                    FLYWHEEL, SINGLE MASS Genuine Aston Martin - New (to order)
                    # 3
                    MPN: AD23-7540-AB
                    CLUTCH ASSY, TWIN PLATE 215MM
                    ROAD CLUTCH- Un-bedded
                    from £1,828.40
                    from £1,828.40
                    CLUTCH, TWIN PLATE Genuine Aston Martin - New (to order)
                    # 4
                    MPN: AD23-CD60-AA
                    BOLT, M6-1.00X75 CAP HD
                    Clutch to Flywheel
                    from £2.26
                    from £2.26
                    BOLT M6.0 X 1.0 Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 697786-PK
                    BOLT M10X30 HEX HD
                    Flywheel to Crank
                    Supersession
                    Supersession
                    Genuine Aston Martin (no longer available to order)
                    # 6
                    MPN: BG33-7A564-AA
                    CYLINDER, SLAVE CLUTCH
                    from £705.68
                    from £705.68
                    CYC CL SLAVE ASSEMBLY Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 703203
                    SCREW, M6X20 FLG HD
                    CSC to T/T hsg
                    from £0.47
                    from £0.47
                    SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                    LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                    # 8
                    MPN: 6G33-7K640-CA
                    CONNECTOR ASSY, BLEEDER
                    from £69.44
                    from £69.44
                    CONNECTOR ASSEMBLY, BLEEDER Genuine Aston Martin - New (to order)
                    # 9
                    MPN: AY93-7H552-AA
                    PIPE ASSY, BLEEDER
                    from £41.19
                    from £41.19
                    BLDR PIPE BRACKET Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 6G33-7K640-DA
                    CONNECTOR ASSY, PRESSURE
                    from £19.20
                    from £19.20
                    CONNECTOR ASSEMBLY, PRESSURE Genuine Aston Martin - New (to order)
                    # 11
                    MPN: AY23-7K502-AA
                    TUBE ASSY, CLUTCH MASTER CYLINDER
                    TUBE ASSEMBLY CLUTCH MASTER CYLINDER Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 6G33-7J200-AB
                    BRACKET ASSY, TRANSMISSION CLUTCH
                    from £302.50
                    from £302.50
                    BRACKET ASSEMBLY, TRANSMISSION TUBE Genuine Aston Martin - New (to order)
                    # 13
                    MPN: AY23-R7N630-AA
                    BRACKET, CLUTCH PIPE MOUNTING
                    BRACKET, CLUTCH PIPE MOUNTING Genuine Aston Martin - New (to order)
                    # 14
                    MPN: BG33-19233-BA
                    SCREW M5X35 HEX FLG
                    Fuel Pipe Clip to Torque Tube
                    SCREW M5X35 HEX FLANGE Genuine Aston Martin - New (to order)
                    # 15
                    MPN: 4G43-619B00-AA
                    CABLE TIE, FIR TREE
                    from £0.47
                    from £0.47
                    TIE WRAP, FIR TREE, 200MM X 4.6MM Genuine Aston Martin - New (to order)
                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
