12.0010 - Evaporator & Heater

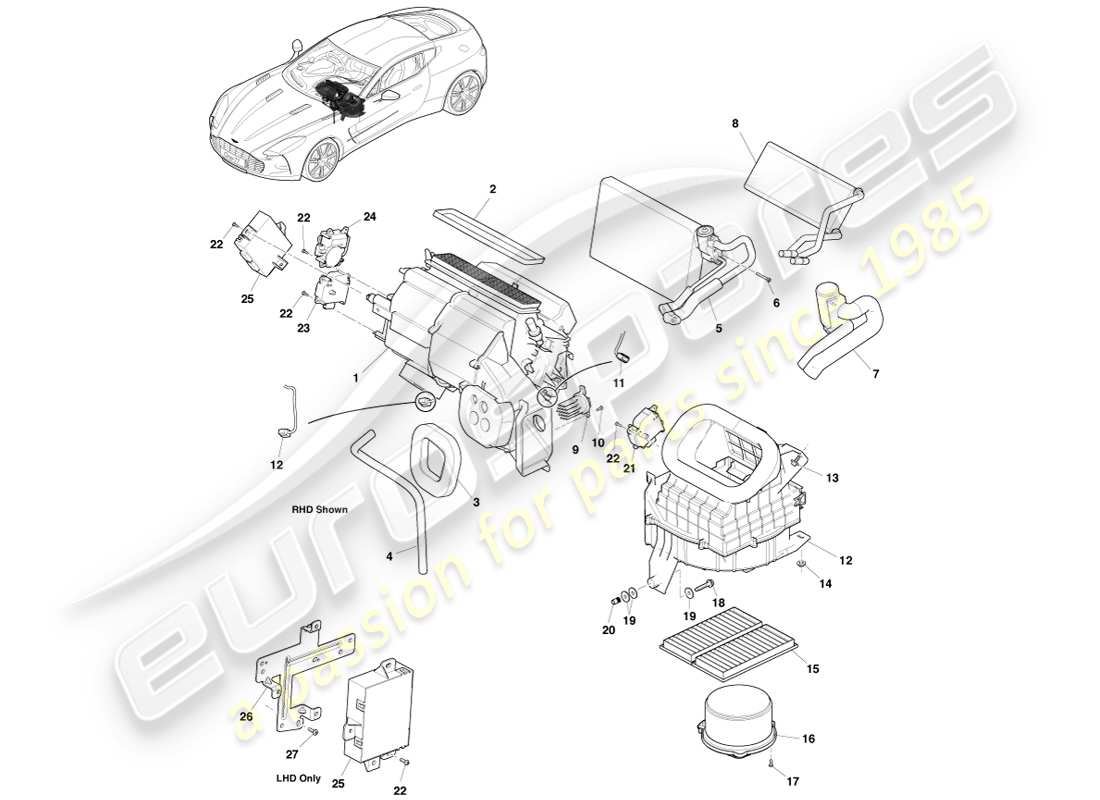

Aston Martin One-77 (2011) Evaporator & Heater Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 6G33-18N407-BA

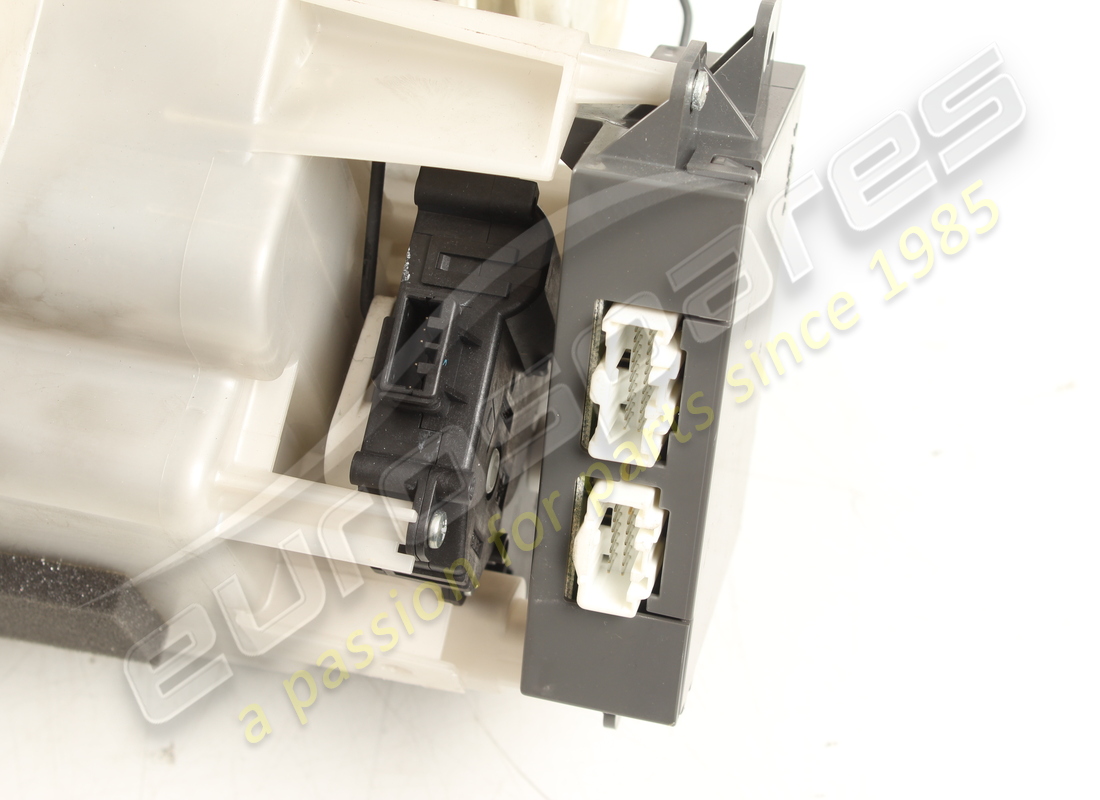

HEATER UNIT, INCLUDING ECU, RHD
from £828.14
from £828.14
# 1
MPN: 6G33-18N407-AA
HEATER UNIT, INCLUDING ECU, LHD
from £1,348.58
from £1,348.58
# -
-
SCREW, M6 X 16, HEATER UNIT TO FACIA
# 2
MPN: 4G43-19N574-AA
SEAL, AIR DUCT
from £1.01
from £1.01
# 3
MPN: 4G43-19D692-A
SEAL FOAM, SEALING PLATE
# 4
MPN: 12023-03-8680-AB
DRAIN TUBE, CONDENSATION, RHD
from £78.74
from £78.74
# 4
MPN: 12023-03-8678-AB
DRAIN TUBE, CONDENSATION, LHD
from £242.12
from £242.12
# 5
MPN: 4G43-19850-AA
EVAPORATOR ASSY A/C
from £609.60
from £609.60
# 6
MPN: 4G43-ALR8679-AA
SCREW M5 X 40, HEX SOCKET
from £0.87
from £0.87
# 7
MPN: 4G43-18D669-AA
SEALING,HEATER CORE
from £13.16
from £13.16
# 7
MPN: 4G43-18693-AA
SEALING, HEATER CORE TUBE TO HEATER CASE
from £8.89
from £8.89
# 7
MPN: 4G43-18C676-AA
SEALING, HEATER CORE TUBE TO HEATER CASE, LHD
# 8
MPN: 4G43-18A271-AA
CORE & TUBE ASSY, HEATER, RHD
from £143.86
from £143.86
# 8
MPN: 4G43-18D671-AA
CORE & TUBE ASSY, HEATER, LHD
from £110.92
from £110.92
# 9
MPN: 4G43-19F615-AA
TRANSISTER, POWER A/C
from £251.32
from £251.32
# 10
MPN: 4G43-104084-AA
SCREW, M5 X 16
# 11
MPN: 4G43-19F598-AA
Sensors A/C evap temp
from £13.12
from £13.12
# 12
MPN: 4G43-19924-BB
BLOWER ASSY, RHD
from £243.27
from £243.27
# 12
MPN: 4G43-19925-AB
BLOWER ASSY, LHD
from £442.31
from £442.31
# 13
MPN: 703151
BOLT & WASHER, M6 X 16, HVAC TO XCB
from £0.47
from £0.47
# 14
MPN: 703612
NUT & WASHER, M6, HVAC TO XCB
from £0.47
from £0.47
# 15
MPN: 4G43-13ZE1-AA-PK
FILTER, POLLEN AND ODOR, (BOX OF 2)
from £52.28
from £52.28
This part replaces part number 4G43-13ZE1-AA
# 16
MPN: 4G43-19F612-AA
MOTOR AND FAN ASSY A/C, RHD
from £480.03
from £480.03
# 16
MPN: 4G43-19F613-AA
MOTOR AND FAN ASSY A/C, LHD
from £143.84
from £143.84
# 17
MPN: 4G43-N104301-AA
SCREW M5 X 16
from £0.47
from £0.47
# 18
MPN: 701177
BOLT, M8 X 35, HVAC TO HEATER
# 19
MPN: 703137
WASHER, M8, HVAC TO BRACKET
# 20
MPN: 6G33-58762-AA
RIVNUT, M8 LOW PROFILE
from £0.47
from £0.47
# 21
MPN: 4G43-18A250-AA
SERVO ASSY, A/C HEATER FRESH/RECU AIR, RHD
from £220.76
from £220.76
# 21
MPN: 4G43-18A251-AA
SERVO ASSY, A/C HEATER FRESH/RECU AIR, LHD
from £220.76
from £220.76
# 22
MPN: 4G43-104084-AA
SCREW
# 23
MPN: 4G43-18D674-AA
SERVO ASSY, A/C HEATER AIR MIX, RHD
from £220.76
from £220.76
# 23
MPN: 4G43-18D675-AA
SERVO ASSY, A/C HEATER AIR MIX, LHD
from £220.76
from £220.76
# 24
MPN: 4G43-18E246-AA
SERVO ASSY, A/C HTR MODE, RHD
from £220.76
from £220.76
# 24
MPN: 4G43-18E247-AA
SERVO ASSY, A/C HTR MODE ,LHD
from £220.76
from £220.76
# 25
-
ECU
Part of item 1
# 26
MPN: 4G43-121205-AA
BRACKET, ECU MOUNTING, LHD ONLY
# 27
MPN: 4G43-104084-AA
SCREW, M4 X 16MM PAN HD
