aston martin one-77 (2011) side repeaters parts diagram

17.0104 - Side Repeaters

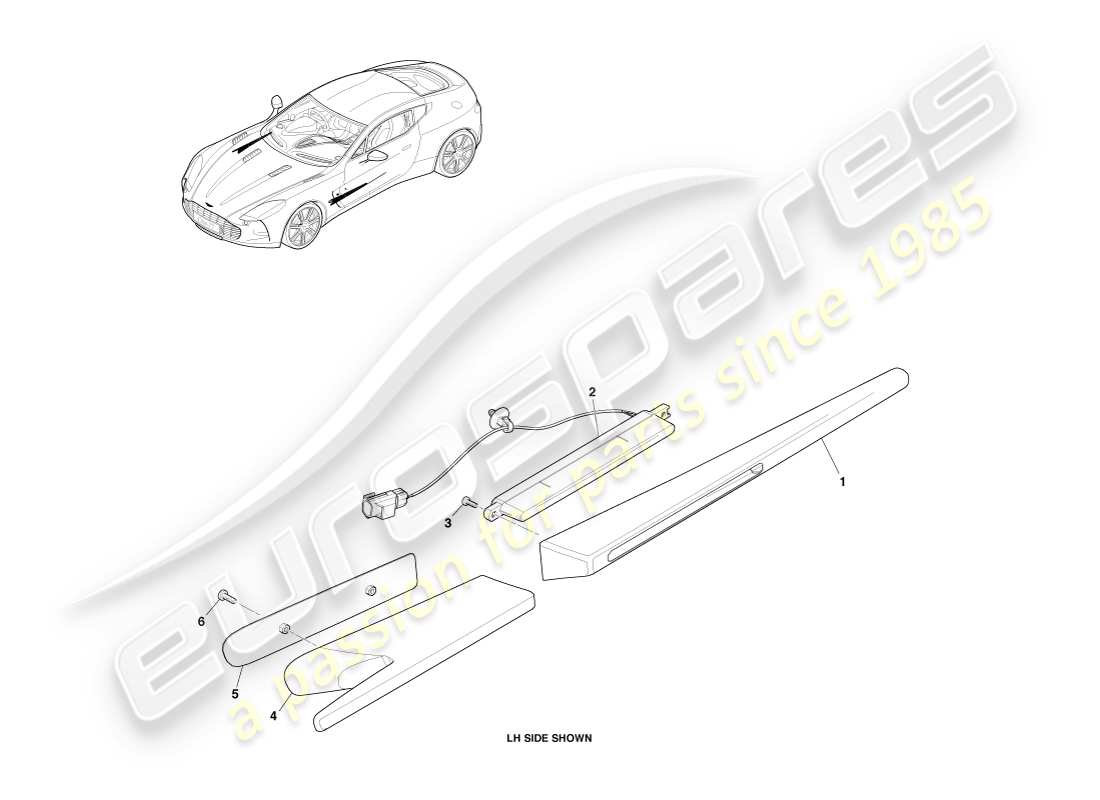

Aston Martin One-77 (2011) Side Repeaters Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: DBYA02017-D
            STRAKE ASSY, SIDE LH
            from £2,095.26
            from £2,095.26
            SD STRK ASSEMBLY DR LH Genuine Aston Martin - New (to order)
            # 1
            MPN: DBYA02018-D
            STRAKE ASSY, SIDE RH
            from £2,095.26
            from £2,095.26
            SD STRK ASSEMBLY DR RH Genuine Aston Martin - New (to order)
            # 2
            MPN: 8D33-13K376-AB
            Repeater assy, Side
            REPEATER ASSEMBLY SIDE Genuine Aston Martin - New (to order)
            # 3
            MPN: 703737
            SCREW M4X12 PAN HD
            2 per Repeater
            from £1.53
            from £1.53
            SCREW-M4X12 PANHD FLANGE Genuine Aston Martin - New (to order)
            # 4
            MPN: DBY00263-B
            STRAKE ASSY, SIDE FENDER LH
            from £2,225.07
            from £2,225.07
            SD STRK FDR LH Genuine Aston Martin - New (to order)
            # 4
            MPN: DBY00264-B
            STRAKE ASSY, SIDE FENDER RH
            from £2,225.07
            from £2,225.07
            SD STRK FDR RH Genuine Aston Martin - New (to order)
            # 5
            MPN: DBYA02021-B
            BRACKET ASSY, SIDE STRAKE OUTER LH
            from £4.84
            from £4.84
            SD STRK OUTER BRACKET Genuine Aston Martin - New (to order)
            # 5
            MPN: DBYA02022-A
            BRACKET ASSY, SIDE STRAKE OUTER RH
            from £5.56
            from £5.56
            SD STRK OUTER BRACKET Genuine Aston Martin - New (to order)
            # 6
            MPN: 701556-PK
            SCREW M5X16 PAN HD
            from £2.01
            from £2.01
            SCREW-M5X16 PN HD(10 Genuine Aston Martin - New (to order)
