aston martin rapide (2010) hood latch system, s parts diagram

011403-B2 - Hood Latch System, S

Aston Martin Rapide (2010) Hood Latch System, S Parts Diagram

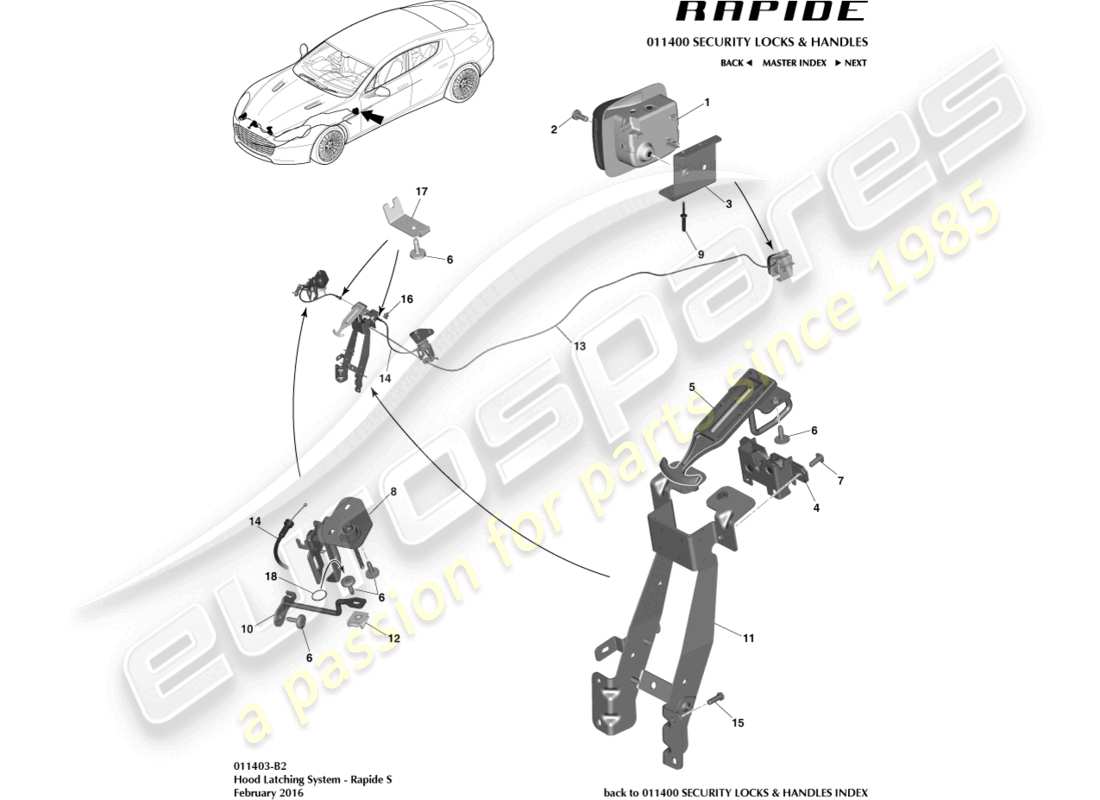

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 9G43-64-11062
                                LEVER, BONNET RELEASE
                                from £4.94
                                from £4.94
                                LEVER-BONNET RELEASE Genuine Aston Martin - New (to order)
                                LEVER-BONNET RELEASE Genuine Aston Martin - Used In stock
                                # 2
                                MPN: 701553
                                SCREW, M6X16 PAN HEAD
                                from £0.47
                                from £0.47
                                SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 4G43-16C730-AB
                                BRACKET, HOOD RELEASE HANDLE MOUNTING
                                from £8.71
                                from £8.71
                                HOOD REL HNDL MOUNTING BR Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 4G43-64-10063
                                BONNET LATCH
                                from £10.20
                                from £10.20
                                BONNET LATCH Genuine Aston Martin - New (to order)
                                BONNET LATCH Genuine Aston Martin - Used In stock
                                # 5
                                MPN: DD43-5284-AD
                                PRIMARY STRIKER & SECONDARY RELEASE
                                from £55.66
                                from £55.66
                                STRIKER/RELEASE HNDL Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 6G33-FA0115-AB-PK
                                SCREW, M6X20, SOCKET HD
                                Pack of 20
                                from £12.00
                                from £12.00
                                This part replaces part number 6G33-FA0115-AB
                                SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 703149
                                SCREW M6X16, PAN TORX HD
                                from £0.47
                                from £0.47
                                SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                                # 8
                                MPN: DD43-16B769-AC
                                LATCH ASSEMBLY, HOOD SECONDARY, RH
                                Supersession
                                Supersession
                                Genuine Aston Martin (no longer available to order)
                                # 8
                                MPN: DD43-16B768-AC
                                LATCH ASSEMBLY, HOOD SECONDARY, LH
                                Supersession
                                Supersession
                                Genuine Aston Martin (no longer available to order)
                                # 9
                                MPN: 701356
                                RIVET, M4X10, BLIND
                                from £0.47
                                from £0.47
                                RIVET M4X10 BLIND Genuine Aston Martin - New (to order)
                                # 10
                                MPN: DD43-16A945-AA
                                STRIKER BAR, SECONDARY LATCH, RH
                                from £81.54
                                from £81.54
                                STRIKER BAR, SECONDARY LATCH, RH Genuine Aston Martin - New (to order)
                                # 10
                                MPN: DD43-16A944-AA
                                STRIKER BAR, SECONDARY LATCH, LH
                                from £81.54
                                from £81.54
                                STRIKER BAR, SECONDARY LATCH, LH Genuine Aston Martin - New (to order)
                                # 11
                                MPN: CD33-3804-AC
                                BRACKET, BONNET LATCH MOUNTING
                                from £184.53
                                from £184.53
                                BRACKET, BONNET LATCH MOUNTING Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 77G43-10609E-AA-PK
                                CLIP, M6 U TYPE
                                Pack of 10
                                from £6.40
                                from £6.40
                                CLIP, M6 U TYPE Genuine Aston Martin - New (to order)
                                # 13
                                MPN: AD43-16C656-AC
                                CABLE ASSEMBLY, HOOD LATCH RELEASE
                                from £35.92
                                from £35.92
                                CABLE ASSEMBLY, HOOD LATCH RELEASE Genuine Aston Martin - New (to order)
                                # 14
                                MPN: DD43-405C45-AD
                                CABLE, SECONDARY LATCH RELEASE
                                from £50.08
                                from £50.08
                                CABLE, SECONDAY LATCH RELEASE Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 703265
                                SCREW M6X16, HEX HD
                                from £0.47
                                from £0.47
                                SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 704443
                                CLIP PLASTIC
                                from £0.49
                                from £0.49
                                CLIP-PLASTIC 5X6.5X2 Genuine Aston Martin - New (to order)
                                # 17
                                MPN: DG43-16K662-AB
                                BRACKET, SECONDARY RELEASE CABLE
                                from £11.15
                                from £11.15
                                BRACKET, SECONDARY RELEASE CABLE Genuine Aston Martin - New (to order)
                                # 18
                                MPN: CD33-A15K610-AA
                                TORX CAP TX30, OD 16.2MM
                                FROM 15MY
                                from £0.47
                                from £0.47
                                TORX CAP, TX30, OD 16.2MM Genuine Aston Martin - New (to order)
