aston martin rapide (2011) number plate plinths parts diagram

011904 - Number Plate Plinths

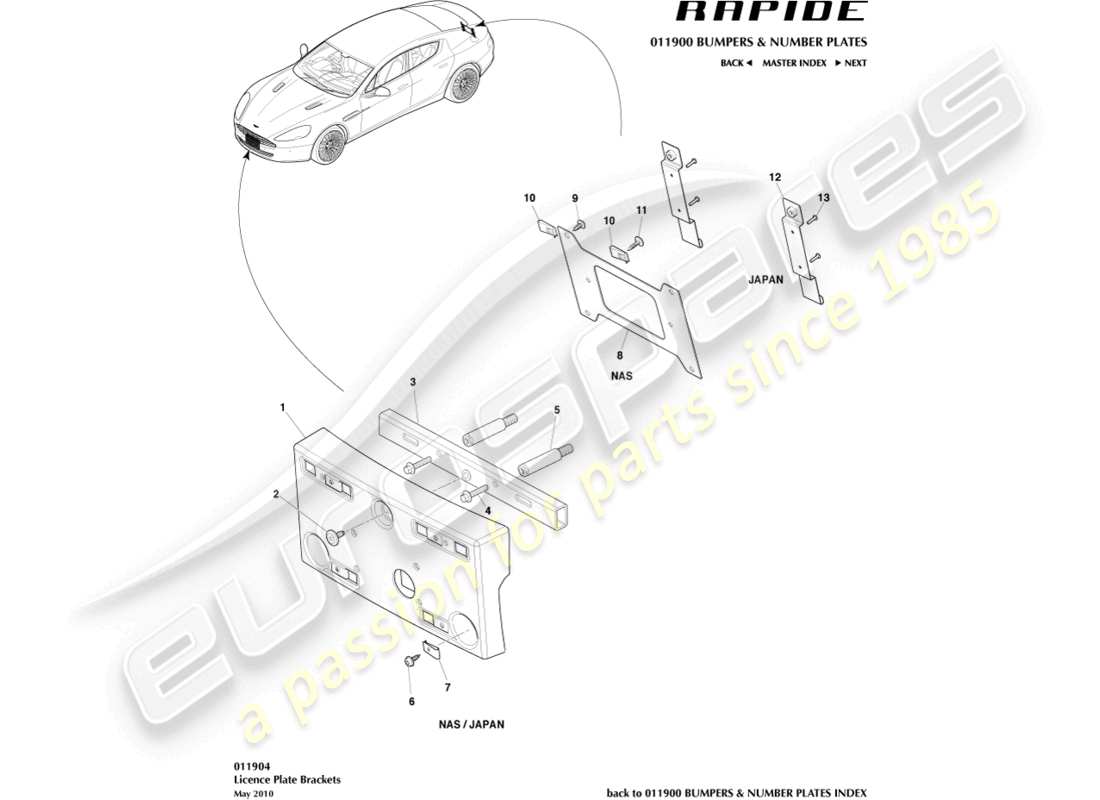

Aston Martin Rapide (2011) Number Plate Plinths Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: AD43-17A835-BA
                  PLINTH ASSY, LICENCE PLATE
                  NAS & Japan
                  from £521.57
                  from £521.57
                  PLINTH ASSEMBLY, LICENCE PLATE Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 702514
                  SCREW M6X14
                  from £0.56
                  from £0.56
                  SCREW M6 X 14 HD INT Genuine Aston Martin - New In stock
                  FRONT UNDERTRAY BOLT Genuine Ferrari Part - New (to order)
                  # 3
                  MPN: AD43-16E146-BA
                  BOLSTER, STRUCTURAL FRONT END
                  NAS & Japan
                  from £33.94
                  from £33.94
                  BOLSTER, STRUCTURAL FRONT END Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 703199
                  FIXINGS KIT, PLINTH ASSY ROW
                  from £0.47
                  from £0.47
                  BOLT M6X30 HEX FLANGE Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 6G33-16E146-DC
                  STUD, STRUCTURAL FRONT END
                  from £5.36
                  from £5.36
                  BOLSTER STUD Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 703104
                  SCREW, M4X19
                  from £0.47
                  from £0.47
                  SC ST4.8 X 1.59 X 19 Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 702511-PK
                  NUT, U TYPE
                  from £3.92
                  from £3.92
                  NUT-SPG 4.8X0.70(10) Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 6G33-17B389-AD
                  BRACKET, LICENCE PLATE
                  NAS
                  from £14.04
                  from £14.04
                  LICENCE PLT BRKT-FED Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 700275
                  SCREW 4.8X13
                  from £0.47
                  from £0.47
                  SCREW 4.2X13 WASHER HD Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 702511-PK
                  NUT, U TYPE
                  Pack of 10
                  from £3.92
                  from £3.92
                  NUT-SPG 4.8X0.70(10) Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 703104
                  SCREW 4.8X19
                  from £0.47
                  from £0.47
                  SC ST4.8 X 1.59 X 19 Genuine Aston Martin - New (to order)
                  # 12
                  MPN: AD43-13418-BA
                  BRACKET ASSY, LICENCE PLATE
                  Japan
                  from £54.17
                  from £54.17
                  BRACKET NO PLT JAPAN Genuine Aston Martin - New (to order)
                  # 13
                  MPN: 702943
                  RIVET
                  from £0.47
                  from £0.47
                  RIVET-3.2X6.5 BLACK Genuine Aston Martin - New (to order)
