aston martin rapide (2011) carbon canister, 15my parts diagram

031300-20 - Carbon Canister, 15MY

Aston Martin Rapide (2011) Carbon Canister, 15MY Parts Diagram

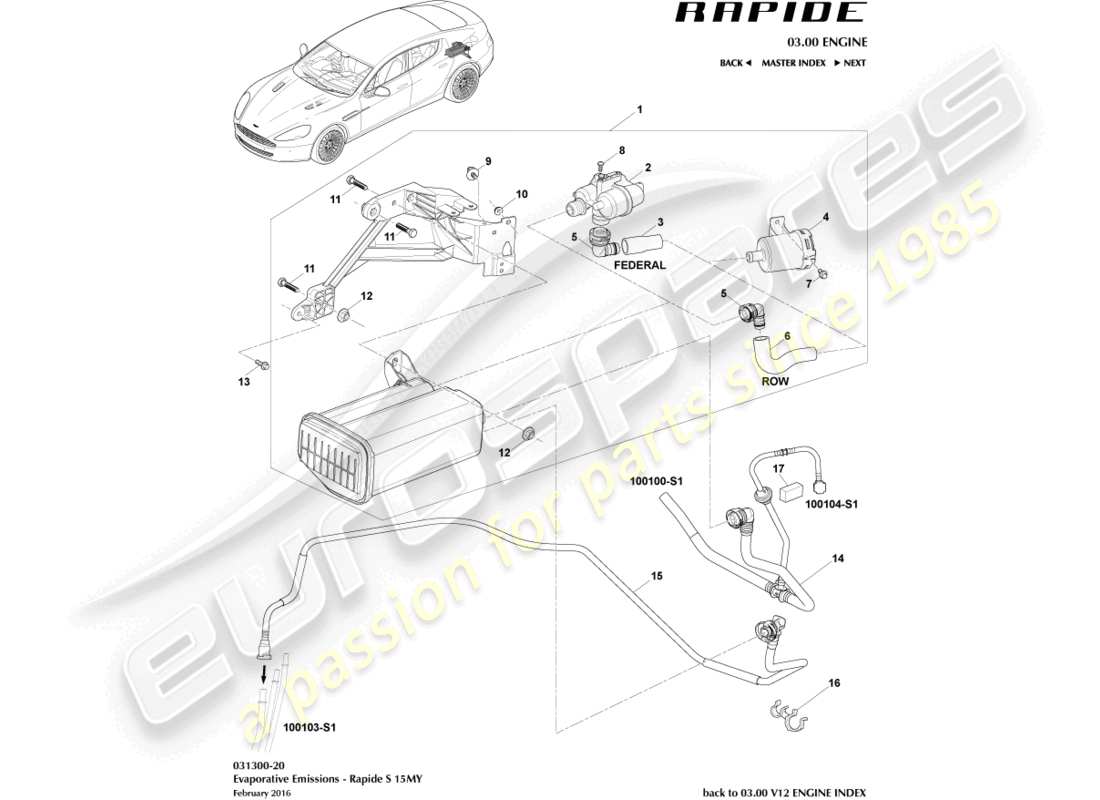

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: AD43-9E857-BA
                        CANISTER AND BRACKET ASSEMBLY
                        RoW
                        from £329.55
                        from £329.55
                        CANNISTER AND BRACKET ASSEMBLY - NON FEDERAL Genuine Aston Martin - New (to order)
                        # 1
                        MPN: AD43-9E857-AB
                        CANISTER AND BRACKET ASSEMBLY
                        Federal
                        from £338.73
                        from £338.73
                        CANNISTER AND BRACKET ASSEMBLY - FEDERAL Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 6H52-9C111-BA
                        PUMP, ON BOARD DIAGNOSTIC LEAK CHECK
                        Federal
                        PUMP, DIAGNOSTIC LEAK CHECK Genuine Aston Martin - New (to order)
                        # 3
                        MPN: AD43-9G271-AA
                        HOSE, VENT DMTL FILTER
                        Federal
                        HOSE, VENT DMTL FILTER Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 4G43-9B995-AA
                        FILTER, FUEL/ VAPOUR STORAGE CANISTER
                        from £11.57
                        from £11.57
                        FLTR FU/VPR STEERING CNS Genuine Aston Martin - New (to order)
                        FLTR FU/VPR STEERING CNS Genuine Aston Martin - Used In stock
                        # 5
                        MPN: AA-07025-3
                        ELBOW, QUICK CONNECTOR
                        RoW, Federal
                        ELBOW, QUICK CONNECTOR Genuine Aston Martin - New (to order)
                        # 6
                        MPN: AD43-9G271-BA
                        HOSE, DMTL TO FILTER
                        RoW
                        HOSE, DMTL TO FILTER Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 700606
                        SCREW, M6X12, HEX FLANGE HEAD
                        from £0.47
                        from £0.47
                        SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                        # 8
                        MPN: W505962-S439
                        SCREW, M5X12, PAN HEAD
                        Federal
                        SCREW, M5X12, PAN HEAD Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 699711
                        P CLIP, M6
                        from £1.15
                        from £1.15
                        P CLIP DIAMETER 23X15XM6 Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 702944
                        NUT, M6
                        from £0.58
                        from £0.58
                        NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                        LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                        # 11
                        MPN: W501210-S426
                        BOLT, M8X35, HEX HEAD
                        BOLT, M8X35, HEX HEAD Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 703161
                        NUT, M8, HEX HEAD
                        from £0.54
                        from £0.54
                        NUT HEX M8 FLANGE Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 703203
                        SCREW, M6X20, HEX FLANGE HEAD
                        from £0.47
                        from £0.47
                        SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                        LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                        # 14
                        MPN: AD43-9A228-AB
                        VAPOUR LINE, CANISTER TO TANK
                        from £125.83
                        from £125.83
                        VAPOUR LINE, CANISTER TO TANK Genuine Aston Martin - New (to order)
                        # 15
                        MPN: DD43-9D667-BB
                        TUBE ASSY, FUEL VAPOUR PURGE
                        from £80.93
                        from £80.93
                        TUBE ASSEMBLY, FUEL VAPOUR PURGE Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 701182
                        CLIP-SWIVEL
                        from £1.16
                        from £1.16
                        CLIP-SWIVEL Genuine Aston Martin - New (to order)
                        # 17
                        MPN: AD43-46660-AA
                        FOAM BLOCK
                        from £0.96
                        from £0.96
                        PAD, FOAM Genuine Aston Martin - New (to order)
