aston martin rapide (2012) main floor trim, lhd parts diagram

010501-B1 - Main Floor Trim, LHD

Aston Martin Rapide (2012) Main Floor Trim, LHD Parts Diagram

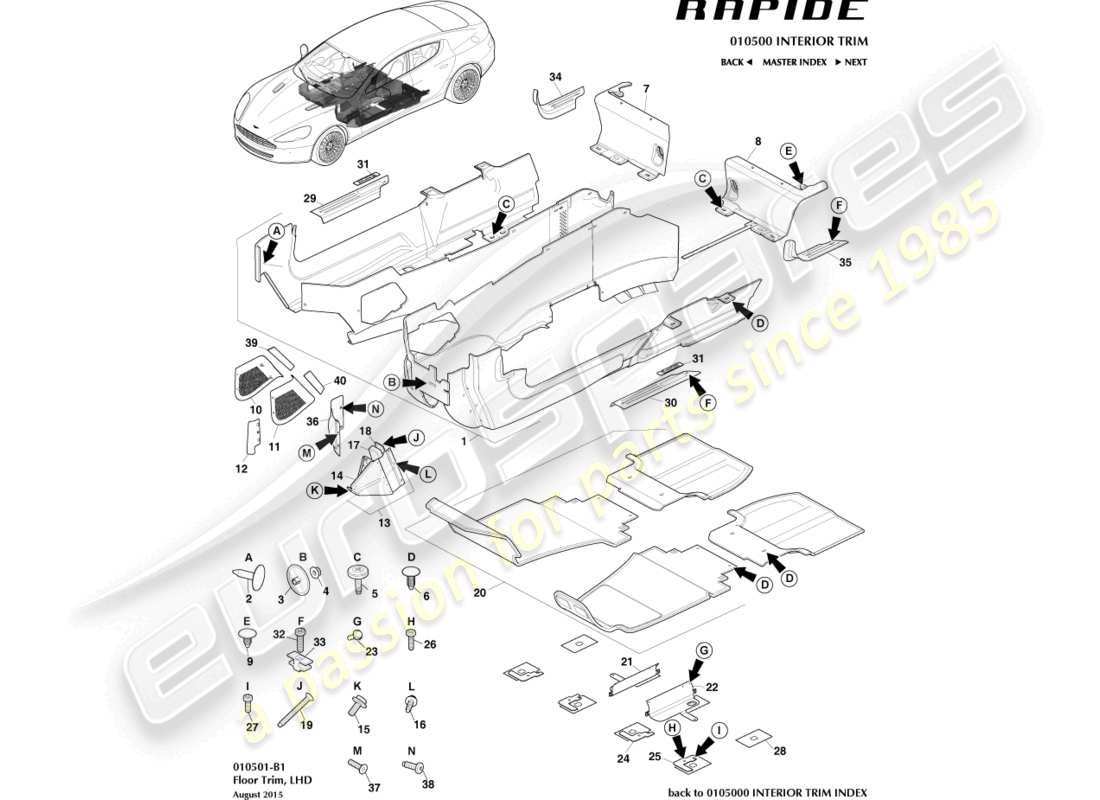

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: AD43-281B11-ACW
                                                  KIT ASSEMBLY, SIDE CARPET, LHD
                                                  Up to 15MY
                                                  from £1,875.74
                                                  from £1,875.74
                                                  KIT ASSEMBLY, SIDE CARPET, LHD Genuine Aston Martin - New (to order)
                                                  # 1
                                                  MPN: FD43-281B11-ABW
                                                  KIT ASSEMBLY, SIDE CARPET, LHD
                                                  FROM 15MY
                                                  from £2,500.99
                                                  from £2,500.99
                                                  KIT ASSEMBLY, SIDE CARPET, LHD Genuine Aston Martin - New (to order)
                                                  # 1
                                                  MPN: FD43-281B11-GA
                                                  KIT ASSEMBLY, SIDE CARPET, LHD
                                                  Black. From 17.5MY
                                                  from £2,500.99
                                                  from £2,500.99
                                                  KIT ASSEMBLY, SIDE CARPET, LHD Genuine Aston Martin - New (to order)
                                                  # 2
                                                  MPN: 4G43-STC3710-AA-PK
                                                  FASTENER, FIRTREE
                                                  Supersession
                                                  Supersession
                                                  Genuine Aston Martin (no longer available to order)
                                                  # 3
                                                  MPN: 6G33-13925-AA
                                                  PUSH-ON BUTTON, M5X35
                                                  from £0.47
                                                  from £0.47
                                                  M5 X 35 PSH ON FIX Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: 702295
                                                  NUT, M5
                                                  from £0.47
                                                  from £0.47
                                                  NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                                  # 5
                                                  MPN: 6G33-FA0115-AB
                                                  SCREW AND WASHER, M6X19
                                                  Supersession
                                                  Supersession
                                                  Genuine Aston Martin (no longer available to order)
                                                  # 6
                                                  MPN: AD43-MXC1800-AA
                                                  FASTENER, FIRTREE (FTB055)
                                                  from £0.47
                                                  from £0.47
                                                  FIR TREE BUTTON Genuine Aston Martin - New (to order)
                                                  # 7
                                                  MPN: AD43-130A34-ACW
                                                  CARPET ASSEMBLY, FLOOR REAR, RHS
                                                  from £465.27
                                                  from £465.27
                                                  CARPET ASSEMBLY, FLOOR REAR, RHS Genuine Aston Martin - New (to order)
                                                  # 7
                                                  MPN: AD43-130A34-GA
                                                  CARPET ASSEMBLY, FLOOR REAR, RHS
                                                  Black. From 17.5MY
                                                  CARPET ASSEMBLY, FLOOR REAR, RHS Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: AD43-130A35-ACW
                                                  CARPET ASSEMBLY, FLOOR REAR, LHS
                                                  from £465.27
                                                  from £465.27
                                                  CARPET ASSEMBLY, FLOOR REAR, LHS Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: AD43-130A35-GA
                                                  CARPET ASSEMBLY, FLOOR REAR, LHS
                                                  Black. From 17.5MY
                                                  CARPET ASSEMBLY, FLOOR REAR, LHS Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: AD43-MXC1800-AA
                                                  FASTENER, FIRTREE (FTB054)
                                                  from £0.47
                                                  from £0.47
                                                  FIR TREE BUTTON Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: AD43-311A76-BA
                                                  SPEAKER GRILLE ASSEMBLY, FOOTWELL, RHS
                                                  with fixings, B&O
                                                  from £462.87
                                                  from £462.87
                                                  SPEAKER GRILLE ASSEMBLY, FOOTWELL, RHS Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: GD43-311A76-CC
                                                  SPEAKER GRILLE ASSEMBLY, FOOTWELL, RHS
                                                  with fixings, ASK
                                                  from £439.55
                                                  from £439.55
                                                  FOOTWELL SPEAKER GRL RH Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: HD43-311A76-CA
                                                  SPEAKER GRILLE ASSEMBLY, FOOTWELL, RHS
                                                  with fixings, Black. 17MY on
                                                  from £125.12
                                                  from £125.12
                                                  FOOTWELL SPEAKER GRL RH Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: AD43-311A77-BA
                                                  SPEAKER GRILLE ASSEMBLY, FOOTWELL, LHS
                                                  with fixings, B&O
                                                  from £462.87
                                                  from £462.87
                                                  SPEAKER GRILLE ASSEMBLY, FOOTWELL, LHS Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: GD43-311A77-CC
                                                  SPEAKER GRILLE ASSEMBLY, FOOTWELL, LHS
                                                  with fixings, ASK
                                                  from £439.55
                                                  from £439.55
                                                  FOOTWELL SPEAKER GRL LH Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: HD43-311A77-CA
                                                  SPEAKER GRILLE ASSEMBLY, FOOTWELL, LHS
                                                  with fixings, Black. 17MY on
                                                  from £125.12
                                                  from £125.12
                                                  FOOTWELL SPEAKER GRL LH Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: 9D33-201A49-AA
                                                  SHIELD, SPEAKER GRILLE PROTECTOR
                                                  from £10.98
                                                  from £10.98
                                                  SHLD SPEAKER GRL PR LH Genuine Aston Martin - New (to order)
                                                  # 13
                                                  MPN: 9G43-12020-BA
                                                  FOOTREST ASSEMBLY, LHD
                                                  from £225.77
                                                  from £225.77
                                                  PAD ASSEMBLY FRONT ST FT Genuine Aston Martin - New (to order)
                                                  # 14
                                                  MPN: 4G43-3N328-BE
                                                  BRACKET, FOOTREST, LHD
                                                  from £86.45
                                                  from £86.45
                                                  RES FT ASSEMBLY LHD Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: 703151
                                                  BOLT AND WASHER, M6X16
                                                  from £0.47
                                                  from £0.47
                                                  SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                  LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                                                  # 16
                                                  MPN: 703026
                                                  SCREW, M5X16
                                                  from £0.47
                                                  from £0.47
                                                  SCREW M5X16 HEX FLANGE Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 4G43-9661-BA
                                                  ENERGY ABSORBER, FOOTREST, LHD
                                                  FOOTREST ASSEMBLY, LHD Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: 9G43-12020-BA
                                                  PAD ASSEMBLY, LHD, SILVER
                                                  from £225.77
                                                  from £225.77
                                                  PAD ASSEMBLY FRONT ST FT Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: CD33-12020-CA
                                                  PAD ASSEMBLY, LHD, BLACK
                                                  Rapide S Option
                                                  from £78.74
                                                  from £78.74
                                                  PAD ASSEMBLY FRONT ST BLACK Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: 6G33-E801202-AA
                                                  SCREW, M5X45
                                                  from £0.47
                                                  from £0.47
                                                  M5X45 COUNTERSUNK ST SCREW Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: AD43-83-10115
                                                  KIT ASSEMBLY, FLOOR CARPET, LHD
                                                  from £3,176.86
                                                  from £3,176.86
                                                  KIT ASSEMBLY, FLOOR CARPET, LHD Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: AD43-281B13-GA
                                                  KIT ASSEMBLY, FLOOR CARPET, LHD
                                                  Black. From 17.5MY
                                                  from £1,974.74
                                                  from £1,974.74
                                                  KIT ASSEMBLY, FLOOR CARPET, LHD Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: AD43-605B28-AC
                                                  SCUFF PLATE, TUNNEL, RHS
                                                  from £57.24
                                                  from £57.24
                                                  SCUFF PLATE, TUNNEL, RHS Genuine Aston Martin - New (to order)
                                                  # 22
                                                  MPN: AD43-605B29-AC
                                                  SCUFF PLATE, TUNNEL, LHS
                                                  from £57.24
                                                  from £57.24
                                                  SCUFF PLATE, TUNNEL, LHS Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 4G43-2705-AA
                                                  RIVET
                                                  from £0.47
                                                  from £0.47
                                                  RIVET, PLASTIC Genuine Aston Martin - New (to order)
                                                  # 24
                                                  MPN: AD43-666A41-AB
                                                  FINISHER, CARPET, LHS COMMON
                                                  from £43.26
                                                  from £43.26
                                                  FINISHER, CARPET, LHS COMMON Genuine Aston Martin - New (to order)
                                                  # 25
                                                  MPN: AD43-666A40-AB
                                                  FINISHER, CARPET, RHS COMMON
                                                  from £43.26
                                                  from £43.26
                                                  FINISHER, CARPET, RHS COMMON Genuine Aston Martin - New (to order)
                                                  # 26
                                                  MPN: 6G33-68D11-BA
                                                  SCREW, M5X20, CAP HEAD
                                                  from £0.85
                                                  from £0.85
                                                  CAP SCREW - M5X20 Genuine Aston Martin - New (to order)
                                                  # 27
                                                  MPN: 6G33-68D11-AA
                                                  SCREW, M5X12, CAP HEAD
                                                  from £0.47
                                                  from £0.47
                                                  CAP SCREW - M5X12 Genuine Aston Martin - New (to order)
                                                  # 29
                                                  MPN: AD43-132A12-AAW
                                                  SCUFF PLATE, FRONT DOOR SILL, RHS
                                                  from £122.72
                                                  from £122.72
                                                  SCUFF PLATE, FRONT DOOR SILL, RHS Genuine Aston Martin - New (to order)
                                                  # 29
                                                  MPN: KD43-132A12-AA
                                                  SCUFF PLATE, FRONT DOOR SILL, RHS
                                                  AMR
                                                  SCUFF PLATE, FRONT DOOR SILL, RHS Genuine Aston Martin - New (to order)
                                                  # 30
                                                  MPN: AD43-132A13-AAW
                                                  SCUFF PLATE, FRONT DOOR SILL, LHS
                                                  from £122.72
                                                  from £122.72
                                                  SCUFF PLATE, FRONT DOOR SILL, LHS Genuine Aston Martin - New (to order)
                                                  # 30
                                                  MPN: KD43-132A13-AA
                                                  SCUFF PLATE, FRONT DOOR SILL, LHS
                                                  AMR
                                                  SCUFF PLATE, FRONT DOOR SILL, LHS Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: AD43-80-10004
                                                  NAME PLATE, STANDARD
                                                  from £149.90
                                                  from £149.90
                                                  NAME PLATE, STANDARD Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: AD43-80-10005
                                                  NAME PLATE, PERSONALISED
                                                  from £312.00
                                                  from £312.00
                                                  NAME PLATE, PERSONALISED Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: BD43-132A51-AA
                                                  NAME PLATE, LUX, STANDARD
                                                  from £172.03
                                                  from £172.03
                                                  NAME PLATE, LUX, STANDARD Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: DD43-132A51-AA
                                                  NAME PLATE, STANDARD
                                                  Rapide S
                                                  NAME PLATE, STANDARD Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: ED43-132A51-AA
                                                  NAME PLATE, STERLING SILVER
                                                  Rapide S, Centenary Edition
                                                  from £1,402.43
                                                  from £1,402.43
                                                  NAME PLATE, STERLING SILVER Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: GD43-132A51-AA
                                                  NAME PLATE, RAPIDE
                                                  16MY, Rapide
                                                  NAME PLATE, RAPIDE Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: GD43-132A51-BA
                                                  NAME PLATE, RAPIDE
                                                  16MY, Rapide, China Edition
                                                  NAME PLATE, RAPIDE Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: HDA3-132A51-CA
                                                  NAME PLATE, SHADOW EDITION
                                                  Rapide S 17.5MY Shadow Edition
                                                  NAME PLATE, SHADOW EDITION Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: KD43-132A51-AA
                                                  NAME PLATE, SHADOW EDITION
                                                  Rapide AMR 19MY
                                                  from £514.86
                                                  from £514.86
                                                  NAME PLATE, SHADOW EDITION Genuine Aston Martin - New (to order)
                                                  # 32
                                                  MPN: 6G33-SS106209-AB-PK
                                                  BOLT, M6X20, SOCKET HEAD
                                                  Silver, Pack of 2
                                                  BOLT, M6X20, SOCKET HEAD Genuine Aston Martin - New (to order)
                                                  # 32
                                                  MPN: 8D33-68D11-AA
                                                  BOLT, M6X20, SOCKET HEAD
                                                  Black
                                                  from £0.48
                                                  from £0.48
                                                  M6X20 SOCKET LW HD BOLT Genuine Aston Martin - New (to order)
                                                  # 33
                                                  MPN: AD43-17F790-AA
                                                  BRACKET, SCUFF PLATE
                                                  BRACKET, SCUFF PLATE Genuine Aston Martin - New (to order)
                                                  # 34
                                                  MPN: AD43-132A48-AAW
                                                  SCUFF PLATE, REAR DOOR, RHS
                                                  SCUFF PLATE, REAR DOOR, RHS Genuine Aston Martin - New (to order)
                                                  # 34
                                                  MPN: KD43-132A48-AB
                                                  SCUFF PLATE, REAR DOOR, RHS
                                                  AMR
                                                  SCUFF PLATE, REAR DOOR, RHS Genuine Aston Martin - New (to order)
                                                  # 35
                                                  MPN: AD43-132A49-AAW
                                                  SCUFF PLATE, REAR DOOR, LHS
                                                  SCUFF PLATE, REAR DOOR, LHS Genuine Aston Martin - New (to order)
                                                  # 35
                                                  MPN: KD43-132A49-AB
                                                  SCUFF PLATE, REAR DOOR, LHS
                                                  AMR
                                                  SCUFF PLATE, REAR DOOR, LHS Genuine Aston Martin - New (to order)
                                                  # 36
                                                  MPN: 4G43-18449-BC
                                                  SCUFF PLATE, ACCELERATOR, LHD
                                                  from £51.61
                                                  from £51.61
                                                  SCUFF PLATE, ACCELERATOR, LHD Genuine Aston Martin - New (to order)
                                                  # 37
                                                  MPN: 4G43-3L657-AA
                                                  SCREW, M5X20
                                                  from £0.47
                                                  from £0.47
                                                  SCW M5X20 COUNTERSUNK HD SS Genuine Aston Martin - New (to order)
                                                  # 39
                                                  MPN: GD43-13034-AA
                                                  SPACER, CARPET RH
                                                  16MY
                                                  SPACER, CARPET RH Genuine Aston Martin - New (to order)
                                                  # 40
                                                  MPN: GD43-13035-AA
                                                  SPACER, CARPET LH
                                                  16MY
                                                  SPACER, CARPET LH Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  BUMPON, SQUARE
                                                  lower console to carpet
