aston martin rapide (2013) radiator grille parts diagram

010801-B1 - RADIATOR GRILLE

Aston Martin Rapide (2013) Radiator Grille Parts Diagram

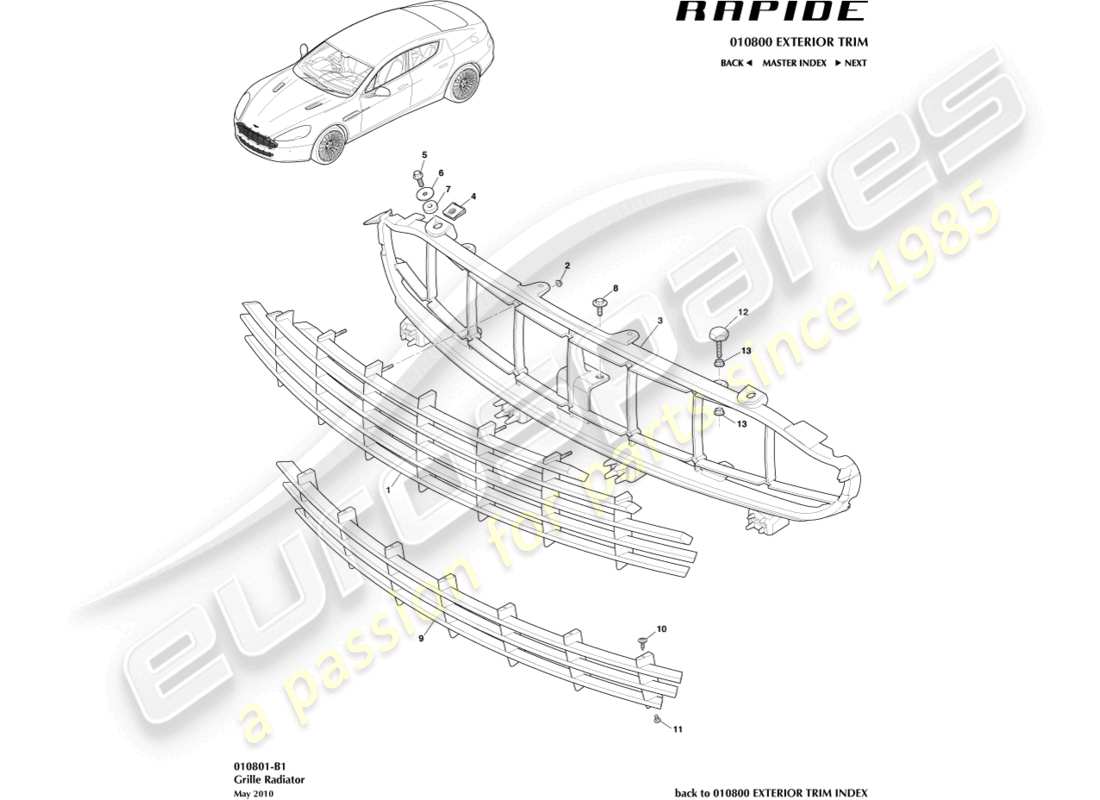

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: AD43-8A100-AB
                            GRILLE ASSEMBLY, UPPER FRONT, RADIATOR
                            from £1,887.45
                            from £1,887.45
                            GRILLE ASSEMBLY, UPPER FRONT, RADIATOR Genuine Aston Martin - New (to order)
                            # 2
                            MPN: 700986-PK
                            NUT, M4
                            Supersession
                            Supersession
                            Genuine Aston Martin (no longer available to order)
                            # 3
                            MPN: AD43-8190-AD
                            PANEL ASSEMBLY, RADIATOR GRILLE OPENING
                            from £37.92
                            from £37.92
                            PANEL ASSEMBLY, RADIATOR GRILLE OPENING Genuine Aston Martin - New (to order)
                            # 4
                            MPN: 7G43-10609E-AA
                            NUT, U TYPE
                            from £0.60
                            from £0.60
                            CLIP SPG M6 (SINGLE) Genuine Aston Martin - New In stock
                            # 5
                            MPN: 700607
                            SCREW, M6 X 20MM
                            from £0.47
                            from £0.47
                            SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)
                            # 7
                            MPN: AD43-5435-AA
                            SPACER
                            from £2.78
                            from £2.78
                            SPACER WASHER Genuine Aston Martin - New (to order)
                            # 8
                            MPN: 704400
                            SCREW & WASHER
                            from £0.47
                            from £0.47
                            SCREW & WASHER Genuine Aston Martin - New (to order)
                            # 9
                            MPN: AD43-8156-AB
                            GRILLE ASSEMBLY, LOWER
                            from £1,765.51
                            from £1,765.51
                            GRILLE ASSEMBLY, LOWER Genuine Aston Martin - New (to order)
                            # 10
                            MPN: 701157-PK
                            SCREW & WASHER 4.2 X 16MM
                            from £1.59
                            from £1.59
                            SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                            # 11
                            MPN: 703068
                            SCREW, 4.2 X 9MM
                            from £0.47
                            from £0.47
                            SCREW 4.2X9 Genuine Aston Martin - New (to order)
                            # 12
                            MPN: 4G43-16K808-AB
                            SUPPORT ASSEMBLY, HOOD BUMPER
                            from £2.38
                            from £2.38
                            SUPPORT HOOD BUMPER TO CO Genuine Aston Martin - New (to order)
                            # 13
                            MPN: 702944
                            NUT, M6
                            from £0.58
                            from £0.58
                            NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                            LOWER MESH NUTS Genuine Ferrari Part - New (to order)
