010509-B1 - Tailgate Trim Panel

Aston Martin Rapide (2014) Tailgate Trim Panel Parts Diagram

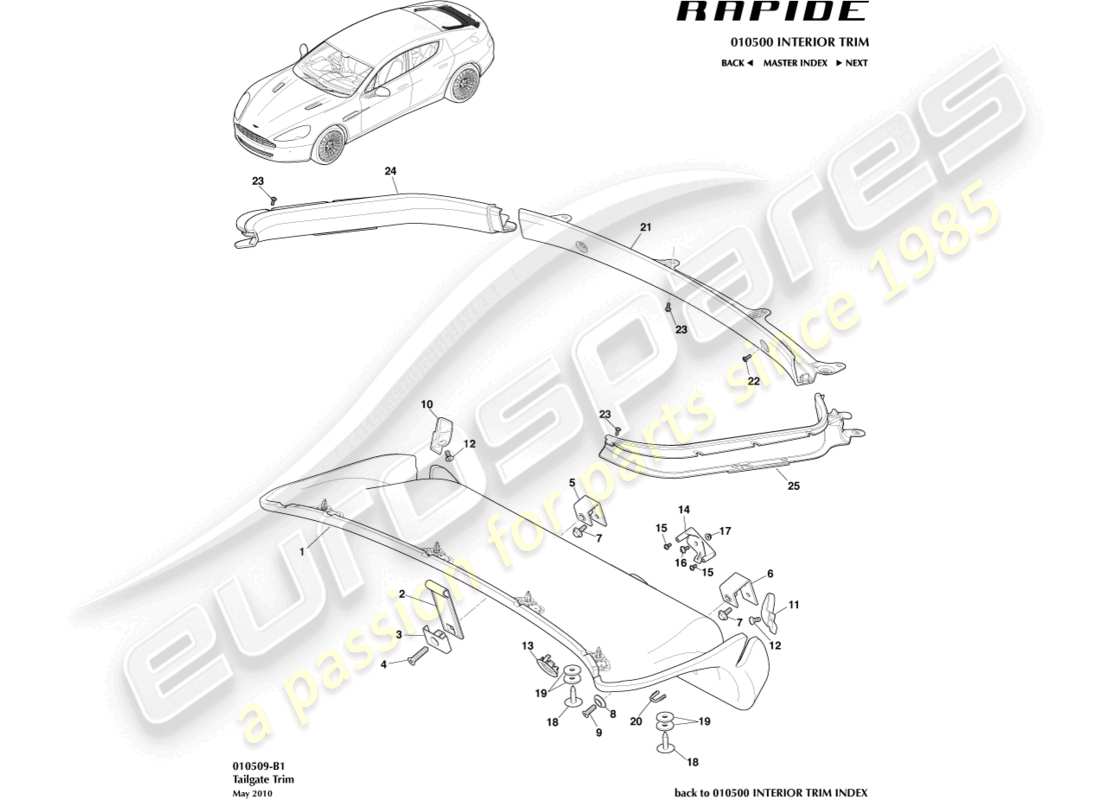

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 1
                                                MPN: AD43-580374-AGW
                                                TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LOWER
                                                from £996.47
                                                from £996.47
                                                TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LOWER Genuine Aston Martin - New (to order)
                                                # 1
                                                MPN: AD43-580374-GA
                                                TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LOWER
                                                Black. 17.5MY
                                                TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LOWER Genuine Aston Martin - New (to order)
                                                # -
                                                -
                                                LUGGAGE COMPARTMENT LID TRIM CLIP
                                                # 2
                                                MPN: AD43-434A30-AAW
                                                PULL STRAP ASSY, LUGGAGE COMPARTMENT DOOR
                                                from £610.13
                                                from £610.13
                                                PULL STRAP ASSEMBLY, LUGGAGE COMPARTMENT DOOR Genuine Aston Martin - New (to order)
                                                # 3
                                                MPN: AD43-40168-AA
                                                BRACKET, TAILGATE PULL DOWN STRAP RETENTION
                                                from £9.26
                                                from £9.26
                                                BRACKET, TAILGATE PULL DOWN STRAP RETENTION Genuine Aston Martin - New (to order)
                                                # 4
                                                MPN: 6G33-AA0231-AA
                                                SCREW, M8X34 FLAT CSK TORX BLACK
                                                from £3.39
                                                from £3.39
                                                SCW M8X34 COUNTERSUNK FLAT Genuine Aston Martin - New (to order)
                                                # 5
                                                MPN: AD43-42541-AA
                                                SPACER, PULL DOWN HANDLE, RH
                                                from £30.65
                                                from £30.65
                                                SPACER, PULL DOWN HANDLE, RH Genuine Aston Martin - New (to order)
                                                # 6
                                                MPN: AD43-42542-AA
                                                SPACER, PULL DOWN HANDLE, LH
                                                from £28.27
                                                from £28.27
                                                SPACER, PULL DOWN HANDLE, LH Genuine Aston Martin - New (to order)
                                                # 7
                                                MPN: 703151
                                                SCREW AND WASHER, M6X16
                                                2 per spacer
                                                from £0.47
                                                from £0.47
                                                SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                                                # 8
                                                MPN: AD43-836025-AA
                                                WASHER, CUP M6X25
                                                WASHER, CUP M6X25 Genuine Aston Martin - New (to order)
                                                # 9
                                                MPN: 703738
                                                SCREW, M6X20
                                                from £0.79
                                                from £0.79
                                                SCREW-M6X20 FLAT HD Genuine Aston Martin - New (to order)
                                                # 10
                                                MPN: AD43-N431B56-BA
                                                WEDGE PLATE, TAILGATE RHS
                                                from £11.14
                                                from £11.14
                                                WEDGE PLATE, TAILGATE RHS Genuine Aston Martin - New (to order)
                                                # 11
                                                MPN: AD43-N431B57-BA
                                                WEDGE PLATE, TAILGATE LHS
                                                from £11.14
                                                from £11.14
                                                WEDGE PLATE, TAILGATE LHS Genuine Aston Martin - New (to order)
                                                # 12
                                                MPN: 703073
                                                SCREW, M6X15
                                                1 per plate
                                                from £0.47
                                                from £0.47
                                                M6 X 16 SCREW Genuine Aston Martin - New (to order)
                                                # 13
                                                MPN: 8D33-13B716-AA
                                                LED MAP LAMP, LENS AND BEZEL
                                                LED MAP LAMP, LENS AND BEZEL Genuine Aston Martin - New (to order)
                                                # 14
                                                MPN: AD43-7413470-AA
                                                BRACKET, LAMP MOUNTING
                                                from £5.55
                                                from £5.55
                                                BRACKET, LAMP MOUNTING Genuine Aston Martin - New (to order)
                                                # 15
                                                MPN: 4G43-80899-AA
                                                SCREW, M4X8
                                                from £0.47
                                                from £0.47
                                                SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
                                                # 16
                                                MPN: AD43-FG0210-AA
                                                SCREW, M4X10
                                                from £0.47
                                                from £0.47
                                                SCREW, M4X10 Genuine Aston Martin - New (to order)
                                                # 17
                                                MPN: 700986-PK
                                                NUT, M4
                                                Supersession
                                                Supersession
                                                Genuine Aston Martin (no longer available to order)
                                                # 18
                                                MPN: 4G43-STC3710-AA-PK
                                                FASTENER, FIR TREE
                                                Supersession
                                                Supersession
                                                Genuine Aston Martin (no longer available to order)
                                                # 19
                                                MPN: 6G33-6C778-AA
                                                WASHER
                                                from £0.48
                                                from £0.48
                                                ISLT OIL COOL MOUNTING Genuine Aston Martin - New (to order)
                                                # 20
                                                MPN: 4G43-N623361-AA
                                                CLIP, U TYPE
                                                from £0.67
                                                from £0.67
                                                CLIP U TYPE Genuine Aston Martin - New (to order)
                                                # 21
                                                MPN: AD43-67770-ABW
                                                TRIM ASSY, LUGGAGE COMPARTMENT LID CENTRE
                                                from £389.01
                                                from £389.01
                                                TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID CENTRE Genuine Aston Martin - New (to order)
                                                # 22
                                                MPN: 703175
                                                SCREW, M4X10
                                                from £0.47
                                                from £0.47
                                                SCREW M4X10 PAN TORX Genuine Aston Martin - New (to order)
                                                # 23
                                                MPN: AD43-FG0210-AA
                                                SCREW, M4X10
                                                from £0.47
                                                from £0.47
                                                SCREW, M4X10 Genuine Aston Martin - New (to order)
                                                # 24
                                                MPN: AD43-68880-ABW
                                                TRIM ASSY, LUGGAGE COMPARTMENT LID RHS
                                                from £285.55
                                                from £285.55
                                                TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID RHS Genuine Aston Martin - New (to order)
                                                # 25
                                                MPN: AD43-68881-ABW
                                                TRIM ASSY, LUGGAGE COMPARTMENT LID LHS
                                                TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LHS Genuine Aston Martin - New (to order)
