aston martin rapide (2014) fuel tank assy, s parts diagram

100100-S2 - Fuel Tank Assy, S

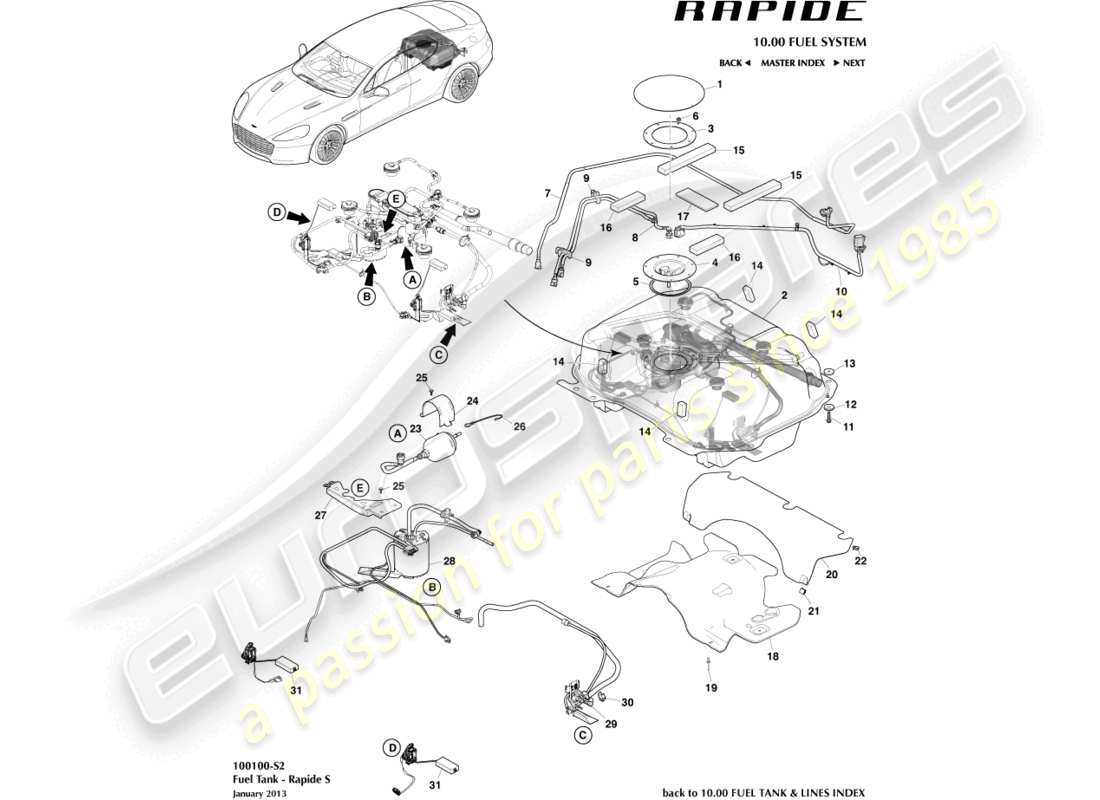

Aston Martin Rapide (2014) Fuel Tank Assy, S Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 4G43-9074-EA
                                                    PLATE ASSY, FUEL TANK COVER
                                                    from £13.85
                                                    from £13.85
                                                    PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - New (to order)
                                                    PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - Used In stock
                                                    # 1
                                                    MPN: 4G43-9073-BB
                                                    FOAM GASKET
                                                    Part of item 1
                                                    Supersession
                                                    Supersession
                                                    Genuine Aston Martin (no longer available to order)
                                                    # 2
                                                    MPN: DD43-9K007-AC
                                                    TANK ASSEMBLY, FUEL
                                                    Includes Items 3 to 31
                                                    from £4,599.96
                                                    from £4,599.96
                                                    TANK ASSEMBLY, FUEL Genuine Aston Martin - New (to order)
                                                    # 3
                                                    MPN: 4G43-32133-BA
                                                    CLAMP PLATE
                                                    from £5.69
                                                    from £5.69
                                                    CLAMP PLATE Genuine Aston Martin - New (to order)
                                                    CLAMP PLATE Genuine Aston Martin - Used In stock
                                                    # 4
                                                    MPN: HY53-9A309-AA
                                                    COVER, FUEL TANK, SERVICE
                                                    Refer to Accessory Installation Instruction DD43-37-10176 on DCS.
                                                    from £83.88
                                                    from £83.88
                                                    COVER, FUEL TANK, SERVICE Genuine Aston Martin - New (to order)
                                                    # 4a
                                                    MPN: DD43-37-10175
                                                    KIT, HARNESS, F/TANK
                                                    Refer to Accessory Installation Instruction DD43-37-10176 on DCS.
                                                    from £170.59
                                                    from £170.59
                                                    KIT, HARNESS, F/TANK Genuine Aston Martin - New In stock
                                                    # 5
                                                    MPN: 4G43-9073-AA
                                                    GASKET
                                                    Replace each time Cover Plate is removed.
                                                    from £20.84
                                                    from £20.84
                                                    GSKT-FU/TNK COVER PLT Genuine Aston Martin - New (to order)
                                                    # 6
                                                    MPN: 703169
                                                    NUT, M6, HEX FLANGE HEAD
                                                    from £0.71
                                                    from £0.71
                                                    This part replaces part number 703168
                                                    NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    # 7
                                                    MPN: DD43-9D667-BAA
                                                    TUBE ASSY, FUEL VAPOUR PURGE
                                                    TUBE ASSEMBLY, FUEL VAPOUR PURGE Genuine Aston Martin - New (to order)
                                                    # 8
                                                    MPN: DD43-9J280-BA
                                                    TUBE ASSY, FUEL SUPPLY
                                                    Includes Clips
                                                    TUBE ASSEMBLY, FUEL SUPPLY Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: DD43-14407-AA
                                                    LINK HARNESS, FUEL TANK
                                                    LINK HARNESS, FUEL TANK Genuine Aston Martin - New (to order)
                                                    # 11
                                                    MPN: W705113-S424
                                                    BOLT, M8X33, HEX FLANGE HEAD
                                                    BOLT, M8X33, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                                                    # 12
                                                    MPN: AD43-P9B154-DA
                                                    REINFORCED MOUNTING, FUEL TANK
                                                    REINFORCED MOUNTING, FUEL TANK Genuine Aston Martin - New (to order)
                                                    # 13
                                                    MPN: AD43-P9B154-CA
                                                    WASHER, FIXING, FUEL TANK
                                                    WASHER, FIXING, FUEL TANK Genuine Aston Martin - New (to order)
                                                    # 14
                                                    MPN: 4G43-482550-AA
                                                    FOAM PAD, TANK UPPER
                                                    from £13.59
                                                    from £13.59
                                                    FOAM PAD-TNK UPPER Genuine Aston Martin - New (to order)
                                                    # 15
                                                    MPN: AD43-M2D28-BB
                                                    INSULATING STRIP, RUBBER, REAR
                                                    INSULATING STRIP, RUBBER, REAR Genuine Aston Martin - New (to order)
                                                    # 16
                                                    MPN: AD43-M2D28-AB
                                                    INSULATING STRIP, RUBBER, FRONT
                                                    from £17.02
                                                    from £17.02
                                                    INSULATING STRIP, RUBBER, FRONT Genuine Aston Martin - New (to order)
                                                    # 17
                                                    MPN: AD43-M2D28-CB
                                                    INSULATING STRIP, RUBBER, CENTRE
                                                    INSULATING STRIP, RUBBER, CENTRE Genuine Aston Martin - New (to order)
                                                    # 18
                                                    MPN: AD43-9A032-AB
                                                    HEAT SHIELD, FUEL TANK
                                                    SHIELD, FUEL TANK Genuine Aston Martin - New (to order)
                                                    # 19
                                                    MPN: W710409-S300
                                                    RIVET, BLIND, 5.5X1.5
                                                    RIVET BLND 5.5X1.5-9 Genuine Aston Martin - New (to order)
                                                    # 20
                                                    MPN: AD43-112B24-DA
                                                    INSULATION, BOOT FLOOR, FUEL TANK
                                                    INSULATION, BOOT FLOOR, FUEL TANK Genuine Aston Martin - New (to order)
                                                    # 21
                                                    MPN: AD43-1861-BA
                                                    CLIP, TANK SHIELD
                                                    CLIP, TANK SHIELD Genuine Aston Martin - New (to order)
                                                    # 22
                                                    MPN: AD43-1861-AA
                                                    CLIP, TANK SHIELD
                                                    CLIP, TANK SHIELD Genuine Aston Martin - New (to order)
                                                    # 23
                                                    MPN: 6G33-9155-AB
                                                    FILTER ASSY, FUEL TANK
                                                    from £257.08
                                                    from £257.08
                                                    FILTER ASSEMBLY - RHS Genuine Aston Martin - New (to order)
                                                    # 24
                                                    MPN: 8G43-9180-AA
                                                    BRACKET, FUEL FILTER
                                                    BRACKET, FUEL FILTER Genuine Aston Martin - New (to order)
                                                    # 25
                                                    MPN: 702082
                                                    BOLT, M5X12, SELF LOCKING
                                                    from £0.73
                                                    from £0.73
                                                    BOLT M5X12 S/LOCK Genuine Aston Martin - New (to order)
                                                    # 26
                                                    MPN: 6G33-66991-AB
                                                    EARTH WIRE
                                                    WIRE, EARTH Genuine Aston Martin - New (to order)
                                                    # 27
                                                    MPN: DD43-9346-AA
                                                    BRACKET, FUEL PUMP MOUNTING
                                                    BRACKET, FUEL PUMP MOUNTING Genuine Aston Martin - New (to order)
                                                    # 28
                                                    MPN: CD33-9H307-AA
                                                    PUMP ASSY, FUEL TANK
                                                    PUMP ASSEMBLY, FUEL TANK Genuine Aston Martin - New (to order)
                                                    # 29
                                                    MPN: CD33-9275-AA
                                                    JET PUMP ASSY, FUEL TANK
                                                    from £119.27
                                                    from £119.27
                                                    JET PUMP MODULE Genuine Aston Martin - New (to order)
                                                    # 30
                                                    MPN: 701181
                                                    CLIP, PLASTIC
                                                    from £1.82
                                                    from £1.82
                                                    CLIP 16X6.5X1.5-6 Genuine Aston Martin - New (to order)
                                                    # 31
                                                    MPN: 4G43-9E275-AA
                                                    SENDER, FUEL TANK
                                                    from £66.10
                                                    from £66.10
                                                    SE-FU/TNK SDR Genuine Aston Martin - New (to order)
