010506-B1 - Rear Door Trim Panel

Aston Martin Rapide (2016) Rear Door Trim Panel Parts Diagram

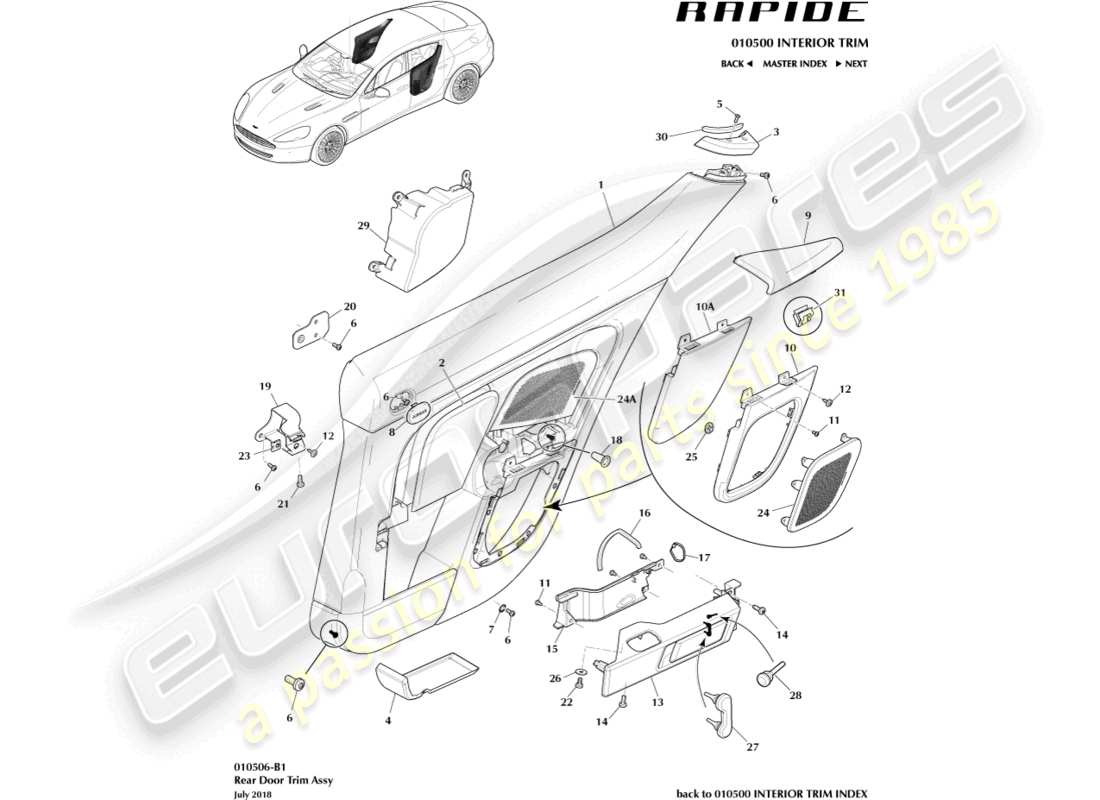

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: AD43-23948-ADW
              PANEL ASSEMBLY, REAR DOOR TRIM COMPLETE RH
              With Leather Insert (Item 2)
              from £4,030.59
              from £4,030.59
              PANEL ASSEMBLY, REAR DOOR TRIM COMPLETE RH Genuine Aston Martin - New (to order)
              # 1
              MPN: AD43-23949-ADW
              PANEL ASSEMBLY, REAR DOOR TRIM COMPLETE LH
              With Leather Insert (Item 2)
              from £4,030.59
              from £4,030.59
              PANEL ASSEMBLY, REAR DOOR TRIM COMPLETE LH Genuine Aston Martin - New (to order)
              # 1
              MPN: AD43-23948-BBW
              PANEL ASSEMBLY, REAR DOOR TRIM RH
              Less Wood Insert (Item 2)
              from £2,480.75
              from £2,480.75
              PANEL ASSEMBLY, REAR DOOR TRIM RH Genuine Aston Martin - New (to order)
              # 1
              MPN: AD43-23949-BBW
              PANEL ASSEMBLY, REAR DOOR TRIM LH
              Less Wood Insert (Item 2)
              from £1,891.74
              from £1,891.74
              PANEL ASSEMBLY, REAR DOOR TRIM LH Genuine Aston Martin - New (to order)
              # 1
              MPN: KD43-23948-AAW
              PANEL ASSEMBLY, REAR DOOR TRIM RH
              19MY, AMR
              from £1,644.58
              from £1,644.58
              PANEL ASSEMBLY, REAR DOOR TRIM RH Genuine Aston Martin - New (to order)
              # 1
              MPN: KD43-23949-AAW
              PANEL ASSEMBLY, REAR DOOR TRIM LH
              19MY, AMR
              from £2,001.52
              from £2,001.52
              PANEL ASSEMBLY, REAR DOOR TRIM LH Genuine Aston Martin - New (to order)
              # 2
              MPN: AD43-87-10076
              UPPER INSERT KIT, 2 PIECES (REAR DOORS)
              Walnut veneer
              from £435.25
              from £435.25
              UPPER INSERT KIT, 2 PIECES (REAR DOORS) Genuine Aston Martin - New (to order)
              # 2
              MPN: AD43-87-10078
              UPPER INSERT KIT, 2 PIECES (REAR DOORS)
              Piano Black Veneer
              from £742.46
              from £742.46
              UPPER INSERT KIT, 2 PIECES (REAR DOORS) Genuine Aston Martin - New (to order)
              # 2
              MPN: AD43-87-10080
              UPPER INSERT KIT, 2 PIECES (REAR DOORS)
              Mahogany veneer
              from £349.94
              from £349.94
              UPPER INSERT KIT, 2 PIECES (REAR DOORS) Genuine Aston Martin - New (to order)
              # 2
              MPN: AD43-87-10082
              UPPER INSERT KIT, 2 PIECES (REAR DOORS)
              Tamo Ash Veneer
              from £375.56
              from £375.56
              UPPER INSERT KIT, 2 PIECES (REAR DOORS) Genuine Aston Martin - New (to order)
              # 2
              MPN: AD43-87-10084
              UPPER INSERT KIT, 2 PIECES (REAR DOORS)
              Bamboo veneer
              from £349.94
              from £349.94
              UPPER INSERT KIT, 2 PIECES (REAR DOORS) Genuine Aston Martin - New (to order)
              # 2
              MPN: FD43-87-10153
              UPPER INSERT KIT, 2 PIECES (REAR DOORS)
              From 15MY, Carbon Twill
              from £673.15
              from £673.15
              UPPER INSERT KIT, 2 PIECES (REAR DOORS) Genuine Aston Martin - New (to order)
              # 2
              MPN: GD43-87-10169
              UPPER INSERT KIT, 2 PIECES (REAR DOORS)
              From 15MY, Carbon Cuprum
              UPPER INSERT KIT, 2 PIECES (REAR DOORS) Genuine Aston Martin - New (to order)
              # 2
              MPN: FD43-87-10155
              UPPER INSERT KIT, 2 PIECES (REAR DOORS)
              From 15MY, Piano Ice Mocha
              UPPER INSERT KIT, 2 PIECES (REAR DOORS) Genuine Aston Martin - New (to order)
              # 2
              MPN: AD43-23887-AAW
              UPPER INSERT, LH
              Leather Trimmed
              from £118.67
              from £118.67
              UPPER INSERT, LH Genuine Aston Martin - New (to order)
              # 2
              MPN: AD43-23886-AAW
              UPPER INSERT, RH
              Leather Trimmed
              from £118.67
              from £118.67
              UPPER INSERT, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-23786-AB
              FINISHER, UPPER RH, PANEL ASSEMBLY
              from £264.72
              from £264.72
              FINISHER, UPPER RH, PANEL ASSEMBLY Genuine Aston Martin - New (to order)
              # 3
              MPN: KD43-23786-BA
              FINISHER, UPPER RH, PANEL ASSEMBLY
              AMR
              FINISHER, UPPER RH, PANEL ASSEMBLY Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-23787-AB
              FINISHER, UPPER LH, PANEL ASSEMBLY
              from £269.17
              from £269.17
              FINISHER, UPPER LH, PANEL ASSEMBLY Genuine Aston Martin - New (to order)
              # 3
              MPN: KD43-23787-BA
              FINISHER, UPPER LH, PANEL ASSEMBLY
              AMR
              FINISHER, UPPER LH, PANEL ASSEMBLY Genuine Aston Martin - New (to order)
              # 4
              MPN: AD43-101382-AA
              MAT, REAR DOOR POCKET RH
              from £31.35
              from £31.35
              MAT, REAR DOOR POCKET RH Genuine Aston Martin - New (to order)
              # 4
              MPN: AD43-101383-AA
              MAT, REAR DOOR POCKET LH
              from £31.35
              from £31.35
              MAT, REAR DOOR POCKET LH Genuine Aston Martin - New (to order)
              # 5
              MPN: 704779
              SCREW, M4X12 FLAT CSK SOCKET
              from £0.47
              from £0.47
              SCREW M4 X 12 SOCKET Genuine Aston Martin - New (to order)
              # 5
              MPN: KD43-N811862-AA
              SCREW, M4X12 FLAT CSK SOCKET, BLACK
              AMR
              SCREW, M4X12 FLAT COUNTERSUNK SOCKET, BLACK Genuine Aston Martin - New (to order)
              # 6
              MPN: 702084
              SCREW, M5X12 PAN HD
              per Door panel
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
              # 7
              MPN: 6G33-100063-AA
              FIXER, PUSH ON
              per Door panel
              PUSH-ON FIX, H/BRAKE CABLE TO LEVER Genuine Aston Martin - New (to order)
              # 8
              MPN: AD43-23747-AAW
              SRS INSERT ASSEMBLY
              per Door panel
              from £131.86
              from £131.86
              SRS INSERT ASSEMBLY Genuine Aston Martin - New (to order)
              # 9
              MPN: AD43-24006-AAW
              PAD, DOOR ARMREST REAR RH
              from £173.47
              from £173.47
              PAD, DOOR ARMREST REAR RH Genuine Aston Martin - New (to order)
              # 9
              MPN: KD43-24006-AAW
              PAD, DOOR ARMREST REAR RH
              19MY, AMR
              from £194.70
              from £194.70
              PAD, DOOR ARMREST REAR RH Genuine Aston Martin - New (to order)
              # 9
              MPN: AD43-24007-AAW
              PAD, DOOR ARMREST REAR LH
              from £74.19
              from £74.19
              PAD, DOOR ARMREST REAR LH Genuine Aston Martin - New (to order)
              # 9
              MPN: KD43-24007-AAW
              PAD, DOOR ARMREST REAR LH
              19MY, AMR
              from £159.99
              from £159.99
              PAD, DOOR ARMREST REAR LH Genuine Aston Martin - New (to order)
              # 10
              MPN: AD43-24004-ADW
              PAD, DOOR ARMREST, INNER, REAR, RH
              Bang and Olufsen
              PAD, DOOR ARMREST, INNER, REAR, RH Genuine Aston Martin - New (to order)
              # 10
              MPN: KD43-24004-AAW
              PAD, DOOR ARMREST, INNER, REAR, RH
              Bang and Olufsen. 19MY, AMR
              from £195.11
              from £195.11
              PAD, DOOR ARMREST, INNER, REAR, RH Genuine Aston Martin - New (to order)
              # 10
              MPN: AD43-24005-ADW
              PAD, DOOR ARMREST, INNER, REAR, LH
              Bang and Olufsen
              PAD, DOOR ARMREST, INNER, REAR, LH Genuine Aston Martin - New (to order)
              # 10
              MPN: KD43-24005-AAW
              PAD, DOOR ARMREST, INNER, REAR, LH
              Bang and Olufsen. 19MY, AMR
              from £160.31
              from £160.31
              PAD, DOOR ARMREST, INNER, REAR, LH Genuine Aston Martin - New (to order)
              # 10A
              MPN: GD43-24004-CBW
              PAD, DOOR ARMREST, INNER, REAR, RH
              ASK Audio
              PAD, DOOR ARMREST, INNER, REAR, RH Genuine Aston Martin - New (to order)
              # 10A
              MPN: GD43-24005-CBW
              PAD, DOOR ARMREST INNER REAR LH
              ASK Audio
              PAD, DOOR ARMREST INNER REAR LH Genuine Aston Martin - New (to order)
              # 11
              MPN: 703178
              SCREW, M4X8 PAN 6 LOBE
              per Door panel
              from £0.47
              from £0.47
              M4 X 8MM SCREW THRD Genuine Aston Martin - New (to order)
              # -
              -
              WASHER, SPACER
              Not Drawn, 2 per Fixing.
              # -
              -
              RETAINING WASHER, LEXAN
              Not Drawn, 1 per Fixing
              # 12
              MPN: 701157-PK
              SCREW, ST4.2X16 LARGE WASHER HD
              per Door panel
              from £1.68
              from £1.68
              SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
              # 13
              MPN: AD43-22616-AD
              INNER REAR RELEASE HANDLE ASSEMBLY, RH
              Iridium
              INNER REAR RELEASE HANDLE ASSEMBLY, RH Genuine Aston Martin - New (to order)
              # 13
              MPN: DD43-22616-AA
              INNER REAR RELEASE HANDLE ASSEMBLY, RH
              Piano black
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
              # 13
              MPN: FD43-22616-CD
              INNER REAR RELEASE HANDLE ASSEMBLY, RH
              Ice Mocha
              INNER REAR RELEASE HANDLE ASSEMBLY, RH Genuine Aston Martin - New (to order)
              # 13
              MPN: AD43-22617-AD
              INNER REAR RELEASE HANDLE ASSEMBLY, LH
              Iridium
              INNER REAR RELEASE HANDLE ASSEMBLY, LH Genuine Aston Martin - New (to order)
              # 13
              MPN: DD43-22617-AA
              INNER REAR RELEASE HANDLE ASSEMBLY, LH
              Piano black
              INNER REAR RELEASE HANDLE ASSEMBLY, LH Genuine Aston Martin - New (to order)
              # 13
              MPN: FD43-22617-CD
              INNER REAR RELEASE HANDLE ASSEMBLY, LH
              Ice Mocha
              INNER REAR RELEASE HANDLE ASSEMBLY, LH Genuine Aston Martin - New (to order)
              # 14
              MPN: 702294
              SCREW, M6X16 PAN HD
              2 per Door panel
              from £0.47
              from £0.47
              SCREW M6X1.00X16 PAN Genuine Aston Martin - New (to order)
              # 15
              MPN: AD43-24244-AB
              INSERT ASSEMBLY, REAR DOOR GRAB HANDLE RH
              INSERT ASSEMBLY, REAR DOOR GRAB HANDLE RH Genuine Aston Martin - New (to order)
              # 15
              MPN: AD43-24245-AB
              INSERT ASSEMBLY, REAR DOOR GRAB HANDLE LH
              INSERT ASSEMBLY, REAR DOOR GRAB HANDLE LH Genuine Aston Martin - New (to order)
              # 16
              MPN: 4G43-18D404-CA
              SEAL, FOAM REAR DOOR GRAB HANDLE
              per Door panel
              from £1.53
              from £1.53
              FOAM SEAL - AIR DIST Genuine Aston Martin - New (to order)
              # 17
              MPN: 37-90075
              TIE STRAP, REAR DOOR GRAB HANDLE
              per Door panel
              from £0.47
              from £0.47
              TIE STRAP-290MM Genuine Aston Martin - New (to order)
              # 18
              MPN: AD43-23942-AA
              CLIP, TUBE
              per Door panel
              CLIP, TUBE Genuine Aston Martin - New (to order)
              # 19
              MPN: AD43-14C926-AA
              BRACKET, MOUNTING ASSEMBLY, REAR DOOR GRAB FRONT RH
              from £42.57
              from £42.57
              BRACKET, MOUNTING ASSEMBLY, REAR DOOR GRAB FRONT RH Genuine Aston Martin - New (to order)
              # 19
              MPN: AD43-14C927-AA
              BRACKET, MOUNTING ASSEMBLY, REAR DOOR GRAB FRONT LH
              from £42.57
              from £42.57
              BRACKET, MOUNTING ASSEMBLY, REAR DOOR GRAB FRONT LH Genuine Aston Martin - New (to order)
              # 20
              MPN: AD43-12A956-AA
              BRACKET, MOUNTING, REAR RH
              from £6.34
              from £6.34
              BRACKET, MOUNTING, REAR RH Genuine Aston Martin - New (to order)
              # 20
              MPN: AD43-12A957-AA
              BRACKET, MOUNTING, REAR LH
              from £8.15
              from £8.15
              BRACKET, MOUNTING, REAR LH Genuine Aston Martin - New (to order)
              # 21
              MPN: 702294
              SCREW, M6X16 PAN HD 6 LOBE
              per Door panel
              from £0.47
              from £0.47
              SCREW M6X1.00X16 PAN Genuine Aston Martin - New (to order)
              # 22
              MPN: 702293
              SCREW, M6X12 PAN HD 6 LOBE
              per Door panel
              from £0.47
              from £0.47
              SCREW M6X12 PAN HD Genuine Aston Martin - New (to order)
              # 23
              MPN: 701448
              NUT, ST4.2X2.1-3.1 U TYPE SPLIT SPRING
              per Door panel
              from £0.47
              from £0.47
              This part replaces part number 697565
              NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
              SPLITTER NUTS Genuine Ferrari Part - New (to order)
              # 24
              MPN: AD43-18994-AB
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, RH, IRIDIUM
              With B&O
              from £501.87
              from £501.87
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, RH, IRIDIUM Genuine Aston Martin - New (to order)
              # 24
              MPN: DD43-18994-DA
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, RH, PIANO BLACK
              With B&O
              from £432.75
              from £432.75
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, RH, PIANO BLACK Genuine Aston Martin - New (to order)
              # 24
              MPN: AD43-18995-AB
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, LH, IRIDIUM
              With B&O
              from £501.87
              from £501.87
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, LH, IRIDIUM Genuine Aston Martin - New (to order)
              # 24
              MPN: DD43-18995-DA
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, LH, PIANO BLACK
              With B&O
              from £432.75
              from £432.75
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, LH, PIANO BLACK Genuine Aston Martin - New (to order)
              # 24A
              MPN: KD43-18980-CA
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, RH, BLACK
              With ASK, 19MY on
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, RH, BLACK Genuine Aston Martin - New (to order)
              # 24A
              MPN: KD43-18981-CA
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, LH, BLACK
              With ASK, 19MY on
              GRILLE ASSEMBLY, REAR DOOR SPEAKER, LH, BLACK Genuine Aston Martin - New (to order)
              # 25
              MPN: 4G43-103021-AB
              CLIP, PUSH-ON
              per Door panel
              from £0.63
              from £0.63
              FIX PUSH ON Genuine Aston Martin - New (to order)
              # 26
              MPN: 697517-PK
              WASHER M6 LGE OD BLACK
              2 per Door panel, Pack of 20
              from £13.86
              from £13.86
              WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
              # 27
              MPN: ED43-226A28-AA
              DUAL BUMP STOP
              1 per handle
              from £2.61
              from £2.61
              DUAL BUMP STOP Genuine Aston Martin - New (to order)
              # 28
              MPN: 4G43-69-10112
              SINGLE BUMP STOP
              1 per handle
              from £1.11
              from £1.11
              BUFFER-GLOVE BOX DR Genuine Aston Martin - New (to order)
              # 29
              MPN: GD43-238A48-AB
              INSERT, RH
              ASK Audio
              from £23.38
              from £23.38
              INSERT, RH Genuine Aston Martin - New (to order)
              # 29
              MPN: GD43-238A49-AB
              INSERT, LH
              ASK Audio
              from £23.38
              from £23.38
              INSERT, LH Genuine Aston Martin - New (to order)
              # 30
              MPN: 8D33-19H474-AA
              ANTI-RATTLE FOAM 10X40X12MM
              from £0.47
              from £0.47
              ANTI/RTL HLDR TRANS Genuine Aston Martin - New (to order)
              # 31
              MPN: 706114
              CLIP - DOOR TRIM PADS
              from £6.88
              from £6.88
              This part replaces part number DD33-68172-AA
              CLIP - DOOR TRIM PADS Genuine Aston Martin - New (to order)
