aston martin rapide (2016) front seats parts diagram

011001 - Front Seats

Aston Martin Rapide (2016) Front Seats Parts Diagram

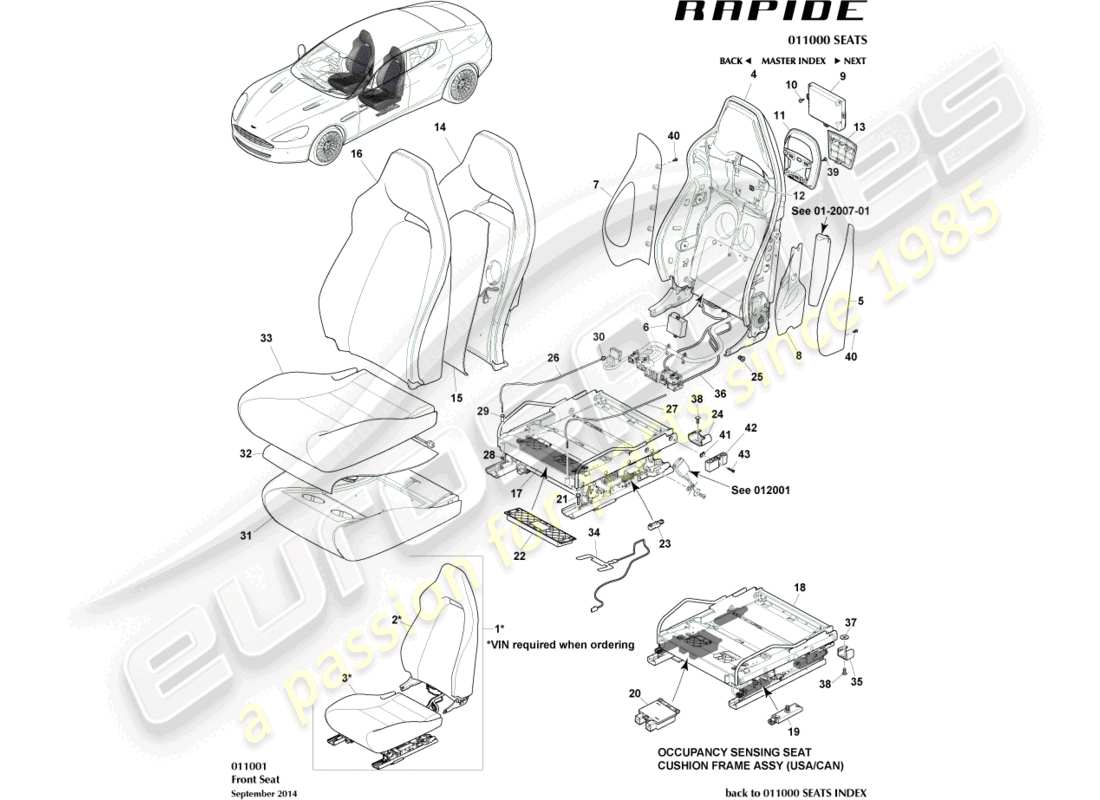

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: AD43-60009-ADW
                                  SEAT ASSEMBLY, FRONT, LH
                                  Up To 15MY. VIN Required For Order
                                  from £8,228.72
                                  from £8,228.72
                                  SEAT ASSEMBLY, FRONT, LH Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: FD43-60009-AAW
                                  SEAT ASSEMBLY, FRONT, LH
                                  From 15MY. VIN Required For Order
                                  from £6,930.31
                                  from £6,930.31
                                  SEAT ASSEMBLY, FRONT, LH Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: AD43-60008-AEW
                                  SEAT ASSEMBLY, FRONT, RH
                                  Up To 15MY. VIN Required For Order
                                  from £7,836.87
                                  from £7,836.87
                                  SEAT ASSEMBLY, FRONT, RH Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: FD43-60008-AAW
                                  SEAT ASSEMBLY, FRONT, RH
                                  From 15MY. VIN Required For Order
                                  from £6,930.31
                                  from £6,930.31
                                  SEAT ASSEMBLY, FRONT, RH Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: AD43-60137-AEW
                                  SQUAB ASSEMBLY, LH
                                  Up To 15MY. VIN Required For Order
                                  SQUAB ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: FD43-60137-AAW
                                  SQUAB ASSEMBLY, LH
                                  From 15MY, VIN Required For Order
                                  SQUAB ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: AD43-60136-AEW
                                  SQUAB ASSEMBLY, RH
                                  Up To 15MY. VIN Required For Order
                                  SQUAB ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                  # 2
                                  MPN: FD43-60136-AAW
                                  SQUAB ASSEMBLY, RH
                                  From 15MY. VIN Required For Order
                                  SQUAB ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: AD43-60050-ABW
                                  CUSHION ASSEMBLY, HEIGHT ADJUSTABLE
                                  Up To 15MY. VIN Required For Order
                                  CUSHION ASSEMBLY, HEIGHT ADJUSTABLE Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: FD43-60051-AAW
                                  CUSHION ASSEMBLY, LH, HEIGHT ADJUSTABLE
                                  From 15MY. VIN Required For Order
                                  CUSHION ASSEMBLY, LH, HEIGHT ADJUSTABLE Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: FD43-60050-AAW
                                  CUSHION ASSEMBLY, RH, HEIGHT ADJUSTABLE
                                  From 15MY. VIN Required For Order
                                  CUSHION ASSEMBLY, RH, HEIGHT ADJUSTABLE Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: AD43-60050-BAW
                                  CUSHION ASSEMBLY, FIXED HEIGHT.
                                  VIN Required For Order
                                  CUSHION ASSEMBLY, FIXED HEIGHT Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: AD43-74-10196
                                  SQUAB FRAME ASSEMBLY
                                  With Rear Seat Entertainment
                                  from £2,990.02
                                  from £2,990.02
                                  SQUAB FRAME ASSEMBLY Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: AD43-74-10197
                                  SQUAB FRAME ASSEMBLY
                                  Less Rear Seat Entertainment
                                  from £3,141.32
                                  from £3,141.32
                                  SQUAB FRAME ASSEMBLY Genuine Aston Martin - New (to order)
                                  # 5
                                  MPN: AD43-110003-AA
                                  PANEL, SEAT BACK, LH, LH SEAT
                                  from £8.67
                                  from £8.67
                                  PANEL, SEAT BACK, LH, LH SEAT Genuine Aston Martin - New (to order)
                                  # 5
                                  MPN: AD43-110002-BA
                                  PANEL, SEAT BACK, LH, RH SEAT
                                  PANEL, SEAT BACK, LH, RH SEAT Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: AD43-600B66-AA
                                  MODULE, CLIMATE, FRONT SEAT
                                  1 Per Seat
                                  from £247.89
                                  from £247.89
                                  ST CLMT ECU Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: AD43-110003-BA
                                  PANEL, SEAT BACK, RH, LH SEAT
                                  from £9.10
                                  from £9.10
                                  PANEL, SEAT BACK, RH, LH SEAT Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: AD43-110002-AA
                                  PANEL, SEAT BACK, RH, RH SEAT
                                  from £14.48
                                  from £14.48
                                  PANEL, SEAT BACK, RH, RH SEAT Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: AD43-M2D456-BA
                                  MOULDING, SEAT AIRBAG, LH
                                  from £19.02
                                  from £19.02
                                  MOULDING, SEAT AIRBAG, LH Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: AD43-M2D455-BA
                                  MOULDING, SEAT AIRBAG, RH
                                  MOULDING, SEAT AIRBAG, RH Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: 5H32-045M80-AB
                                  SCREEN, RSE, 6.5 INCH
                                  With Rear Seat Entertainment
                                  from £1,231.47
                                  from £1,231.47
                                  SCREEN, RSE, 6.5 INCH Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: W502670-S442
                                  SCREW, 4.2 X 13MM
                                  3 Per Seat
                                  from £0.47
                                  from £0.47
                                  SCR4 - 8X16 Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: AD43-644B20-AD
                                  FINISHER ASSEMBLY, SEAT BACK PANEL
                                  Up To 14.5MY, Bright Chrome
                                  from £81.67
                                  from £81.67
                                  FINISHER, SEAT BACK PANEL Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: ED43-044H12-AAW
                                  FINISHER ASSEMBLY, SEAT BACK PANEL
                                  From 14.5MY, Leather Wrapped
                                  FINISHER ASSEMBLY, SEAT BACK PANEL Genuine Aston Martin - New (to order)
                                  # 12
                                  MPN: 701448
                                  NUT, U TYPE
                                  from £0.47
                                  from £0.47
                                  NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                                  SPLITTER NUTS Genuine Ferrari Part - New (to order)
                                  # 13
                                  MPN: AD43-600E68-AAW
                                  FINISHER, INNER, SEAT BACK PANEL
                                  Up to 14.5MY
                                  FINISHER, INNER, SEAT BACK PANEL Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: ED43-600E68-AAW
                                  FINISHER, INNER, SEAT BACK PANEL
                                  FROM 14.5MY
                                  FINISHER, INNER, SEAT BACK PANEL Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: AD43-4D9513-AA
                                  FOAM, SQUAB
                                  STANDARD
                                  from £59.90
                                  from £59.90
                                  FOAM, SQUAB Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: AD43-4D9513-BA
                                  FOAM, SQUAB
                                  Full Climate Control
                                  from £649.00
                                  from £649.00
                                  FOAM, SQUAB Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: AD43-14D696-AB
                                  ELEMENT , HEATING, SQUAB
                                  STANDARD
                                  from £55.61
                                  from £55.61
                                  HEATING ELEMENT, SQUAB Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: AD43-600B70-AC
                                  UNIT, COOLING AND HEATING, SQUAB
                                  Full Climate Control
                                  from £278.84
                                  from £278.84
                                  UNIT, COOLING AND HEATING, SQUAB Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: AD43-64573-ADW
                                  COVER ASSEMBLY, SQUAB, LH
                                  Up To 15MY, Standard
                                  COVER ASSEMBLY, SQUAB, LH Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: AD43-64573-BBW
                                  COVER ASSEMBLY, SQUAB, LH
                                  Up To 15MY, Full Climate Control, Perforated
                                  from £3,430.36
                                  from £3,430.36
                                  COVER ASSEMBLY, SQUAB, LH Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: FD43-64573-AAW
                                  COVER ASSEMBLY, SQUAB, LH
                                  From 15MY, VIN Required For Order
                                  from £1,897.22
                                  from £1,897.22
                                  COVER ASSEMBLY, SQUAB, LH Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: AD43-64572-ADW
                                  COVER ASSEMBLY, SQUAB, RH
                                  Up To 15MY, Standard
                                  COVER ASSEMBLY, SQUAB, RH Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: AD43-64572-BBW
                                  COVER ASSEMBLY, SQUAB, RH
                                  Up To 15MY, Full Climate Control, Perforated
                                  from £3,430.36
                                  from £3,430.36
                                  COVER ASSEMBLY, SQUAB, RH Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: FD43-64572-AAW
                                  COVER ASSEMBLY, SQUAB, RH
                                  From 15MY, VIN Required For Order
                                  from £1,897.22
                                  from £1,897.22
                                  COVER ASSEMBLY, SQUAB, RH Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: AD43-L60344-AC
                                  FRAME ASSEMBLY, CUSHION
                                  Height Adjustable
                                  from £2,314.04
                                  from £2,314.04
                                  FRAME, FRONT SEAT CUSHION Genuine Aston Martin - New (to order)
                                  # 18
                                  MPN: AD43-L60344-BC
                                  FRAME ASSEMBLY, CUSHION
                                  Fixed Height
                                  from £2,272.71
                                  from £2,272.71
                                  FRAME, FRONT SEAT CUSHION Genuine Aston Martin - New (to order)
                                  # 19
                                  MPN: 7G43-625B02-BA
                                  SENSOR, WEIGHT
                                  OCS, Occupant Sensing
                                  from £234.28
                                  from £234.28
                                  SNS PASS ST WT Genuine Aston Martin - New (to order)
                                  # 20
                                  MPN: 7G43-625B00-CC
                                  MODULE, PASSENGER SEAT WEIGHT
                                  from £93.01
                                  from £93.01
                                  MOD PASS SEAT WGHT Genuine Aston Martin - New (to order)
                                  # 21
                                  MPN: DD43-W705113-AA
                                  BOLT, M8 X 38MM 10.9
                                  from £3.43
                                  from £3.43
                                  BOLT, M8 X 38MM 10.9 Genuine Aston Martin - New (to order)
                                  # 22
                                  MPN: AD43-14C249-AA
                                  MODULE, FRONT SEAT
                                  Supersession
                                  Supersession
                                  Genuine Aston Martin (no longer available to order)
                                  # 22
                                  MPN: CD33-14C249-AE
                                  MODULE, FRONT SEAT
                                  Rapide S
                                  Supersession
                                  Supersession
                                  Genuine Aston Martin (no longer available to order)
                                  # 23
                                  MPN: 7G43-14B426-AB
                                  SENSOR, SEAT TRACK POSITION
                                  from £27.74
                                  from £27.74
                                  SENSOR, SEAT TRACK POSITION Genuine Aston Martin - New (to order)
                                  # 24
                                  MPN: AD43-629B03-AB
                                  END CAP, SEAT TRACK, 6 WAY
                                  Height Adjustable
                                  from £5.04
                                  from £5.04
                                  END CAP, SEAT TRACK, 6 WAY Genuine Aston Martin - New (to order)
                                  # 25
                                  MPN: AD43-61538-AA
                                  BOLT
                                  from £3.45
                                  from £3.45
                                  BOLT, M12 X 1.25 X 16.5 Genuine Aston Martin - New (to order)
                                  # 26
                                  MPN: AD43-63602-AB
                                  WIRE RETAINER, CUSHION COVER, RH
                                  from £19.81
                                  from £19.81
                                  WIRE RETAINER, CUSHION COVER, RH Genuine Aston Martin - New (to order)
                                  # 27
                                  MPN: AD43-63603-AB
                                  WIRE RETAINER, CUSHION COVER, LH
                                  from £19.81
                                  from £19.81
                                  WIRE RETAINER, CUSHION COVER, LH Genuine Aston Martin - New (to order)
                                  # 28
                                  MPN: 703165
                                  NUT, M5
                                  2 Per Seat
                                  from £0.47
                                  from £0.47
                                  NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                                  # 29
                                  MPN: AD43-34388-AA
                                  BUSH
                                  from £1.23
                                  from £1.23
                                  BUSH Genuine Aston Martin - New (to order)
                                  # 30
                                  MPN: 699684
                                  GROMMET
                                  from £0.73
                                  from £0.73
                                  GROMMET Genuine Aston Martin - New (to order)
                                  # 31
                                  MPN: AD43-9515-AB
                                  FOAM, CUSHION
                                  Up To 15MY, Standard
                                  FOAM, CUSHION Genuine Aston Martin - New (to order)
                                  # 31
                                  MPN: AD43-9515-AC
                                  FOAM, CUSHION
                                  From 15MY, Standard
                                  from £71.46
                                  from £71.46
                                  FOAM, CUSHION Genuine Aston Martin - New (to order)
                                  # 31
                                  MPN: AD43-9515-BB
                                  FOAM, CUSHION
                                  Up To 15MY, Full Climate Control
                                  Supersession
                                  Supersession
                                  Genuine Aston Martin (no longer available to order)
                                  # 31
                                  MPN: AD43-9515-BC
                                  FOAM, CUSHION
                                  From 15MY, Full Climate Control
                                  from £649.00
                                  from £649.00
                                  This part replaces part number AD43-9515-BB
                                  FOAM, CUSHION Genuine Aston Martin - New (to order)
                                  # 32
                                  MPN: AD43-14D698-AC
                                  ELEMENT, CUSHION HEATING
                                  STANDARD
                                  from £111.29
                                  from £111.29
                                  ELEMENT, CUSHION HEATING Genuine Aston Martin - New (to order)
                                  # 32
                                  MPN: AD43-600B68-AD
                                  UNIT, COOLING AND HEATING, CUSHION
                                  Full Climate Control
                                  from £751.39
                                  from £751.39
                                  UNIT, COOLING AND HEATING, CUSHION Genuine Aston Martin - New (to order)
                                  # 33
                                  MPN: AD43-62900-AAW
                                  COVER, CUSHION
                                  Up To 15MY, Standard
                                  from £3,574.09
                                  from £3,574.09
                                  COVER, CUSHION Genuine Aston Martin - New (to order)
                                  # 33
                                  MPN: AD43-62900-BAW
                                  COVER, CUSHION
                                  Up To 15MY, Full Climate Control, Perforated
                                  from £3,834.80
                                  from £3,834.80
                                  COVER, CUSHION Genuine Aston Martin - New (to order)
                                  # 33
                                  MPN: FD43-62901-AAW
                                  COVER, CUSHION
                                  From 15MY, LH, VIN Required For Order
                                  from £1,888.73
                                  from £1,888.73
                                  COVER, CUSHION Genuine Aston Martin - New (to order)
                                  # 33
                                  MPN: FD43-62900-AAW
                                  COVER, CUSHION
                                  From 15MY, RH, VIN Required For Order
                                  from £1,888.73
                                  from £1,888.73
                                  COVER, CUSHION Genuine Aston Martin - New (to order)
                                  # 34
                                  MPN: AD43-14C288-AA
                                  SENSOR, PASSENGER BELT REMINDER
                                  from £26.86
                                  from £26.86
                                  SENSOR, PASSENGER BELT REMINDER Genuine Aston Martin - New (to order)
                                  # 35
                                  MPN: AD43-629B01-AB
                                  RUN END CAP, 2 WAY
                                  Fixed Height Frame
                                  from £10.99
                                  from £10.99
                                  RUN END CAP, 2 WAY Genuine Aston Martin - New (to order)
                                  # 36
                                  MPN: AD43-14B549-AB
                                  WIRE ASSEMBLY, RSE DISPLAY UNIT
                                  With Rear Seat Entertainment
                                  from £178.23
                                  from £178.23
                                  WIRE ASSEMBLY, RSE DISPLAY UNIT Genuine Aston Martin - New (to order)
                                  # 37
                                  MPN: 4G43-16C694-AB-PK
                                  WASHER, NYLON, BLACK
                                  Pack of 10
                                  from £6.17
                                  from £6.17
                                  WASHER-NYLON(PACK 10 Genuine Aston Martin - New (to order)
                                  # 38
                                  MPN: 4G43-RTC222-AA
                                  FIXING, FIRTREE, BLACK, 12MM
                                  from £0.47
                                  from £0.47
                                  FIXING, FIRTREE, BLACK, 12MM Genuine Aston Martin - New (to order)
                                  # 39
                                  MPN: 701157-PK
                                  SCREW, WASHER HD, 4.2 X 13MM
                                  Pack of 10
                                  from £1.59
                                  from £1.59
                                  SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                                  # 40
                                  MPN: 703027
                                  SCREW, TORX PAN, M4 X 10MM
                                  10 Per Seat
                                  from £0.47
                                  from £0.47
                                  SCREW M4X10 PAN HD Genuine Aston Martin - New (to order)
                                  # 41
                                  MPN: FD33-37523-AA
                                  J NUT, M5
                                  from £0.79
                                  from £0.79
                                  J NUT, M5 Genuine Aston Martin - New (to order)
                                  # 42
                                  MPN: FD33-60434-BA
                                  PUSHER BLOCK
                                  FROM 15MY
                                  from £56.08
                                  from £56.08
                                  PUSHER BLOCK Genuine Aston Martin - New (to order)
                                  # 43
                                  MPN: 703177
                                  SCREW, M5X30, SOCKET PAN HEAD
                                  from £0.87
                                  from £0.87
                                  SCREW M5X30 TORX Genuine Aston Martin - New (to order)
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
