aston martin rapide (2016) speakers, b&o parts diagram

150301-10-2 - Speakers, B&O

Aston Martin Rapide (2016) Speakers, B&O Parts Diagram

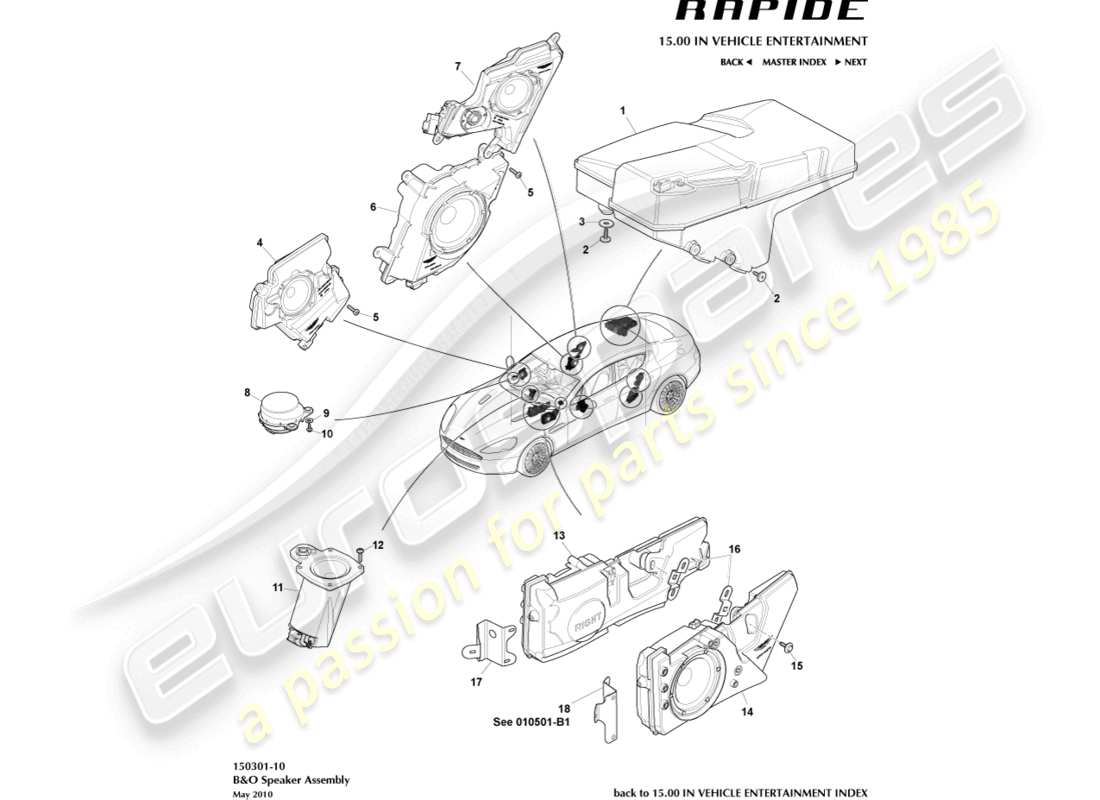

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: AD43-18C956-AA
                        SUBWOOFER & ENCLOSURE
                        from £1,567.65
                        from £1,567.65
                        SUBWOOFER & ENCLOSURE Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 6G33-FA0115-AB-PK
                        SCREW AND WASHER, M6 X 19, PAN INT
                        from £12.00
                        from £12.00
                        This part replaces part number 6G33-FA0115-AB
                        SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 6G33-6C778-AA
                        WASHER
                        from £0.48
                        from £0.48
                        ISLT OIL COOL MOUNTING Genuine Aston Martin - New (to order)
                        # 4
                        MPN: AD43-6696X-BA
                        SPEAKER BOX, FRONT DOOR, RH
                        Secured by item 5 (3 per assembly)
                        from £250.44
                        from £250.44
                        SPEAKER BOX, FRONT DOOR, RH Genuine Aston Martin - New (to order)
                        # 4
                        MPN: AD43-6696Y-BA
                        SPEAKER BOX, FRONT DOOR, LH
                        Secured by item 5 (3 per assembly)
                        from £250.44
                        from £250.44
                        SPEAKER BOX, FRONT DOOR, LH Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 702637
                        SCREW, M6 X 20, FLANGE HEAD
                        from £0.47
                        from £0.47
                        SCREW M6X20 SOCKET HD Genuine Aston Martin - New (to order)
                        # 6
                        MPN: AD43-46684-AA
                        WOOFER, REAR DOOR, RH
                        Secured by item 5 (3 per assembly)
                        from £319.55
                        from £319.55
                        WOOFER, REAR DOOR, RH Genuine Aston Martin - New (to order)
                        # 6
                        MPN: AD43-46685-AA
                        WOOFER, REAR DOOR, LH
                        Secured by item 5 (3 per assembly)
                        from £319.55
                        from £319.55
                        WOOFER, REAR DOOR, LH Genuine Aston Martin - New (to order)
                        # 7
                        MPN: AD43-46684-BA
                        SPEAKER MID, REAR DOOR, RH
                        Secured by item 5 (3 per assembly)
                        from £324.67
                        from £324.67
                        SPEAKER MID, REAR DOOR, RH Genuine Aston Martin - New (to order)
                        # 7
                        MPN: AD43-46685-BA
                        SPEAKER MID, REAR DOOR, LH
                        Secured by item 5 (3 per assembly)
                        from £319.55
                        from £319.55
                        SPEAKER MID, REAR DOOR, LH Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 9D33-18D801-AB
                        ACOUSTIC LENS TWEETER ASSEMBLY
                        Basalt
                        from £1,330.06
                        from £1,330.06
                        ALT-BASALT Genuine Aston Martin - New (to order)
                        # 8
                        MPN: CD33-18D801-BB
                        ACOUSTIC LENS TWEETER ASSEMBLY
                        ->F06267, Basalt Pearl
                        from £1,038.73
                        from £1,038.73
                        ACOUSTIC LENS TWEETER ASSEMBLY Genuine Aston Martin - New (to order)
                        # 8
                        MPN: CD33-18D801-BC
                        ACOUSTIC LENS TWEETER ASSEMBLY
                        F06268->, Basalt Pearl
                        from £1,140.69
                        from £1,140.69
                        ACOUSTIC LENS TWEETER ASSEMBLY Genuine Aston Martin - New (to order)
                        # 8
                        MPN: CD43-18D801-AA
                        ACOUSTIC LENS TWEETER ASSEMBLY
                        Iridium Pearl
                        from £1,281.44
                        from £1,281.44
                        ACOUSTIC LENS TWEETER ASSEMBLY Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 9D33-46662-AA
                        WASHER
                        per assembly
                        from £0.47
                        from £0.47
                        14 MM WASHER Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 701157-PK
                        SCREW, 4.2 X 13, SMALL WASHER HEAD
                        per assembly
                        from £1.59
                        from £1.59
                        SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 705464
                        SCREW, 4.2 X 16, LARGE WASHER HEAD
                        per assembly - Rapide S
                        from £0.47
                        from £0.47
                        SCREW 4.2 X 16 ST Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 9D33-70451-AA
                        SPEAKER BOX, CENTRE
                        Supersession
                        Supersession
                        Genuine Aston Martin (no longer available to order)
                        # 12
                        MPN: 703736
                        SCREW, 4.2 X 19, SMALL WASHER HEAD
                        from £0.47
                        from £0.47
                        SCREW-4.2X19 WSH HD Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 9D33-6696X-AB
                        SPEAKER, FOOTWELL, RH
                        SPEAKER, FOOTWELL, RH Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 9D33-6696Y-AB
                        SPEAKER, FOOTWELL, LH
                        SPEAKER, FOOTWELL, LH Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 703152-PK
                        SCREW AND WASHER, M6 X 20
                        per assembly
                        from £3.17
                        from £3.17
                        SCREW/WSHR M6X20(10) Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 9D33-19080-AA
                        BRACKET, FOOTWELL SPEAKER
                        from £10.35
                        from £10.35
                        SPEAKER BRACKET Genuine Aston Martin - New (to order)
                        # 17
                        MPN: 9D33-2B100-AC
                        BRACKET, FOOTWELL SPEAKER, RH
                        from £15.88
                        from £15.88
                        FOOTWELL SPEAKER BRACKET Genuine Aston Martin - New (to order)
                        # 18
                        MPN: 4G43-2B099-AD
                        BRACKET, REINF, FOOT SCUFF PLATE ASSEMBLY, LH
                        from £25.74
                        from £25.74
                        FT SCF PLT REINFORCEMENT BRK Genuine Aston Martin - New (to order)
