aston martin rapide (2017) main floor trim, rhd parts diagram

010501-B2 - Main Floor Trim, RHD

Aston Martin Rapide (2017) Main Floor Trim, RHD Parts Diagram

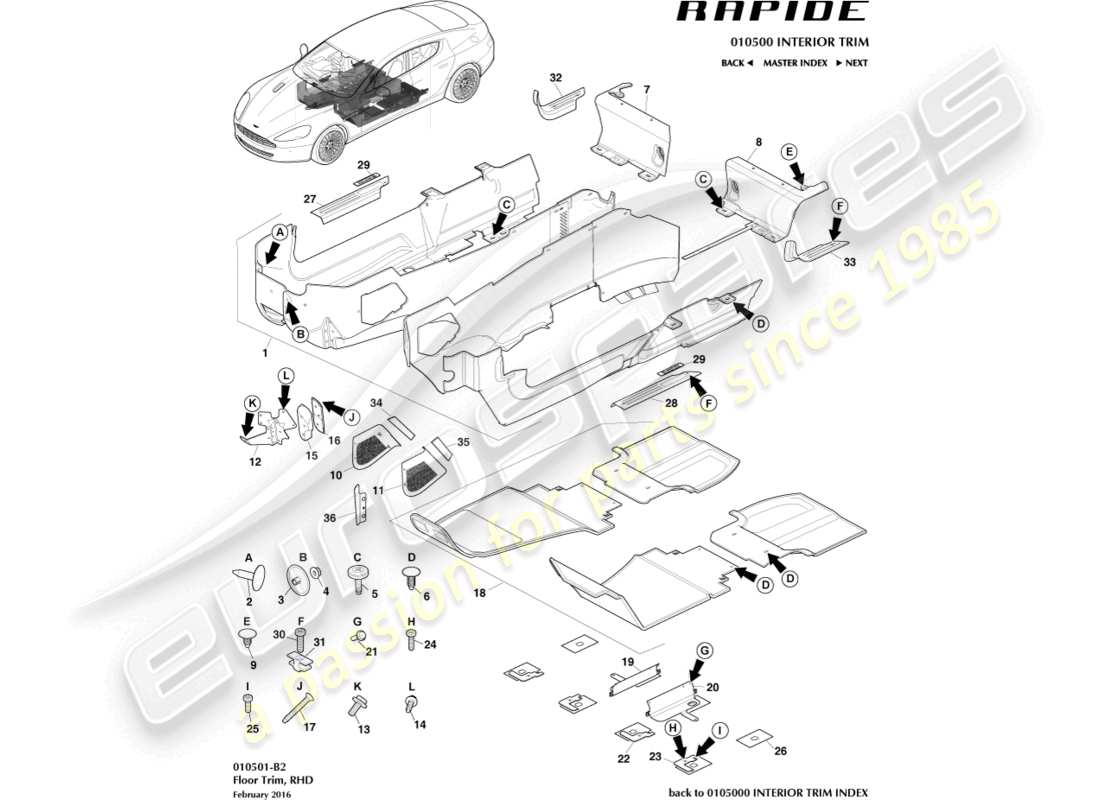

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: AD43-281B10-ADW
                                        KIT ASSEMBLY, SIDE CARPET
                                        Up to 15MY
                                        KIT ASSEMBLY, SIDE CARPET Genuine Aston Martin - New (to order)
                                        # 1
                                        MPN: FD43-281B10-ABW
                                        KIT ASSEMBLY, SIDE CARPET
                                        From 15MY, 720gsm
                                        from £2,500.99
                                        from £2,500.99
                                        KIT ASSEMBLY, SIDE CARPET Genuine Aston Martin - New (to order)
                                        # 1
                                        MPN: FD43-281B10-GA
                                        KIT ASSEMBLY, SIDE CARPET
                                        From 17.5MY, Black, 600gsm
                                        from £2,500.99
                                        from £2,500.99
                                        KIT ASSEMBLY, SIDE CARPET Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: 4G43-STC3710-AA-PK
                                        FASTENER, FIRTREE
                                        Supersession
                                        Supersession
                                        Genuine Aston Martin (no longer available to order)
                                        # 3
                                        MPN: 6G33-13925-AA
                                        PUSH-ON BUTTON, M5X35
                                        from £0.47
                                        from £0.47
                                        M5 X 35 PSH ON FIX Genuine Aston Martin - New (to order)
                                        # 4
                                        MPN: 702295
                                        NUT, M5
                                        from £0.47
                                        from £0.47
                                        NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                        # 5
                                        MPN: AD43-FA0115-AA
                                        SCREW AND WASHER, M6X19
                                        SCREW AND WASHER, M6X19 Genuine Aston Martin - New (to order)
                                        # 6
                                        MPN: AD43-MXC1800-AA
                                        FASTENER, FIRTREE, BUTTON HEAD
                                        from £0.47
                                        from £0.47
                                        FIR TREE BUTTON Genuine Aston Martin - New (to order)
                                        # 7
                                        MPN: AD43-130A34-ACW
                                        CARPET ASSEMBLY, FLOOR REAR, RH
                                        from £465.27
                                        from £465.27
                                        CARPET ASSEMBLY, FLOOR REAR, RHS Genuine Aston Martin - New (to order)
                                        # 7
                                        MPN: AD43-130A34-GA
                                        CARPET ASSEMBLY, FLOOR REAR, RH
                                        Black. From 17.5MY
                                        CARPET ASSEMBLY, FLOOR REAR, RHS Genuine Aston Martin - New (to order)
                                        # 8
                                        MPN: AD43-130A35-ACW
                                        CARPET ASSEMBLY, FLOOR REAR, LH
                                        from £465.27
                                        from £465.27
                                        CARPET ASSEMBLY, FLOOR REAR, LHS Genuine Aston Martin - New (to order)
                                        # 8
                                        MPN: AD43-130A35-GA
                                        CARPET ASSEMBLY, FLOOR REAR, LH
                                        Black. From 17.5MY
                                        CARPET ASSEMBLY, FLOOR REAR, LHS Genuine Aston Martin - New (to order)
                                        # 9
                                        MPN: AD43-MXC1800-AA
                                        FASTENER, FIRTREE, BUTTON HEAD
                                        from £0.47
                                        from £0.47
                                        FIR TREE BUTTON Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: AD43-311A76-BA
                                        SPEAKER GRILLE ASSEMBLY, FOOTWELL, RH
                                        Up To 17.5MY, With Fixings, B&O
                                        from £462.87
                                        from £462.87
                                        SPEAKER GRILLE ASSEMBLY, FOOTWELL, RHS Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: GD43-311A76-CC
                                        SPEAKER GRILLE ASSEMBLY, FOOTWELL, RH
                                        With Fixings, Silver.
                                        from £439.55
                                        from £439.55
                                        FOOTWELL SPEAKER GRL RH Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: HD43-311A76-CA
                                        SPEAKER GRILLE ASSEMBLY, FOOTWELL, RH
                                        From 17.5MY, With Fixings, Black.
                                        from £125.12
                                        from £125.12
                                        FOOTWELL SPEAKER GRL RH Genuine Aston Martin - New (to order)
                                        # 11
                                        MPN: AD43-311A77-BA
                                        SPEAKER GRILLE ASSEMBLY, FOOTWELL, LH
                                        Up To 17.5MY, With Fixings, B&O
                                        from £462.87
                                        from £462.87
                                        SPEAKER GRILLE ASSEMBLY, FOOTWELL, LHS Genuine Aston Martin - New (to order)
                                        # 11
                                        MPN: GD43-311A77-CC
                                        SPEAKER GRILLE ASSEMBLY, FOOTWELL, LH
                                        With Fixings, Silver
                                        from £439.55
                                        from £439.55
                                        FOOTWELL SPEAKER GRL LH Genuine Aston Martin - New (to order)
                                        # 11
                                        MPN: HD43-311A77-CA
                                        SPEAKER GRILLE ASSEMBLY, FOOTWELL, LH
                                        From 17.5MY, With Fixings, Black.
                                        from £125.12
                                        from £125.12
                                        FOOTWELL SPEAKER GRL LH Genuine Aston Martin - New (to order)
                                        # 12
                                        MPN: 6G33-3N234-AA
                                        BRACKET, FOOTREST, RHD
                                        from £14.20
                                        from £14.20
                                        BRACKET FOOTREST RHD Genuine Aston Martin - New (to order)
                                        BRACKET FOOTREST RHD Genuine Aston Martin - Used In stock
                                        # 13
                                        MPN: 703151
                                        BOLT AND WASHER, M6X16
                                        from £0.47
                                        from £0.47
                                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                        LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                                        # 14
                                        MPN: 703026
                                        SCREW, M5X16
                                        from £0.47
                                        from £0.47
                                        SCREW M5X16 HEX FLANGE Genuine Aston Martin - New (to order)
                                        # 15
                                        MPN: 6G33-044J08-AA
                                        ENERGY ABSORBER, FOOTREST
                                        from £12.14
                                        from £12.14
                                        FOAM FOOTREST RHD Genuine Aston Martin - New (to order)
                                        FOAM FOOTREST RHD Genuine Aston Martin - Used In stock
                                        # 16
                                        MPN: 6G33-12021-AA
                                        COVER PLATE, FOOTREST, SILVER
                                        from £47.03
                                        from £47.03
                                        RH F/R COVER PLATE Genuine Aston Martin - New (to order)
                                        RH F/R COVER PLATE Genuine Aston Martin - Used In stock
                                        # 16
                                        MPN: CD33-12021-CA
                                        COVER PLATE, FOOTREST, BLACK
                                        Rapide S Option
                                        from £88.58
                                        from £88.58
                                        RH F/R COVER BLACK Genuine Aston Martin - New (to order)
                                        # 17
                                        MPN: 6G33-13925-AA
                                        SCREW, M5X36
                                        from £0.47
                                        from £0.47
                                        M5 X 35 PSH ON FIX Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: AD43-83-10114
                                        KIT ASSEMBLY, FLOOR CARPET
                                        from £2,559.49
                                        from £2,559.49
                                        KIT ASSEMBLY, FLOOR CARPET Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: AD43-281B12-GA
                                        KIT ASSEMBLY, FLOOR CARPET
                                        From 17.5MY, Black
                                        KIT ASSEMBLY, FLOOR CARPET Genuine Aston Martin - New (to order)
                                        # 19
                                        MPN: AD43-605B28-AC
                                        SCUFF PLATE, TUNNEL, RH
                                        from £57.24
                                        from £57.24
                                        SCUFF PLATE, TUNNEL, RHS Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: AD43-605B29-AC
                                        SCUFF PLATE, TUNNEL, LH
                                        from £57.24
                                        from £57.24
                                        SCUFF PLATE, TUNNEL, LHS Genuine Aston Martin - New (to order)
                                        # 21
                                        MPN: 4G43-2705-AA
                                        RIVET
                                        from £0.47
                                        from £0.47
                                        RIVET, PLASTIC Genuine Aston Martin - New (to order)
                                        # 22
                                        MPN: AD43-666A41-AB
                                        FINISHER, CARPET, LH COMMON
                                        from £43.26
                                        from £43.26
                                        FINISHER, CARPET, LHS COMMON Genuine Aston Martin - New (to order)
                                        # 23
                                        MPN: AD43-666A40-AB
                                        FINISHER, CARPET, RH COMMON
                                        from £43.26
                                        from £43.26
                                        FINISHER, CARPET, RHS COMMON Genuine Aston Martin - New (to order)
                                        # 24
                                        MPN: 6G33-68D11-BA
                                        SCREW, M5X20, CAP HEAD
                                        from £0.85
                                        from £0.85
                                        CAP SCREW - M5X20 Genuine Aston Martin - New (to order)
                                        # 25
                                        MPN: 6G33-68D11-AA
                                        SCREW, M5X12, CAP HEAD
                                        from £0.47
                                        from £0.47
                                        CAP SCREW - M5X12 Genuine Aston Martin - New (to order)
                                        # 27
                                        MPN: AD43-132A12-AAW
                                        SCUFF PLATE, FRONT DOOR SILL, RH
                                        from £122.72
                                        from £122.72
                                        SCUFF PLATE, FRONT DOOR SILL, RHS Genuine Aston Martin - New (to order)
                                        # 27
                                        MPN: KD43-132A12-AA
                                        SCUFF PLATE, FRONT DOOR SILL, RHS
                                        AMR
                                        SCUFF PLATE, FRONT DOOR SILL, RHS Genuine Aston Martin - New (to order)
                                        # 28
                                        MPN: AD43-132A13-AAW
                                        SCUFF PLATE, FRONT DOOR SILL, LH
                                        from £122.72
                                        from £122.72
                                        SCUFF PLATE, FRONT DOOR SILL, LHS Genuine Aston Martin - New (to order)
                                        # 28
                                        MPN: KD43-132A13-AA
                                        SCUFF PLATE, FRONT DOOR SILL, LHS
                                        AMR
                                        SCUFF PLATE, FRONT DOOR SILL, LHS Genuine Aston Martin - New (to order)
                                        # 29
                                        MPN: AD43-80-10004
                                        NAME PLATE, STANDARD
                                        from £149.90
                                        from £149.90
                                        NAME PLATE, STANDARD Genuine Aston Martin - New (to order)
                                        # 29
                                        MPN: AD43-80-10005
                                        NAME PLATE, PERSONALISED
                                        from £312.00
                                        from £312.00
                                        NAME PLATE, PERSONALISED Genuine Aston Martin - New (to order)
                                        # 29
                                        MPN: BD43-132A51-AA
                                        NAME PLATE, LUX, STANDARD
                                        from £172.03
                                        from £172.03
                                        NAME PLATE, LUX, STANDARD Genuine Aston Martin - New (to order)
                                        # 29
                                        MPN: DD43-132A51-AA
                                        NAME PLATE, STANDARD
                                        Rapide S
                                        NAME PLATE, STANDARD Genuine Aston Martin - New (to order)
                                        # 29
                                        MPN: ED43-132A51-AA
                                        NAME PLATE, STERLING SILVER
                                        Rapide S Centenary Edition
                                        from £1,402.43
                                        from £1,402.43
                                        NAME PLATE, STERLING SILVER Genuine Aston Martin - New (to order)
                                        # 29
                                        MPN: HDA3-132A51-CA
                                        NAME PLATE, SHADOW EDITION
                                        Rapide S 17.5MY Shadow Edition
                                        NAME PLATE, SHADOW EDITION Genuine Aston Martin - New (to order)
                                        # 29
                                        MPN: KD43-132A51-AA
                                        NAME PLATE, SHADOW EDITION
                                        Rapide AMR 19MY
                                        from £514.86
                                        from £514.86
                                        NAME PLATE, SHADOW EDITION Genuine Aston Martin - New (to order)
                                        # 30
                                        MPN: 6G33-SS106209-AB-PK
                                        BOLT, M6X20, SOCKET HEAD
                                        Silver, Pack of 2
                                        BOLT, M6X20, SOCKET HEAD Genuine Aston Martin - New (to order)
                                        # 30
                                        MPN: 8D33-68D11-AA
                                        BOLT, M6X20, SOCKET HEAD
                                        Black
                                        from £0.48
                                        from £0.48
                                        M6X20 SOCKET LW HD BOLT Genuine Aston Martin - New (to order)
                                        # 31
                                        MPN: AD43-17F790-AB
                                        BRACKET, SCUFF PLATE
                                        from £4.62
                                        from £4.62
                                        BRACKET, SCUFF PLATE Genuine Aston Martin - New (to order)
                                        # 32
                                        MPN: AD43-132A48-ABW
                                        SCUFF PLATE, REAR DOOR, RH
                                        from £214.22
                                        from £214.22
                                        SCUFF PLATE, REAR DOOR, RH Genuine Aston Martin - New (to order)
                                        # 32
                                        MPN: KD43-132A48-AB
                                        SCUFF PLATE, REAR DOOR, RHS
                                        AMR
                                        SCUFF PLATE, REAR DOOR, RHS Genuine Aston Martin - New (to order)
                                        # 33
                                        MPN: AD43-132A49-ABW
                                        SCUFF PLATE, REAR DOOR, LH
                                        from £214.22
                                        from £214.22
                                        SCUFF PLATE, REAR DOOR, LH Genuine Aston Martin - New (to order)
                                        # 33
                                        MPN: KD43-132A49-AB
                                        SCUFF PLATE, REAR DOOR, LHS
                                        AMR
                                        SCUFF PLATE, REAR DOOR, LHS Genuine Aston Martin - New (to order)
                                        # 34
                                        MPN: GD43-13034-AA
                                        SPACER, CARPET RH
                                        16MY
                                        SPACER, CARPET RH Genuine Aston Martin - New (to order)
                                        # 35
                                        MPN: GD43-13035-AA
                                        SPACER, CARPET LH
                                        16MY
                                        SPACER, CARPET LH Genuine Aston Martin - New (to order)
                                        # 36
                                        MPN: 9D33-201A49-AA
                                        SHIELD, SPEAKER GRILLE PROTECTOR
                                        15MY
                                        from £10.98
                                        from £10.98
                                        SHLD SPEAKER GRL PR LH Genuine Aston Martin - New (to order)
                                        # -
                                        -
                                        BUMPON, SQUARE
                                        lower console to carpet
