aston martin rapide (2017) radiator grille, s parts diagram

010801-B2 - Radiator Grille, S

Aston Martin Rapide (2017) Radiator Grille, S Parts Diagram

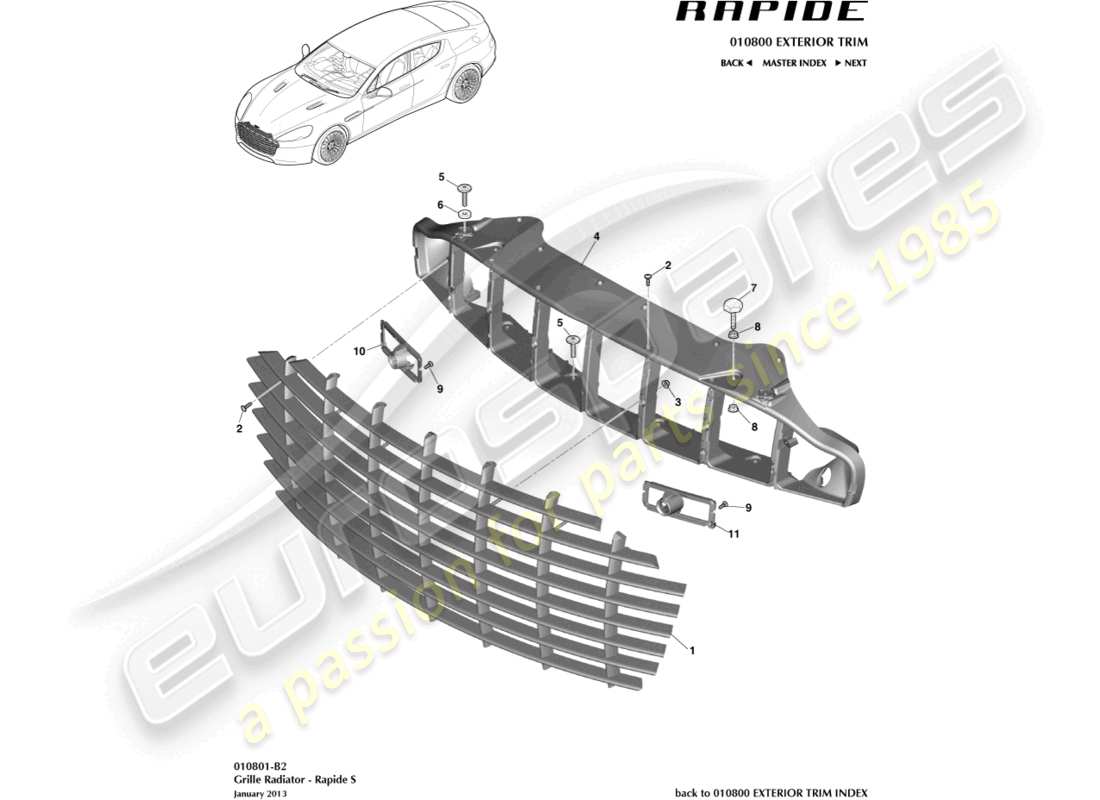

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: DD43-8A100-AC
                      GRILLE ASSY RADIATOR
                      from £1,113.18
                      from £1,113.18
                      GRILLE ASSEMBLY RADIATOR Genuine Aston Martin - New (to order)
                      # 2
                      MPN: DG43-219005-AA
                      SCREW, 4.2 X 16, PAN HEAD TORX DRIVE
                      from £0.87
                      from £0.87
                      SCREW 4.2 X 16 Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 697251-PK
                      NUT, M5, FLANGED
                      Pack of 10
                      NUT, FLANGE , M5 Genuine Aston Martin - New (to order)
                      # 4
                      MPN: DD43-8190-AA
                      GRILLE SURROUND MOULDING
                      from £72.32
                      from £72.32
                      GRILLE SURROUND MOULDING Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 5R13-FA0036-AA
                      SCREW, M6 X 28
                      from £1.68
                      from £1.68
                      SCREW - M6 X 28 Genuine Aston Martin - New (to order)
                      # 6
                      MPN: AD43-5435-AA
                      SPACER WASHER, 20 X 6.4 X 6
                      from £2.78
                      from £2.78
                      SPACER WASHER Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 4G43-16K808-AB
                      BUFFER ASSY, HOOD BUMPER
                      from £2.38
                      from £2.38
                      SUPPORT HOOD BUMPER TO CO Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 702944
                      NUT, M6, HEX FLANGE HEAD
                      from £0.58
                      from £0.58
                      NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                      LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                      # 9
                      MPN: 701447
                      SCREW, 4 X 12, TORZ PAN HEAD
                      from £0.47
                      from £0.47
                      SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                      # 10
                      MPN: DD43-15A864-AB
                      BRACKET, PARKING AID SENSOR INNER, RH
                      from £12.66
                      from £12.66
                      BRACKET, PARKING AID SENSOR INNER, RH Genuine Aston Martin - New (to order)
                      # 11
                      MPN: DD43-15A861-AB
                      BRACKET, PARKING AID SENSOR INNER, LH
                      from £31.00
                      from £31.00
                      BRACKET, PARKING AID SENSOR INNER, LH Genuine Aston Martin - New (to order)
