aston martin rapide (2018) body side parts diagram

010104-B1 - Body Side

Aston Martin Rapide (2018) Body Side Parts Diagram

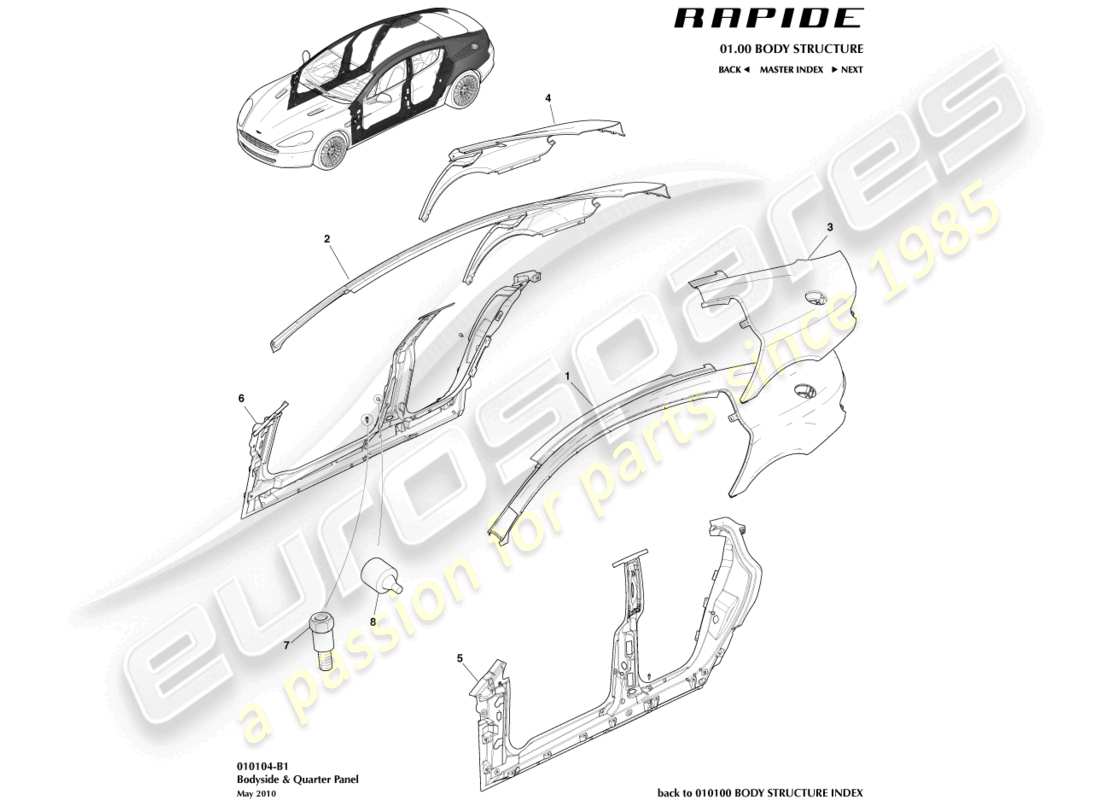

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: AD43-540025-AB
BODYSIDE LH ASSEMBLY- SERVICE
Structural. Cat A Only
from £5,313.01
from £5,313.01
BODYSIDE LH ASSEMBLY- SERVICE Genuine Aston Martin - New (to order)
# 2
MPN: AD43-F27846-AC
BODYSIDE RH ASSEMBLY- SERVICE
Structural. Cat A Only
from £5,313.03
from £5,313.03
BODYSIDE RH ASSEMBLY- SERVICE Genuine Aston Martin - New (to order)
# 3
MPN: AD43-540025-SA
BODYSIDE LH REPAIR ASSEMBLY- SERVICE
Structural. Cat A Only
from £5,313.03
from £5,313.03
BODYSIDE LH REPAIR ASSEMBLY- SERVICE Genuine Aston Martin - New (to order)
# 4
MPN: AD43-540026-SA
BODYSIDE RH REPAIR ASSEMBLY- SERVICE
Structural. Cat A Only
from £5,313.03
from £5,313.03
BODYSIDE RH REPAIR ASSEMBLY- SERVICE Genuine Aston Martin - New (to order)
# 5
MPN: AD43-F20413-AG
REINFORCEMENT, DOOR OPENING LH
Structural. Cat A Only
from £1,243.01
from £1,243.01
REINFORCEMENT, DOOR OPENING LH Genuine Aston Martin - New (to order)
# 6
MPN: AD43-F20412-AG
REINFORCEMENT, DOOR OPENING RH
Structural. Cat A Only
from £1,243.01
from £1,243.01
REINFORCEMENT, DOOR OPENING RH Genuine Aston Martin - New (to order)
# 7
MPN: AD43-F23508-AA
ADAPTOR, PRIMARY STRUT BALL STUD
per Door Opening Reinforcement
from £2.14
from £2.14
ADAPTOR, PRIMARY STRUT BALL STUD Genuine Aston Martin - New (to order)
# 8
MPN: AD43-FCZU00001-AA
BUMPSTOP, FIXED DOOR
per Door Opening Reinforcement
from £1.82
from £1.82
BUMPSTOP, FIXED DOOR (ON BODY) Genuine Aston Martin - New (to order)
# -
-
M5, RIVNUT
RH Bodyside Only
