aston martin rapide (2018) centre stack trim panel parts diagram

011201-B11 - Centre Stack Trim Panel

Aston Martin Rapide (2018) Centre Stack Trim Panel Parts Diagram

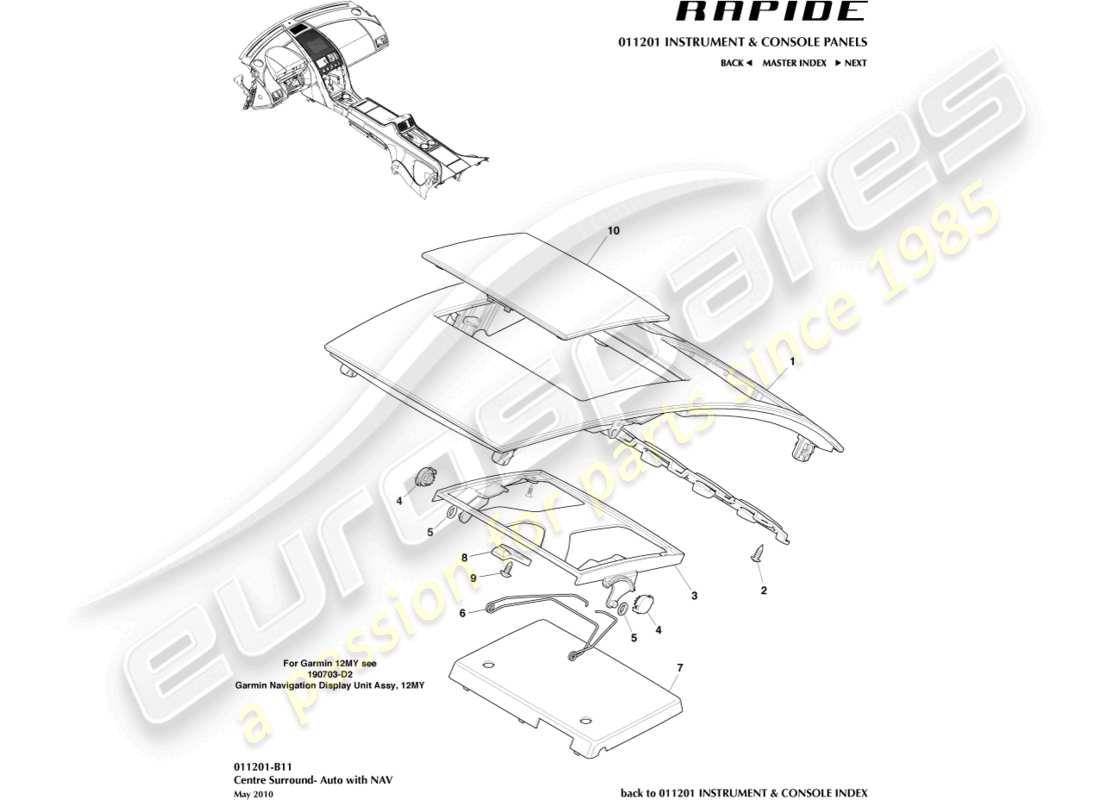

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: AD43-045H43-AA
                  SURROUND ASSY AUTO, NAV
                  Nexus alloy
                  from £773.50
                  from £773.50
                  SURROUND ASSEMBLY AUTO, NAV Genuine Aston Martin - New (to order)
                  # 1
                  MPN: CD43-045H43-AA
                  SURROUND ASSY AUTO, NAV, 12MY
                  Nexus alloy, 12MY
                  from £412.13
                  from £412.13
                  SURROUND ASSEMBLY AUTO, NAV, 12MY Genuine Aston Martin - New (to order)
                  # 1
                  MPN: AD43-045H43-CA
                  SURROUND ASSY AUTO, NAV
                  Double apex alloy
                  SURROUND ASSEMBLY AUTO, NAV Genuine Aston Martin - New (to order)
                  # 1
                  MPN: CG43-045H43-CA
                  SURROUND ASSY AUTO, NAV, 12MY
                  Double apex alloy, 12MY
                  from £739.94
                  from £739.94
                  SURROUND ASSEMBLY AUTO, NAV, 12MY Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-AA
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10)
                  Walnut
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) Genuine Aston Martin - New (to order)
                  # 1
                  MPN: CG43-045J10-AB
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10) 12MY
                  Walnut, 12MY
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) 12MY Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-BA
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10)
                  Mahogany
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) Genuine Aston Martin - New (to order)
                  # 1
                  MPN: CG43-045J10-BB
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10) 12MY
                  Mahogany, 12MY
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) 12MY Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-CA
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10)
                  Bamboo
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) Genuine Aston Martin - New (to order)
                  # 1
                  MPN: CG43-045J10-CB
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10) 12MY
                  Bamboo, 12MY
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) 12MY Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-NA
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10)
                  Piano black
                  from £849.46
                  from £849.46
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) Genuine Aston Martin - New (to order)
                  # 1
                  MPN: CG43-045J10-NB
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10) 12MY
                  Piano black, 12MY
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) 12MY Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-SA
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10)
                  Tamo ash
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) Genuine Aston Martin - New (to order)
                  # 1
                  MPN: CG43-045J10-SB
                  NAVIGATION SURROUND ASSY, INCLUDING DOOR (ITEM 10) 12MY
                  Tamo ash, 12MY
                  NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR (ITEM 10) 12MY Genuine Aston Martin - New (to order)
                  # 1
                  MPN: AD43-047A04-AA
                  SURROUND ASSY , NON NAVIGATION
                  Nexus alloy
                  from £796.89
                  from £796.89
                  SURROUND ASSEMBLY ONLY - NO NAV, AUTO Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-GA
                  SURROUND ASSY , NON NAVIGATION
                  Walnut
                  from £855.42
                  from £855.42
                  SURROUND ASSEMBLY , NON NAVIGATION Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-HA
                  SURROUND ASSY , NON NAVIGATION
                  Mahogany
                  from £855.42
                  from £855.42
                  SURROUND ASSEMBLY , NON NAVIGATION Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-JA
                  SURROUND ASSY , NON NAVIGATION
                  Bamboo
                  from £855.42
                  from £855.42
                  SURROUND ASSEMBLY , NON NAVIGATION Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-RA
                  SURROUND ASSY , NON NAVIGATION
                  Piano black
                  SURROUND ASSEMBLY , NON NAVIGATION Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 9G43-045J10-VA
                  SURROUND ASSY , NON NAVIGATION
                  Tamo ash
                  from £855.42
                  from £855.42
                  SURROUND ASSEMBLY , NON NAVIGATION Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 701441-PK
                  SCREW, ST4.2X13 PAN HD FLNG
                  from £1.31
                  from £1.31
                  SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-18C917-AB
                  BRACKET, NAV MOUNTING
                  from £190.84
                  from £190.84
                  BRACKET - NAV MOUNTING Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 697687
                  SCREW, NO6 X 9.5
                  from £0.47
                  from £0.47
                  SCREW NO6 X 9.5 CS B Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 703024
                  SCREW, NO4 X 3/8
                  from £0.47
                  from £0.47
                  SCREW, NO4 X 3/8 Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 6G33-38392-AA
                  DAMPER, SPINDLE
                  from £7.41
                  from £7.41
                  SPINDLE DAMPER Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 6G33-8979-AA
                  WASHER
                  from £2.95
                  from £2.95
                  WASHER Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 6G33-19363-AE
                  SPRING
                  from £22.03
                  from £22.03
                  SPRING, TORSION Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 6G33-10E901-AC
                  HOUSING, NAV DISPLAY
                  HOUSING, NAVIGATION DISPLAY Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 6G33-14163-AB
                  BEZEL, STOP, INSTRUMENT PANEL VENEER
                  from £33.77
                  from £33.77
                  LOCATOR Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 6G33-104101-AB
                  SCREW, M4X10 BLACK
                  SCREW, M4X10 Genuine Aston Martin - New (to order)
                  # 10
                  MPN: AD43-045G37-AA
                  DOOR, CONSOLE NAV
                  Nexus alloy
                  from £528.81
                  from £528.81
                  DOOR, CONSOLE NAVIGATION Genuine Aston Martin - New (to order)
                  # 10
                  MPN: AG43-045G37-AA
                  DOOR, CONSOLE NAV
                  Double apex alloy
                  from £528.81
                  from £528.81
                  DR CNSL NAV Genuine Aston Martin - New (to order)
