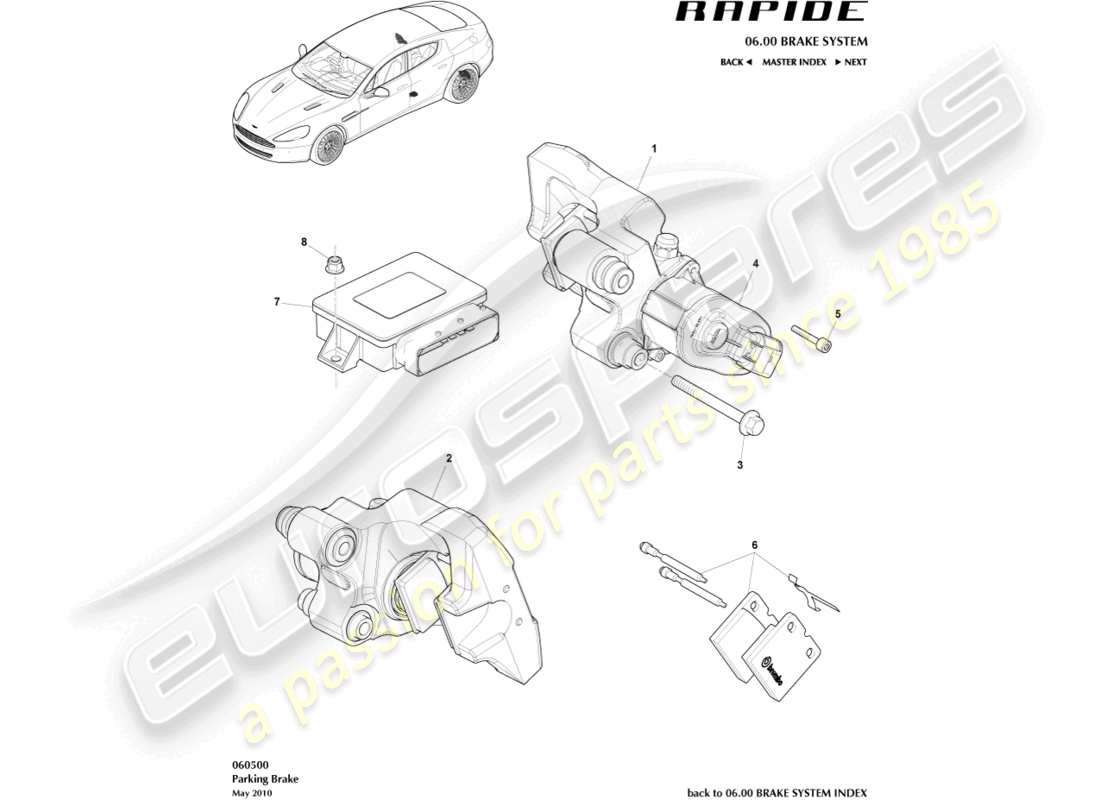

060500 - PARKING BRAKE

Aston Martin Rapide (2018) Parking Brake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: AD43-2K327-BA
        CALIPER ASSEMBLY, ELECTRIC PARK BRAKE COMPLETE, RH
        Including pads and motor
        from £1,337.78
        from £1,337.78
        CALIPER ASSEMBLY, ELECTRIC PARK BRAKE COMPLETE, RH Genuine Aston Martin - New (to order)
        # 2
        MPN: AD43-2K328-BA
        CALIPER ASSEMBLY, ELECTRIC PARK BRAKE COMPLETE, LH
        Including pads and motor
        from £1,337.78
        from £1,337.78
        CALIPER ASSEMBLY, ELECTRIC PARK BRAKE COMPLETE, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: 4G43-2C564-CA
        BOLT, M10X87, FLANGE HEAD
        from £1.79
        from £1.79
        BOLT-M10X87 HEX FLNG Genuine Aston Martin - New (to order)
        # 4
        MPN: AD43-2B675-AA
        MOTOR, ELECTRIC PARK BRAKE
        from £154.83
        from £154.83
        MOTOR, ELECTRIC PARK BRAKE Genuine Aston Martin - New (to order)
        # 5
        MPN: 703085
        BOLT ,M6X12,PAN,TI8
        Motor to Caliper
        from £0.47
        from £0.47
        BOLT M6X12 PC TI8 Genuine Aston Martin - New (to order)
        # 6
        MPN: AD43-2B926-BA
        KIT, BRAKE PADS
        Axle set, with fittings
        from £272.72
        from £272.72
        KIT, BRAKE PADS Genuine Aston Martin - New (to order)
        # 7
        MPN: AD43-2C496-AA
        MODULE, PARK BRAKE CONTROL
        Up To VIN F03108
        MODULE, PARK BRAKE CONTROL Genuine Aston Martin - New (to order)
        # 7
        MPN: DD43-2C496-AB
        MODULE, PARK BRAKE CONTROL
        FROM VIN F03109
        from £649.33
        from £649.33
        MODULE, PARK BRAKE CONTROL Genuine Aston Martin - New (to order)
        # 8
        MPN: 703163
        NUT, M6, HEX FLG, PLASTIC
        from £0.47
        from £0.47
        NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
