aston martin rapide (2018) air distribution components parts diagram

120102 - Air Distribution Components

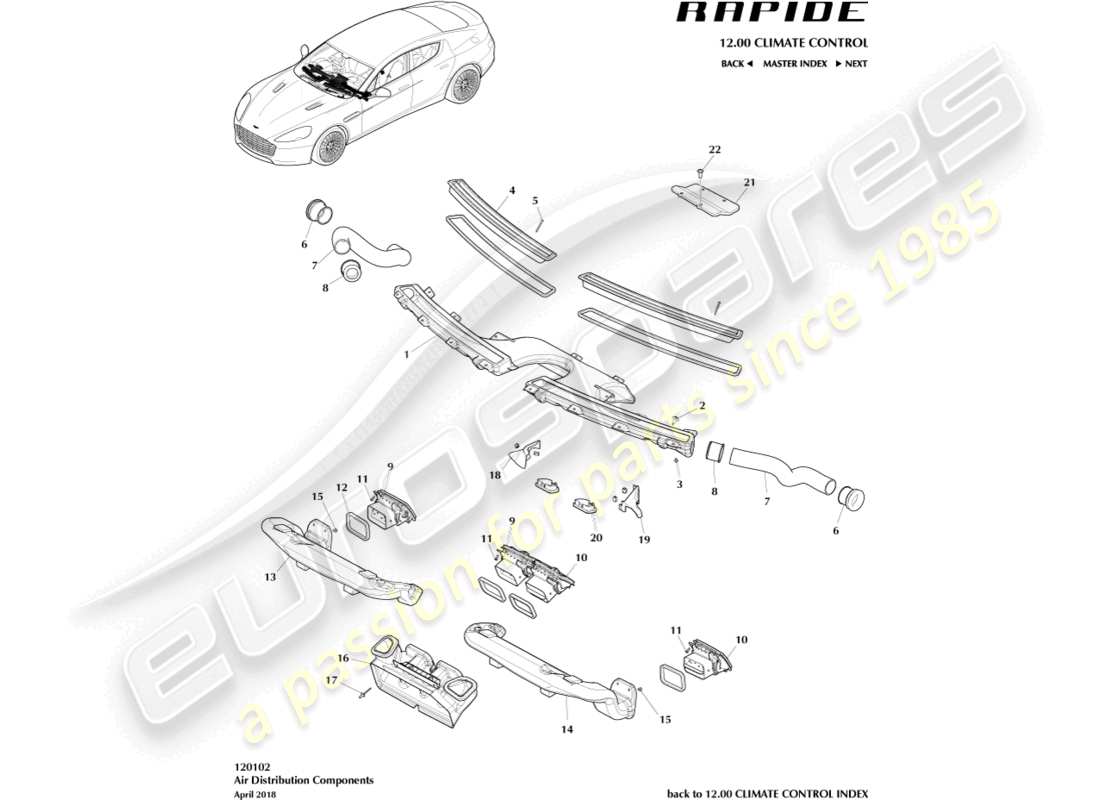

Aston Martin Rapide (2018) Air Distribution Components Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 6G33-04432-BA
                          DUCT ASSEMBLY, WINDSHIELD DEFLECTOR
                          RHD
                          from £79.68
                          from £79.68
                          DUCT ASSEMBLY, WINDSHIELD DEFLECTOR, RHD Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 6G33-04432-AA
                          DUCT ASSEMBLY, WINDSHIELD DEFLECTOR
                          LHD
                          from £80.30
                          from £80.30
                          DUCT ASSEMBLY, WINDSHIELD DEFLECTOR, LHD Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 703156
                          SCREW & WASHER, M6X18
                          from £0.47
                          from £0.47
                          This part replaces part number 703743
                          SCREW/WASHER M6X18 Genuine Aston Martin - New In stock
                          # 3
                          MPN: 703068
                          SCREW, 4.2X9 PAN COLLR INT LOB TAP
                          from £0.47
                          from £0.47
                          SCREW 4.2X9 Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 701157-PK
                          SCREW, 4.2X16 WASHER HEAD
                          from £1.59
                          from £1.59
                          SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 4G43-18C491-AJ
                          GRILLE, WINDOW DEFROST
                          from £356.03
                          from £356.03
                          GRILLE, WINDOW DEFROST Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 6G33-79231-AB
                          SCREW, M3.5X38 POZI
                          Screen defog gril
                          SCREW, M3.5X38 POZI Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 4G43-C046B80-AC
                          SEAL
                          from £5.55
                          from £5.55
                          SE I/PNL DEF OPG GRL Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 4G43-19E658-AC
                          HOSE, A/C SIDE WINDOW DEMISTER
                          from £18.44
                          from £18.44
                          HOSE-A/C WDO DMSTR Genuine Aston Martin - New (to order)
                          HOSE-A/C WDO DMSTR Genuine Aston Martin - Used In stock
                          # 8
                          MPN: 4G43-19E680-AD
                          CONNECTOR, A/C DEMISTER HOSE
                          from £5.55
                          from £5.55
                          CONNECTOR, DEMIST HOSE Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 8D33-046B30-BB
                          REGISTER ASSEMBLY, RH
                          Iridium Silver
                          from £87.13
                          from £87.13
                          RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 4G43-046B30-BB
                          REGISTER ASSEMBLY, RH
                          Graphite
                          from £46.92
                          from £46.92
                          RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                          RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - Used In stock
                          # 9
                          MPN: FD43-046B30-AA
                          REGISTER ASSEMBLY, RH
                          Piano black
                          from £236.55
                          from £236.55
                          REGISTER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                          # 9
                          MPN: FD43-046B30-BA
                          REGISTER ASSEMBLY, RH
                          Ice Mocha
                          from £156.17
                          from £156.17
                          REGISTER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 8D33-046B31-BB
                          REGISTER ASSEMBLY, LH
                          Iridium Silver
                          from £87.13
                          from £87.13
                          RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 4G43-046B31-BB
                          REGISTER ASSEMBLY, LH
                          Graphite
                          from £46.92
                          from £46.92
                          This part replaces part number 4G43-046B31-AB which we have in stock - and 2 more. Click to view details
                          RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                          RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - Used In stock
                          # 10
                          MPN: FD43-046B31-AA
                          REGISTER ASSEMBLY, LH
                          Piano black
                          from £244.02
                          from £244.02
                          REGISTER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                          # 10
                          MPN: FD43-046B31-BA
                          REGISTER ASSEMBLY, LH
                          Ice Mocha
                          from £156.17
                          from £156.17
                          REGISTER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 701447
                          SCREW, M4X12 PAN TORX HD
                          Register to IP
                          from £0.47
                          from £0.47
                          SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 4G43-18D404-CA
                          SEAL, FOAM
                          from £1.44
                          from £1.44
                          FOAM SEAL - AIR DIST Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 8G43-19C804-AD
                          DUCT ASSEMBLY, INSTRUMENT PANEL RH
                          DUCT ASSEMBLY, RH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 8G43-19C805-AD
                          DUCT ASSEMBLY, INSTRUMENT PANEL LH
                          from £42.52
                          from £42.52
                          DUCT ASSEMBLY, INSTRUMENT PANEL LH Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 6G33-RA610123-AA
                          POP RIVET, 4.8
                          Duct to mldg
                          from £0.47
                          from £0.47
                          POP RIVET ALUM 4.8 Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 8G43-18D404-BB
                          DUCT ASSEMBLY, HEATER AIR DSTR CTR
                          RHD
                          from £49.98
                          from £49.98
                          DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 8G43-18D404-AC
                          DUCT ASSEMBLY, HEATER AIR DSTR CTR
                          LHD
                          from £48.25
                          from £48.25
                          DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 4G43-17A873-AA
                          RIVET, 4.8X12
                          from £1.07
                          from £1.07
                          RIVET 4.8 X 12 Genuine Aston Martin - New (to order)
                          # 18
                          MPN: 9D33-014K96-AA
                          DUCT ASSEMBLY, VENT AIR LOWER, RS
                          from £4.56
                          from £4.56
                          DCT ASSEMBLY VEN AUR LOWER Genuine Aston Martin - New (to order)
                          # 19
                          MPN: 8G43-014K97-BB
                          DUCT ASSEMBLY, VENT AIR LOWER, LS
                          RHD
                          from £23.49
                          from £23.49
                          DCT ASSEMBLY VEN AIR LOWER Genuine Aston Martin - New (to order)
                          # 19
                          MPN: 9D33-014K97-AA
                          DUCT ASSEMBLY, VENT AIR LOWER, LS
                          LHD
                          from £4.56
                          from £4.56
                          DCT ASSEMBLY VEN AIR LOWER Genuine Aston Martin - New (to order)
                          # 20
                          MPN: 7G43-014K00-AA
                          PLUG ASSEMBLY, OUTLET FOOT DUCT
                          from £7.86
                          from £7.86
                          ASSEMBLY PLUG OLET F/DUCT Genuine Aston Martin - New (to order)
                          # 21
                          MPN: KD43-112D10-AA
                          SEAL, TUNNEL, FLOOR PAN LOWER
                          AMR
                          from £33.42
                          from £33.42
                          SEAL, TUNNEL, FLOOR PAN LOWER Genuine Aston Martin - New (to order)
                          # 22
                          MPN: 703746
                          SCREW, M6X16 PAN FLG TORX
                          AMR
                          from £0.47
                          from £0.47
                          SCREW-M6X16 PAN TORX Genuine Aston Martin - New (to order)
