120402 - Rear HVAC Controls

Aston Martin Rapide (2018) Rear HVAC Controls Parts Diagram

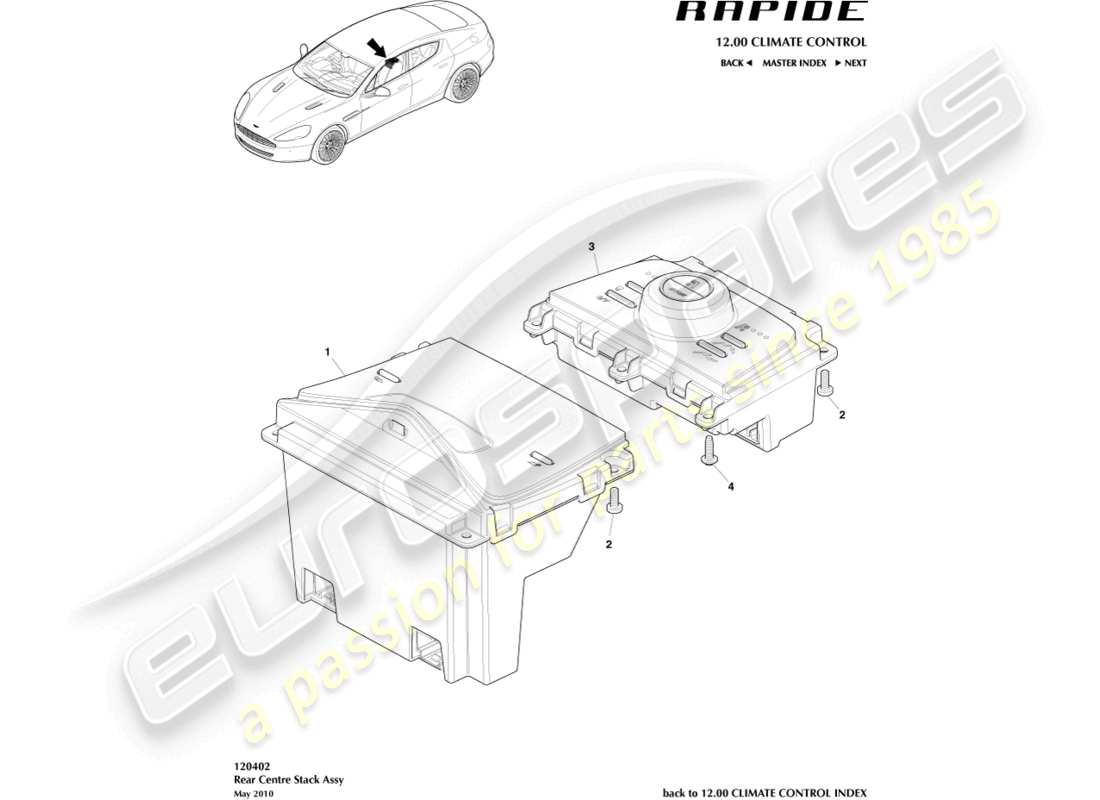

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: AD43-7440-AD
      LCD MODULE, WITH REAR SEAT ENTERTAINMENT
      Up to 12MY
      LCD MODULE, WITH REAR SEAT ENTERTAINMENT Genuine Aston Martin - New (to order)
      # 1
      MPN: CD43-7440-AB
      LCD MODULE, WITH RSE
      From 12MY To 16MY, Graphite
      from £1,950.00
      from £1,950.00
      LCD MODULE, WITH RSE Genuine Aston Martin - New (to order)
      # 1
      MPN: GD43-7440-AA
      LCD MODULE, WITH RSE
      From 16MY, Graphite
      LCD MODULE, WITH RSE Genuine Aston Martin - New (to order)
      # 1
      MPN: GD43-7440-CB
      LCD MODULE, WITH RSE
      From 16MY, Black
      from £1,992.48
      from £1,992.48
      LCD MODULE, WITH RSE Genuine Aston Martin - New (to order)
      # 1
      MPN: AD43-7440-BC
      LCD MODULE, NO RSE
      Up to 12MY
      from £868.70
      from £868.70
      LCD MODULE, NO RSE Genuine Aston Martin - New (to order)
      # 1
      MPN: CD43-7440-BB
      LCD MODULE, NO RSE
      From 12MY To 16MY, Graphite
      from £1,952.50
      from £1,952.50
      LCD MODULE, NO RSE Genuine Aston Martin - New (to order)
      # 1
      MPN: GD43-7440-BA
      LCD MODULE, NO RSE
      From 16MY, Graphite
      LCD MODULE, NO RSE Genuine Aston Martin - New (to order)
      # 1
      MPN: GD43-7440-DB
      LCD MODULE, NO RSE
      From 16MY, Black
      from £1,565.63
      from £1,565.63
      LCD MODULE, NO RSE Genuine Aston Martin - New (to order)
      # 2
      MPN: 701447
      SCREW, M4X12
      from £0.47
      from £0.47
      SCREW 4X12 PAN Genuine Aston Martin - New (to order)
      # 3
      MPN: AD43-14A710-AD
      REAR CENTRE STACK ASSY
      Up To 11MY, With Seat Heating and Cooling
      from £733.92
      from £733.92
      REAR CENTRE STACK ASSEMBLY Genuine Aston Martin - New (to order)
      # 3
      MPN: CD43-14A710-AA
      REAR CENTRE STACK ASSY
      From 11MY To 16MY, With Seat Heating and Cooling
      from £935.20
      from £935.20
      REAR CENTRE STACK ASSEMBLY Genuine Aston Martin - New (to order)
      # 3
      MPN: GD43-14A710-AA
      REAR CENTRE STACK ASSY, GRAPHITE
      From 16MY, With Seat Heating and Cooling
      from £1,615.26
      from £1,615.26
      REAR CENTRE STACK ASSEMBLY, GRAPHITE Genuine Aston Martin - New (to order)
      # 3
      MPN: GD43-14A710-CB
      REAR CENTRE STACK ASSY, BLACK
      From 16MY, With Seat Heating and Cooling
      from £1,727.96
      from £1,727.96
      REAR CENTRE STACK ASSEMBLY, BLACK Genuine Aston Martin - New (to order)
      # 3
      MPN: AD43-14A710-BD
      REAR CENTRE STACK, SEAT HEAT ASSY
      Up To 11MY, With Seat Heating
      from £641.05
      from £641.05
      REAR CENTRE STACK, SEAT HEAT ASSEMBLY Genuine Aston Martin - New (to order)
      # 3
      MPN: CD43-14A710-BA
      REAR CENTRE STACK ASSY
      From 11MY To 16MY, With Seat Heating
      from £1,093.22
      from £1,093.22
      REAR CENTRE STACK ASSEMBLY Genuine Aston Martin - New (to order)
      # 3
      MPN: GD43-14A710-BA
      REAR CENTRE STACK ASSY, GRAPHITE
      From 16MY, With Seat Heating
      from £1,615.26
      from £1,615.26
      REAR CENTRE STACK ASSEMBLY, GRAPHITE Genuine Aston Martin - New (to order)
      # 3
      MPN: GD43-14A710-DB
      REAR CENTRE STACK ASSY, BLACK
      From 16MY, With Seat Heating
      from £1,615.26
      from £1,615.26
      REAR CENTRE STACK ASSEMBLY, BLACK Genuine Aston Martin - New (to order)
      # 4
      MPN: 703175
      SCREW, M4X10
      from £0.47
      from £0.47
      SCREW M4X10 PAN TORX Genuine Aston Martin - New (to order)
