aston martin rapide (2019) transaxle parts diagram

070100-10 - Transaxle

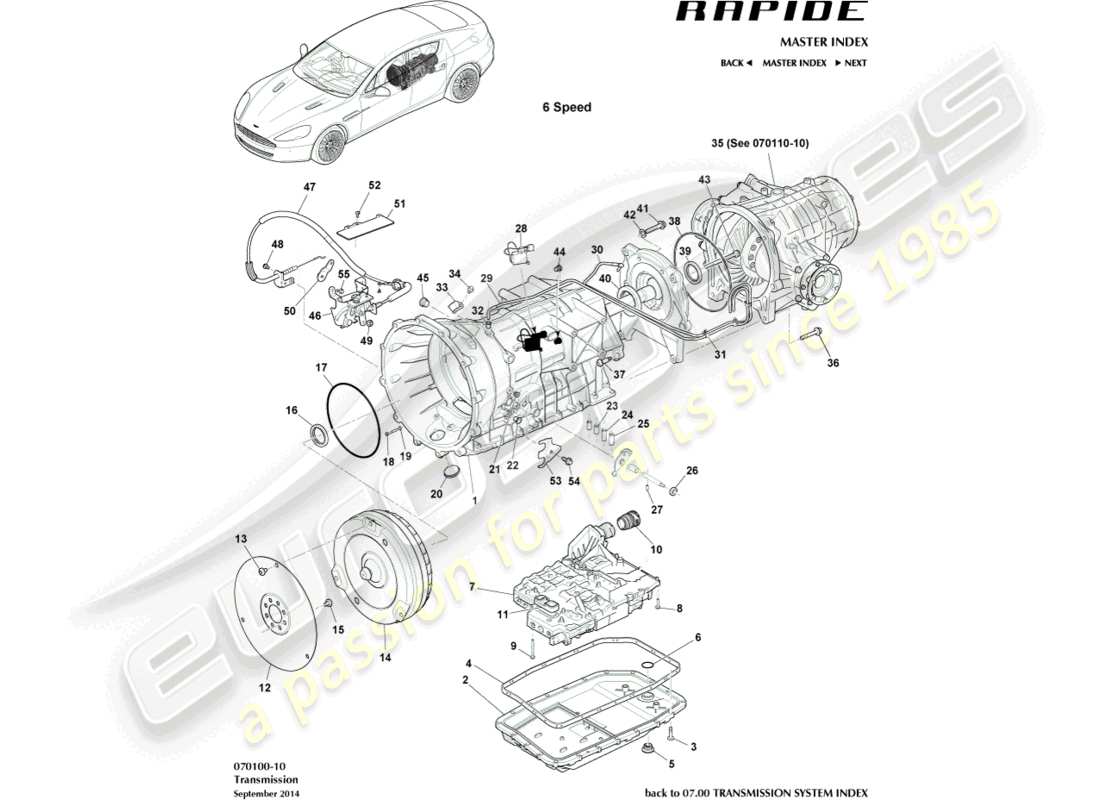

Aston Martin Rapide (2019) Transaxle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Key
                                                                                          Price
                                                                                          # 1
                                                                                          MPN: AD43-70041-AA
                                                                                          TRANSMISSION UNIT, AUTO
                                                                                          Up To VIN F03165. Includes item 14. You must also order item 43.
                                                                                          TRANSMISSION UNIT, AUTO Genuine Aston Martin - New (to order)
                                                                                          # -
                                                                                          -
                                                                                          HOUSING, AUTO GEARBOX
                                                                                          # 2
                                                                                          MPN: 4G43-42-10273
                                                                                          OIL PAN
                                                                                          from £161.39
                                                                                          from £161.39
                                                                                          OIL PAN Genuine Aston Martin - New (to order)
                                                                                          # 3
                                                                                          MPN: 4G43-42-10274
                                                                                          SCREW, TORX HD, OIL PAN HOUSING
                                                                                          from £5.66
                                                                                          from £5.66
                                                                                          SCREW, TORX HEAD Genuine Aston Martin - New (to order)
                                                                                          # 4
                                                                                          MPN: 4G43-184391-AA
                                                                                          SEAL, TRANS PUMP
                                                                                          from £27.28
                                                                                          from £27.28
                                                                                          SEAL, TRANS PUMP Genuine Aston Martin - New (to order)
                                                                                          # 5
                                                                                          MPN: 4G43-42-10277
                                                                                          PLUG, OIL PAN
                                                                                          from £4.44
                                                                                          from £4.44
                                                                                          SCREW PLUG, OIL SUMP Genuine Aston Martin - New (to order)
                                                                                          # 6
                                                                                          MPN: 4G43-7D741-AA
                                                                                          O RING, TRANS PUMP
                                                                                          from £0.82
                                                                                          from £0.82
                                                                                          O RING, TRANS PUMP Genuine Aston Martin - New (to order)
                                                                                          # 7
                                                                                          MPN: 4G43-42-10344
                                                                                          MECHTRONIC UNIT/ TCM
                                                                                          from £3,168.13
                                                                                          from £3,168.13
                                                                                          MECHTRONIC UNIT/ TCM Genuine Aston Martin - New (to order)
                                                                                          # 8
                                                                                          MPN: 4G43-807199-DA
                                                                                          SCREW, M6X20 TORX
                                                                                          from £0.68
                                                                                          from £0.68
                                                                                          SCREW, M6X20 TORX Genuine Aston Martin - New (to order)
                                                                                          # 9
                                                                                          MPN: 4G43-807199-CA
                                                                                          SCREW, M6X59 TORX
                                                                                          from £0.68
                                                                                          from £0.68
                                                                                          SCREW, M6X59 TORX Genuine Aston Martin - New (to order)
                                                                                          # 10
                                                                                          MPN: 4G43-7F183-AA
                                                                                          GUIDE SLEEVE
                                                                                          from £9.82
                                                                                          from £9.82
                                                                                          GUIDE SLEEVE, TRANSMISSION CONTROLLER Genuine Aston Martin - New (to order)
                                                                                          # 11
                                                                                          MPN: 4G43-7H586-AA
                                                                                          ADAPTOR, AUTO TRANS MECH
                                                                                          from £25.45
                                                                                          from £25.45
                                                                                          ADAPTOR, AUTO TRANS MECH Genuine Aston Martin - New (to order)
                                                                                          # 12
                                                                                          MPN: 4G43-6K375-AA
                                                                                          FLEX PLATE
                                                                                          from £41.69
                                                                                          from £41.69
                                                                                          FLEX PLATE, REAR Genuine Aston Martin - New (to order)
                                                                                          FLEX PLATE, REAR Genuine Aston Martin - Used In stock
                                                                                          # 13
                                                                                          MPN: 4G43-HYG10549-AA
                                                                                          SCREW M10 X 13 PAN HD
                                                                                          Flex plate to converter
                                                                                          from £1.42
                                                                                          from £1.42
                                                                                          SCREW-M10X13 PN HD Genuine Aston Martin - New (to order)
                                                                                          # 14
                                                                                          MPN: 4G43-42-10280
                                                                                          TORQUE CONVERTER
                                                                                          from £1,225.22
                                                                                          from £1,225.22
                                                                                          TORQUE CONVERTER Genuine Aston Martin - New (to order)
                                                                                          # 15
                                                                                          MPN: 4G43-HYG10549-AA
                                                                                          SCREW M10 X 13 PAN HD
                                                                                          Flex plate to crankshaft
                                                                                          from £1.42
                                                                                          from £1.42
                                                                                          SCREW-M10X13 PN HD Genuine Aston Martin - New (to order)
                                                                                          # 16
                                                                                          MPN: 4G43-7A238-AA
                                                                                          SEAL, TRANS INPUT SHAFT
                                                                                          from £5.55
                                                                                          from £5.55
                                                                                          SEAL, TRANS INPUT SHAFT Genuine Aston Martin - New (to order)
                                                                                          # 17
                                                                                          MPN: 4G43-184335-AA
                                                                                          O RING, TRANS HSG
                                                                                          from £10.41
                                                                                          from £10.41
                                                                                          O RING, TRANS HSG Genuine Aston Martin - New (to order)
                                                                                          # 18
                                                                                          MPN: 4G43-807199-BA
                                                                                          SCREW, M6X50 TORX
                                                                                          from £3.07
                                                                                          from £3.07
                                                                                          SCREW, M6X50 TORX Genuine Aston Martin - New (to order)
                                                                                          # 19
                                                                                          MPN: 4G43-7L015-AA
                                                                                          WASHER, TRANS HSG
                                                                                          from £1.15
                                                                                          from £1.15
                                                                                          WASHER, TRANS HSG Genuine Aston Martin - New (to order)
                                                                                          # 20
                                                                                          MPN: 4G43-42-10021
                                                                                          PLUG, TORQUE CONVERTER ACCESS
                                                                                          from £3.90
                                                                                          from £3.90
                                                                                          PLUG-T/CONV ACCESS Genuine Aston Martin - New (to order)
                                                                                          # 21
                                                                                          MPN: 4G43-42-10276
                                                                                          SCREW PLUG
                                                                                          from £2.94
                                                                                          from £2.94
                                                                                          SCREW PLUG Genuine Aston Martin - New (to order)
                                                                                          # 22
                                                                                          MPN: 4G43-37521-BA
                                                                                          PLUG, BLANK DOUBLE
                                                                                          from £0.83
                                                                                          from £0.83
                                                                                          PLUG, BLANK DOUBLE Genuine Aston Martin - New (to order)
                                                                                          # 23
                                                                                          MPN: 4G43-29401-AA
                                                                                          SLEEVE, SEAL 25.90
                                                                                          from £1.99
                                                                                          from £1.99
                                                                                          SLEEVE, SEAL 25.90 Genuine Aston Martin - New (to order)
                                                                                          # 24
                                                                                          MPN: 4G43-29401-BA
                                                                                          SLEEVE, SEAL 31.40
                                                                                          from £2.39
                                                                                          from £2.39
                                                                                          SLEEVE, SEAL 31.40 Genuine Aston Martin - New (to order)
                                                                                          # 25
                                                                                          MPN: 4G43-29401-CA
                                                                                          SLEEVE, SEAL 40.70
                                                                                          from £2.92
                                                                                          from £2.92
                                                                                          SLEEVE, SEAL 40.70 Genuine Aston Martin - New (to order)
                                                                                          # 26
                                                                                          MPN: 4G43-7Z036-AA
                                                                                          SEAL, TRANS SELECTOR SHIFT
                                                                                          from £1.78
                                                                                          from £1.78
                                                                                          SEAL, TRANS SELECTOR SHIFT Genuine Aston Martin - New (to order)
                                                                                          # 27
                                                                                          MPN: 4G43-7Z309-AC
                                                                                          PIN, TRANS SELECTOR SHIFT
                                                                                          from £46.69
                                                                                          from £46.69
                                                                                          INS TRANS CSE COVER Genuine Aston Martin - New (to order)
                                                                                          # 29
                                                                                          MPN: AD43-7A245-AA
                                                                                          HOSE, BREATHER
                                                                                          AUTO Trans
                                                                                          TUBE ASSEMBLY, TRANSMISSION BREATHER Genuine Aston Martin - New (to order)
                                                                                          # 30
                                                                                          MPN: 4G43-7A245-BA
                                                                                          HOSE, BREATHER
                                                                                          AUTO Differential
                                                                                          from £6.39
                                                                                          from £6.39
                                                                                          BREATHER AUTO DIFF Genuine Aston Martin - New (to order)
                                                                                          # 31
                                                                                          MPN: 701565
                                                                                          CLIP, AUTO TRNS/DIFF BREATHER PIPES
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          CLIP 4-6 DUX6.5 Genuine Aston Martin - New (to order)
                                                                                          # 32
                                                                                          MPN: 4G43-7179-AA
                                                                                          PLUG, TRANS BREATHER
                                                                                          from £7.23
                                                                                          from £7.23
                                                                                          PLUG, TRANSMISSION BREATHER Genuine Aston Martin - New (to order)
                                                                                          # 33
                                                                                          MPN: 4G43-2860-AB
                                                                                          CLIP
                                                                                          Park brake cable
                                                                                          from £0.52
                                                                                          from £0.52
                                                                                          P CLIP, DISENGAGE CABLE Genuine Aston Martin - New (to order)
                                                                                          # 34
                                                                                          MPN: 700606
                                                                                          SCREW, FLG, M6X12, CLIP ATTACH
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                                                                          # 36
                                                                                          MPN: 703183
                                                                                          BOLT, FLG, M10 X 45, DIFF TO TRANSMISSION
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          BOLT M10 X 45 HEX Genuine Aston Martin - New (to order)
                                                                                          # 37
                                                                                          MPN: 703182
                                                                                          BOLT, FLG, M10 X 65
                                                                                          from £0.72
                                                                                          from £0.72
                                                                                          BOLT, M10 X 65, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                                                                                          # 38
                                                                                          MPN: 4G43-7J271-AB
                                                                                          O RING
                                                                                          Trans adaptor plate
                                                                                          from £9.60
                                                                                          from £9.60
                                                                                          O RG TRANS ADPT PLT Genuine Aston Martin - New (to order)
                                                                                          # 39
                                                                                          MPN: 4G43-42-10979
                                                                                          SEAL, OUTPUT SHAFT (60X44X7MM)
                                                                                          from £47.38
                                                                                          from £47.38
                                                                                          SEAL, OUTPUT SHAFT (60X44X7MM) Genuine Aston Martin - New (to order)
                                                                                          # 40
                                                                                          MPN: 4G43-42-10267
                                                                                          SEAL, OUTPUT SHAFT (72X44X8MM)
                                                                                          from £5.76
                                                                                          from £5.76
                                                                                          SEAL, OUTPUT SHAFT (72X44X8MM) Genuine Aston Martin - New (to order)
                                                                                          # --
                                                                                          MPN: 4G43-42-11251
                                                                                          OUTPUT SHAFT
                                                                                          from £453.40
                                                                                          from £453.40
                                                                                          SHAFT, OUTPUT Genuine Aston Martin - New (to order)
                                                                                          # -
                                                                                          -
                                                                                          O RING, OUTPUT SHAFT
                                                                                          # 41
                                                                                          MPN: 4G43-42-10977
                                                                                          SCREW M10X50, ADAPTOR PLATE
                                                                                          SCREW, M10 X 50 Genuine Aston Martin - New (to order)
                                                                                          # 42
                                                                                          MPN: 4G43-42-10978
                                                                                          USIT RING
                                                                                          USIT RING Genuine Aston Martin - New (to order)
                                                                                          # 43
                                                                                          MPN: 4G43-9912553-AA
                                                                                          CAPSCREW, M8 X 80, OUTPUT SHAFT
                                                                                          Must be ordered with new transmission
                                                                                          from £5.40
                                                                                          from £5.40
                                                                                          BOLT M8 X 80 CAP SOCKET Genuine Aston Martin - New (to order)
                                                                                          # 44
                                                                                          MPN: 4G43-42-10278
                                                                                          SCREW PLUG
                                                                                          from £5.54
                                                                                          from £5.54
                                                                                          SEAL, OUTPUT SHAFT (60X44X7MM) Genuine Aston Martin - New (to order)
                                                                                          # 45
                                                                                          MPN: 4G43-42-10279
                                                                                          SCREW PLUG
                                                                                          from £10.89
                                                                                          from £10.89
                                                                                          SCREW PLUG Genuine Aston Martin - New (to order)
                                                                                          # 46
                                                                                          MPN: AD43-7J168-AB
                                                                                          BRACKET ASSY, TRANS PARK
                                                                                          from £178.23
                                                                                          from £178.23
                                                                                          BRACKET ASSEMBLY, TRANS PARK Genuine Aston Martin - New (to order)
                                                                                          # 47
                                                                                          MPN: AD43-7J167-AD
                                                                                          CABLE ASSY
                                                                                          08MY
                                                                                          from £63.05
                                                                                          from £63.05
                                                                                          CABLE ASSEMBLY, PARK BRAKE RELEASE Genuine Aston Martin - New (to order)
                                                                                          # 48
                                                                                          MPN: 700606
                                                                                          SCREW, FLG, M6 X 12
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                                                                          # 49
                                                                                          MPN: 703149
                                                                                          SCREW, M6 X 10, BRACKET ATTACH
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                                                                                          # 50
                                                                                          MPN: 4G43-7A257-AB
                                                                                          LEVER ARM, AUTO TRANS
                                                                                          from £1.88
                                                                                          from £1.88
                                                                                          SEL LVR AUTO Genuine Aston Martin - New (to order)
                                                                                          # 51
                                                                                          MPN: 9D33-7J168-CB
                                                                                          COVER ASSY
                                                                                          Transmission park
                                                                                          from £155.64
                                                                                          from £155.64
                                                                                          BRACKET ASSEMBLY AUTO PARK Genuine Aston Martin - New (to order)
                                                                                          # 52
                                                                                          MPN: 4G43-7J168-AC
                                                                                          STUD
                                                                                          Transmission park cover
                                                                                          from £107.10
                                                                                          from £107.10
                                                                                          STUD Genuine Aston Martin - New (to order)
                                                                                          STUD Genuine Aston Martin - Used In stock
                                                                                          # 53
                                                                                          MPN: 4G43-31-10292
                                                                                          PLATE, LATCH
                                                                                          from £3.46
                                                                                          from £3.46
                                                                                          PLATE, LATCH Genuine Aston Martin - New (to order)
                                                                                          # 54
                                                                                          MPN: 702298
                                                                                          SCREW M8X16 HEX FLG HD, LATCH PLATE
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          BOLT M8X16 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                          # 55
                                                                                          MPN: 703265
                                                                                          SCREW, M6 X 16
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                                                          # -
                                                                                          -
                                                                                          FLUID, AUTO TRANSMISSION, 1 LITRE
