aston martin v8 coupe (1999) body fittings parts diagram

7.5B - Body Fittings

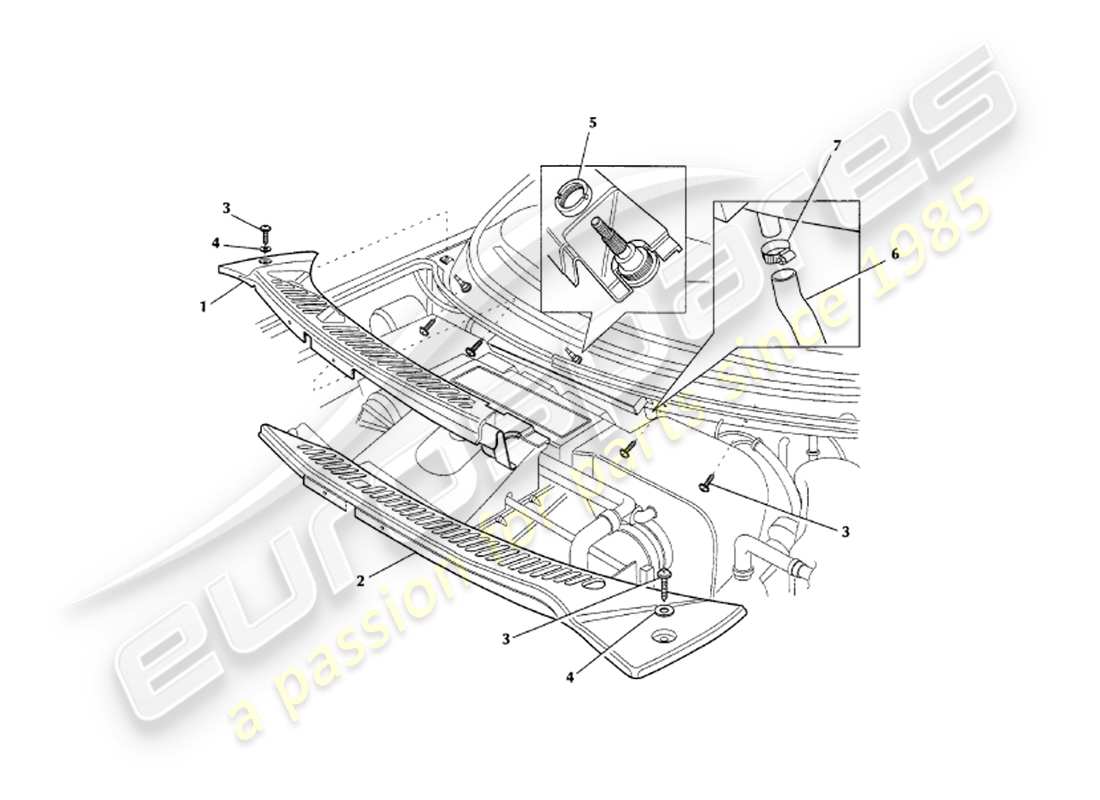

Aston Martin V8 Coupe (1999) Body Fittings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 78-73422
        FINISHER ASSEMBLY, LOWER SCREEN RAIL, RH
        RHD
        from £453.75
        from £453.75
        ASSEMBLY FINISHER LOWER Genuine Aston Martin - New (to order)
        # 2
        MPN: 78-73423
        FINISHER ASSEMBLY, LOWER SCREEN RAIL, LH
        RHD
        from £453.75
        from £453.75
        ASSEMBLY FINISHER LOWER Genuine Aston Martin - New (to order)
        # 2
        MPN: 78-73858
        FINISHER ASSEMBLY, LOWER SCREEN RAIL, RH
        LHD
        from £290.04
        from £290.04
        ASSEMBLY FINISHER LOWER Genuine Aston Martin - New (to order)
        # 2
        MPN: 78-73859
        FINISHER ASSEMBLY, LOWER SCREEN RAIL, LH
        LHD
        from £342.91
        from £342.91
        ASSEMBLY FINISHER LOWER Genuine Aston Martin - New (to order)
        # 3
        MPN: 696679
        SCREW, NO.8
        from £0.47
        from £0.47
        SCREW NO 8 X 3/8 Genuine Aston Martin - New (to order)
        # 4
        MPN: 696695
        WASHER, 3BA
        Lower screen rail finisher attach
        from £0.66
        from £0.66
        WASHER 3BA X 19 SWG Genuine Aston Martin - New (to order)
        # 5
        MPN: 37-55321
        RING NUT, M20X1.0
        Lower screen rail finisher attach
        from £33.04
        from £33.04
        RING NUT M20 X 1.0 Genuine Aston Martin - New (to order)
        # 6
        MPN: 78-74034
        DRAIN HOSE ASSEMBLY, WATER CHANNEL, FRONT
        ASSEMBLY DRAIN HOSE Genuine Aston Martin - New (to order)
        # 7
        MPN: 692634
        HOSE CLIP
        from £1.21
        from £1.21
        HOSE-CLIP Genuine Aston Martin - New (to order)
        # -
        -
        Drain hose assy, lower screen
        # -
        -
        HOSE CLIP
        # -
        -
        CLIP CABLE, PLASTIC
        # -
        -
        PLUG, 1 1/2 RUBBER
        Longitudinal member, front inboard
        # -
        -
        GROMMET, BLIND, LOWER SCREEN PANEL
        # -
        -
        GROMMET, BLANKING, LOWER SCREEN PANEL
        # -
        -
        PROTECTION CAP, BLACK
        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
