4.2 - Rear Suspension

Aston Martin V8 Coupe (2000) Rear Suspension Parts Diagram

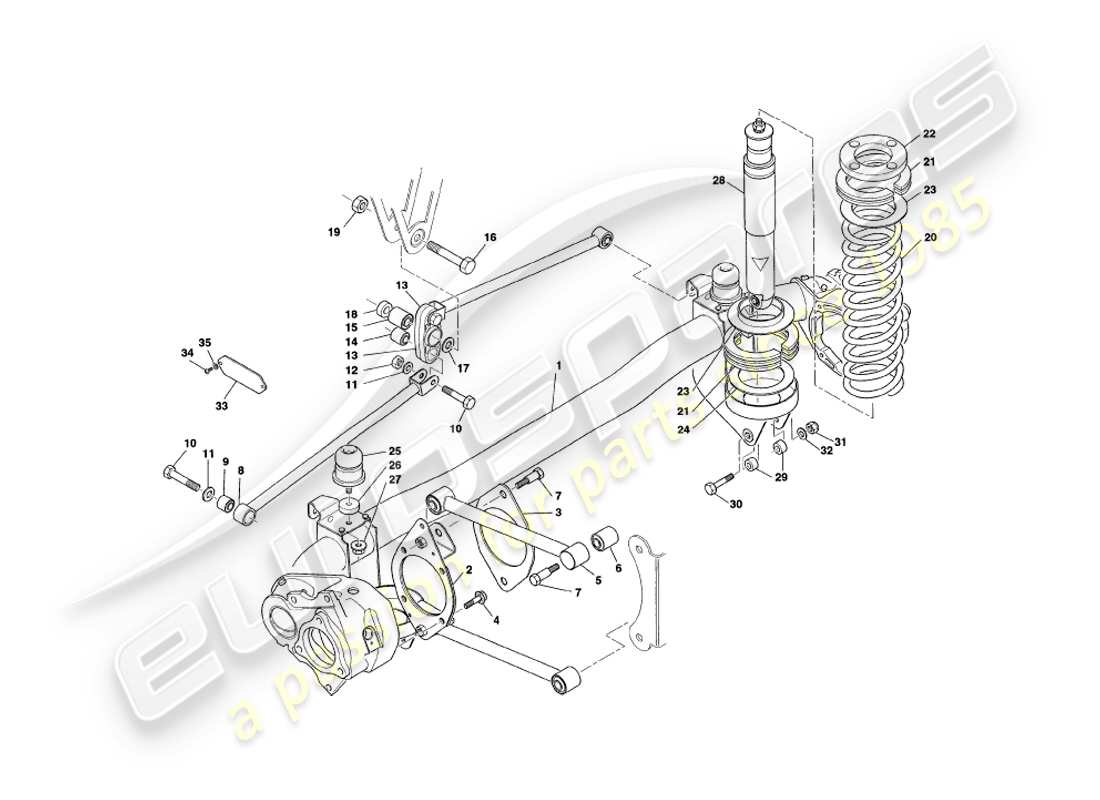

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 26-72958
                                                    AXLE ASSEMBLY, DE DION
                                                    from £11,370.40
                                                    from £11,370.40
                                                    ASSEMBLY DE-DION AXLE Genuine Aston Martin - New (to order)
                                                    # 2
                                                    MPN: 26-70382
                                                    YOKE ASSEMBLY, WELDED
                                                    YOKE ASSEMBLY, WELDED Genuine Aston Martin - New (to order)
                                                    # 3
                                                    MPN: 26-73068
                                                    PLATE, YOKE REINF
                                                    from £9.13
                                                    from £9.13
                                                    PLATE YOKE REINFORCEMENT Genuine Aston Martin - New (to order)
                                                    # 4
                                                    MPN: 697916
                                                    SCREW, DURLOK, M12X25
                                                    from £7.70
                                                    from £7.70
                                                    SCREW M12 X 25DURLOK Genuine Aston Martin - New (to order)
                                                    # 5
                                                    MPN: 26-70390
                                                    LONGITUDINAL LINK ASSEMBLY, COMPLETE
                                                    from £345.78
                                                    from £345.78
                                                    ASSEMBLY LINK LONGIT Genuine Aston Martin - New (to order)
                                                    # 5
                                                    MPN: 26-72350
                                                    LONGITUDINAL LINK ASSEMBLY
                                                    from £319.30
                                                    from £319.30
                                                    ASSEMBLY LINK LONGIT Genuine Aston Martin - New (to order)
                                                    # 6
                                                    MPN: 26-16560
                                                    METALASTIC BUSH
                                                    METALASTIC BUSH Genuine Aston Martin - New (to order)
                                                    # 7
                                                    MPN: 26-73121
                                                    PIVOT BOLT
                                                    Links to chassis and hub
                                                    from £28.65
                                                    from £28.65
                                                    BOLT- PIVOT Genuine Aston Martin - New (to order)
                                                    # -
                                                    -
                                                    LOCTITE 242E, SEALANT
                                                    # 8
                                                    MPN: 26-70416
                                                    TRANSVERSE LINK ASSEMBLY
                                                    from £373.25
                                                    from £373.25
                                                    ASSEMBLY TRANSVERSE LINK Genuine Aston Martin - New (to order)
                                                    # 9
                                                    MPN: 020-026-0141
                                                    BUSH
                                                    from £91.45
                                                    from £91.45
                                                    BUSH(SWING LNK-END) Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: 520820
                                                    BOLT, 1/2 UNF X 2 1/2
                                                    Transverse link attach
                                                    from £2.96
                                                    from £2.96
                                                    BOLT 1/2 UNF X 2 1/2 Genuine Aston Martin - New (to order)
                                                    PINION Genuine Ferrari Part - New (to order)
                                                    # 11
                                                    MPN: 119474
                                                    WASHER, PLAIN, 1/2
                                                    Transverse link attach
                                                    from £0.47
                                                    from £0.47
                                                    WASHER 1/2 SMALL HVY Genuine Aston Martin - New (to order)
                                                    Genuine Ferrari Part (no longer available to order)
                                                    # 12
                                                    MPN: 690156
                                                    NUT, NYLOC, 1/2
                                                    Transverse link attach
                                                    from £2.96
                                                    from £2.96
                                                    NUT 1/2 UNF SLK HEX Genuine Aston Martin - New (to order)
                                                    # 13
                                                    MPN: 26-70418
                                                    SWING LINK ASSEMBLY
                                                    SWING LINK ASSEMBLY Genuine Aston Martin - New (to order)
                                                    # 14
                                                    MPN: 020-026-0141
                                                    BUSH, SWING LINK END
                                                    from £91.45
                                                    from £91.45
                                                    BUSH(SWING LNK-END) Genuine Aston Martin - New (to order)
                                                    # 15
                                                    MPN: 26-70396
                                                    METALASTIC BUSH
                                                    Swing link to chassis
                                                    from £78.11
                                                    from £78.11
                                                    BUSH METALSTK 13/985 Genuine Aston Martin - New (to order)
                                                    # 16
                                                    MPN: 696606
                                                    BOLT, 3/4 UNF X 3
                                                    Swing link to chassis
                                                    from £3.53
                                                    from £3.53
                                                    BOLT 3/4UNF X 3 HEX Genuine Aston Martin - New (to order)
                                                    # 17
                                                    MPN: 26-70394
                                                    SPACER, FORWARD
                                                    Swing link to chassis
                                                    from £30.39
                                                    from £30.39
                                                    SPACER - FORWARD Genuine Aston Martin - New (to order)
                                                    # 18
                                                    MPN: 26-70395
                                                    SPACER, REAR
                                                    Swing link to chassis
                                                    from £46.49
                                                    from £46.49
                                                    SPACER - REAR Genuine Aston Martin - New (to order)
                                                    # 19
                                                    MPN: 690989
                                                    NUT, NYLOC, 3/4 UNF
                                                    Swing link to chassis
                                                    from £12.68
                                                    from £12.68
                                                    NUT 3/4 UNF NYLOC Genuine Aston Martin - New (to order)
                                                    # 20
                                                    MPN: 26-56349
                                                    ROAD SPRING, REAR
                                                    from £178.01
                                                    from £178.01
                                                    ROAD SPRING-REAR Genuine Aston Martin - New (to order)
                                                    # 21
                                                    MPN: 26-70404
                                                    PACKER, ROAD SPRING
                                                    from £13.51
                                                    from £13.51
                                                    PACKER-R/SPRING PLTD Genuine Aston Martin - New (to order)
                                                    # 22
                                                    MPN: 26-70406
                                                    ISOLATOR, ROAD SPRING
                                                    from £59.34
                                                    from £59.34
                                                    ISOLATOR-ROADSPRING Genuine Aston Martin - New (to order)
                                                    # 23
                                                    MPN: 26-71677
                                                    SPRING SEAT, REAR
                                                    from £22.05
                                                    from £22.05
                                                    SPRING SEAT - REAR Genuine Aston Martin - New (to order)
                                                    # 24
                                                    MPN: 26-70397
                                                    ISOLATOR
                                                    from £14.09
                                                    from £14.09
                                                    ISOLATOR Genuine Aston Martin - New (to order)
                                                    # 25
                                                    MPN: 26-56351
                                                    SPRING ASSISTOR, REAR
                                                    from £107.21
                                                    from £107.21
                                                    SPRING ASSISTOR REAR Genuine Aston Martin - New (to order)
                                                    # 26
                                                    MPN: 26-73405
                                                    SPACER, BUMPSTOP
                                                    from £14.79
                                                    from £14.79
                                                    SPACER BUMP STOP Genuine Aston Martin - New (to order)
                                                    # 27
                                                    MPN: 695515
                                                    NUT, FLG NYLOC, M8
                                                    from £0.47
                                                    from £0.47
                                                    NUT M8 HEX FLANGE SLK Genuine Aston Martin - New (to order)
                                                    # 28
                                                    MPN: 26-56347
                                                    DAMPER, REAR
                                                    DAMPER, REAR Genuine Aston Martin - New (to order)
                                                    # 29
                                                    MPN: 26-70398
                                                    SPACER, DAMPER LOWER MOUNTING
                                                    SPACER, DAMPER LOWER MOUNTING Genuine Aston Martin - New (to order)
                                                    # 30
                                                    MPN: 696105
                                                    BOLT, M12X100
                                                    Damper to spring hanger
                                                    from £1.28
                                                    from £1.28
                                                    BOLT M12 X 100 Genuine Aston Martin - New (to order)
                                                    # 31
                                                    MPN: 692093
                                                    NUT, NYLOC, M12
                                                    Damper to spring hanger
                                                    from £0.47
                                                    from £0.47
                                                    NUT M12 HEX SLK Genuine Aston Martin - New (to order)
                                                    # 32
                                                    MPN: 692059
                                                    WASHER, PLAIN, M12
                                                    from £0.47
                                                    from £0.47
                                                    WASHER M12 PLAIN MED Genuine Aston Martin - New (to order)
                                                    # 33
                                                    MPN: 26-72555
                                                    PLATE, DAMPER FIXING
                                                    from £4.84
                                                    from £4.84
                                                    PLATE DAMPER FIXING Genuine Aston Martin - New (to order)
                                                    # 34
                                                    MPN: 692210
                                                    SCREW, M4X12 PAN
                                                    from £0.47
                                                    from £0.47
                                                    SCREW M4 X 12 PAN Genuine Aston Martin - New (to order)
                                                    # 35
                                                    MPN: 692054
                                                    WASHER, PLAIN, M4
                                                    from £0.47
                                                    from £0.47
                                                    WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
