6.9 - Harnesses

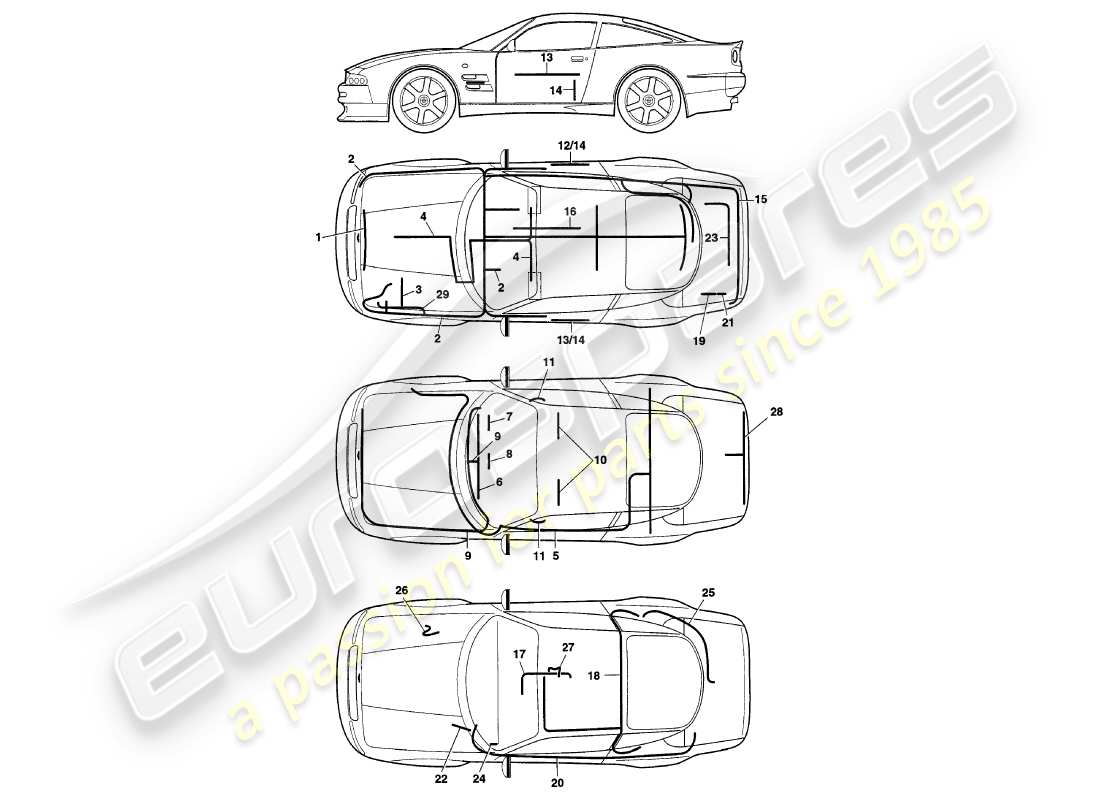

Aston Martin V8 Coupe (2000) Harnesses Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 37-56188
HARNESS, ELECTRIC FANS
from £88.18
from £88.18
# 2
MPN: 37-55902
HARNESS, INTERIOR AND ENGINE
RHD Up to (V)79079 excl 79074
# 2
MPN: 37-55903
HARNESS, INTERIOR AND ENGINE
LHD Up to (V)79079 excl 79074
from £607.65
from £607.65
# 2
MPN: 37-56492
HARNESS, INTERIOR AND ENGINE
RHD From (V)79080 + 79074 up to 79091
# 2
MPN: 37-56493
HARNESS, INTERIOR AND ENGINE
LHD From (V)79080 + 79074 up to 79091
# 2
MPN: 37-56682
HARNESS, INTERIOR AND ENGINE
RHD From (V)79092
from £5,068.12
from £5,068.12
# 2
MPN: 37-56683
HARNESS, INTERIOR AND ENGINE
LHD From (V)79092
from £5,068.12
from £5,068.12
# -
-
SLEEVING, PVC 15MM X 0.5MM
# -
-
SLEEVING, PVC 8MM
# -
-
GROMMET, 48MM
Harness protection
# -
-
GROMMET, 1 X 9/16 ID
Harness/inner wing
# -
-
P CLIP, BULKHEAD
# -
-
SLEEVING, P CLIP PROTECTION
# -
-
SCREW, NO 6 X 3/8 PAN HEAD
P clip attach
# -
-
WASHER, PLAIN, M5
P clip attach
# -
-
SCREW, M5X16
Earth attach
# -
-
WASHER, PLAIN,M5
Earth attach
# -
-
WASHER, SHAKEPROOF, M5
Earth attach
# -
-
CLIP, PIPE
Harness attach (interior)
# -
-
CABLE TIE MOUNT
# -
-
CABLE TIE MOUNT
# -
-
CABLE STRAP
# -
-
SCREW, NO 8 X 3/4 PAN HEAD
Harness attach (interior)
# -
-
P CLIP, 3/8 NYLON
Harness attach (interior)
# -
-
P CLIP, 1/4 NYLON
Harness attach (interior)
# -
-
P CLIP, 1/2 NYLON
Harness attach (interior)
# 3
MPN: 37-73420
EARTH CABLE, ENGINE/ALTERNATOR/CHASSIS
from £45.80
from £45.80
# -
-
CABLE, ALTERNATOR TO STUD
# -
-
P CLIP, 1/4 NYLON
Alternator cable to chassis
# -
-
SCREW, NO 6 X 3/8 PAN HEAD
Alternator cable to chassis
# -
-
WASHER, PLAIN, M4
Alternator cable to chassis
# 4
MPN: 37-55950
HARNESS, WEBER INJECTION
from £741.70
from £741.70
# -
-
GROMMET, 3/8 PVC
# -
-
PLUG, 4 WAY
# -
-
GOLD TERMINAL, EDIS, AUGAT
# -
-
CABLE SEAL
# -
-
P CLIP, 5/8 NYLON
# -
-
P CLIP, 1/2 NYLON
# -
-
SCREW, M5X12 PAN HEAD
# 5
MPN: 37-73462
HARNESS, ABS
RHD
from £898.98
from £898.98
# 5
MPN: 37-73463
HARNESS, ABS
LHD
from £898.98
from £898.98
# 6
MPN: 37-72028
HARNESS, BLOWER TO A/C
from £8.61
from £8.61
# -
-
CLIP, HARNESS
# -
-
P CLIP, 5/16 X 3/4 NYLON
# -
-
CABLE, EARTH, FRONT SCREEN
# -
-
SCREW, M5X12
Front screen earth attach
# -
-
WASHER, PLAIN, M5
Front screen earth attach
# -
-
WASHER, SHAKEPROOF, M5
Front screen earth attach
# 7
MPN: 37-55963
HARNESS, MAIN INSTRUMENT
Up to (V)79012
# 7
MPN: 37-56381
HARNESS, MAIN INSTRUMENT
From (V)79013
from £55.83
from £55.83
# 8
MPN: 37-55964
HARNESS, CENTRE INSTRUMENT
Up to (V)79012
# 8
MPN: 37-56382
HARNESS, CENTRE INSTRUMENT
From (V)79013
from £14.69
from £14.69
# -
-
HARNESS, ABS
LHD
# 9
MPN: 37-62270
HARNESS, AIR BAG
from £106.32
from £106.32
# 10
MPN: 37-56073
HARNESS, FRONT SEAT
Up to (V)79079 excl (V)79074
from £186.16
from £186.16
# 10
MPN: 37-56648
HARNESS, FRONT SEAT
From (V)79080 + 79074
from £581.76
from £581.76
# -
-
4 WAY SOCKET MOULDING
Up to (V)79079 excl (V)79074
# -
-
4 WAY SOCKET LOCKING WEDGE
Up to (V)79079 excl (V)79074
# -
-
2 WAY SOCKET MOULDING
Up to (V)79079 excl (V)79074
# -
-
2 WAY SOCKET LOCKING WEDGE
Up to (V)79079 excl (V)79074
# -
-
SOCKET TERMINAL 0.5-1.5
Up to (V)79079 excl (V)79074
# -
-
MOULDING - PIN 2 WAY
Up to (V)79079 excl (V)79074
# -
-
TERMINAL 3MM 0.65/1.5 PIN
Up to (V)79079 excl (V)79074
# -
-
CONNECTOR - SNAP BULLET .65
Up to (V)79079 excl (V)79074
# -
-
SCREW, M4X12 PAN HEAD
Up to (V)79079 excl (V)79074
# -
-
WASHER, PLAIN, M4
Up to (V)79079 excl (V)79074
# 11
MPN: 37-64879
HARNESS, LUMBER SWITCH
Up to (V)79079 excl (V)79074
from £77.60
from £77.60
# 12
MPN: 37-73106
HARNESS, DRIVERS DOOR
Up to (V)79079 excl (V)79074
from £204.81
from £204.81
# 12
MPN: 37-56494
HARNESS, DRIVERS DOOR
From (V)79080 + 79074
from £112.45
from £112.45
# -
-
PIN HOUSING, 3 WAY
Harness to window lift motors
# -
-
CABLE TIE, 98MM X 22MM
# -
-
SCREW, M5X12 PAN HEAD
Earth fixing
# -
-
WASHER, PLAIN, M8
Earth fixing
# -
-
WASHER, PLAIN, M5
Earth fixing
# -
-
WASHER, SHAKEPROOF, M5
Earth fixing
# 13
MPN: 37-73107
HARNESS, PASSENGER DOOR
Up to (V)79079 excl (V)79074
from £198.31
from £198.31
# 13
MPN: 37-56495
HARNESS, PASSENGER DOOR
From (V)79080 + 79074
from £20.45
from £20.45
# -
-
4 WAY SOCKET MOULDING
Door harness to main harness
# -
-
4 WAY SOCKET LOCKING WEDGE
Door harness to main harness
# -
-
6 WAY SOCKET MOULDING
Door harness to main harness
# -
-
6 WAY SOCKET LOCKING WEDGE
Door harness to main harness
# -
-
CLIP, CABLE, PLASTIC
Plug to door
# 14
MPN: 37-72062
HARNESS, DOOR LAMPS
Up to (V)79067
from £1.33
from £1.33
# 15
MPN: 37-55965
HARNESS, CHASSIS AND BOOT
Up to (V)79079 excl 79074
from £1,318.65
from £1,318.65
# 15
MPN: 37-56497
HARNESS, CHASSIS AND BOOT
From (V)70080 + 79074 up to 79091
from £1,007.17
from £1,007.17
# 15
MPN: 37-56686
HARNESS, CHASSIS AND BOOT
From (V)79092
from £73.91
from £73.91
# -
-
P CLIP, 1/4 NYLON
Harness to boot
# -
-
SCREW, NO 6 X 3/8 PAN HEAD
Harness to boot
# -
-
WASHER, PLAIN, M4
Harness to boot
# -
-
SCREW, M5X12
Earth attach
# -
-
WASHER, PLAIN, M5
Earth attach
# -
-
NUT, NYLOC, M5
Earth attach
# -
-
CABLE TIE, 98MM X 22MM
Cables to chassis harness
# -
-
CABLE STRAP
Harness to boot
# -
-
SCREW, M5X8 PAN HEAD
Rear screen earth attach
# 16
MPN: 37-56166
HARNESS, 4 SPEED AUTO GEARBOX
from £241.04
from £241.04
# 17
MPN: 37-56096
HARNESS, PRND12 LAMPS
Up to (V)79012
# 17
MPN: 37-56422
HARNESS, PRND12 LAMPS
From (V)79013 excl 79074 up to 79079
from £209.77
from £209.77
# 18
MPN: 37-73453
HARNESS, REAR EYEBALL LAMP
from £4.18
from £4.18
# 19
MPN: 37-71893
CABLE ASSEMBLY, BATTERY TO MASTER SWITCH
from £53.48
from £53.48
# 20
MPN: 37-62742
CABLE ASSEMBLY, MASTER SWITCH TO STUD
from £109.04
from £109.04
# -
-
P CLIP, 1/2 NYLON
Cable to chassis
# -
-
SCREW, NO 6 X 3/8 PAN HEAD
Cable to chassis
# -
-
WASHER, PLAIN, M4
Cable to chassis
# -
-
CABLE TIE MOUNT
Cable attach
# -
-
CABLE STRAP
Cable attach
# 21
MPN: 37-54744
CABLE ASSEMBLY, BATTERY TO EARTH
from £53.30
from £53.30
# -
-
SCREW, M10X25
Battery earth attach
# -
-
WASHER, PLAIN, M10
Battery earth attach
# -
-
WASHER, SHAKEPROOF, M10
Battery earth attach
# -
-
NUT, NYLOC, M10
Battery earth attach
# 22
MPN: 37-74279
CABLE ASSEMBLY, STUD TO STARTER MOTOR
from £116.62
from £116.62
# 23
MPN: 37-72490
HARNESS, BOOT LID
from £8.43
from £8.43
# -
-
CABLE STRAP
Boot harness to hinge
# 24
MPN: 37-56364
HARNESS, DELAY UNIT LINK
from £58.17
from £58.17
# 25
MPN: 37-54669
HARNESS, HIGH MOUNTED STOP LAMP (INSIDE LAMP)
Australia, New Zealand and Japan
from £110.03
from £110.03
# 26
MPN: 37-56430
EARTH CABLE ASSEMBLY, FUEL COOLER
from £10.70
from £10.70
# 27
MPN: 37-56427
EARTH CABLE ASSEMBLY, AUTO SELECTOR
from £23.51
from £23.51
# 28
MPN: 37-55976
HARNESS, REAR FOG/REVERSING LAMPS
from £500.70
from £500.70
# 29
MPN: 37-66682
HARNESS, SIREN
From (V)79092
from £1,066.56
from £1,066.56
-part-diagram-7.1.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 COUPE (2000) FRONT BUMPER SUPPORT FRAME PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2e.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS SUPERSTRUCTURE PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 COUPE (2000) BODY PANELS PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 COUPE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 COUPE (2000) DOORS PARTS DIAGRAM")
-part-diagram-7.4b.1.webp "ASTON MARTIN V8 COUPE (2000) DOOR LATCH MECH, TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.4b.2.webp "ASTON MARTIN V8 COUPE (2000) DOOR LATCH MECH, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 COUPE (2000) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 COUPE (2000) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 COUPE (2000) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 COUPE (2000) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.6a.webp "ASTON MARTIN V8 COUPE (2000) BONNET PARTS DIAGRAM")
-part-diagram-7.6b.1.webp "ASTON MARTIN V8 COUPE (2000) TRUNK LID, TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.6b.2.webp "ASTON MARTIN V8 COUPE (2000) TRUNK LID, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 COUPE (2000) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 COUPE (2000) GLASS PARTS DIAGRAM")
-part-diagram-7.8b.1a.webp "ASTON MARTIN V8 COUPE (2000) FRONT SEATS & BELTS TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.8b.1b.webp "ASTON MARTIN V8 COUPE (2000) FRONT SEATS & BELTS V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.8b.2.webp "ASTON MARTIN V8 COUPE (2000) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 COUPE (2000) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 COUPE (2000) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 COUPE (2000) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 COUPE (2000) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 COUPE (2000) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 COUPE (2000) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 COUPE (2000) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 COUPE (2000) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 COUPE (2000) CARPETS PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 COUPE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 COUPE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 COUPE (2000) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 COUPE (2000) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 COUPE (2000) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 COUPE (2000) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 COUPE (2000) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 COUPE (2000) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3.webp "ASTON MARTIN V8 COUPE (2000) CYLINDER HEADS PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 COUPE (2000) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 COUPE (2000) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 COUPE (2000) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 COUPE (2000) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.1.webp "ASTON MARTIN V8 COUPE (2000) WATER COOLING SYSTEM, UP TO 79079 PARTS DIAGRAM")
-part-diagram-1.7a.2.webp "ASTON MARTIN V8 COUPE (2000) WATER COOLING SYSTEM, VIN 79080 ON PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 COUPE (2000) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 COUPE (2000) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 COUPE (2000) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 COUPE (2000) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 COUPE (2000) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 COUPE (2000) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 COUPE (2000) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 COUPE (2000) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 COUPE (2000) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 COUPE (2000) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 COUPE (2000) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 COUPE (2000) TORQUE COVERTOR PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 COUPE (2000) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 COUPE (2000) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 COUPE (2000) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 COUPE (2000) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 COUPE (2000) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 COUPE (2000) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 COUPE (2000) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 COUPE (2000) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 COUPE (2000) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 COUPE (2000) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 COUPE (2000) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1.webp "ASTON MARTIN V8 COUPE (2000) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 COUPE (2000) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 COUPE (2000) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 COUPE (2000) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 COUPE (2000) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 COUPE (2000) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 COUPE (2000) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 COUPE (2000) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.1.webp "ASTON MARTIN V8 COUPE (2000) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2b.2.webp "ASTON MARTIN V8 COUPE (2000) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 COUPE (2000) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 COUPE (2000) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 COUPE (2000) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 COUPE (2000) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 COUPE (2000) UNDERBONNET COMPONENTS, TO VIN V79079 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 COUPE (2000) UNDERBONNET COMPONENTS, VIN V79079-79091 PARTS DIAGRAM")
-part-diagram-6.4c.webp "ASTON MARTIN V8 COUPE (2000) UNDERBONNET COMPONENTS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 COUPE (2000) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.webp "ASTON MARTIN V8 COUPE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 COUPE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 COUPE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 COUPE (2000) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 COUPE (2000) RELAYS, TO VIN V79097 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 COUPE (2000) RELAYS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 COUPE (2000) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 COUPE (2000) RELAYS, VIN V79092 ON PARTS DIAGRAM")
