7.2D - Chassis Panels

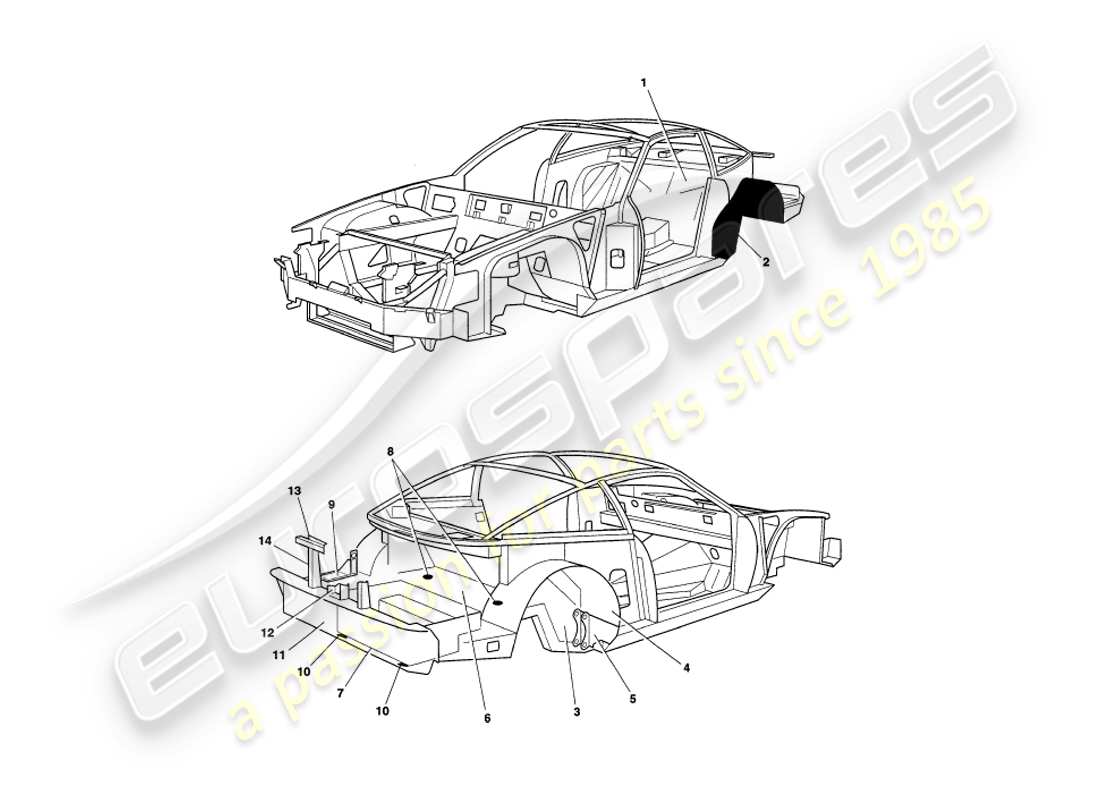

Aston Martin V8 Coupe (2000) Chassis Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 21-73553
                      REAR BULKHEAD ASSEMBLY
                      from £264.75
                      from £264.75
                      ASSEMBLY REAR BULKHEAD Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 21-74124
                      Rear wheel arch assembly, RH
                      ASSEMBLY W/ARCH REAR RH Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 21-74125
                      Rear wheel arch assembly, LH
                      ASSEMBLY W/ARCH REAR LH Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 21-73504
                      Inner panel assembly, rear wheel arch, RH
                      from £209.77
                      from £209.77
                      ASSEMBLY PANEL INNER Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 21-73505
                      Inner panel assembly, rear wheel arch, LH
                      from £209.77
                      from £209.77
                      ASSEMBLY PANEL INNER Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 21-74122
                      Splash panel, rear wheel arch, RH
                      from £93.88
                      from £93.88
                      PANEL SPLASH Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 21-74123
                      Splash panel, rear wheel arch, LH
                      from £93.88
                      from £93.88
                      PANEL SPLASH Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 21-73806
                      REINFORCEMENT BRACKET ASSEMBLY, TRAILING LINK, RH
                      from £75.90
                      from £75.90
                      ASSEMBLY BRACKET REINFORCEMENT Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 21-73807
                      REINFORCEMENT BRACKET ASSEMBLY, TRAILING LINK, LH
                      from £75.90
                      from £75.90
                      ASSEMBLY BKRT REINFORCEMENT Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 21-73512
                      PANEL ASSEMBLY, BOOT FLOOR
                      from £401.27
                      from £401.27
                      ASSEMBLY PANEL BOOT FLOOR Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 17-55875
                      BOOTWELL ASSEMBLY, COMPLETE
                      BOOTWELL ASSEMBLY, COMPLETE Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 17-73057
                      BLANKING PLATE, BOOT FLOOR
                      BLNKING PLT BOOT FLR Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 17-72732
                      SWITCH CARRIER ASSEMBLY, BATTERY/ISOLATOR
                      from £37.14
                      from £37.14
                      ASSEMBLY BATTERY CARRIER Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 17-56115
                      Bracket, exhaust hanger, rear
                      from £21.26
                      from £21.26
                      BRACKET EXHAUST Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 22-51842
                      SUPPORT ASSY, REAR BUMPER
                      Up to (V)79079 excl 79074
                      REAR BUMPER MOUNTING Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 18-65437
                      SUPPORT ASSY, REAR BUMPER
                      From (V)79080 + 79074
                      SUPPORT ASSEMBLY REAR BUMPER Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 18-71398
                      PANEL ASSY, BOOT LATCH MOUNTING
                      Up to (V)79079 excl 79074
                      from £51.40
                      from £51.40
                      AY PANEL MOUNTING BOOT LTCH Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 18-65434
                      PANEL ASSY, BOOT LATCH MOUNTING
                      From (V)79080 + 79074
                      from £48.39
                      from £48.39
                      ASSEMBLY PANEL MOUNTING Genuine Aston Martin - New (to order)
                      # 13
                      MPN: 18-73240
                      RAIL, REAR TRANSOM
                      Up to (V)79079 excl 79074
                      from £72.04
                      from £72.04
                      RAIL REAR TRANSOM Genuine Aston Martin - New (to order)
                      # 13
                      MPN: 18-65436
                      RAIL, REAR TRANSOM
                      From (V)79080 + 79074
                      from £15.96
                      from £15.96
                      RAIL REAR TRANSOME Genuine Aston Martin - New (to order)
                      # 14
                      MPN: 18-73318
                      Panel assembly, rear transom support
                      Up to (V)70197 excl 70194
                      Panel assembly, rear transom support Genuine Aston Martin - New (to order)
                      # 14
                      MPN: 18-65431
                      Panel assembly, rear transom support
                      From (V)79080 + 79074
                      from £7.31
                      from £7.31
                      ASSEMBLY PANEL SUPPORT Genuine Aston Martin - New (to order)
