5.3 - Handbrake

Aston Martin V8 Virage (2000) Handbrake Parts Diagram

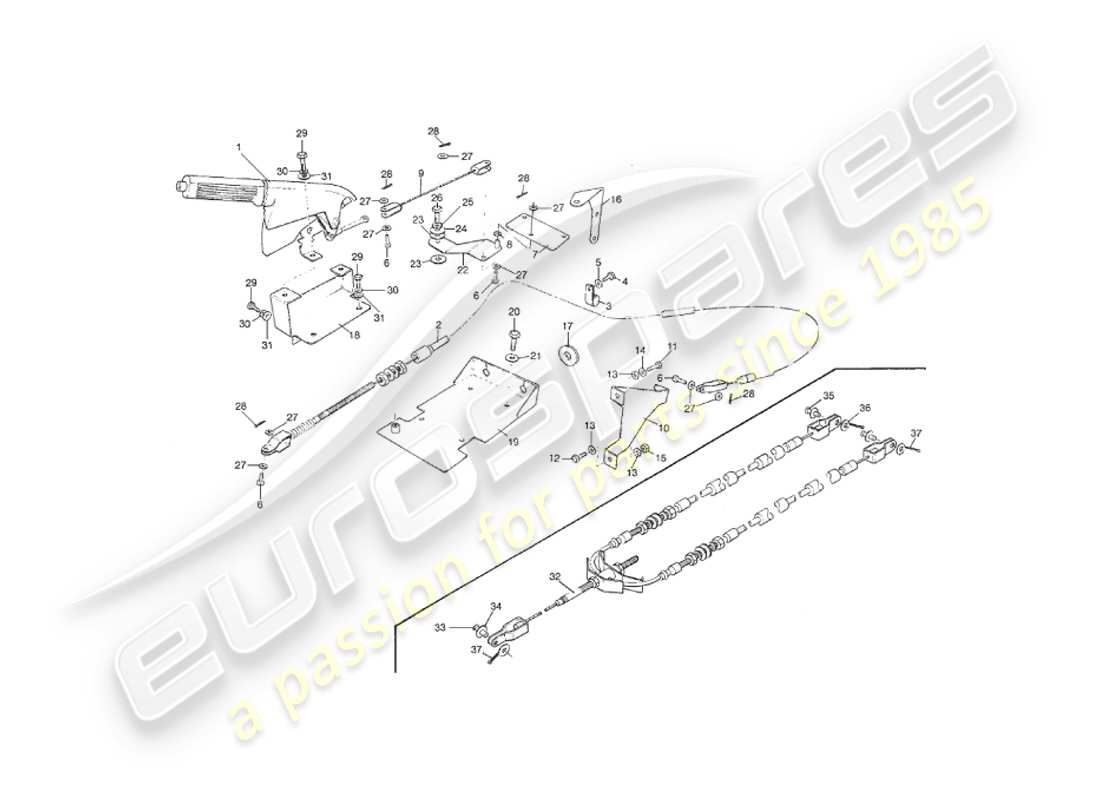

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 1
                                                      MPN: 30-50453
                                                      HANDBRAKE LEVER ASSEMBLY
                                                      from £231.76
                                                      from £231.76
                                                      ASSEMBLY HANDBRAKE LEVER Genuine Aston Martin - New (to order)
                                                      # 2
                                                      MPN: 30-50454
                                                      CABLE, HANDBRAKE, SUPPLIED WITH PIVOT PINS
                                                      Virage
                                                      from £61.23
                                                      from £61.23
                                                      CABLE-PARKING BRAKE Genuine Aston Martin - New (to order)
                                                      # 3
                                                      MPN: 694891
                                                      P' CLIP, BRAKE CABLE SUPPORT
                                                      from £2.31
                                                      from £2.31
                                                      P-CLIP Genuine Aston Martin - New (to order)
                                                      # 4
                                                      MPN: 692262
                                                      SCREW, HEX HEAD, M6 X 12, 'P' CLIP ATTACH
                                                      from £0.47
                                                      from £0.47
                                                      SCREW M6 X 12 HEX HD Genuine Aston Martin - New (to order)
                                                      # 5
                                                      MPN: 692046
                                                      WASHER, SPRING, M6, 'P' CLIP ATTACH
                                                      from £0.47
                                                      from £0.47
                                                      WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                                      # 6
                                                      MPN: 020-030-0130
                                                      PIVOT PIN
                                                      from £13.09
                                                      from £13.09
                                                      PIN - PIVOT Genuine Aston Martin - New (to order)
                                                      # 7
                                                      MPN: 30-50617
                                                      LINK CABLE, VIRAGE
                                                      from £1.99
                                                      from £1.99
                                                      LINK-CABLE Genuine Aston Martin - New (to order)
                                                      # 8
                                                      MPN: 693440
                                                      WASHER, THRUST, 5/16, SALOON
                                                      from £0.47
                                                      from £0.47
                                                      WASHER 5/16 X 7/8 ID Genuine Aston Martin - New (to order)
                                                      # 9
                                                      MPN: 30-50455
                                                      CABLE, HANDBRAKE LEVER TO LINK
                                                      Supplied with pivot pins
                                                      from £10.97
                                                      from £10.97
                                                      CBL-HBRK LVR TO LINK Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: 30-52602
                                                      BRACKET ASSEMBLY, CABLE, RH
                                                      Virage
                                                      from £14.64
                                                      from £14.64
                                                      ASSEMBLY BRACKET CABLE - RH Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: 30-52601
                                                      BRACKET ASSEMBLY, CABLE, LH
                                                      Virage
                                                      from £14.44
                                                      from £14.44
                                                      ASSEMBLY BRACKET CABLE -LH Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: 30-55440
                                                      BRACKET ASSEMBLY, CABLE, RH
                                                      Volante
                                                      from £9.54
                                                      from £9.54
                                                      ASSEMBLY BRACKET CBL RH Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: 30-55439
                                                      BRACKET ASSEMBLY, CABLE, LH
                                                      Volante
                                                      from £9.54
                                                      from £9.54
                                                      ASSEMBLY BRACKET CABLE LH Genuine Aston Martin - New (to order)
                                                      # 12
                                                      MPN: 692544
                                                      SCREW, M8 X 30
                                                      Handbrake cable bracket attach
                                                      from £0.68
                                                      from £0.68
                                                      SCREW M8 X 30 HEX HD Genuine Aston Martin - New (to order)
                                                      # 13
                                                      MPN: 692057
                                                      WASHER, PLAIN, M8
                                                      Handbrake cable bracket attach
                                                      from £0.47
                                                      from £0.47
                                                      WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                                                      # 14
                                                      MPN: 692047
                                                      WASHER, SPRING, M8
                                                      Handbrake cable bracket attach
                                                      from £0.47
                                                      from £0.47
                                                      WASHER M8 SPRING Genuine Aston Martin - New (to order)
                                                      # 15
                                                      MPN: 693996
                                                      NUT, PHILIDAS, M8
                                                      from £0.84
                                                      from £0.84
                                                      NUT M8 PHILL INDUST Genuine Aston Martin - New (to order)
                                                      # 16
                                                      MPN: 30-52604
                                                      BRACKET, BRAKE PIPE, RH
                                                      from £5.58
                                                      from £5.58
                                                      BRKT-BRAKE PIPE RH Genuine Aston Martin - New (to order)
                                                      # 16
                                                      MPN: 30-52603
                                                      BRACKET, BRAKE PIPE, LH
                                                      from £5.58
                                                      from £5.58
                                                      BRACKET BRAKE PIPE LH Genuine Aston Martin - New (to order)
                                                      # 17
                                                      MPN: 692665
                                                      GROMMET
                                                      from £1.20
                                                      from £1.20
                                                      GROMMET 3/8 X 1 Genuine Aston Martin - New (to order)
                                                      # 18
                                                      MPN: 30-51982
                                                      HANDBRAKE SUPPORT ASSEMBLY
                                                      RHD
                                                      from £28.24
                                                      from £28.24
                                                      ASY-H/BRAKE SUPT.RHD Genuine Aston Martin - New (to order)
                                                      # 18
                                                      MPN: 30-51983
                                                      HANDBRAKE SUPPORT ASSEMBLY
                                                      LHD Virage saloon
                                                      from £46.57
                                                      from £46.57
                                                      ASSEMBLY H/BRAKE SUPT Genuine Aston Martin - New (to order)
                                                      # -
                                                      -
                                                      BASE PLATE ASSEMBLY
                                                      # 19
                                                      MPN: 30-55696
                                                      HANDBRAKE SUPPORT ASSEMBLY
                                                      RHD
                                                      from £71.10
                                                      from £71.10
                                                      SPT H/BRK ASSEMBLY RH Genuine Aston Martin - New (to order)
                                                      # 19
                                                      MPN: 30-55710
                                                      HANDBRAKE SUPPORT ASSEMBLY
                                                      LHD Volante convertible
                                                      from £93.03
                                                      from £93.03
                                                      SPT H/BRK ASSEMBLY LH- Genuine Aston Martin - New (to order)
                                                      # -
                                                      -
                                                      BASE PLATE ASSEMBLY
                                                      # 20
                                                      MPN: 692089
                                                      SCREW, M8 X 16
                                                      from £0.47
                                                      from £0.47
                                                      SCREW M8 X 16 HEX HD Genuine Aston Martin - New (to order)
                                                      # 21
                                                      MPN: 692047
                                                      WASHER, SPRING, M8
                                                      from £0.47
                                                      from £0.47
                                                      WASHER M8 SPRING Genuine Aston Martin - New (to order)
                                                      # 22
                                                      MPN: 30-51988
                                                      Bell crank assembly
                                                      from £19.57
                                                      from £19.57
                                                      Bell crank assembly Genuine Aston Martin - New (to order)
                                                      # 23
                                                      MPN: 30-51987
                                                      NYLON WASHER
                                                      from £0.52
                                                      from £0.52
                                                      NYLON WASHER Genuine Aston Martin - New (to order)
                                                      # 24
                                                      MPN: 690386
                                                      WASHER, 1/4 X 3/4
                                                      from £0.47
                                                      from £0.47
                                                      WASHER 1/4 X 3/4 ZPL Genuine Aston Martin - New (to order)
                                                      # 25
                                                      MPN: 692046
                                                      WASHER, SPRING, M6
                                                      Virage saloon
                                                      from £0.47
                                                      from £0.47
                                                      WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                                      # 26
                                                      MPN: 691453
                                                      SCREW, M6 X 10
                                                      from £1.49
                                                      from £1.49
                                                      SCREW M6 X 10 HEX HD Genuine Aston Martin - New (to order)
                                                      # 28
                                                      MPN: 119520
                                                      Split pin, 1/16 X 1/2
                                                      from £2,055.07
                                                      from £2,055.07
                                                      Split pin, 1/16 X 1/2 Genuine Aston Martin - New (to order)
                                                      VALVE Genuine Ferrari Part - New (to order)
                                                      # 29
                                                      MPN: 692089
                                                      SCREW, M8 X 16
                                                      from £0.47
                                                      from £0.47
                                                      SCREW M8 X 16 HEX HD Genuine Aston Martin - New (to order)
                                                      # 30
                                                      MPN: 692047
                                                      WASHER, SPRING, M8
                                                      Handbrake lever attachment
                                                      from £0.47
                                                      from £0.47
                                                      WASHER M8 SPRING Genuine Aston Martin - New (to order)
                                                      # 31
                                                      MPN: 119471
                                                      WASHER, PLAIN, 5/16
                                                      WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
                                                      # 32
                                                      MPN: 30-55438
                                                      CABLE, HANDBRAKE
                                                      Supplied with pivot pins
                                                      from £286.90
                                                      from £286.90
                                                      CABLE ASSY-PARK BRK Genuine Aston Martin - New (to order)
                                                      # 33
                                                      MPN: 020-030-0152
                                                      PIVOT PIN
                                                      from £15.91
                                                      from £15.91
                                                      PIVOT PIN Genuine Aston Martin - New (to order)
                                                      # 34
                                                      MPN: 119471
                                                      WASHER, PLAIN, 5/16
                                                      Volante convertible
                                                      WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
                                                      # 35
                                                      MPN: 020-030-0130
                                                      PIVOT PIN
                                                      from £13.09
                                                      from £13.09
                                                      PIN - PIVOT Genuine Aston Martin - New (to order)
                                                      # 37
                                                      MPN: 119520
                                                      Split pin, 1/16 X 1/2
                                                      from £2,055.07
                                                      from £2,055.07
                                                      Split pin, 1/16 X 1/2 Genuine Aston Martin - New (to order)
                                                      VALVE Genuine Ferrari Part - New (to order)
