7.9A - Hood Frame Assembly

Aston Martin V8 Virage (2000) Hood Frame Assembly Parts Diagram

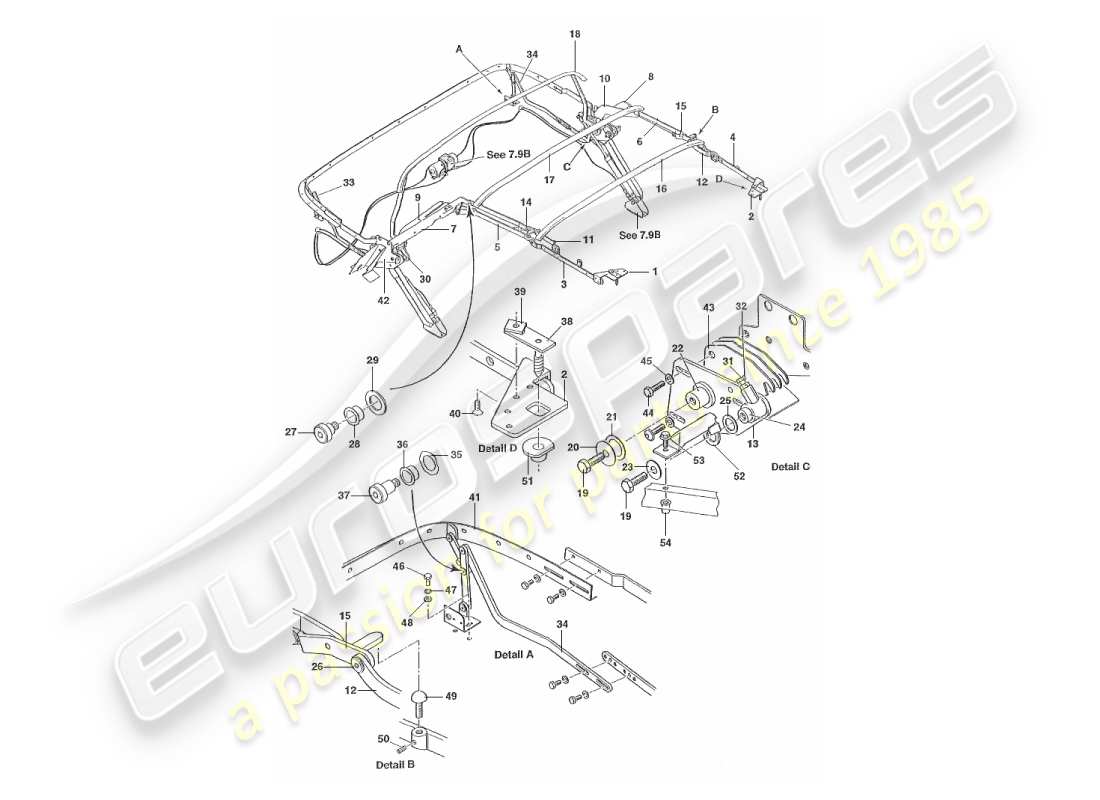

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                #
                                                                                                                Part number
                                                                                                                Description
                                                                                                                Key
                                                                                                                Price
                                                                                                                # -
                                                                                                                MPN: 93-61834
                                                                                                                HOOD FRAME ASSY
                                                                                                                Hood Frame Assembly Genuine Aston Martin - New (to order)
                                                                                                                # 1
                                                                                                                MPN: 93-60078
                                                                                                                Bracket, attachment, front header, RH
                                                                                                                Bracket, attachment, front header, RH Genuine Aston Martin - New (to order)
                                                                                                                # 2
                                                                                                                MPN: 93-60079
                                                                                                                BRACKET, ATTACHMENT, FRONT HEADER, LH
                                                                                                                BRACKET ATTCH FRONT HDR Genuine Aston Martin - New (to order)
                                                                                                                # 3
                                                                                                                MPN: 93-64496
                                                                                                                Cantrail assy, front adjustable, RH
                                                                                                                CANTRAIL ASSEMBLY FRONT ADJUSTABLE, RH Genuine Aston Martin - New (to order)
                                                                                                                # 4
                                                                                                                MPN: 93-64497
                                                                                                                Cantrail assy, front adjustable, LH
                                                                                                                CANTRAIL ASSEMBLY FRONT ADJUSTABLE, LH Genuine Aston Martin - New (to order)
                                                                                                                # 5
                                                                                                                MPN: 93-60252
                                                                                                                Cantrail rear, RH
                                                                                                                Cantrail rear, RH Genuine Aston Martin - New (to order)
                                                                                                                # 6
                                                                                                                MPN: 93-60253
                                                                                                                CANTRAIL REAR, LH
                                                                                                                CANTRAIL REAR, LH Genuine Aston Martin - New (to order)
                                                                                                                # 7
                                                                                                                MPN: 93-60010
                                                                                                                C post assy, RH
                                                                                                                C POST ASSEMBLY RH Genuine Aston Martin - New (to order)
                                                                                                                # 8
                                                                                                                MPN: 93-60011
                                                                                                                C post assy, LH
                                                                                                                C POST ASSEMBLY LH Genuine Aston Martin - New (to order)
                                                                                                                # 9
                                                                                                                MPN: 93-60402
                                                                                                                Guide link assy, cantrail, RH
                                                                                                                GUIDE LINK ASSEMBLY CANTRAIL, RH Genuine Aston Martin - New (to order)
                                                                                                                # 10
                                                                                                                MPN: 93-60403
                                                                                                                Guide link assy, cantrail, LH
                                                                                                                GUIDE LINK ASSEMBLY CANTRAIL, LH Genuine Aston Martin - New (to order)
                                                                                                                # 11
                                                                                                                MPN: 93-61328
                                                                                                                Link, cantrail pivot, RH
                                                                                                                Link, cantrail pivot, RH Genuine Aston Martin - New (to order)
                                                                                                                # 12
                                                                                                                MPN: 93-61329
                                                                                                                Link, cantrail pivot, LH
                                                                                                                Link, cantrail pivot, LH Genuine Aston Martin - New (to order)
                                                                                                                # 13
                                                                                                                MPN: 93-60312
                                                                                                                Mounting bracket assy, ram, RH
                                                                                                                MOUNTING BRACKET ASSEMBLY RAM, RH Genuine Aston Martin - New (to order)
                                                                                                                # 13
                                                                                                                MPN: 93-60313
                                                                                                                Mounting bracket assy, ram, LH
                                                                                                                MOUNTING BRACKET ASSEMBLY RAM, LH Genuine Aston Martin - New (to order)
                                                                                                                # 14
                                                                                                                MPN: 93-62042
                                                                                                                Link assy, No 1 hoodstick, RH
                                                                                                                LINK ASSEMBLY NO 1 HOODSTICK, RH Genuine Aston Martin - New (to order)
                                                                                                                # 15
                                                                                                                MPN: 93-62043
                                                                                                                Link assy, No 1 hoodstick, LH
                                                                                                                LINK ASSEMBLY NO 1 HOODSTICK, LH Genuine Aston Martin - New (to order)
                                                                                                                # 16
                                                                                                                MPN: 93-60107
                                                                                                                No 1 hoodstick assy
                                                                                                                NO 1 HOODSTICK ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                                                # 17
                                                                                                                MPN: 93-60254
                                                                                                                No 2 hoodstick assy
                                                                                                                NO 2 HOODSTICK ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                                                # 18
                                                                                                                MPN: 93-61348
                                                                                                                No 3 hoodstick assy
                                                                                                                NO 3 HOODSTICK ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                                                # 19
                                                                                                                MPN: 696580
                                                                                                                SCREW, M10 X 30
                                                                                                                from £2.20
                                                                                                                from £2.20
                                                                                                                SCREW M10 X 30 HEX Genuine Aston Martin - New (to order)
                                                                                                                # 20
                                                                                                                MPN: 93-61345
                                                                                                                Washer, retaining, C post to ram mounting bracket
                                                                                                                Washer, retaining, C post to ram mounting bracket Genuine Aston Martin - New (to order)
                                                                                                                # 21
                                                                                                                MPN: 93-61342
                                                                                                                Spacer, C post to ram mounting bracket
                                                                                                                Spacer, C post to ram mounting bracket Genuine Aston Martin - New (to order)
                                                                                                                # 22
                                                                                                                MPN: 93-61338
                                                                                                                Bearing, main C post pivot
                                                                                                                Bearing, main C post pivot Genuine Aston Martin - New (to order)
                                                                                                                # 23
                                                                                                                MPN: 93-61344
                                                                                                                Washer, retaining, cantrail guide link pivot
                                                                                                                Washer, retaining, cantrail guide link pivot Genuine Aston Martin - New (to order)
                                                                                                                # 24
                                                                                                                MPN: 93-61826
                                                                                                                Pivot, long, hood joint
                                                                                                                Pivot, long, hood joint Genuine Aston Martin - New (to order)
                                                                                                                # 25
                                                                                                                MPN: 93-61341
                                                                                                                Spacer, cantrail guide link pivot
                                                                                                                Spacer, cantrail guide link pivot Genuine Aston Martin - New (to order)
                                                                                                                # 26
                                                                                                                MPN: 93-61339
                                                                                                                Bearing, cantrail guide link pivot
                                                                                                                Bearing, cantrail guide link pivot Genuine Aston Martin - New (to order)
                                                                                                                # 27
                                                                                                                MPN: 93-61334
                                                                                                                PIVOT, STANDARD HOOD JOINT
                                                                                                                from £42.43
                                                                                                                from £42.43
                                                                                                                PIVOT-STD HOOD JOINT Genuine Aston Martin - New (to order)
                                                                                                                # 28
                                                                                                                MPN: 93-61337
                                                                                                                BEARING, STANDARD HOOD JOINT
                                                                                                                from £11.93
                                                                                                                from £11.93
                                                                                                                BRG-STD HOOD JOINT Genuine Aston Martin - New (to order)
                                                                                                                # 29
                                                                                                                MPN: 93-61340
                                                                                                                SPACER, STANDARD HOOD JOINT
                                                                                                                from £8.47
                                                                                                                from £8.47
                                                                                                                SPACR STD HOOD JOINT Genuine Aston Martin - New (to order)
                                                                                                                # 30
                                                                                                                MPN: 695858
                                                                                                                GLACIER BEARING
                                                                                                                from £1.24
                                                                                                                from £1.24
                                                                                                                BEARING - GLACIER Genuine Aston Martin - New (to order)
                                                                                                                # 31
                                                                                                                MPN: 696579
                                                                                                                SCREW, M8 X 30
                                                                                                                from £0.52
                                                                                                                from £0.52
                                                                                                                SCREW M8 X 30 HEX Genuine Aston Martin - New (to order)
                                                                                                                # 32
                                                                                                                MPN: 696583
                                                                                                                NUT, M8
                                                                                                                from £0.52
                                                                                                                from £0.52
                                                                                                                NUT M8 HEX GRD 8 Genuine Aston Martin - New (to order)
                                                                                                                # 33
                                                                                                                MPN: 93-61566
                                                                                                                Deck rail lift mechanism assy, RH
                                                                                                                DECK RAIL LIFT MECHANISM ASSEMBLY RH Genuine Aston Martin - New (to order)
                                                                                                                # 34
                                                                                                                MPN: 93-61567
                                                                                                                Deck rail lift mechanism assy, LH
                                                                                                                DECK RAIL LIFT MECHANISM ASSEMBLY LH Genuine Aston Martin - New (to order)
                                                                                                                # 35
                                                                                                                MPN: 695859
                                                                                                                WASHER, CRINKLE, M8
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                WASHER M8 CRINKLE Genuine Aston Martin - New (to order)
                                                                                                                # 36
                                                                                                                MPN: 695858
                                                                                                                BEARING, GLACIER
                                                                                                                from £1.24
                                                                                                                from £1.24
                                                                                                                BEARING - GLACIER Genuine Aston Martin - New (to order)
                                                                                                                # 37
                                                                                                                MPN: 93-61556
                                                                                                                SCREW, PIVOT
                                                                                                                from £9.69
                                                                                                                from £9.69
                                                                                                                PIVOT SCREW Genuine Aston Martin - New (to order)
                                                                                                                # 38
                                                                                                                MPN: 93-60076
                                                                                                                Spigot assy, front header
                                                                                                                SPIGOT ASSEMBLY FRONT HEADER Genuine Aston Martin - New (to order)
                                                                                                                # 39
                                                                                                                MPN: 93-61901
                                                                                                                Tapped plate
                                                                                                                from £4.92
                                                                                                                from £4.92
                                                                                                                Tapped plate Genuine Aston Martin - New (to order)
                                                                                                                # 40
                                                                                                                MPN: 696577
                                                                                                                SCREW, M6 X 20
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                SCREW M6 X 20 COUNTERSUNK Genuine Aston Martin - New (to order)
                                                                                                                # 41
                                                                                                                MPN: 93-60099
                                                                                                                Deckrail assy
                                                                                                                DECKRAIL ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                                                # 42
                                                                                                                MPN: 93-61334
                                                                                                                PIVOT, HOOD JOINT
                                                                                                                from £42.43
                                                                                                                from £42.43
                                                                                                                PIVOT-STD HOOD JOINT Genuine Aston Martin - New (to order)
                                                                                                                # 43
                                                                                                                MPN: 93-61351
                                                                                                                SHIM, HOODFRAME MOUNTING
                                                                                                                from £18.95
                                                                                                                from £18.95
                                                                                                                SHIM-HOOD FRAME MOUNTING Genuine Aston Martin - New (to order)
                                                                                                                # 44
                                                                                                                MPN: 696581
                                                                                                                SCREW, M8 X 20
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                SCREW M8 X 20 HEX Genuine Aston Martin - New (to order)
                                                                                                                # -
                                                                                                                -
                                                                                                                SCREW, M8 X 20 SKT BTN HD
                                                                                                                # 45
                                                                                                                MPN: 696582
                                                                                                                WASHER, PLAIN, M8
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                WASHER M8 PLAIN MED Genuine Aston Martin - New (to order)
                                                                                                                # 46
                                                                                                                MPN: 695860
                                                                                                                SCREW, M6 X 12
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                SCREW M6 X 12 HEX Genuine Aston Martin - New (to order)
                                                                                                                # 47
                                                                                                                MPN: 695856
                                                                                                                WASHER, SPRING, M6
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                                                                                                # 48
                                                                                                                MPN: 695855
                                                                                                                WASHER, PLAIN, M6
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                WASHER M6 PLAIN Genuine Aston Martin - New (to order)
                                                                                                                # 49
                                                                                                                MPN: 695966
                                                                                                                BUFFER, RUBBER
                                                                                                                from £14.70
                                                                                                                from £14.70
                                                                                                                RUBBER - BUFFER Genuine Aston Martin - New (to order)
                                                                                                                # 50
                                                                                                                MPN: 693750
                                                                                                                GRUB SCREW, M4 X 6
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                GRUBSCREW M4 X 6 Genuine Aston Martin - New In stock
                                                                                                                # 51
                                                                                                                MPN: 93-62320
                                                                                                                CONE, LOCATION SPIGOT
                                                                                                                from £8.93
                                                                                                                from £8.93
                                                                                                                CONE LOCATN SPIG ASSEMBLY Genuine Aston Martin - New (to order)
                                                                                                                # 52
                                                                                                                MPN: 93-66663
                                                                                                                TUBE ASSY, HOOD RAIL STABILISER
                                                                                                                from £17.39
                                                                                                                from £17.39
                                                                                                                ASSY-TUBE H/RAM Genuine Aston Martin - New (to order)
                                                                                                                # 54
                                                                                                                MPN: 693734
                                                                                                                RIVNUT, M6 X 16 CSK
                                                                                                                from £1.22
                                                                                                                from £1.22
                                                                                                                RIVNUT M6 X 17 COUNTERSUNK Genuine Aston Martin - New (to order)
