aston martin v8 volante (1997) handbrake parts diagram

5.4 - Handbrake

Aston Martin V8 Volante (1997) Handbrake Parts Diagram

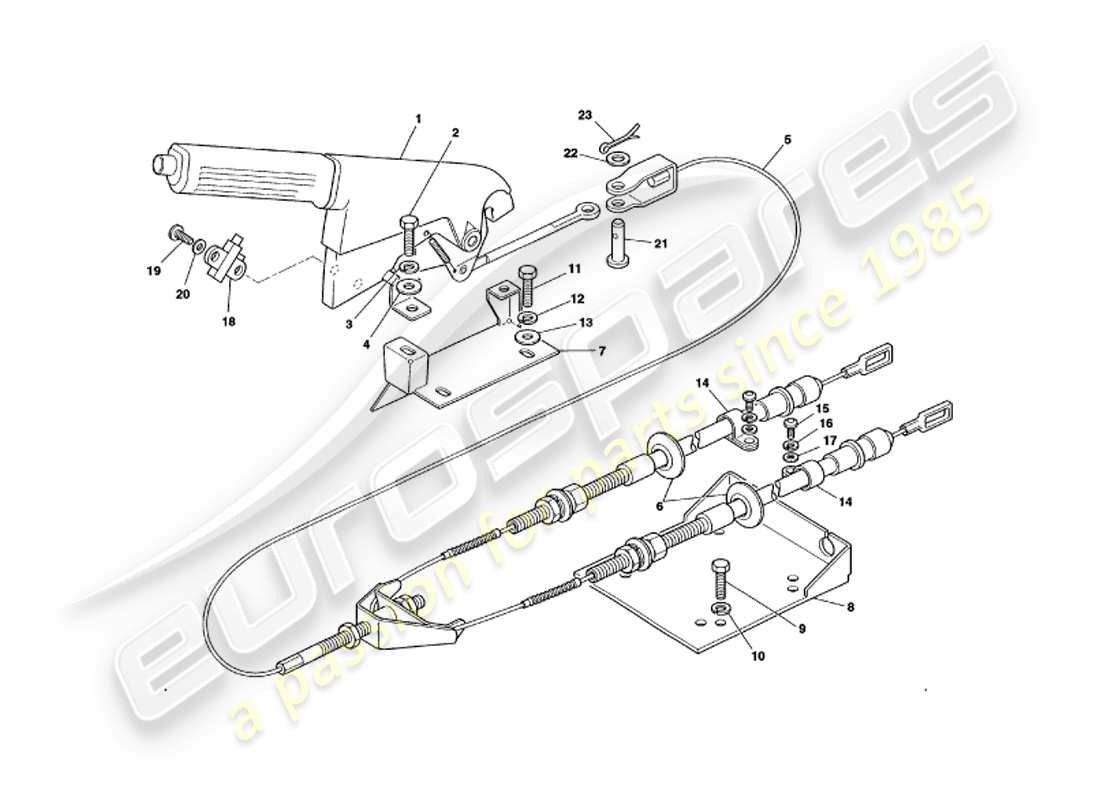

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # -
                  MPN: 30-70702
                  HANDBRAKE ASSEMBLY, TRIMMED
                  HANDBRAKE ASSEMBLY, TRIMMED Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 30-70706
                  HANDBRAKE ASSEMBLY
                  from £444.97
                  from £444.97
                  ASSEMBLY H/BRAKE MODIF Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 692089
                  SCREW, M8X16
                  Handbrake to support
                  from £0.47
                  from £0.47
                  SCREW M8 X 16 HEX HD Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 692047
                  WASHER, SPRING, M8
                  Handbrake to support
                  from £0.47
                  from £0.47
                  WASHER M8 SPRING Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 119471
                  WASHER, PLAIN, 5/16
                  Handbrake to support
                  WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 30-65244
                  CABLE ASSEMBLY, HANDBRAKE
                  H-
                  from £231.76
                  from £231.76
                  ASSEMBLY CABLE HANDBRAKE Genuine Aston Martin - New (to order)
                  # -
                  -
                  LOCTITE 270, STUDLOC
                  # 6
                  MPN: 692665
                  GROMMET, 3/8 X 1
                  from £1.20
                  from £1.20
                  GROMMET 3/8 X 1 Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 30-55696
                  HANDBRAKE SUPPORT ASSEMBLY
                  RHD
                  from £71.10
                  from £71.10
                  SPT H/BRK ASSEMBLY RH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 30-55710
                  HANDBRAKE SUPPORT ASSEMBLY
                  LHD
                  from £93.03
                  from £93.03
                  SPT H/BRK ASSEMBLY LH- Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 30-55445
                  BASE PLATE
                  from £46.07
                  from £46.07
                  BASE PLATE Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 692089
                  SCREW, M8X16
                  Base plate attach
                  from £0.47
                  from £0.47
                  SCREW M8 X 16 HEX HD Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 692047
                  WASHER, SPRING, M8
                  Base plate attach
                  from £0.47
                  from £0.47
                  WASHER M8 SPRING Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 692089
                  SCREW, M8X16
                  Handbrake support attach
                  from £0.47
                  from £0.47
                  SCREW M8 X 16 HEX HD Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 692047
                  WASHER, SPRING, M8
                  Handbrake support attach
                  from £0.47
                  from £0.47
                  WASHER M8 SPRING Genuine Aston Martin - New (to order)
                  # 13
                  MPN: 119471
                  WASHER, PLAIN, 5/16
                  Handbrake support attach
                  WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
                  # 14
                  MPN: 692208
                  P CLIP, 1/2 NYLON
                  Handbrake cable attach
                  from £0.47
                  from £0.47
                  P-CLIP 1/2 NYLON Genuine Aston Martin - New (to order)
                  # 15
                  MPN: 692210
                  SCREW, PAN HD, M4X12
                  Handbrake cable attach
                  from £0.47
                  from £0.47
                  SCREW M4 X 12 PAN Genuine Aston Martin - New (to order)
                  # 16
                  MPN: 692064
                  WASHER, SHAKEPROOF, M4
                  Handbrake cable attach
                  from £0.47
                  from £0.47
                  WASHER M4 S/PROOF Genuine Aston Martin - New (to order)
                  # 17
                  MPN: 692054
                  WASHER, PLAIN, M4
                  Handbrake cable attach
                  from £0.47
                  from £0.47
                  WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                  # 18
                  MPN: 37-50698
                  SWITCH, HANDBRAKE
                  from £17.30
                  from £17.30
                  HANDBRAKE SWITCH Genuine Aston Martin - New (to order)
                  # 19
                  MPN: 692126
                  SCREW, M4X8
                  Handbrake switch to handbrake
                  from £0.47
                  from £0.47
                  SCREW M4 X8 POZI PAN Genuine Aston Martin - New (to order)
                  # 20
                  MPN: 692054
                  WASHER, PLAIN, M4
                  Handbrake switch to handbrake
                  from £0.47
                  from £0.47
                  WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                  # 21
                  MPN: 020-030-0130
                  PIVOT PIN
                  from £13.09
                  from £13.09
                  PIN - PIVOT Genuine Aston Martin - New (to order)
                  # 23
                  MPN: 119520
                  Split pin, 1/16 X 1/2
                  from £2,055.07
                  from £2,055.07
                  Split pin, 1/16 X 1/2 Genuine Aston Martin - New (to order)
