7.6A - BONNET

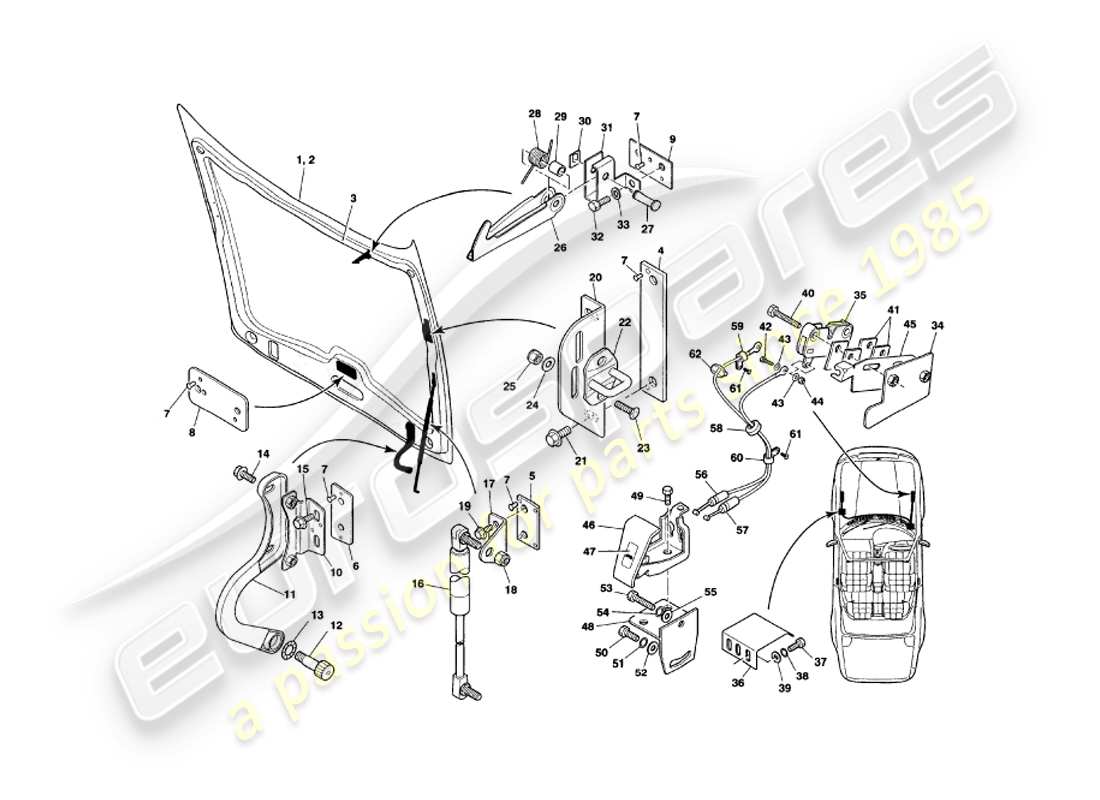

Aston Martin V8 Volante (1997) Bonnet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 64-71072
BONNET ASSEMBLY
from £6,719.30
from £6,719.30
# 2
MPN: 64-55931
BONNET SKIN
# 3
MPN: 64-71071
BONNET REINFORCEMENT
# 4
MPN: 64-51551
CLAMPING PLATE ASSEMBLY, STRIKER BRACKET
from £7.53
from £7.53
# 5
MPN: 64-72474
GAS STAY MOUNTING REINFORCEMEMNT ASSEMBLY
# 6
MPN: 64-72476
HINGE REINFORCEMEMNT PLATE ASSEMBLY
# 7
MPN: 110897
RIVET, 1/8 X 3/8 SOLID ALUMINIUM
from £0.47
from £0.47
# 8
MPN: 64-53017
BONNET LAMP SUPPORT PLATE ASSEMBLY
from £3.98
from £3.98
# 9
MPN: 64-73929
BONNET SAFETY CATCH RETAINING PLATE ASSEMBLY
# 10
MPN: 64-72486
Bonnet hinge mounting bracket assembly
# -
-
LOCTITE 341, 2X300ML
# 11
MPN: 64-72478
BONNET HINGE ASSEMBLY, RH
from £77.91
from £77.91
# 11
MPN: 64-72479
BONNET HINGE ASSEMBLY, LH
from £39.19
from £39.19
# 12
MPN: 696464
BOLT, SKT SHLDR, M10X25
Bonnet pivot
from £8.41
from £8.41
# 13
MPN: 696463
WASHER, CRINKLE, M12 COPPER SELF FINISH
Bonnet pivot
from £0.71
from £0.71
# -
-
COPA SLIP, 8OZ TUBE
Bonnet pivot
# 14
MPN: 696729
SCREW, M8X12
Bonnet hinge to bracket
from £3.32
from £3.32
# 15
MPN: 696729
SCREW, M8X12
Hinge bracket to bonnet
from £3.32
from £3.32
# -
-
LOCTITE 242E SEALANT
# 16
MPN: 64-72494
GAS STAY, BONNET
from £109.39
from £109.39
# 17
MPN: 64-72330
BRACKET, GAS STAY, BONNET
from £13.66
from £13.66
# 18
MPN: 695515
NUT, NYLOC, M8
Gas stay to bonnet/chassis
from £0.47
from £0.47
# 19
MPN: 695563
SCREW, FLG, M6X16
Gas stay to bracket to bonnet
# 20
MPN: 64-51552
STRIKER BRACKET, RH
# 20
MPN: 64-51553
STRIKER BRACKET, LH
# 21
MPN: 695563
SCREW, FLG, M6X16
Striker bracket to bonnet
# 22
MPN: 64-25926
STRIKER, BONNET
from £10.31
from £10.31
# 23
MPN: 694040
SCREW, M6X16 CSK POZI HD
Striker to bracket
# 24
MPN: 692056
WASHER, PLAIN, M6
Striker to bracket
from £0.47
from £0.47
# 25
MPN: 692151
NUT, NYLOC, M6
Striker to bracket
from £0.54
from £0.54
# 26
MPN: 64-73934
HOOK, BONNET SAFETY CATCH
# 27
MPN: 64-73935
PIVOT PIN, BONNET SAFETY CATCH
from £3.23
from £3.23
# 28
MPN: 64-73936
SPRING, BONNET SAFETY CATCH
# 29
MPN: 64-73937
BEARING SPACER, BONNET SAFETY CATCH
from £0.47
from £0.47
# 30
MPN: 64-73938
CLIP, BONNET SAFETY CATCH
from £0.47
from £0.47
# 31
MPN: 64-73930
BRACKET, BONNET SAFETY CATCH
from £9.50
from £9.50
# 32
MPN: 691453
SCREW, M6X10
BRACKET, BONNET SAFETY CATCH
from £1.49
from £1.49
# 33
MPN: 692056
WASHER, PLAIN, M6
BRACKET, BONNET SAFETY CATCH
from £0.47
from £0.47
# -
-
SCREW, BUTTON FLG, M6X12
Blank opp hand safety catch holes
# 34
MPN: 64-74046
RETAINING PLATE ASSEMBLY, RH
from £6.54
from £6.54
# 34
MPN: 64-74047
RETAINING PLATE ASSEMBLY, LH
from £6.54
from £6.54
# 35
MPN: 64-73933
BONNET LATCH
from £87.13
from £87.13
# 36
MPN: 64-73946
CATCH PLATE
LHD
# 37
MPN: 691453
SCREW, M6X10
LHD
from £1.49
from £1.49
# 38
MPN: 692066
WASHER, SHAKEPROOF, M6
LHD
from £0.47
from £0.47
# 39
MPN: 692056
WASHER, PLAIN, M6
LHD
from £0.47
from £0.47
# 40
MPN: 697831
BOLT, M6X35
from £0.70
from £0.70
# 41
MPN: 64-73926
SPACER PLATE, BONNET RELEASE
from £1.71
from £1.71
# 42
MPN: 692005
SCREW, M5X16
from £0.47
from £0.47
# 43
MPN: 692055
WASHER, PLAIN, M5
from £0.47
from £0.47
# 44
MPN: 692800
NUT, NYLOC, M5
from £0.47
from £0.47
# 45
MPN: 64-73924
BRACKET, CABLE, RH
from £13.44
from £13.44
# 45
MPN: 64-73923
BRACKET, CABLE, LH
from £13.44
from £13.44
# 46
MPN: 64-52962
LEVER, BONNET RELEASE
from £77.90
from £77.90
# 47
MPN: 64-52963
SELF ADHESIVE LABEL
from £14.87
from £14.87
# 48
MPN: 64-54051
MOUNTING BRACKET, BONNET RELEASE
from £59.83
from £59.83
# 49
MPN: 692262
SCREW, M6X12
Release lever to mounting bracket
from £0.47
from £0.47
# 50
MPN: 692090
SCREW, M5X12
Mounting bracket attach
from £0.47
from £0.47
# 51
MPN: 692065
WASHER, SHAKEPROOF, M5
Mounting bracket attach
from £0.47
from £0.47
# 52
MPN: 692055
WASHER, PLAIN, M5
Mounting bracket attach
from £0.47
from £0.47
# 53
MPN: 692243
SCREW, M5X16
Mounting bracket attach
from £0.47
from £0.47
# 54
MPN: 692065
WASHER, SHAKEPROOF, M5
Mounting bracket attach
from £0.47
from £0.47
# 55
MPN: 692055
WASHER, PLAIN, M5
Mounting bracket attach
from £0.47
from £0.47
# 56
MPN: 64-52621
CABLE, BONNET RELEASE, LONG
from £157.61
from £157.61
# 57
MPN: 64-52622
CABLE, BONNET RELEASE, SHORT
from £150.19
from £150.19
# 58
MPN: 692378
GROMMET, 3/8 BORE
BONNET CABLE
from £0.47
from £0.47
# 59
MPN: 696507
P CLIP, BLACK NYLON
LHD
from £0.47
from £0.47
# 60
MPN: 692525
P CLIP, 1/4 NYLON
LHD, Bonnet release cable attach
from £0.47
from £0.47
# 61
MPN: 691020
SCREW, NO.8X1/2
LHD, Bonnet release cable attach
from £0.47
from £0.47
# 62
MPN: 693374
CABLE TIE, 98MM X 22MM
Bonnet release cable attach
from £0.47
from £0.47
-part-diagram-7.6b.webp "ASTON MARTIN V8 VOLANTE (1997) TRUNK LID PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 VOLANTE (1997) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 VOLANTE (1997) GLASS PARTS DIAGRAM")
-part-diagram-7.8b1.webp "ASTON MARTIN V8 VOLANTE (1997) FRONT SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8b2.webp "ASTON MARTIN V8 VOLANTE (1997) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 VOLANTE (1997) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 VOLANTE (1997) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 VOLANTE (1997) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 VOLANTE (1997) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 VOLANTE (1997) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 VOLANTE (1997) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 VOLANTE (1997) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 VOLANTE (1997) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 VOLANTE (1997) CARPETS PARTS DIAGRAM")
-part-diagram-7.9a.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD FRAME ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9b.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD HYDRAULICS PARTS DIAGRAM")
-part-diagram-7.9c.1.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD FRAME WOODS PARTS DIAGRAM")
-part-diagram-7.9c.2.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD FRAME WOODS PARTS DIAGRAM")
-part-diagram-7.9d.webp "ASTON MARTIN V8 VOLANTE (1997) HOOD ASSEMBLY PARTS DIAGRAM")
-part-diagram-7.9e.webp "ASTON MARTIN V8 VOLANTE (1997) DROPPING REAR QUARTERLIGHT PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 VOLANTE (1997) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 VOLANTE (1997) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 VOLANTE (1997) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 VOLANTE (1997) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 VOLANTE (1997) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 VOLANTE (1997) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 VOLANTE (1997) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 VOLANTE (1997) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3.webp "ASTON MARTIN V8 VOLANTE (1997) CYLINDER HEADS PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 VOLANTE (1997) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 VOLANTE (1997) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 VOLANTE (1997) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 VOLANTE (1997) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.webp "ASTON MARTIN V8 VOLANTE (1997) WATER COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 VOLANTE (1997) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 VOLANTE (1997) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 VOLANTE (1997) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 VOLANTE (1997) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 VOLANTE (1997) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 VOLANTE (1997) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 VOLANTE (1997) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 VOLANTE (1997) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 VOLANTE (1997) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 VOLANTE (1997) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 VOLANTE (1997) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 VOLANTE (1997) TORQUE CONVERTOR PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 VOLANTE (1997) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 VOLANTE (1997) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 VOLANTE (1997) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 VOLANTE (1997) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 VOLANTE (1997) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 VOLANTE (1997) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 VOLANTE (1997) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 VOLANTE (1997) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 VOLANTE (1997) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 VOLANTE (1997) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 VOLANTE (1997) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1.webp "ASTON MARTIN V8 VOLANTE (1997) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 VOLANTE (1997) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 VOLANTE (1997) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 VOLANTE (1997) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 VOLANTE (1997) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 VOLANTE (1997) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 VOLANTE (1997) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 VOLANTE (1997) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.webp "ASTON MARTIN V8 VOLANTE (1997) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 VOLANTE (1997) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 VOLANTE (1997) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 VOLANTE (1997) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 VOLANTE (1997) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 VOLANTE (1997) UNDERBONNET COMPONENTS, TO VIN 89026 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 VOLANTE (1997) UNDERBONNET COMPONENTS, VIN 89027 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 VOLANTE (1997) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.1.webp "ASTON MARTIN V8 VOLANTE (1997) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6a.2.webp "ASTON MARTIN V8 VOLANTE (1997) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 VOLANTE (1997) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 VOLANTE (1997) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 VOLANTE (1997) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 VOLANTE (1997) RELAYS, TO VIN 89026 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 VOLANTE (1997) RELAYS, VIN 89027 ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 VOLANTE (1997) RELAYS, TO VIN 89026 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 VOLANTE (1997) RELAYS, VIN 89027 ON PARTS DIAGRAM")
-part-diagram-6.9.webp "ASTON MARTIN V8 VOLANTE (1997) HARNESSES PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 VOLANTE (1997) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 VOLANTE (1997) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 VOLANTE (1997) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 VOLANTE (1997) REAR STRUCTURE, BUMPER & BOOT PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 VOLANTE (1997) FLOOR PANELS PARTS DIAGRAM")
-part-diagram-7.2e.webp "ASTON MARTIN V8 VOLANTE (1997) SUPERSTRUCTURE PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 VOLANTE (1997) BODY PANELS PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 VOLANTE (1997) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 VOLANTE (1997) DOORS PARTS DIAGRAM")
-part-diagram-7.4b.webp "ASTON MARTIN V8 VOLANTE (1997) DOOR LATCH MECHANISM PARTS DIAGRAM")
-part-diagram-7.4c.1.webp "ASTON MARTIN V8 VOLANTE (1997) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.4c.2.webp "ASTON MARTIN V8 VOLANTE (1997) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 VOLANTE (1997) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 VOLANTE (1997) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 VOLANTE (1997) BODY FITTINGS PARTS DIAGRAM")
