7.8C.4 - Boot Trim

Aston Martin V8 Volante (1997) Boot Trim Parts Diagram

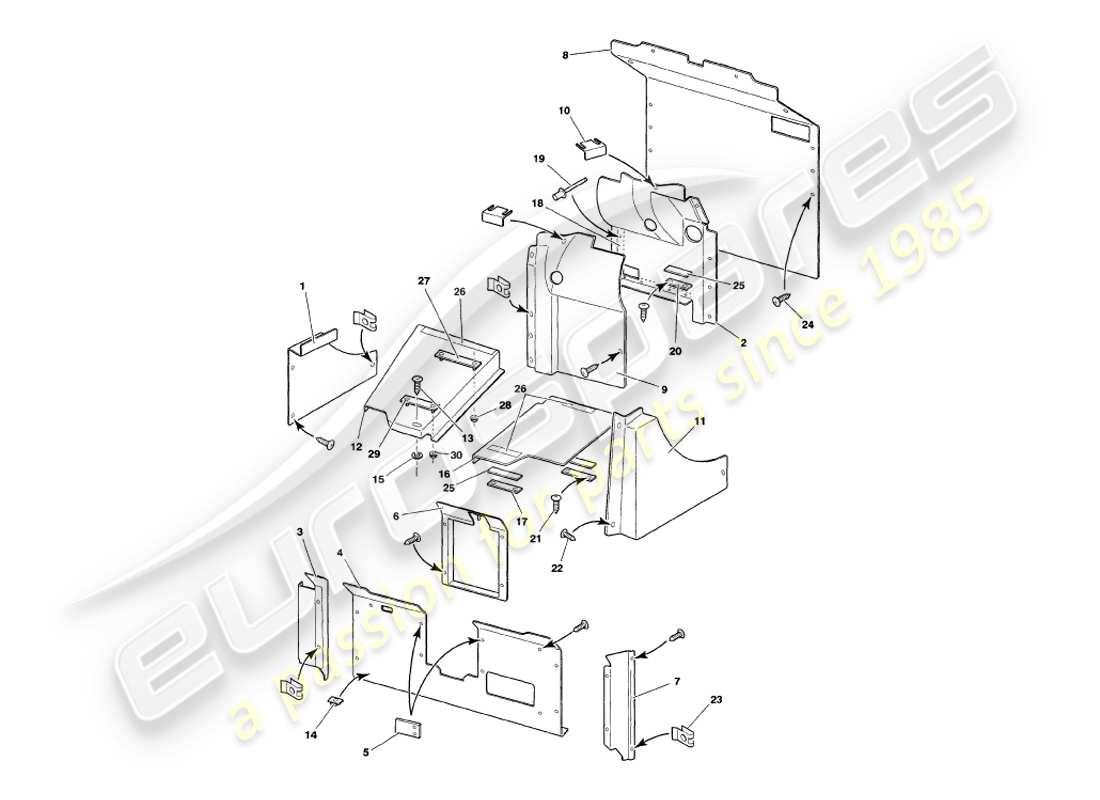

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # -
                                                            MPN: 83-66332XXX
                                                            BOOT PANEL ASSEMBLY, LH, TRIMMED
                                                            BOOT PANEL ASSEMBLY, LH, TRIMMED Genuine Aston Martin - New (to order)
                                                            # 1
                                                            MPN: 83-66112
                                                            TRIM PANEL, BOOT, LH
                                                            from £12.43
                                                            from £12.43
                                                            LHS SIDE BOOT Genuine Aston Martin - New (to order)
                                                            # 1
                                                            MPN: 83-66333XXX
                                                            CARPET, BOOT PANEL, LH
                                                            CARPET, BOOT PANEL, LH Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            BOOT PANEL, FORWARD LH, TRIMMED
                                                            # 2
                                                            MPN: 83-66113
                                                            TRIM PANEL, BOOT, FORWARD LH
                                                            from £76.34
                                                            from £76.34
                                                            FORWARD LHS BOOT Genuine Aston Martin - New (to order)
                                                            # 2
                                                            MPN: 83-66335XXX
                                                            CARPET, BOOT PANEL, FORWARD LH
                                                            CARPET, BOOT PANEL, FORWARD LH Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            BOOT PANEL, REAR LH, TRIMMED
                                                            # 3
                                                            MPN: 83-66114
                                                            TRIM PANEL, BOOT, REAR, LH
                                                            from £14.09
                                                            from £14.09
                                                            REAR LHS BOOT Genuine Aston Martin - New (to order)
                                                            # 3
                                                            MPN: 83-66337XXX
                                                            CARPET, BOOT PANEL, REAR, LH
                                                            CARPET, BOOT PANEL, REAR, LH Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            BOOT PANEL, REAR CENTRE, TRIMMED
                                                            # -
                                                            -
                                                            TRIM PANEL, BOOT REAR, CENTRE
                                                            # -
                                                            -
                                                            CARPET, BOOT PANEL, REAR CENTRE
                                                            # -
                                                            -
                                                            BUTTON, SMALL CROWN,STD
                                                            # -
                                                            -
                                                            SOCKET
                                                            # -
                                                            -
                                                            FASTENER, SNAP
                                                            # -
                                                            -
                                                            EYELET
                                                            # 5
                                                            MPN: 83-66365
                                                            PLATE, CENTRE BOOT PAEL RETAINER
                                                            PLATE, CENTRE BOOT PANEL RETAINER Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            LOCK COVER, BOOT PANEL, TRIMMED
                                                            # 6
                                                            MPN: 83-66116
                                                            TRIM PANEL, LOCK COVER, BOOT
                                                            from £45.37
                                                            from £45.37
                                                            LOCK COVER BOOT Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            LEATHER, LOCK PANEL COVER
                                                            # -
                                                            -
                                                            BOOT PANEL, REAR RH, TRIMMED
                                                            # 7
                                                            MPN: 83-66117
                                                            TRIM PANEL, BOOT REAR, RH
                                                            from £9.28
                                                            from £9.28
                                                            REAR RHS BOOT Genuine Aston Martin - New (to order)
                                                            # 7
                                                            MPN: 83-66343XXX
                                                            CARPET, BOOT PANEL, REAR,RH
                                                            CARPET, BOOT PANEL, REAR,RH Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            BOOT PANEL, FORWARD CENTRE, TRIMMED
                                                            # -
                                                            -
                                                            INSULATION PAD, 60X100X1.6
                                                            Make from 697999
                                                            # 8
                                                            MPN: 83-66118
                                                            TRIM PANEL, BOOT, FORWARD CENTRE
                                                            from £58.68
                                                            from £58.68
                                                            FORWARD CENTRE BOOT Genuine Aston Martin - New (to order)
                                                            # 8
                                                            MPN: 83-66345XXX
                                                            CARPET, BOOT PANEL, FORWARD CENTRE
                                                            CARPET, BOOT PANEL, FORWARD CENTRE Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            BOOT PANEL, FORWARD RH, TRIMMED
                                                            # 9
                                                            MPN: 83-66119
                                                            TRIM PANEL, BOOT, FORWARD, RH
                                                            from £65.70
                                                            from £65.70
                                                            FORWARD RHS BOOT Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            CARPET, BOOT PANEL, FORWARD, RH
                                                            # 10
                                                            MPN: 83-66364
                                                            BRACKET, BOOT, FUEL FILLER TRIM
                                                            from £3.93
                                                            from £3.93
                                                            BRACKET BOOT FUEL Genuine Aston Martin - New (to order)
                                                            # 10
                                                            MPN: 83-66348XXX
                                                            BOOT PANEL, RH, TRIMMED
                                                            BOOT PANEL, RH, TRIMMED Genuine Aston Martin - New (to order)
                                                            # 11
                                                            MPN: 83-66120
                                                            TRIM PANEL, BOOT, RH
                                                            from £21.74
                                                            from £21.74
                                                            RHS SIDE BOOT Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            CARPET, BOOT PANEL, RH
                                                            # -
                                                            -
                                                            BATTERY COVER PANEL, TRIMMED
                                                            # 12
                                                            MPN: 83-66123
                                                            TRIM PANEL, BATTERY COVER
                                                            from £12.43
                                                            from £12.43
                                                            BATTERY COVER Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            LEATHER, BATTERY COVER
                                                            # 13
                                                            MPN: 696503
                                                            TRIM PIN
                                                            from £1.39
                                                            from £1.39
                                                            TRIM, PIN Genuine Aston Martin - New (to order)
                                                            # 14
                                                            MPN: 696504
                                                            TRIM RETAINER
                                                            TRIM RETAINER Genuine Aston Martin - New (to order)
                                                            # 15
                                                            MPN: 694818
                                                            WASHER, QUICK RELEASE
                                                            from £0.81
                                                            from £0.81
                                                            WASHER-QUICK RELEASE Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            TOOL BOX COVER, TRIMMED
                                                            # 16
                                                            MPN: 83-66124
                                                            TRIM PANEL, TOOL BOX COVER
                                                            from £13.18
                                                            from £13.18
                                                            TOO BOX COVER Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            LEATHER, TOOL BOX COVER
                                                            # -
                                                            -
                                                            CARPET, BOOT FLOOR
                                                            # 17
                                                            MPN: 83-66394
                                                            VELCRO RETAINING PLATE
                                                            from £4.77
                                                            from £4.77
                                                            VELCRO RETAINNG PLTE Genuine Aston Martin - New (to order)
                                                            # 18
                                                            MPN: 83-66484
                                                            SUPPORT ANGLE, BATTERY COVER
                                                            from £9.02
                                                            from £9.02
                                                            BATTERY COVER Genuine Aston Martin - New (to order)
                                                            # 19
                                                            MPN: 581-000-2840
                                                            POP RIVET, 1/8 X 0.4 CSK HD
                                                            from £0.83
                                                            from £0.83
                                                            POP-RIVET 1/8 X 0.40 Genuine Aston Martin - New (to order)
                                                            # 20
                                                            MPN: 83-66454
                                                            VELCRO RETAINING PLATE, BATTERY COVER
                                                            from £5.47
                                                            from £5.47
                                                            VELCRO RETAINING Genuine Aston Martin - New (to order)
                                                            # 21
                                                            MPN: 695267
                                                            SCREW, NO.6 X 5/8 RSD HD
                                                            from £0.47
                                                            from £0.47
                                                            SCREW NO6 X 5/8 S/T Genuine Aston Martin - New (to order)
                                                            # 22
                                                            MPN: 697079
                                                            SCREW, NO.8 X 5/8 PAN HD
                                                            from £0.47
                                                            from £0.47
                                                            SCREW, NO.8X5/8 Genuine Aston Martin - New (to order)
                                                            # 23
                                                            MPN: 691460
                                                            NUT, SPIRE, NO.8
                                                            NUT, SPIRE, NO.8 Genuine Aston Martin - New (to order)
                                                            # 24
                                                            MPN: 696661
                                                            SCREW, NO.10 X 1/2
                                                            from £0.47
                                                            from £0.47
                                                            SCREW NO10X1/2 FLANGE Genuine Aston Martin - New (to order)
                                                            # 25
                                                            MPN: 691586
                                                            VELCRO, 20MM HOOKS
                                                            from £3.76
                                                            from £3.76
                                                            VELCRO 20MM HOOKS Genuine Aston Martin - New (to order)
                                                            # 26
                                                            MPN: 691587
                                                            VELCRO, 20MM LOOPS
                                                            from £3.76
                                                            from £3.76
                                                            VELCRO 20MM LOOPS Genuine Aston Martin - New (to order)
                                                            # 27
                                                            MPN: 83-66479
                                                            STIFFENING PLATE ASSY, WARNING TRIANGLE, LONG
                                                            from £3.04
                                                            from £3.04
                                                            STIFFNG PLATE ASSEMBLY Genuine Aston Martin - New (to order)
                                                            # 27
                                                            MPN: 83-66485XXX
                                                            STIFFENING PLATE ASSY, WARNING TRIANGLE, LONG, TRIMMED
                                                            STIFFENING PLATE ASSEMBLY WARNING TRIANGLE, LONG, TRIMMED Genuine Aston Martin - New (to order)
                                                            # 28
                                                            MPN: 696500
                                                            NUT, DOMED, M4
                                                            from £0.47
                                                            from £0.47
                                                            NUT M4 DOMED GRD 4.7 Genuine Aston Martin - New (to order)
                                                            # 29
                                                            MPN: 83-66477
                                                            STIFFENING PLATE ASSY, WARNING TRIANGLE, SHORT
                                                            from £3.04
                                                            from £3.04
                                                            STIFFNG PLATE ASSEMBLY Genuine Aston Martin - New (to order)
                                                            # 29
                                                            MPN: 83-66486XXX
                                                            STIFFENING PLATE ASSY, WARNING TRIANGLE, SHORT, TRIMMED
                                                            STIFFENING PLATE ASSEMBLY WARNING TRIANGLE, SHORT, TRIMMED Genuine Aston Martin - New (to order)
                                                            # 30
                                                            MPN: 696500
                                                            NUT, DOMED, M4
                                                            from £0.47
                                                            from £0.47
                                                            NUT M4 DOMED GRD 4.7 Genuine Aston Martin - New (to order)
                                                            # -
                                                            -
                                                            CARPET, BLACK, BW74001 (CP051)
                                                            # -
                                                            -
                                                            LEATHER STRAP
                                                            Retaining owners manual
                                                            # -
                                                            -
                                                            TURN BUTTON
                                                            Retaining owners manual
                                                            # -
                                                            -
                                                            CAM RING
                                                            Retaining owners manual
                                                            # -
                                                            -
                                                            CLAMPING PLATE
                                                            Retaining owners manual
                                                            # -
                                                            -
                                                            POP RIVET, 1/8 X 0.40 CSK HD
                                                            Retaining owners manual
                                                            # -
                                                            -
                                                            WASHER, PLAIN, NO.6, CHROME
                                                            Retaining owners manual
                                                            # -
                                                            -
                                                            NUT, FLG, M4
                                                            Retaining owners manual
                                                            # -
                                                            -
                                                            PLATE ASSY, RETAINING
                                                            Retaining owners manual
