2.5 - Electronic Fuel Injection

Aston Martin V8 Volante (1998) Electronic Fuel Injection Parts Diagram

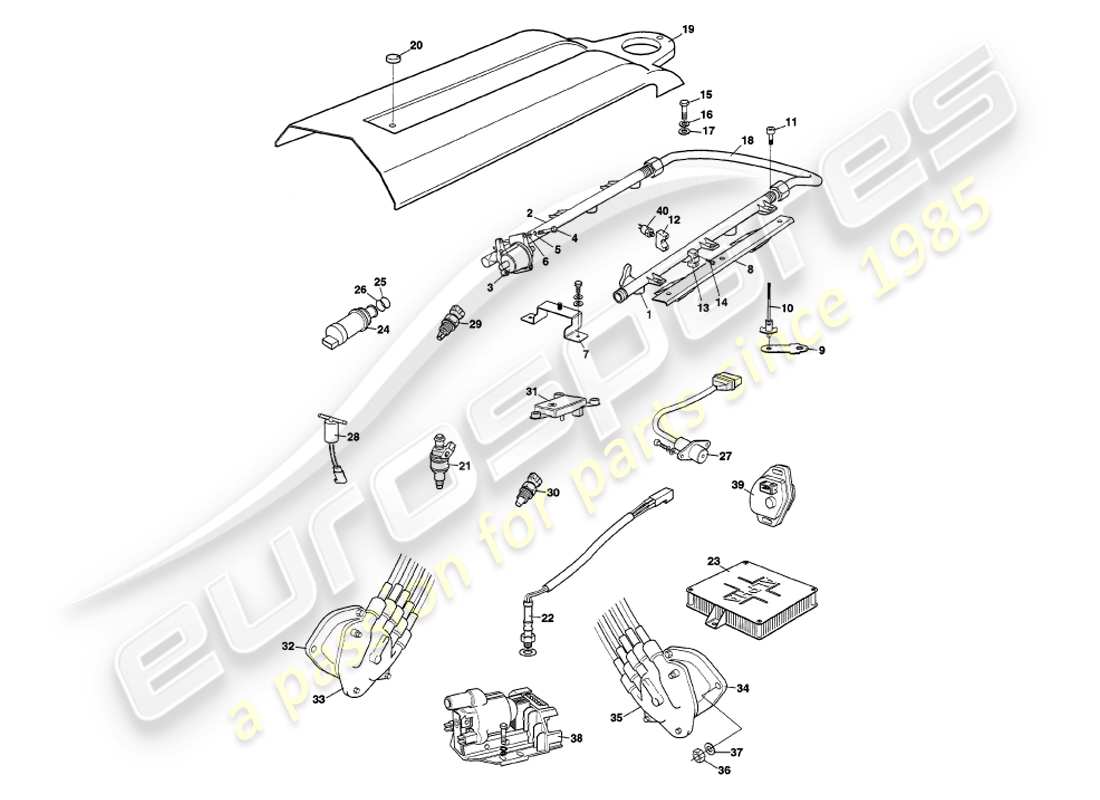

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Key
                                                                Price
                                                                # 1
                                                                MPN: 08-64736
                                                                FUEL RAIL ASSEMBLY, RH
                                                                from £705.49
                                                                from £705.49
                                                                FUEL RAIL ASSEMBLY Genuine Aston Martin - New (to order)
                                                                # 2
                                                                MPN: 08-71845
                                                                FUEL RAIL ASSEMBLY, LH
                                                                from £676.09
                                                                from £676.09
                                                                ASSEMBLY FUEL RAIL Genuine Aston Martin - New (to order)
                                                                # 3
                                                                MPN: 08-56067
                                                                FUEL PRESSURE REGULATOR
                                                                PRESSURE REGULATOR Genuine Aston Martin - New (to order)
                                                                # 4
                                                                MPN: 692267
                                                                BOLT, M6X30
                                                                Pressure regulator to fuel rail
                                                                from £0.66
                                                                from £0.66
                                                                BOLT M6 X 30 HEX Genuine Aston Martin - New (to order)
                                                                # 5
                                                                MPN: 692046
                                                                WASHER, SPRING, M6
                                                                Pressure regulator to fuel rail
                                                                from £0.47
                                                                from £0.47
                                                                WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                                                # 6
                                                                MPN: 692056
                                                                WASHER, PLAIN, M6
                                                                Pressure regulator to fuel rail
                                                                from £0.47
                                                                from £0.47
                                                                WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                                # 7
                                                                MPN: 08-64739
                                                                MOUNTING BRACKET ASSY, INJECTOR WIRING COVER
                                                                from £11.99
                                                                from £11.99
                                                                ASSEMBLY MOUNTING BRACKET Genuine Aston Martin - New (to order)
                                                                # 8
                                                                MPN: 08-64726
                                                                MOUNTING BRACKET ASSY, FUEL RAIL
                                                                from £36.59
                                                                from £36.59
                                                                M/BRKT ASSEMBLY F/RAIL Genuine Aston Martin - New (to order)
                                                                # 9
                                                                MPN: 37-56344
                                                                BRACKET, FUEL RAIL WIRING HARNESS
                                                                from £3.43
                                                                from £3.43
                                                                BRACKET F/RAIL Genuine Aston Martin - New (to order)
                                                                # 10
                                                                MPN: 698038
                                                                PANEL FIXING TIE
                                                                from £1.98
                                                                from £1.98
                                                                PANEL FIXING TIE Genuine Aston Martin - New (to order)
                                                                # 11
                                                                MPN: 694211
                                                                CAP SCREW, M6X16
                                                                Fuel rail to mounting bracket
                                                                from £0.87
                                                                from £0.87
                                                                SCREW M6 X16 SOCKET CAP Genuine Aston Martin - New (to order)
                                                                # 12
                                                                MPN: 08-56295
                                                                SADDLE, TEMPERATURE SENSOR MOUNTING
                                                                from £61.18
                                                                from £61.18
                                                                SADDLE TMP SENSOR Genuine Aston Martin - New (to order)
                                                                # 13
                                                                MPN: 08-56294
                                                                STRAP, TEMPERATURE SENSOR MOUNTING
                                                                from £56.22
                                                                from £56.22
                                                                STRAP TEMP SENSOR Genuine Aston Martin - New (to order)
                                                                # 14
                                                                MPN: 694346
                                                                CAP SCREW, M4X16
                                                                from £0.66
                                                                from £0.66
                                                                SCREW M4 X 15 CAP Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                adhesive 648
                                                                # 15
                                                                MPN: 692146
                                                                SCREW, M6X20
                                                                Fuel rail to plenum
                                                                from £1.16
                                                                from £1.16
                                                                SCREW M6 X 20 HEX HD Genuine Aston Martin - New (to order)
                                                                # 16
                                                                MPN: 692046
                                                                WASHER, SPRING, M6
                                                                Fuel rail to plenum
                                                                from £0.47
                                                                from £0.47
                                                                WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                                                # 17
                                                                MPN: 692056
                                                                WASHER, PLAIM, M6
                                                                Fuel rail to plenum
                                                                from £0.47
                                                                from £0.47
                                                                WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                                # 18
                                                                MPN: 08-56134
                                                                TUBE ASSY, FUEL RAIL CONNECTING
                                                                from £101.02
                                                                from £101.02
                                                                ASSEMBLY TUBE F/RAIL CONN Genuine Aston Martin - New (to order)
                                                                # 19
                                                                MPN: 08-64776
                                                                COVER, FUEL RAIL
                                                                from £596.36
                                                                from £596.36
                                                                COVER - FUEL RAIL Genuine Aston Martin - New (to order)
                                                                # 20
                                                                MPN: 08-64973
                                                                KNOB
                                                                Fuel rail cover attach
                                                                from £80.64
                                                                from £80.64
                                                                KNOB Genuine Aston Martin - New (to order)
                                                                # 21
                                                                MPN: 08-20006
                                                                INJECTOR
                                                                from £98.44
                                                                from £98.44
                                                                INJECTOR Genuine Aston Martin - New (to order)
                                                                # 22
                                                                MPN: 39-72536
                                                                SENSOR, HEATED OXYGEN
                                                                from £174.72
                                                                from £174.72
                                                                LAMBDA SENSOR Genuine Aston Martin - New (to order)
                                                                # 23
                                                                MPN: 39-56136
                                                                electronic control module
                                                                from £2,200.95
                                                                from £2,200.95
                                                                ENGINE MANGMNT ECU Genuine Aston Martin - New (to order)
                                                                # 24
                                                                MPN: 08-56335
                                                                VALVE, IDLE SPEED CONTROL
                                                                from £480.08
                                                                from £480.08
                                                                ASSEMBLY IDLE AIR CNT VLV Genuine Aston Martin - New (to order)
                                                                # 25
                                                                MPN: 08-26152
                                                                O RING, SMALL
                                                                from £3.64
                                                                from £3.64
                                                                O RING Genuine Aston Martin - New (to order)
                                                                # 26
                                                                MPN: 08-26153
                                                                O RING, LARGE
                                                                from £3.89
                                                                from £3.89
                                                                O RING Genuine Aston Martin - New (to order)
                                                                # 27
                                                                MPN: 08-20012
                                                                SENSOR, CRANKSHAFT RPM
                                                                from £79.62
                                                                from £79.62
                                                                SENSR-CRANKSHAFT RPM Genuine Aston Martin - New (to order)
                                                                # 28
                                                                MPN: 39-70587
                                                                Purge valve, carbon canister
                                                                from £653.99
                                                                from £653.99
                                                                C/CANN PURGE VALVE Genuine Aston Martin - New (to order)
                                                                # 29
                                                                MPN: 08-20003
                                                                SENSOR, AIR TEMPERATURE
                                                                from £64.88
                                                                from £64.88
                                                                SENSOR-AIR TEMP Genuine Aston Martin - New (to order)
                                                                # 30
                                                                MPN: 08-20004
                                                                SENSOR, WATER TEMPERATURE
                                                                from £69.10
                                                                from £69.10
                                                                SENSOR-WATER TEMP Genuine Aston Martin - New (to order)
                                                                # 31
                                                                MPN: 39-56170
                                                                ABSOLUTE PRESSURE SENSOR
                                                                from £229.12
                                                                from £229.12
                                                                ABSOLUTE PRESS SENSR Genuine Aston Martin - New (to order)
                                                                # 32
                                                                MPN: 07-26412
                                                                DISTRIBUTOR, RH
                                                                from £419.51
                                                                from £419.51
                                                                DISTRIBUTOR RH Genuine Aston Martin - New (to order)
                                                                # 33
                                                                MPN: 07-25569
                                                                DISTRIBUTOR CAP, RH
                                                                from £1,046.19
                                                                from £1,046.19
                                                                DISTRIBUTOR CAP-RH Genuine Aston Martin - New (to order)
                                                                # 34
                                                                MPN: 07-26413
                                                                DISTRIBUTOR, LH
                                                                from £419.51
                                                                from £419.51
                                                                DISTRIBUTOR LH Genuine Aston Martin - New (to order)
                                                                # 35
                                                                MPN: 07-25570
                                                                DISTRIBUTOR CAP, LH
                                                                from £602.75
                                                                from £602.75
                                                                IMPULSE SENSOR Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                PICK UP ASSEMBLY
                                                                # -
                                                                -
                                                                TERMINAL BLOCK, HARNESS
                                                                # -
                                                                -
                                                                Timing disc
                                                                # -
                                                                -
                                                                SCREW, DISTRIBUTOR CAP TO BODY
                                                                # -
                                                                -
                                                                WASHER, DISTRIBUTOR CAP TO BODY
                                                                # -
                                                                -
                                                                CORK SEAL FOR SCREW
                                                                # -
                                                                -
                                                                ROTOR ARM
                                                                # -
                                                                -
                                                                O RING, DISTRIBUTOR OIL SEAL
                                                                # 36
                                                                MPN: 692800
                                                                NUT, NYLOC, M5
                                                                Distributors to front covers
                                                                from £0.47
                                                                from £0.47
                                                                NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                                                                # 37
                                                                MPN: 692055
                                                                WASHER, PLAIN, M5
                                                                Distributors to front covers
                                                                from £0.47
                                                                from £0.47
                                                                WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                                # 38
                                                                MPN: 07-26474
                                                                IGNITION MODULE
                                                                from £1,205.97
                                                                from £1,205.97
                                                                IGNITION MODULE Genuine Aston Martin - New (to order)
                                                                # 39
                                                                MPN: 08-56171
                                                                THROTTLE POTENTIOMETER
                                                                THROTTLE POTENTIOMETER Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                WATER SHIELD
                                                                # -
                                                                -
                                                                SCREW
                                                                # 40
                                                                MPN: 37-64800
                                                                SENSOR, FUEL TEMPERATURE
                                                                from £120.78
                                                                from £120.78
                                                                TEMPERATURE SWITCH Genuine Aston Martin - New (to order)
