aston martin v8 volante (1998) body fittings parts diagram

7.5A.2 - Body Fittings

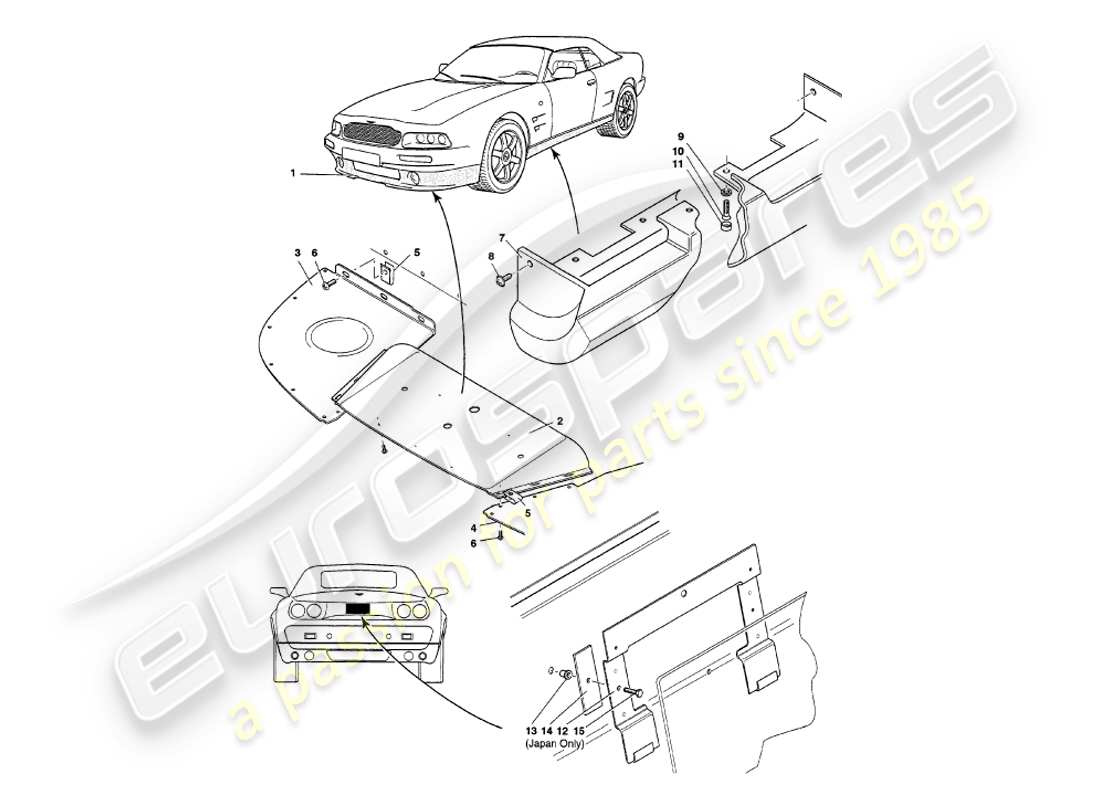

Aston Martin V8 Volante (1998) Body Fittings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 78-65545
            FRONT SPOILER ASSY
            ASSEMBLY FRONT SPOILER Genuine Aston Martin - New (to order)
            # -
            -
            STUD, BIGHEAD, M5X25
            Front spoiler to car
            # -
            -
            FREBOL
            Bighead stud to spoiler
            # -
            -
            NUT, M5
            Spoiler to car
            # -
            -
            WASHER, SPRF, M5
            Spoiler to car
            # -
            -
            WASHER, PLAIN, 3/16
            Spoiler to car
            # 2
            MPN: 78-56200
            Plate, venturi, front spoiler
            Plate, venturi, front spoiler Genuine Aston Martin - New (to order)
            # 3
            MPN: 78-64808
            PANEL, UNDERTRAY, RH
            from £222.33
            from £222.33
            PANEL U/TRAY RH 95MY Genuine Aston Martin - New (to order)
            # 4
            MPN: 78-64809
            PANEL, UNDERTRAY, LH
            from £222.33
            from £222.33
            PANEL U/TRAY LH 95MY Genuine Aston Martin - New (to order)
            # 5
            MPN: 691460
            NUT, SPIRE, NO.8
            Undertray and venturi
            NUT, SPIRE, NO.8 Genuine Aston Martin - New (to order)
            # 6
            MPN: 692011
            SCREW, FLG, NO.10 X 3/4
            Undertray and venturi
            from £0.47
            from £0.47
            SCREW NO10 X 3/4 FLANGE Genuine Aston Martin - New (to order)
            # 6
            MPN: 695563
            SCREW, FLG, M6X16
            Spoiler to front wheel arch flange
            SCREW, M6 X 16, HEATER UNIT TO FACIA Genuine Aston Martin - New (to order)
            # 6
            MPN: 692011
            SCREW, FLG, NO.10 X 3/4
            from £0.47
            from £0.47
            SCREW NO10 X 3/4 FLANGE Genuine Aston Martin - New (to order)
            # 6
            MPN: 696661
            SCREW, FLG, NO.10 X 1/2
            Stoneguard to front undertray
            from £0.47
            from £0.47
            SCREW NO10X1/2 FLANGE Genuine Aston Martin - New (to order)
            # -
            -
            NUT, SPIRE, NO.8
            Stoneguard to front undertray
            # 7
            MPN: 78-66625
            SILL COVER MOULDING, LH
            from £228.34
            from £228.34
            SILL COVER MOULDING LH Genuine Aston Martin - New (to order)
            # 7
            MPN: 78-66624
            SILL COVER MOULDING, RH
            from £228.34
            from £228.34
            SILL COVER MOULDING RH Genuine Aston Martin - New (to order)
            # -
            -
            SIKAFLEX 255 FC
            # -
            -
            POP-RIVET, 1/8 M/STEEL
            # 8
            MPN: 692011
            SCREW, FLG, NO.10 X 3/4
            Sill to body
            from £0.47
            from £0.47
            SCREW NO10 X 3/4 FLANGE Genuine Aston Martin - New (to order)
            # 9
            MPN: 693775
            WASHER, SCREW PROTECTION
            Sill lower attach
            from £0.47
            from £0.47
            WASHER -SCRW PROTECT Genuine Aston Martin - New (to order)
            # 10
            MPN: 691020
            SCREW, NO.8 X 1/2
            Sill lower attach
            from £0.47
            from £0.47
            SCREW NO8 X 1/2 PK Genuine Aston Martin - New (to order)
            # 11
            MPN: 693774
            CAP, SCREW PROTECTION
            Sill lower attach
            from £0.47
            from £0.47
            CAP - SCREW PROTECT Genuine Aston Martin - New (to order)
            # 12
            MPN: 78-83402
            SUPPORT PLATE ASSY, REAR NUMBER PLATE, JAPAN
            Japan only
            from £39.94
            from £39.94
            SUPPT PLT ASY-RR N/P Genuine Aston Martin - New (to order)
            # 13
            MPN: 693172
            RIVNUT, M5X15
            Japan only
            from £0.52
            from £0.52
            RIVNUT M5 X 15.0 LG Genuine Aston Martin - New (to order)
            # 14
            MPN: 78-56467
            SPECIAL WASHER
            Japan only
            SPECIAL WASHER Genuine Aston Martin - New (to order)
            # 15
            MPN: 696493
            SCREW, M5X16 STAINLESS STEEL
            Japan only
            from £0.47
            from £0.47
            SCREW M5X16 HEX HD SS Genuine Aston Martin - New (to order)
