7.4B - Door Glass & Frames

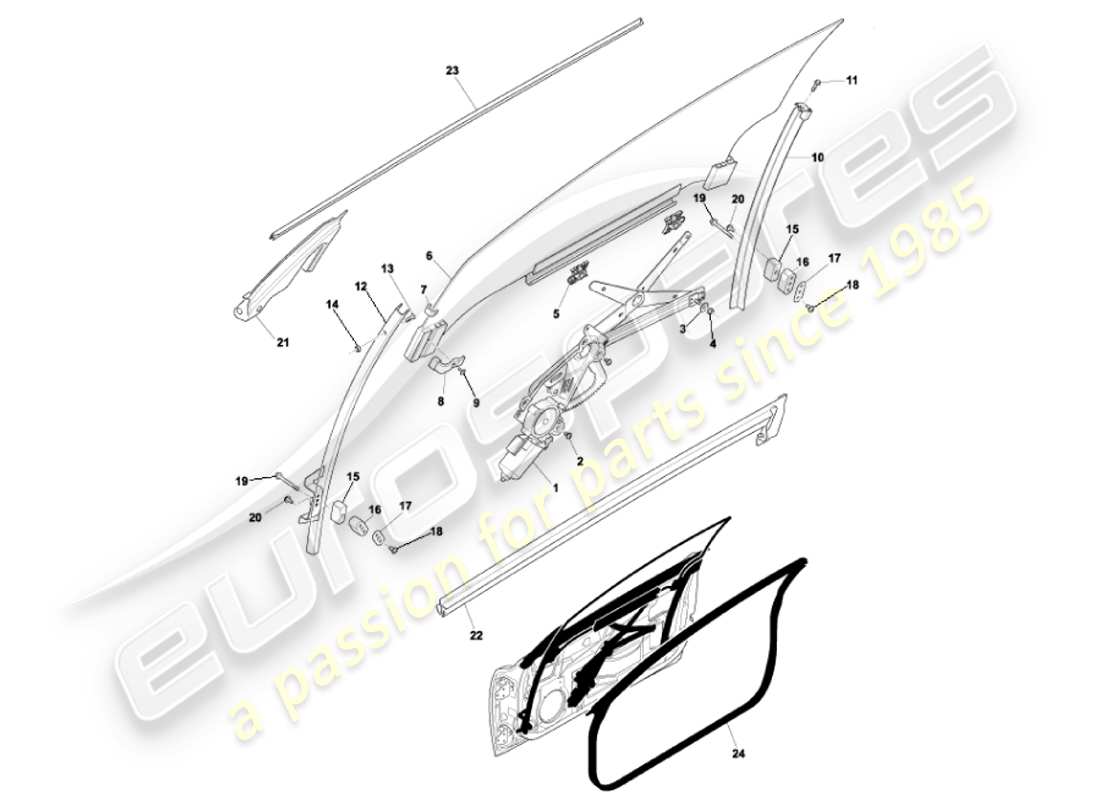

Aston Martin Vanquish (2001) Door Glass & Frames Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 1R12-65-10153
MECHANISM, DOOR GLASS, RH
from £1,034.97
from £1,034.97
# 1
MPN: 1R12-65-10154
MECHANISM, DOOR GLASS, LH
from £1,034.97
from £1,034.97
# 2
MPN: 700232
SCREW, PAN HD TORX M6X16
from £4.34
from £4.34
# 3
MPN: 700236
WASHER, PLAIN, 6.4X12
from £0.47
from £0.47
# 4
MPN: 700251
NUT, M6
# 5
MPN: 1R12-65-10155
SLIDE BAR
from £51.03
from £51.03
# 6
MPN: 1R12-760156-AB
Glass assy, front door window - RH
# 6
MPN: 1R12-760155-AB
Glass assy, front door window - LH
# 7
-
ANTI RATTLE BUFFER, DOOR GLASS
# 8
-
SLIDER CLAMP
# 9
-
SCREW, FLG TORX
NSS
# 10
MPN: 1R12-650160-AA
Glass run assy, door, rear, RH
from £181.10
from £181.10
# 10
MPN: 1R12-651035-AA
GUIDE RAIL, REAR, RH
# 10
MPN: 1R12-650159-AA
Glass run assy, door, rear, LH
from £181.10
from £181.10
# 10
MPN: 1R12-651034-AA
GUIDE RAIL, REAR, LH
# 11
MPN: 700132
SCREW
# 12
MPN: 1R12-650158-AC
Glass run assy, door, front, RH
from £1,038.96
from £1,038.96
# -
-
GUIDE RAIL, FRONT, RH
# 12
MPN: 1R12-650157-AC
Glass run assy, door, front, LH
from £1,038.96
from £1,038.96
# -
-
GUIDE RAIL, FRONT, LH
# 13
MPN: 700153
SCREW, CSK, M6
from £9.61
from £9.61
# 14
MPN: 700251
NUT, HEX, M6
# 15
-
ADJUSTMENT BLOCK, WINDOW LIFT DOOR GLASS, OTR
NSS
# 16
-
ADJUSTMENT BLOCK, WINDOW LIFT DOOR GLASS, INR
NSS
# 17
-
GASKET, ADJUSTABLE WINDOW LIFT DOOR GLASS
NSS
# 18
MPN: 700252
SCREW, M6X14 TORX
from £0.47
from £0.47
# 19
-
ROD ADJUSTER, DOOR GLASS
NSS
# 20
MPN: 700232
SCREW, FLG HD TORX, M6X16
from £4.34
from £4.34
# 21
MPN: 1R12-770000-AC
CHEATER SEAL, DOOR, RH
from £214.18
from £214.18
# 21
MPN: 1R12-770001-AC
CHEATER SEAL, DOOR, LH
from £214.18
from £214.18
# 22
MPN: 1R12-770118-AB
WEATHERSTRIP ASSY, FRONT DOOR BELT INNER, RH
from £105.66
from £105.66
# 22
MPN: 1R12-770119-AB
WEATHERSTRIP ASSY, FRONT DOOR BELT INNER, LH
from £105.66
from £105.66
# 23
MPN: 1R12-770116-AB
WEATHERSTRIP ASSY, FRONT DOOR BELT OUTER, RH
from £261.49
from £261.49
# 23
MPN: 1R12-770117-AB
WEATHERSTRIP ASSY, FRONT DOOR BELT OUTER, LH
from £249.03
from £249.03
# 24
MPN: 1R12-770114-AD
WEATHERSTRIP ASSY, FRONT DOOR OPENING, RH
# 24
MPN: 1R12-770115-AD
WEATHERSTRIP ASSY, FRONT DOOR OPENING, LH
