1.2 - Crankshaft, Pistons & Rods

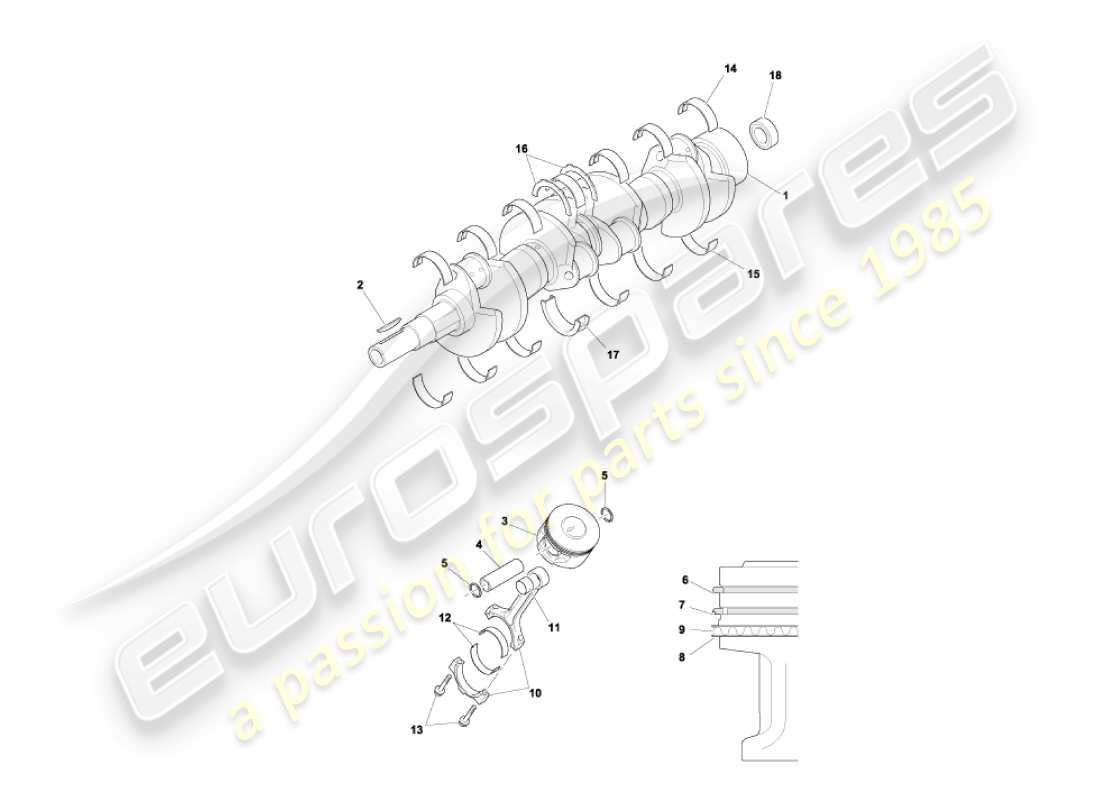

Aston Martin Vanquish (2002) Crankshaft, Pistons & Rods Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 1R1E-6303-DB
crankshaft
# 2
MPN: 02-85008
KEY, CRANKSHAFT, 4.76 X 53.5
from £17.71
from £17.71
# -
-
PISTON AND CONNECTING ROD ASSEMBLY
# -
-
PISTON AND CONNECTING ROD ASSEMBLY
Vanquish S From (V) 501506
# 3
MPN: 1R12-02-10059
PISTON
from £215.93
from £215.93
# 3
MPN: 4G43-02-10195
PISTON
Vanquish S From (V) 501506
# 4
MPN: 02-85010
PIN, PISTON
# 4
MPN: 5R13-6135-AA
PIN, PISTON
Vanquish S From (V) 501506
from £61.85
from £61.85
# 5
MPN: 02-85136
RETAINER, PISTON PIN
# 5
MPN: 2X4E-6140-AA
RETAINER, PISTON PIN
Vanquish S From (V) 501506
# 6
MPN: 1R12-02-10060
PISTON RING, COMPRESSION, UPPER
from £25.62
from £25.62
# 7
MPN: 02-85013
PISTON RING, COMPRESSION, LOWER
from £12.76
from £12.76
# 8
MPN: 02-85014
SEGMENT, PISTON RING, OIL CONTROL
from £7.12
from £7.12
# 9
MPN: 02-85015
SPACER, PISTON RING, OIL CONTROL
from £6.53
from £6.53
# 10
MPN: 1R12-02-10162
CONNECTING ROD ASSEMBLY
# 10
MPN: 5R13-6200-BA
CONNECTING ROD ASSEMBLY
Vanquish S From (V) 501506
from £658.36
from £658.36
# 11
MPN: 02-85135
BUSHING, CONNECTING ROD
# 11
MPN: 5R13-6207-AA
BUSHING, CONNECTING ROD
Vanquish S From (V) 501506
from £6.19
from £6.19
# 12
MPN: 6E5E-6211-AB
BEARING, CONNECTING ROD
from £14.75
from £14.75
# -
-
BEARING, CONNECTING ROD, 0.25
0.25mm undersized
# 13
MPN: 02-85018
BOLT, CONNECTING ROD
ALWAYS REPLACE. DO NOT RE-USE
from £11.20
from £11.20
# 13
MPN: 1R12-02-10677
BOLT, CONNECTING ROD
Vanquish S From (V) 501506
from £33.50
from £33.50
# 14
MPN: 4R3E-6333-AA
BEARING, CRANKSHAFT, MAIN, UPPER - GRADE 1
from £6.84
from £6.84
# 14
MPN: 4R3E-6333-BA
BEARING, CRANKSHAFT, MAIN, UPPER - GRADE 2
from £9.70
from £9.70
# 14
MPN: 4R3E-6333-CA
BEARING, CRANKSHAFT, MAIN, UPPER - GRADE 3
from £16.51
from £16.51
# 15
MPN: 4R3E-6A338-AA
BEARING, CRANKSHAFT, MAIN, LOWER
Supersession
Supersession
# 15
MPN: 4R3E-6A338-BA
BEARING, CRANKSHAFT, MAIN, LOWER (.012)
from £11.48
from £11.48
# 15
MPN: 4R3E-6A338-CA
BEARING, CRANKSHAFT, MAIN, LOWER (.014)
from £16.51
from £16.51
# 16
MPN: 4W7E-6A341-AA
WASHER, THRUST, CRANKSHAFT, UPPER
Supersession
Supersession
# 17
MPN: 4R3E-6A339-AA
WASHER, THRUST, CRANKSHAFT, LOWER
from £10.83
from £10.83
This part replaces part number 02-85022
# 17
MPN: 4R3E-6A339-BA
WASHER, THRUST, CRANKSHAFT, LOWER
from £33.81
from £33.81
# 17
MPN: 4R3E-6A339-CA
WASHER, THRUST, CRANKSHAFT, LOWER
from £17.43
from £17.43
# 18
MPN: 1R12-02-10061
BEARING, PILOT
Not supplied with a new crankshaft or engine.
from £19.58
from £19.58
