6.5B - Electronic Control Modules

Aston Martin Vanquish (2002) Electronic Control Modules Parts Diagram

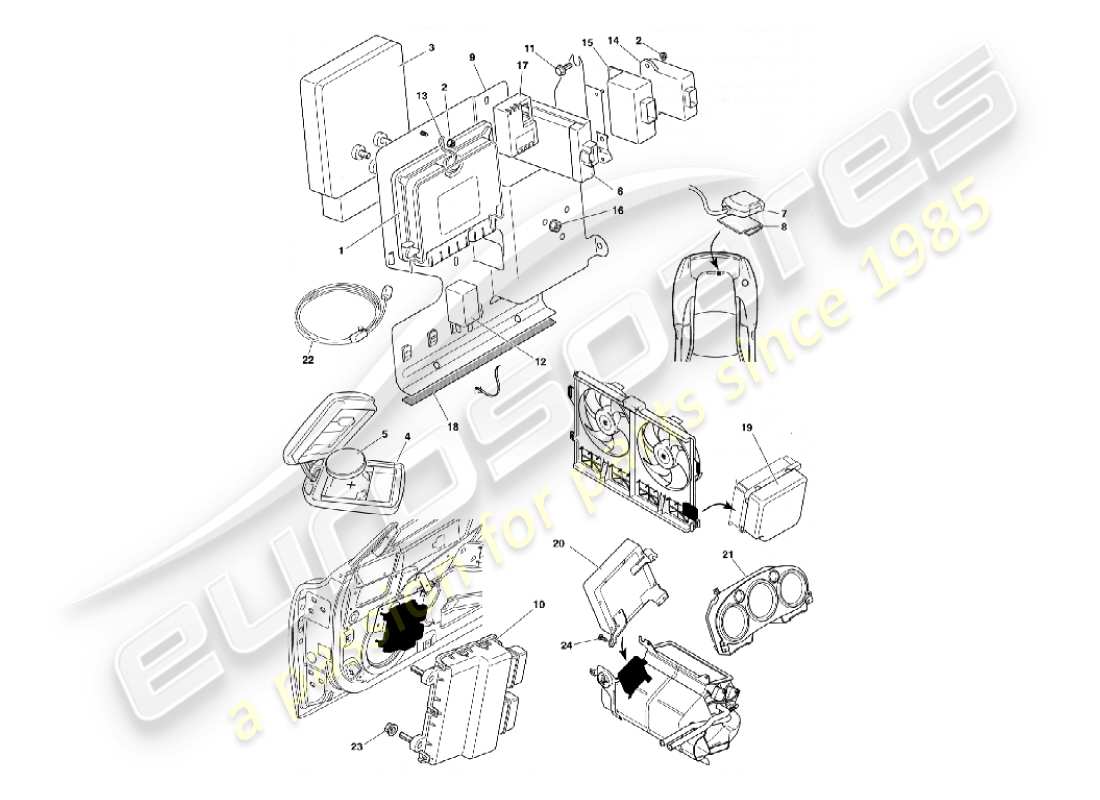

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 1R12-370188-AA
                                      MODULE, TRANSMISSION CONTROL - UNLEADED FUEL
                                      RoW
                                      MODULE, TRANSMISSION CONTROL - UNLEADED FUEL Genuine Aston Martin - New (to order)
                                      # 1
                                      MPN: 5R13-370188-AA
                                      MODULE, TRANSMISSION CONTROL - UNLEADED FUEL
                                      Vanquish S From (V) 501506
                                      MODULE, TRANSMISSION CONTROL - UNLEADED FUEL Genuine Aston Martin - New (to order)
                                      # 1
                                      MPN: 4R13-376339-AA
                                      MODULE, TRANSMISSION CONTROL - UNLEADED FUEL
                                      USA/Canada
                                      MODULE, TRANSMISSION CONTROL - UNLEADED FUEL Genuine Aston Martin - New (to order)
                                      # 2
                                      MPN: 700114
                                      NUT, FLG, M5
                                      from £86.01
                                      from £86.01
                                      NUT, FLANGED, M5 Genuine Aston Martin - New (to order)
                                      FRONT HUB SPACER Genuine Ferrari Part - New (to order)
                                      # 3
                                      MPN: 1R12-37-10220P
                                      MODULE, BODY PROCESSOR
                                      Up to (V) 500515 + 500522-525
                                      from £563.90
                                      from £563.90
                                      MODULE, BODY PROCESSOR Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: 1R12-37-10306P
                                      MODULE, BODY PROCESSOR
                                      From (V) 500516-21 + 526 onwards Up to (V) 501285
                                      MODULE, BODY PROCESSOR Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: 1R12-37-10444P
                                      MODULE, BODY PROCESSOR
                                      From (V) 501286
                                      from £918.99
                                      from £918.99
                                      MODULE, BODY PROCESSOR Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 1R12-371010-AA
                                      Key fob transmitter, 315 Mhz
                                      from £248.07
                                      from £248.07
                                      Key fob transmitter, 315 Mhz Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 1R12-371012-AA
                                      Key fob transmitter, 315 Mhz low power
                                      from £248.07
                                      from £248.07
                                      Key fob transmitter, 315 Mhz low power Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 1R12-371011-AB
                                      Key fob transmitter, 433 Mhz
                                      from £412.06
                                      from £412.06
                                      Key fob transmitter, 433 Mhz Genuine Aston Martin - New (to order)
                                      # 5
                                      -
                                      BATTERY - REMOTE CONTROL TRANSMITTER
                                      # 6
                                      MPN: 37-85424
                                      MODULE, PATS CONTROL
                                      from £154.12
                                      from £154.12
                                      MODULE, PATS CONTROL Genuine Aston Martin - New (to order)
                                      # -
                                      -
                                      BRACKET, PATS MODULE
                                      LHD
                                      # 7
                                      MPN: 1R12-37-10024
                                      ANTENNA, GPS
                                      from £168.28
                                      from £168.28

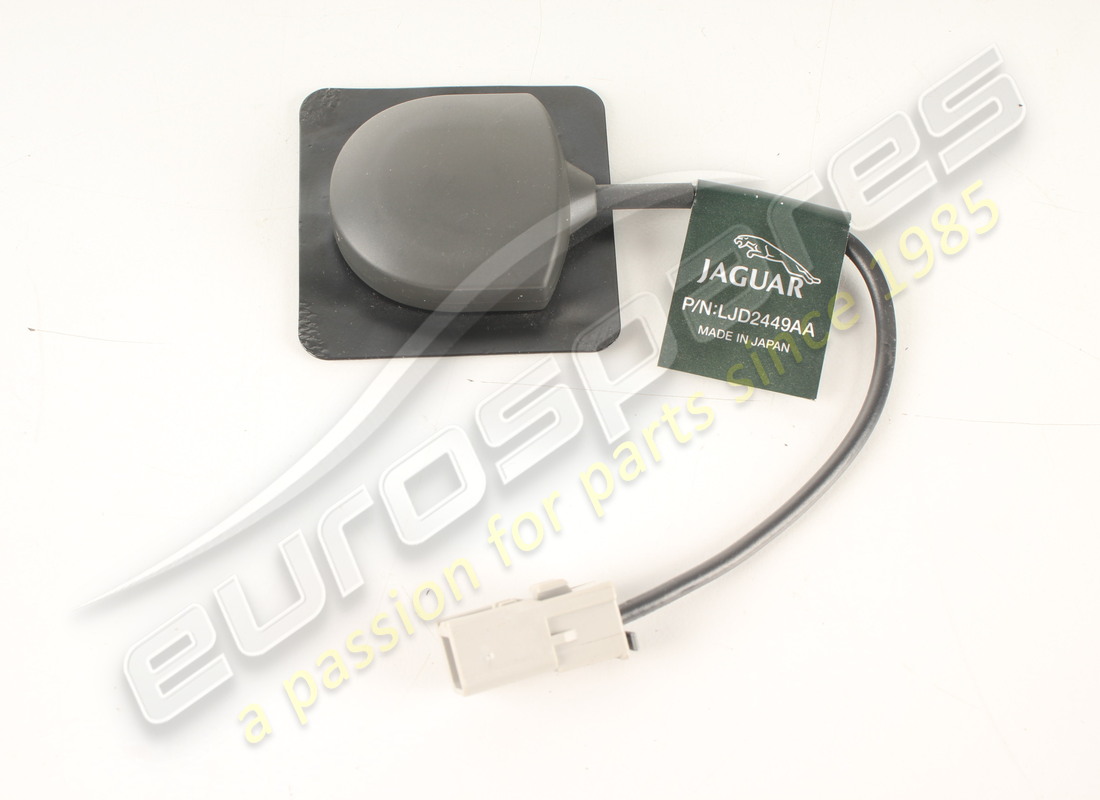

                                      GPS ANTENNA ASSEMBLY Genuine Aston Martin - New (to order)
                                      GPS ANTENNA ASSEMBLY Genuine Aston Martin - Used In stock
                                      # 7
                                      MPN: 1R12-374477-AA
                                      EXTENSION LEAD, GPS ANTENNA
                                      Up to (V) 501948
                                      from £29.02
                                      from £29.02
                                      EXTENSION LEAD, GPS ANTENNA Genuine Aston Martin - New (to order)
                                      # 8
                                      MPN: 1R12-374020-AA
                                      BRACKET, GPS ANTENNA
                                      from £17.03
                                      from £17.03
                                      BRACKET, GPS ANTENNA Genuine Aston Martin - New (to order)
                                      # 9
                                      MPN: 1R12-381654-AF
                                      BRACKET ASSY, MODULES, RHD COMPLETE
                                      RHD
                                      from £152.72
                                      from £152.72
                                      BRACKET ASSEMBLY, MODULES, RHD COMPLETE Genuine Aston Martin - New (to order)
                                      # 9
                                      MPN: 1R12-381655-AF
                                      BRACKET ASSY, MODULES, (LHD PASS FOOTWELL)
                                      LHD
                                      from £132.83
                                      from £132.83
                                      BRACKET ASSEMBLY, MODULES, (LHD PASS FOOTWELL) Genuine Aston Martin - New (to order)
                                      # 10
                                      MPN: 1R12-37-10224P
                                      DOOR MODULE
                                      Programmed to Car
                                      from £250.30
                                      from £250.30
                                      DOOR MODULE Genuine Aston Martin - New (to order)
                                      # -
                                      -
                                      BRACKET ASSY, DOOR MODULE, RH
                                      # -
                                      -
                                      BRACKET ASSY, DOOR MODULE, LH
                                      # 11
                                      MPN: 700108
                                      SCREW, M6X25
                                      from £9.99
                                      from £9.99
                                      SCREW, M6X25 Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 1R12-370797-AB
                                      MODULE, PAS CONTROL
                                      from £220.32
                                      from £220.32
                                      MODULE, PAS CONTROL Genuine Aston Martin - New (to order)
                                      # 13
                                      MPN: 1R12-383331-AB
                                      CLAMP, TCU
                                      CLAMP, TCU Genuine Aston Martin - New (to order)
                                      # 14
                                      MPN: 1R12-37-10026
                                      MODULE, RAIN SENSOR
                                      from £36.82
                                      from £36.82
                                      MODULE, RAIN SENSOR Genuine Aston Martin - New (to order)
                                      # 15
                                      MPN: 1R12-37-10027
                                      MODULE, KEY TRANSPONDER
                                      from £404.89
                                      from £404.89
                                      MODULE, KEY TRANSPONDER Genuine Aston Martin - New (to order)
                                      # -
                                      -
                                      SPIRE CLIP, NO 6
                                      # 17
                                      MPN: 1R12-37-10028
                                      MODULE, DIMMER
                                      from £186.62
                                      from £186.62
                                      MODULE, DIMMER Genuine Aston Martin - New (to order)
                                      # 18
                                      MPN: 1R12-372469-AA
                                      FOAM STRIP
                                      from £0.47
                                      from £0.47
                                      FOAM STRIP Genuine Aston Martin - New (to order)
                                      # 19
                                      MPN: 1R12-37-10331
                                      MODULE, FAN SPEED CONTROL
                                      Up to (V) 500515 + 500522-525
                                      from £162.58
                                      from £162.58
                                      MODULE, FAN SPEED CONTROL Genuine Aston Martin - New (to order)
                                      # 20
                                      MPN: 1R12-37-10029
                                      MODULE, AIR CONDITIONING
                                      from £1,609.96
                                      from £1,609.96
                                      MODULE, AIR CONDITIONING Genuine Aston Martin - New (to order)
                                      # -
                                      -
                                      PROTECTIVE COVER, A/C ECU
                                      # 21
                                      MPN: 1R12-370202-AB
                                      INSTRUMENT PACK, MPH
                                      INSTRUMENT PACK, MPH Genuine Aston Martin - New (to order)
                                      # 21
                                      MPN: 1R12-370203-AB
                                      INSTRUMENT PACK, KMH
                                      INSTRUMENT PACK, KMH Genuine Aston Martin - New (to order)
                                      # 22
                                      MPN: 1R12-375247-AA
                                      GPS LINKHEAD GROMMET
                                      from £9.71
                                      from £9.71
                                      GROMMET, GPS LINK LEAD Genuine Aston Martin - New (to order)
                                      # 24
                                      MPN: 692011
                                      SCREW, FLG, NO 10X3/4
                                      from £0.47
                                      from £0.47
                                      SCREW NO10 X 3/4 FLANGE Genuine Aston Martin - New (to order)
